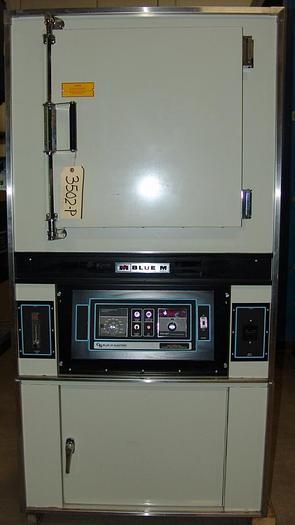

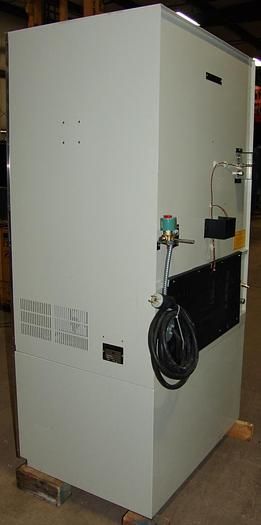

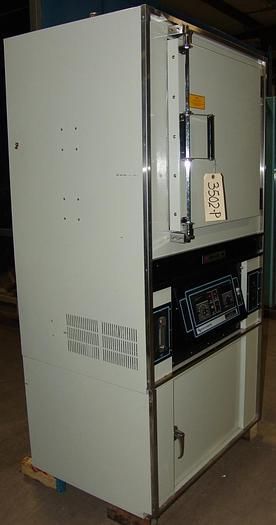

16.5''W x 19.7"H x 18"L Blue M 206 Inert Gas Clean Room Cabinet Oven, 500°F, 208V Single Phase

Description: Blue M Model 206 Inert Gas Clean Room Cabinet Oven, 16.5" W × 19.7" H × 18" L. Electric clean-room cabinet oven designed for inert gas operation and uniform heating up to 500°F (250°C).

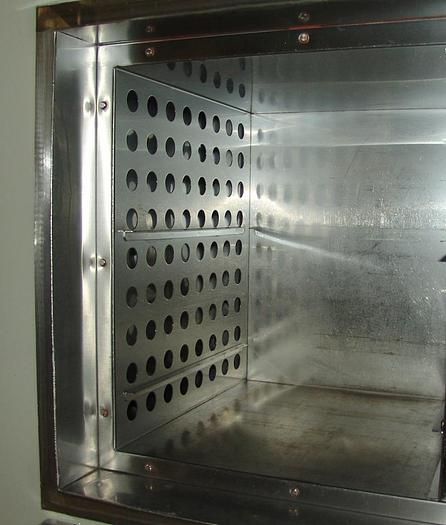

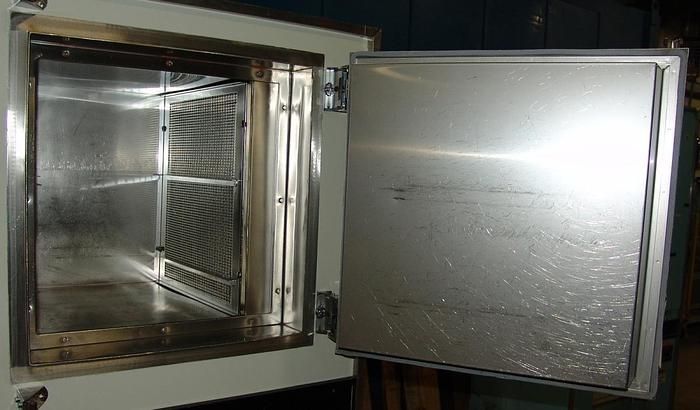

Key Components & Features: Single front door with two-point cam-action latch. Silicone rubber door gasket for tight seal. Stainless steel interior with two shelf brackets (no shelves included). Removable HEPA air filter on right side for continuous air filtration. Direct-driven circulating fan. Coiled-style heating elements mounted under floor pan. Horizontal airflow pattern across chamber. Inert gas introduced at fan shaft for uniform distribution. Chamber vent port for moisture or particulate exhaust (close during inert gas use). Water-cooled coil under floor pan for rapid cooling and temperature control below 100°C.

Manufacturer: Blue M Model No.: 206 Serial No.: 20X-158-90

Fuel Type: Electric Capacity / Output: 16.5" W × 19.7" H × 18" L Maximum Temperature: 250°C / 482°F

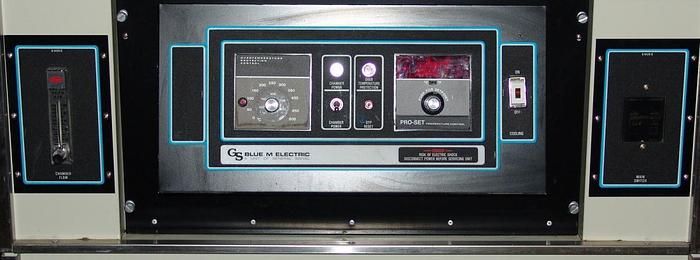

Control Panel: Slide-out console located beneath work area Temperature Controls: Blue M Pro Set digital programmable temperature controller Safety Controls: United Electric non-indicating high limit Flow Controls: 0–100 CFH flow meter Electrical Components: Main power circuit breaker, control power switch with indicating light

Power Requirements: 208 V / 1 Ph / 60 Hz / 18 Amps / 3 kW

Overall Dimensions: 36" Wide × 34" Deep × 70" High (on 20" storage stand)
