16"W x 16"H x 13"L, Blue M CFD-10E-7 Bench Top Style, 1200°F, Electric

Description: Blue M CFD-10E-7 Bench Top Style Oven, 16" W × 16" H × 13" L. Electric bench-top oven designed for uniform heating up to 1200°F. Unit has been tested and is ready to ship.

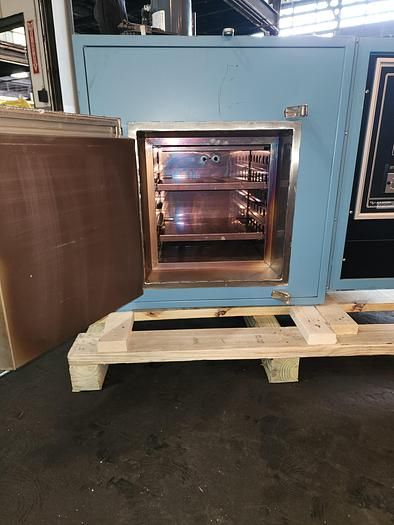

Key Components & Features: Single front door with two cam-action positive seal latches. Ceramic/metal door gasketing for tight seal. Stainless steel interior. Five (5) shelf brackets with two (2) shelves included. Coiled-style heating elements. Circulating fan mounted above the work area. Horizontal airflow pattern across the chamber.

Manufacturer: Blue M Model No.: CFD-10E-7 Serial No.: CFD-148

Fuel Type: Electric Capacity / Output: 16" W × 16" H × 13" L Maximum Temperature: 1200°F

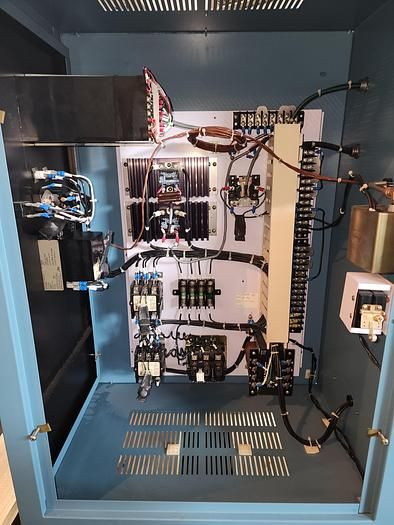

Control Panel: Enclosure mounted to right-hand side of oven Temperature Controls: Honeywell UDC 3000 Versa Pro digital temperature controller Safety Controls: United Electric analog high limit Electrical Components: Crydom solid-state relays, high-limit contactor, rear-mounted fused disconnect

Power Requirements: 208 V / 3 Ph / 60 Hz / 17 Amps

Overall Dimensions: 56" Wide × 45" High × 35" Deep
