18"W x 5"H x 10'L Conveyor Oven, Electric, 500°F

Description:

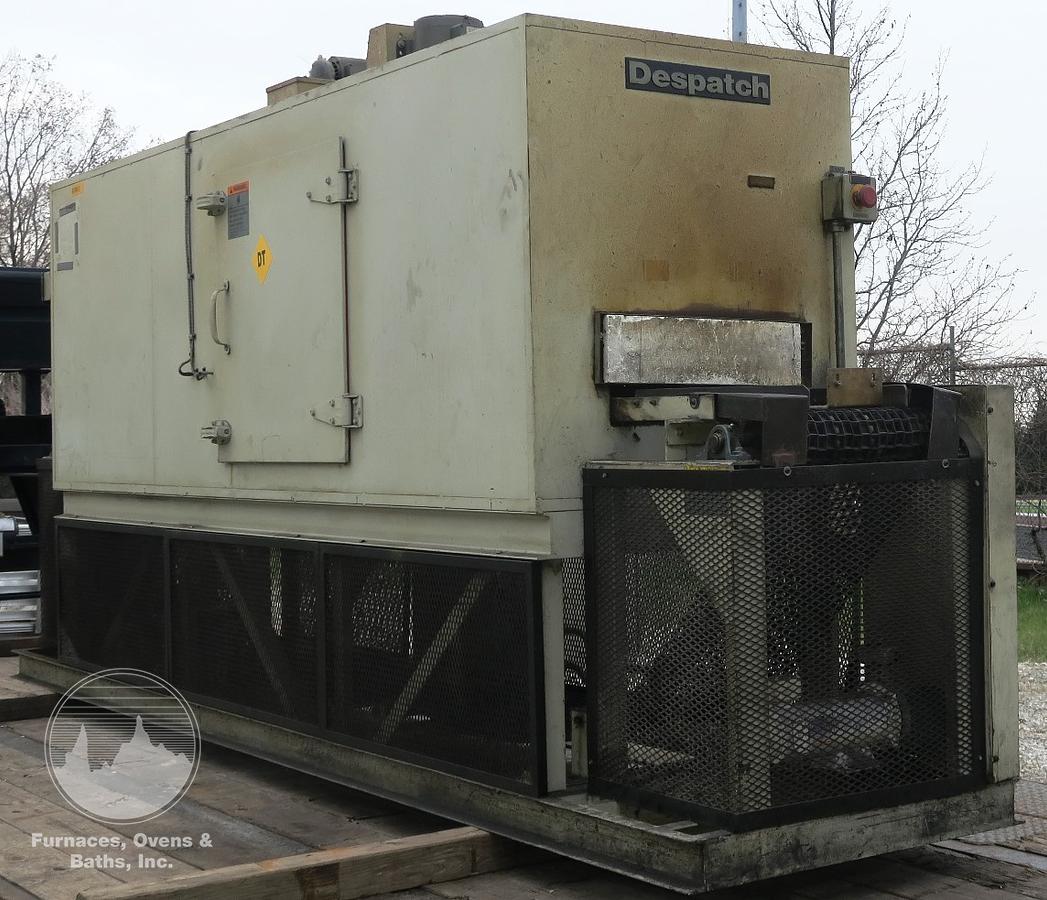

Despatch Special PCC Conveyor Oven, 18" W × 5" H × 10' L. Variable-speed electric conveyor oven designed for uniform heating applications up to 500°F.

Key Components & Features:

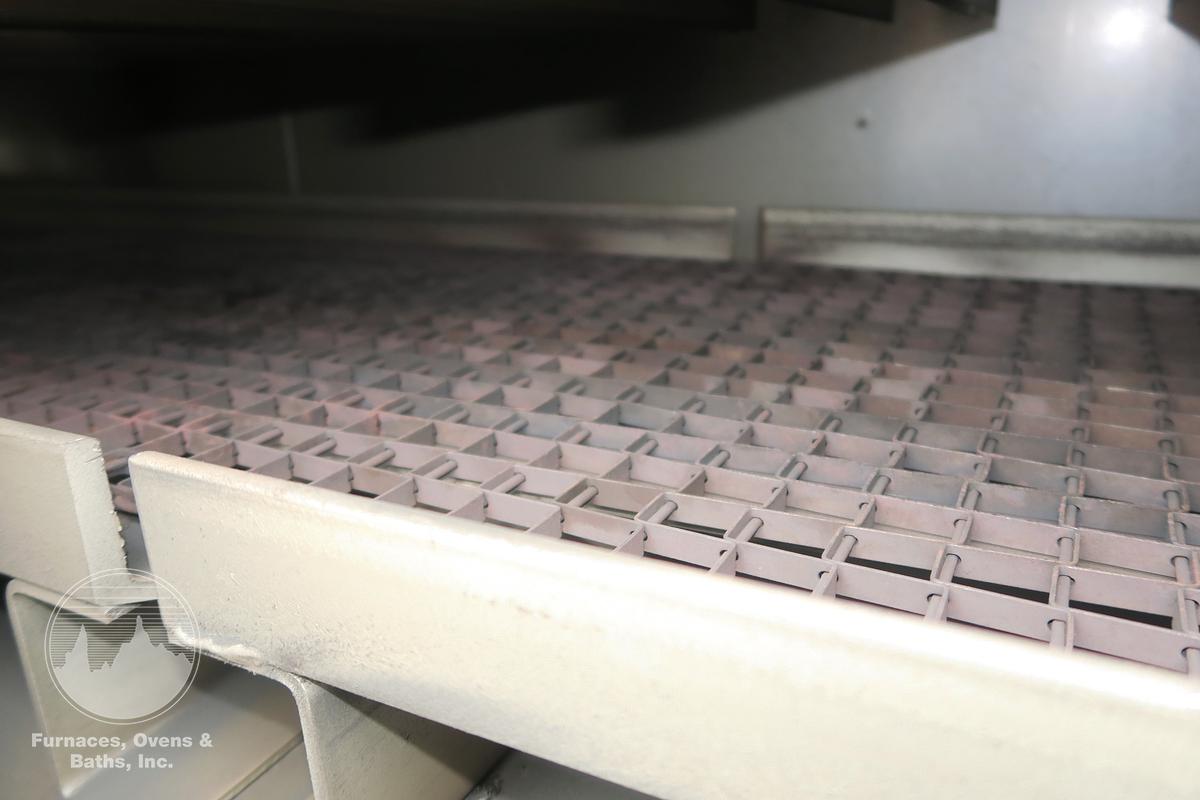

Flat wire conveyor belt with 1" × 1" openings.
DC motor / speed reducer belt drive with speed control potentiometer and digital speed readout.
24" long load table at entrance.
24" long unload table.
Aluminized steel interior.

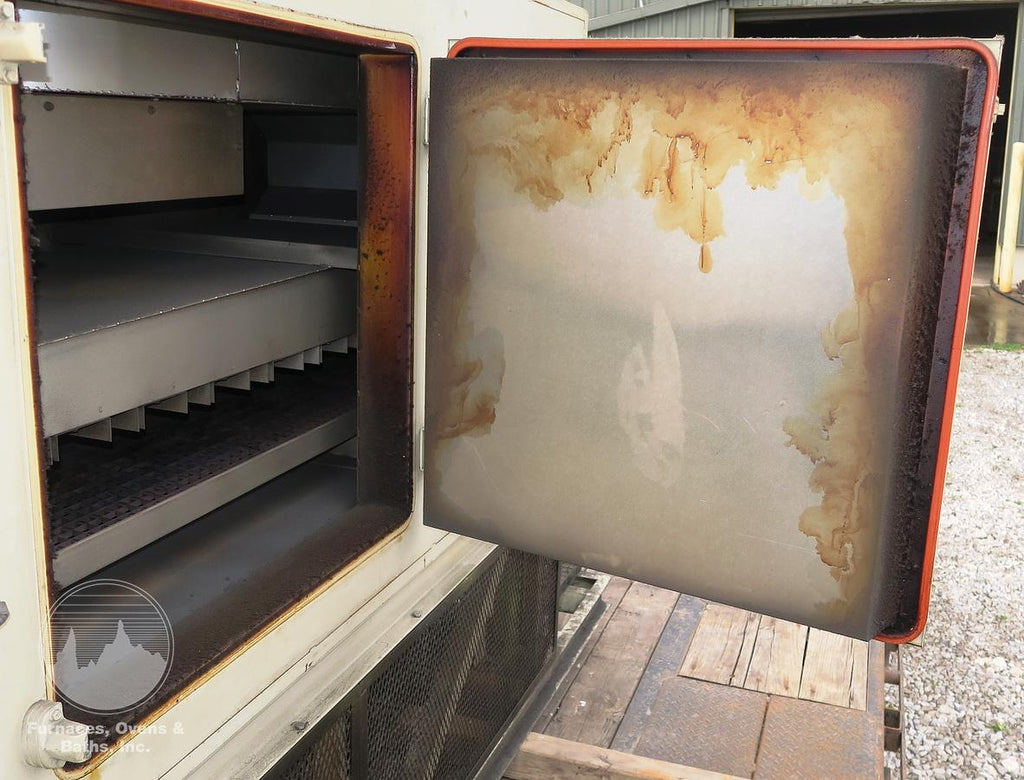

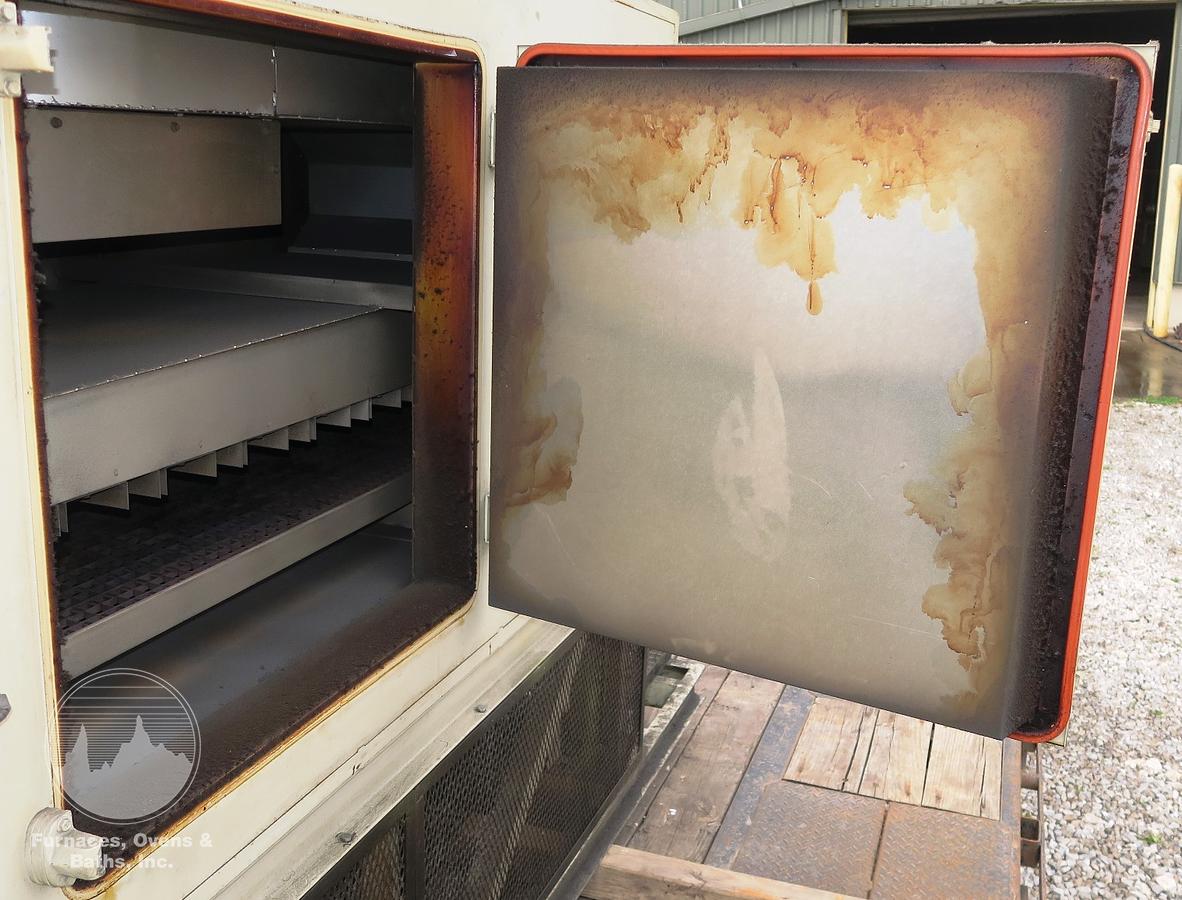

Side access door.
Coiled-style heating elements mounted above work chamber.
Roof-mounted circulating fan.
Top-down airflow pattern through adjustable louvered air ducts and down through belt for uniform heating.
Powered exhaust fan mounted on top.
Electrical drawings included.

Manufacturer: Despatch
Model No.: Special PCC
Serial No.: 156688-L

Fuel Type: Electric
Capacity / Output: 18" W × 5" H × 10' L
Maximum Temperature: 500°F

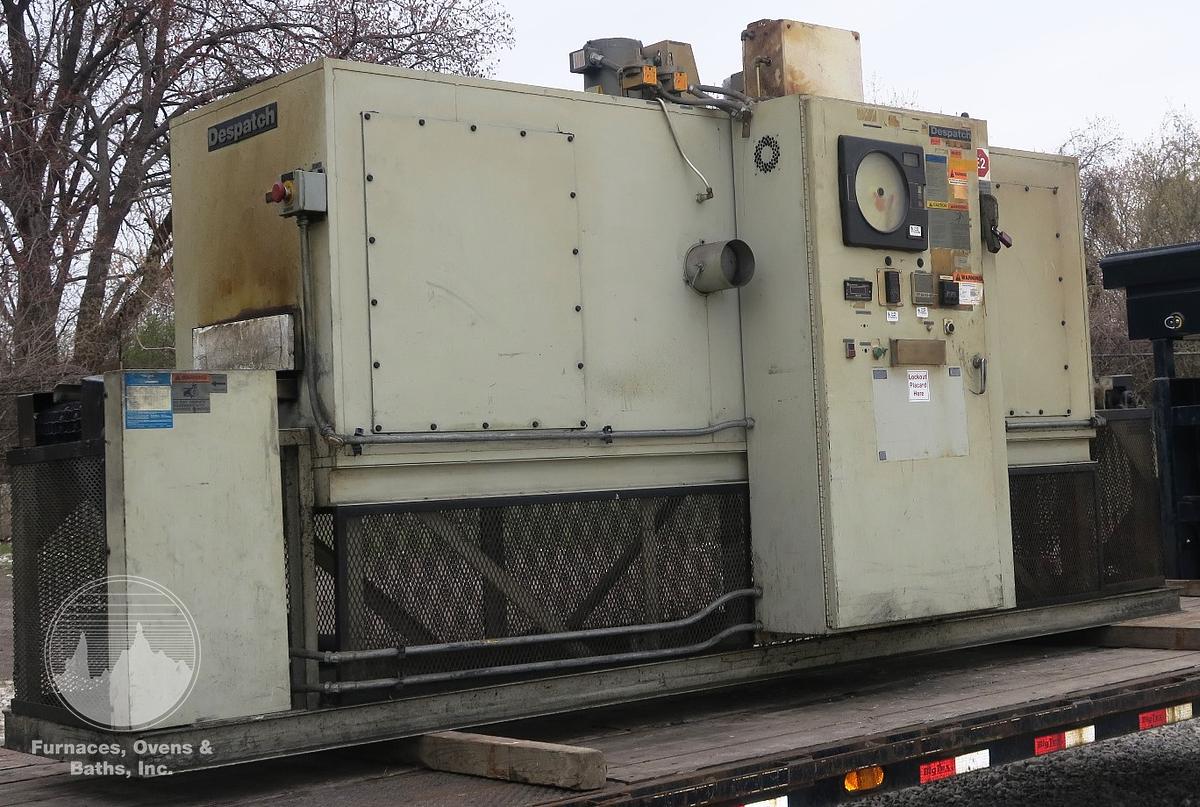

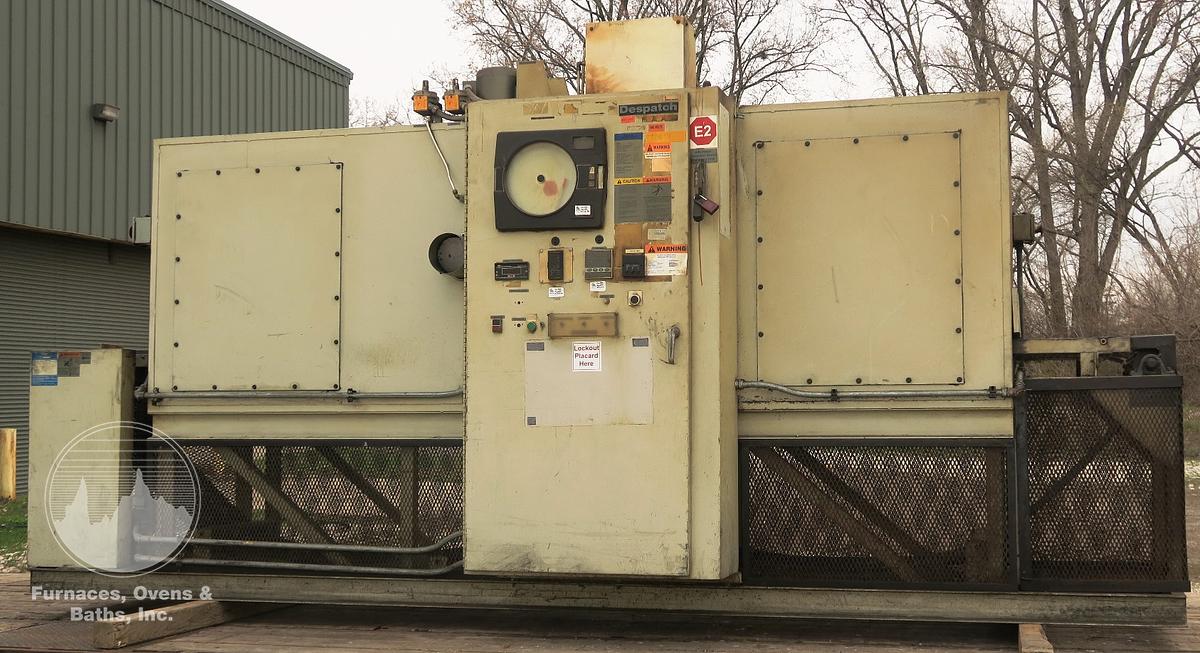

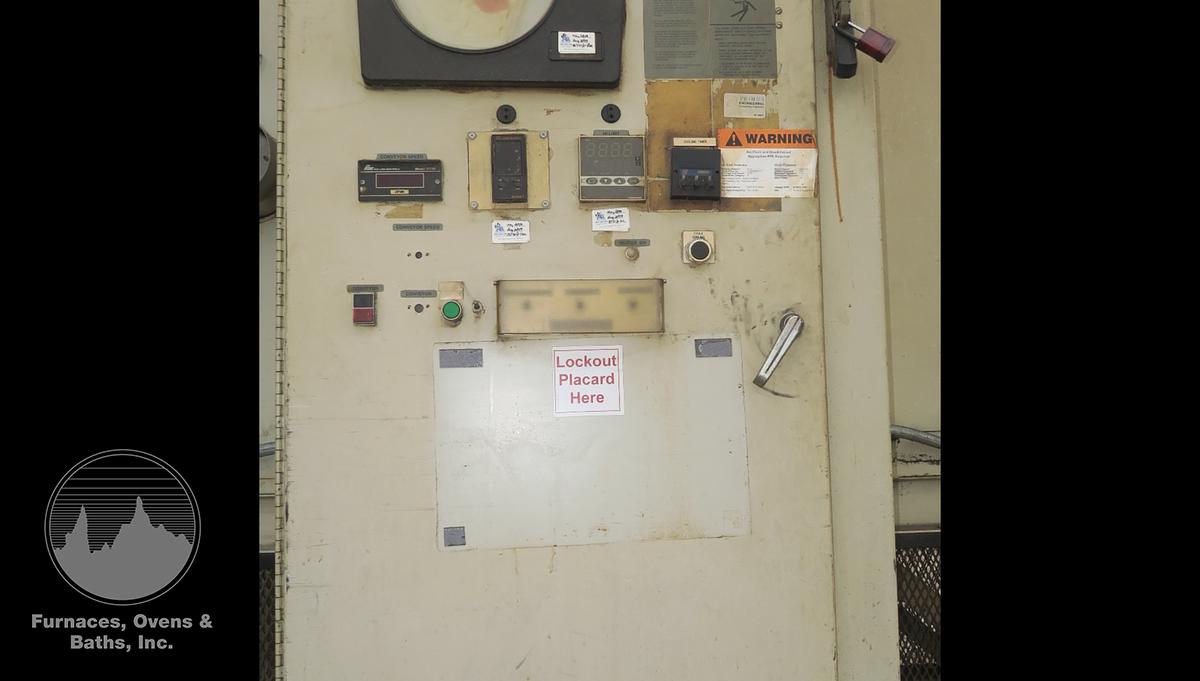

Control Panel: Side-mounted enclosure with flange-mounted fused disconnect handle
Temperature Controls: SSi digital temperature controller
Safety Controls: Shimaden digital high limit
Instrumentation: Partlow MRC 7000 round chart temperature recorder; Red Lion belt speed indicator
Controls: Extron Series 100 DC motor control
Electrical Components: Solid state relays, high limit contactor, motor starters, fuses

Power Requirements: 480 V / 3 Ph / 60 Hz / 12 kW / 21 FLA

Overall Dimensions: 58" Wide × 7'1" High × 14'4" Long
