24"W x 9" High x 12' Long, Electric, 450-F, 2 Zone w/Cooling

Description:

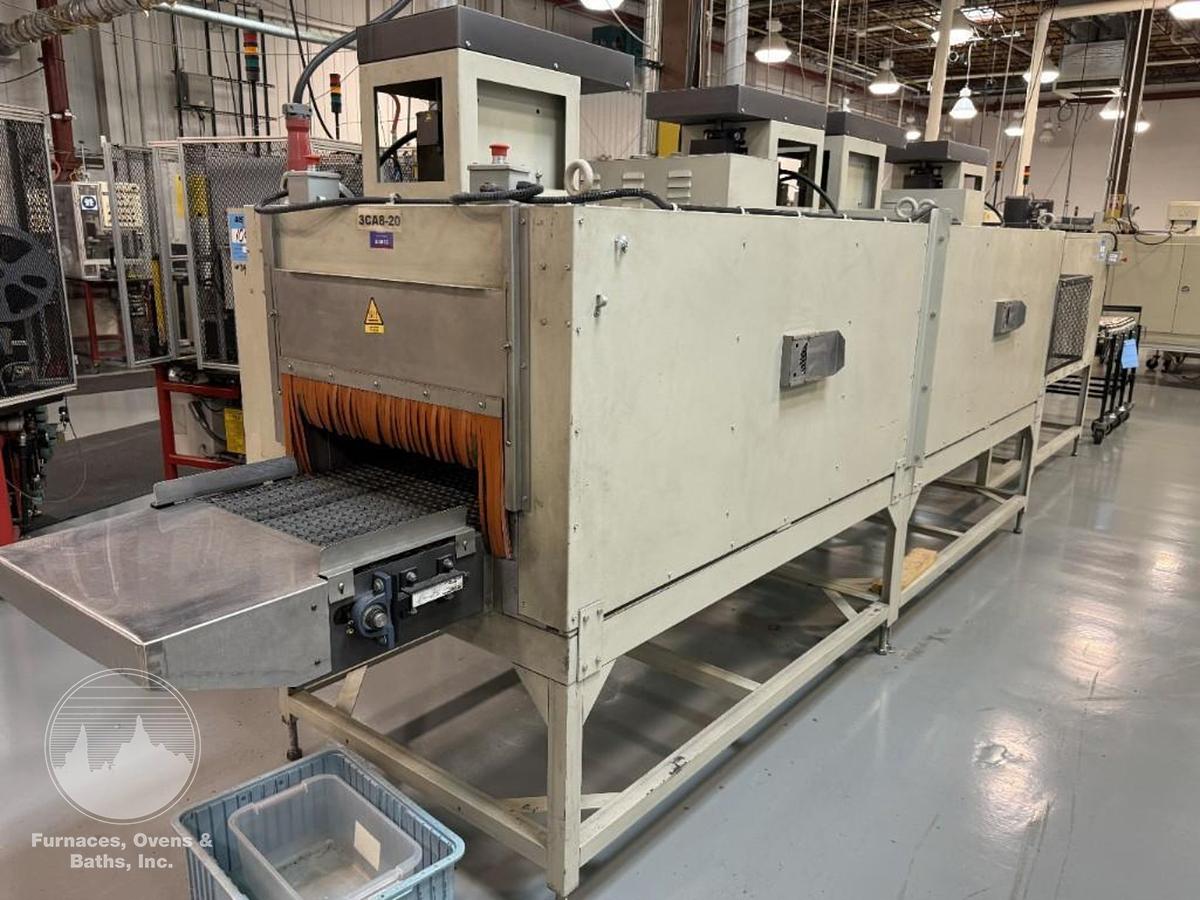

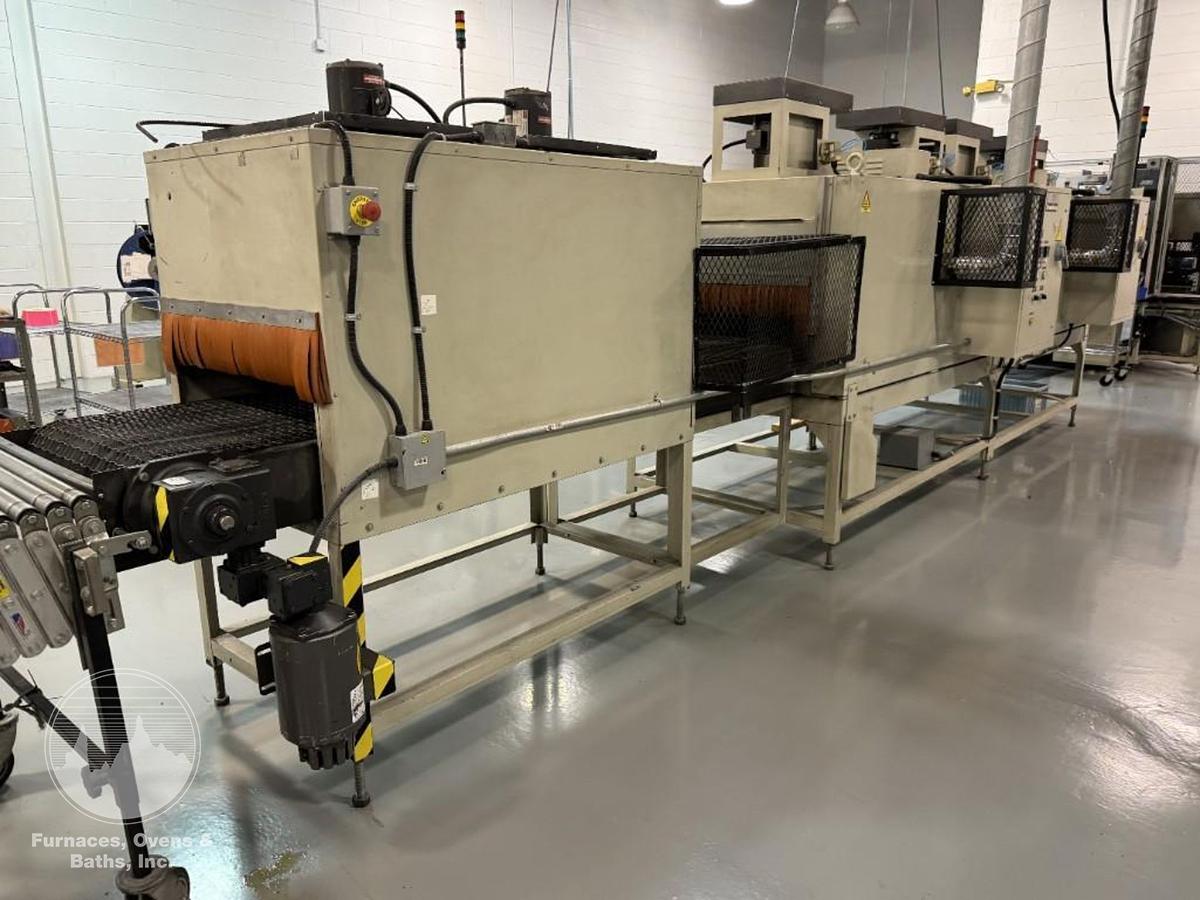

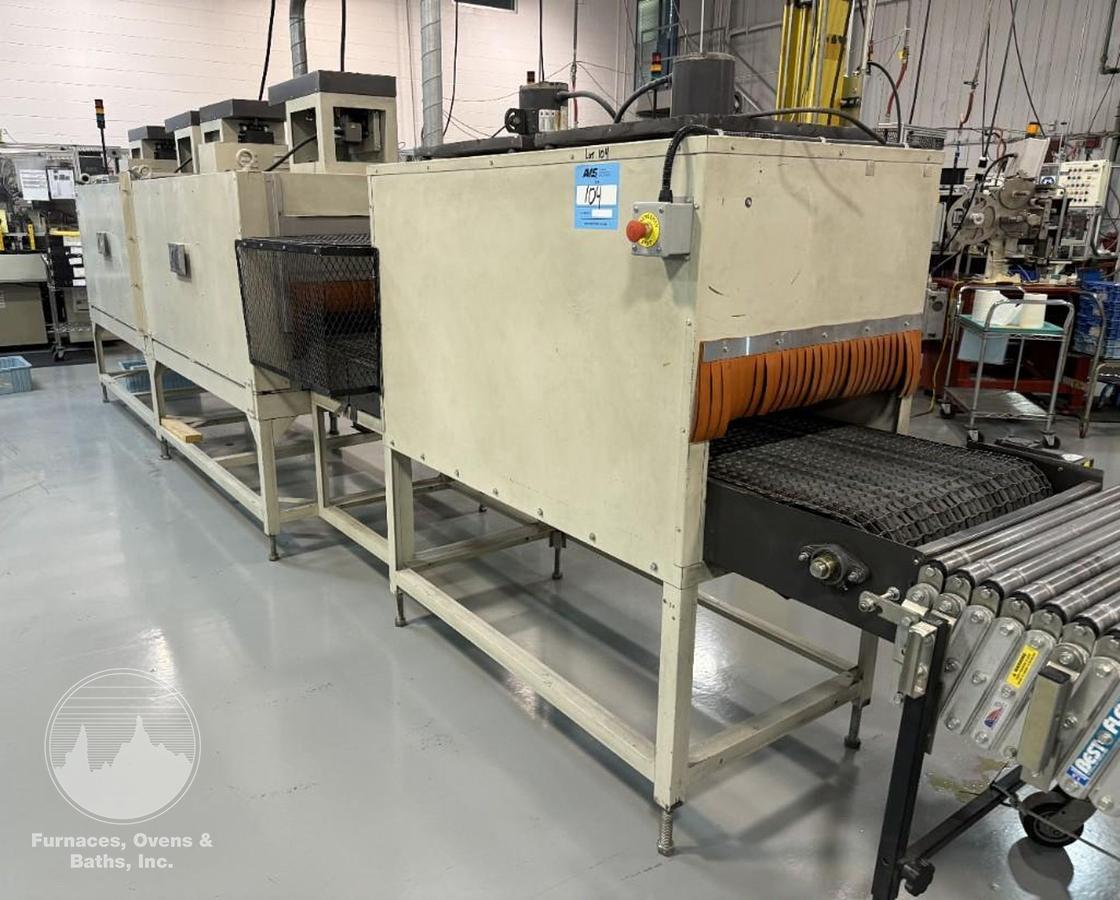

Gruenberg - Thermal Product Solutions 2 Zone Conveyor Oven with Cooling, 24" W × 9" H × 12' L. Two-zone continuous variable-speed electric conveyor oven designed for processing applications up to 450°F.

Key Components & Features:
Two (2) zone conveyor oven.
Continuous variable speed conveyor (.9 to 9 in/min).

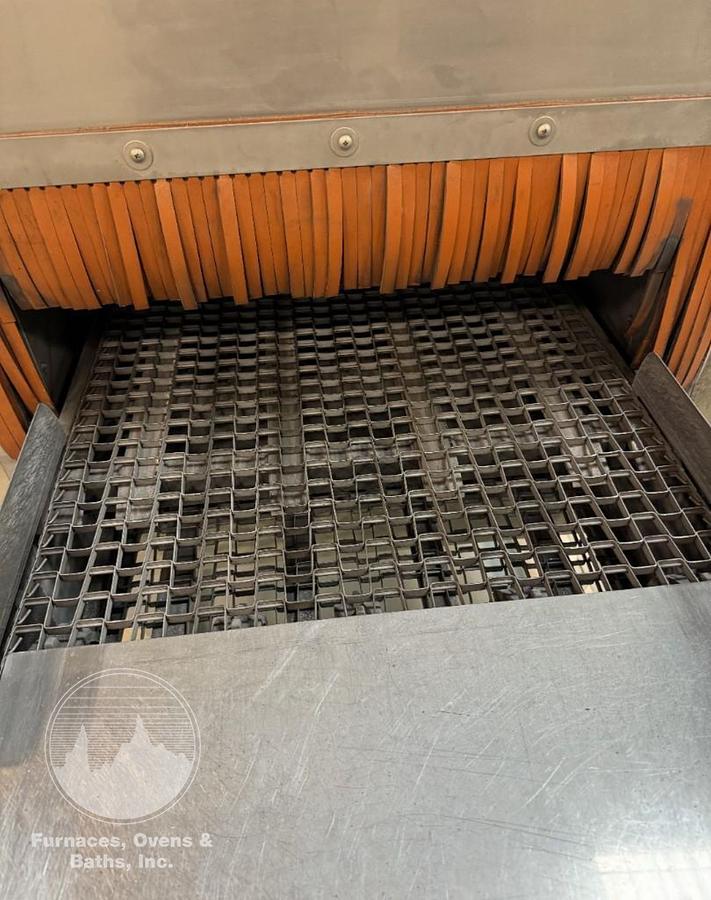

1" × 1" flat wire belt.
12" long load section.
12" long unload section.
Circulating fans and heating elements mounted in separate plenum above belt.
Each 72" long heated section includes two (2) circulating fans.
Top-down heated airflow pattern over conveyor belt.
Gravity exhaust ports and fresh air inlets located on each side of oven.
Manual and electrical drawings included.
Ships in two sections.
Belt removed for shipping.

Manufacturer: Gruenberg - Thermal Product Solutions
Model No.: 2/MM45VD187
Serial No.: 0702000077, Order #41033
Year: 2006

Fuel Type: Electric – 36 kW
Capacity / Output: 24" W × 9" H × 12' L
Maximum Temperature: 450°F

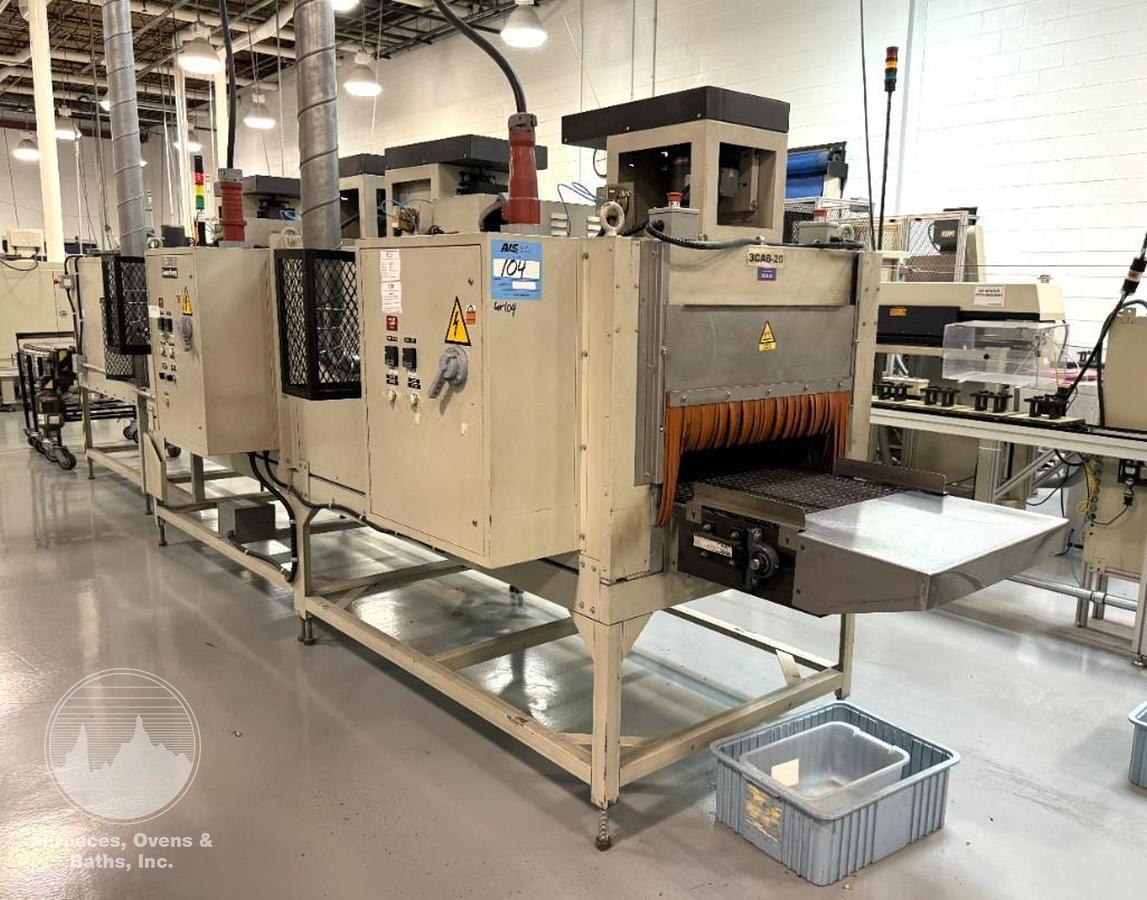

Control Panel: Two (2) separate side-mounted enclosures with fused disconnect
Temperature Controls: Yokogawa UT150 digital temperature controls
Safety Controls: Yokogawa UT150L digital high limits
Electrical Components: Motor starters, fuses, VFD, relays, Watlow Din-a-mite SSRs

Power Requirements:
Zone 1: 480 V / 3 Ph / 60 Hz / 18 kW / 28.4 FLA
Zone 2: 480 V / 6 Ph / 60 Hz / 18 kW / 31.1 Amps

Overall Dimensions: 60" Wide × 79" High × 22' Long; 6,000 lbs total
