36"W x 30"H x 72"L, Gasbarre, 1300°F, Gas Fired, Fiber Lined, 6000 Pound Capacity

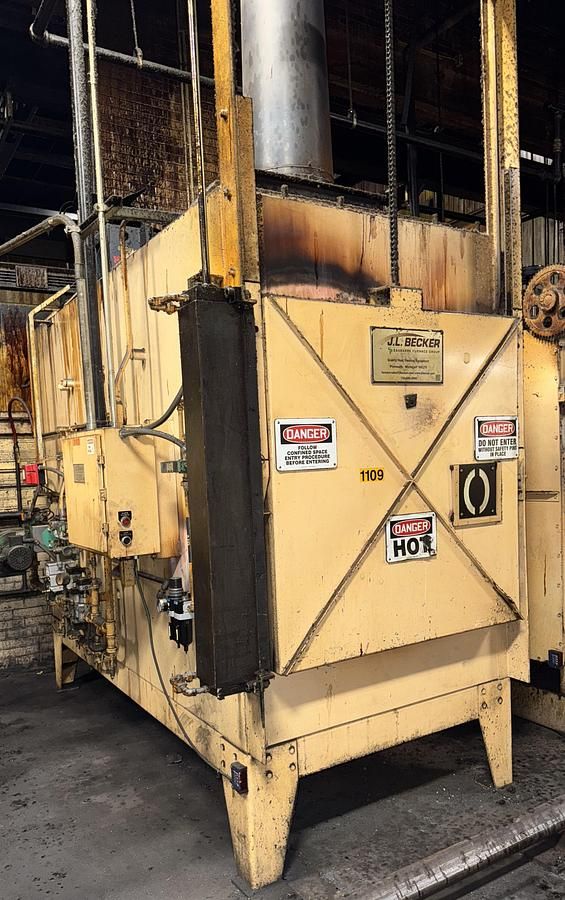

Description: Gasbarre 36" W × 30" H × 72" L Fiber Lined Box Temper Furnace. Gas-fired recirculating temper furnace designed for heat treating up to 1300°F with a 6000-pound load capacity.

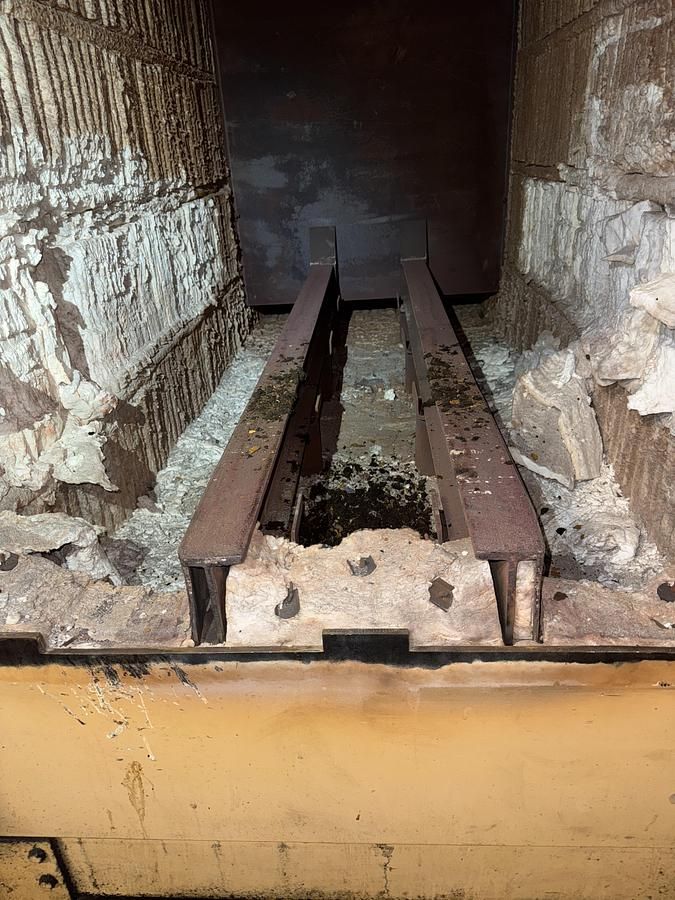

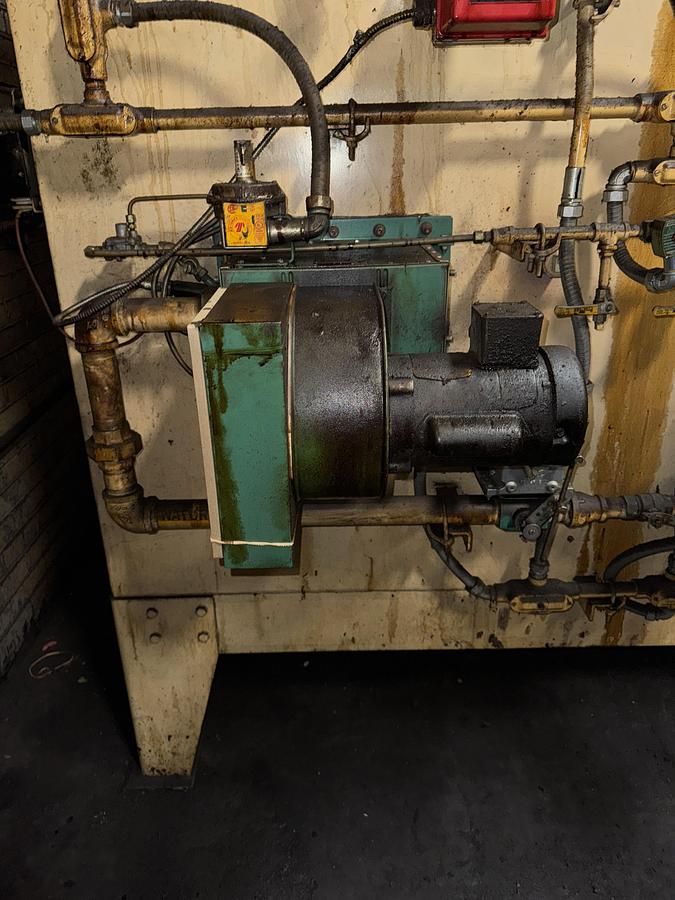

Key Components & Features: Fiber-lined chamber. Top-mounted alloy recirculating fan. Adjustable roof air louvers. Eclipse AH package burner system with flame safety. Alloy flat rail hearth. Vertical rising pneumatic front door. Side-mounted control panel with motor starters.

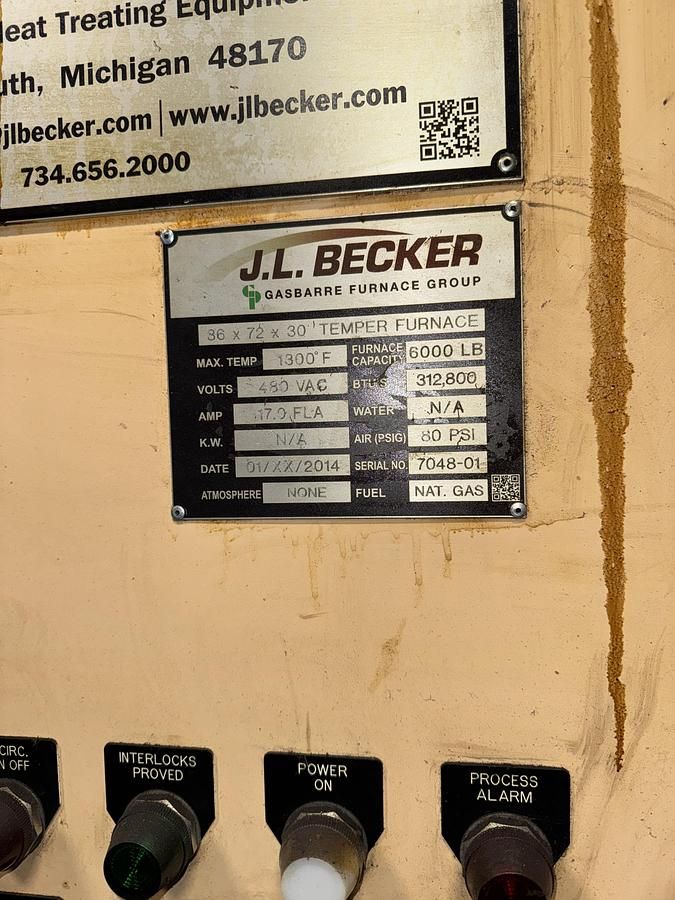

Manufacturer: Gasbarre Furnace Group / J.L. Becker Model No.: 36 × 72 × 30 Temper Furnace Serial No.: 7048-01

Fuel Type: Natural Gas – 1.0 MBTU/hr Capacity / Output: 36" W × 30" H × 72" L Maximum Temperature: 1300°F

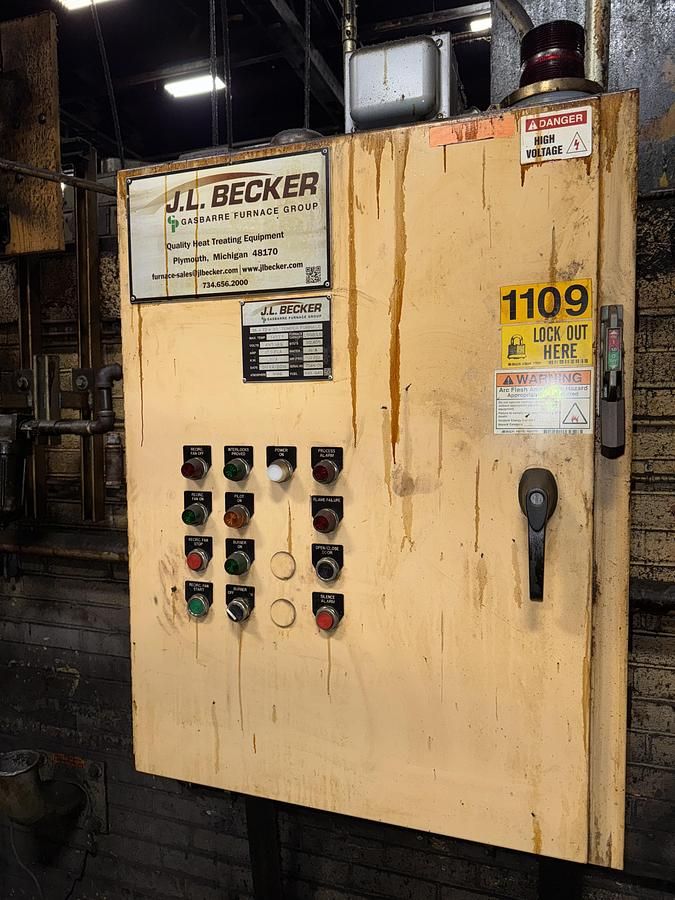

Control Panel: Side-Mounted Control Panel Temperature Controls: Eurotherm Digital Temperature Control Safety Controls: Partlow Digital High Limit

Overall Dimensions: 8’ Wide × 10’ Deep × 12’ High
