36″ X 72″ X 30″ Box Temper-1300F

Description:

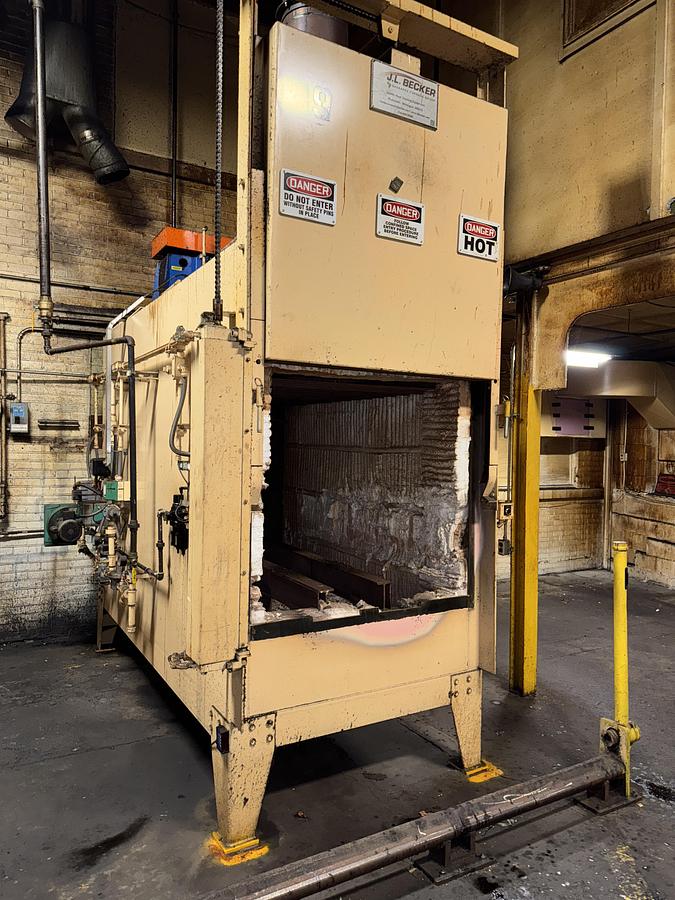

36" × 72" × 30" Box Temper Furnace. Fiber-lined recirculating box tempering furnace designed for gas-fired heat treating applications up to 1300°F.

Key Components & Features:

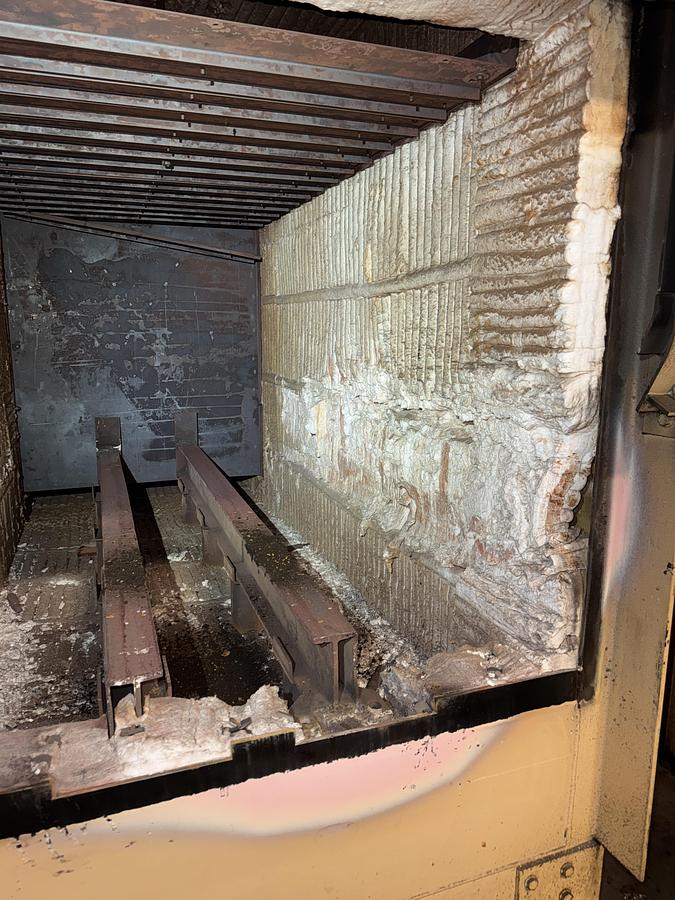

Fiber-lined chamber.
Top-mounted alloy recirculating fan.
Adjustable roof air louvers.
Eclipse AH package burner system with flame safety.
Alloy flat rail hearth.
Vertical rising pneumatic front door.

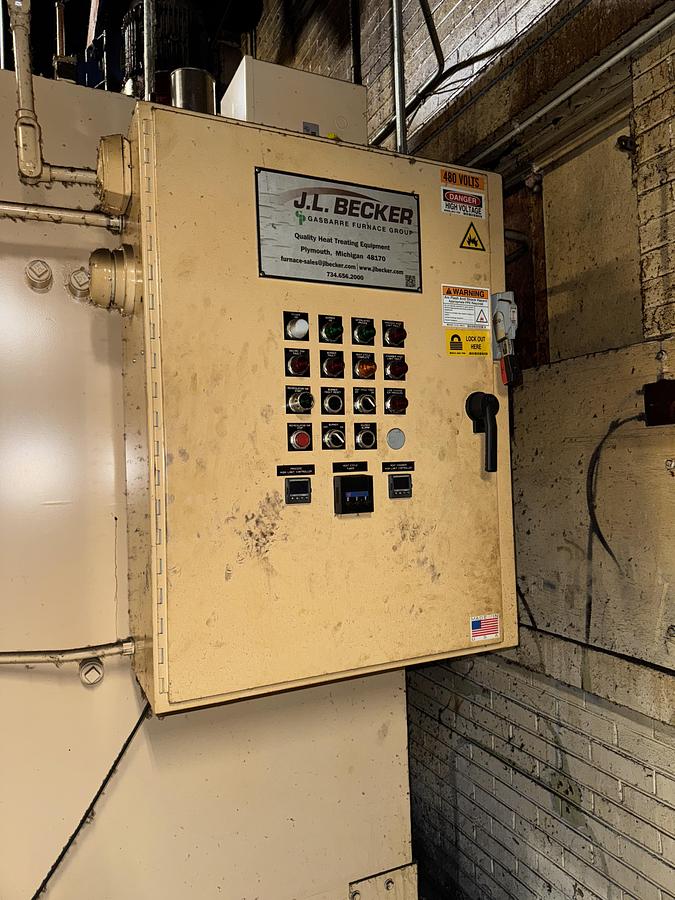

Side-mounted control panel with motor starters.

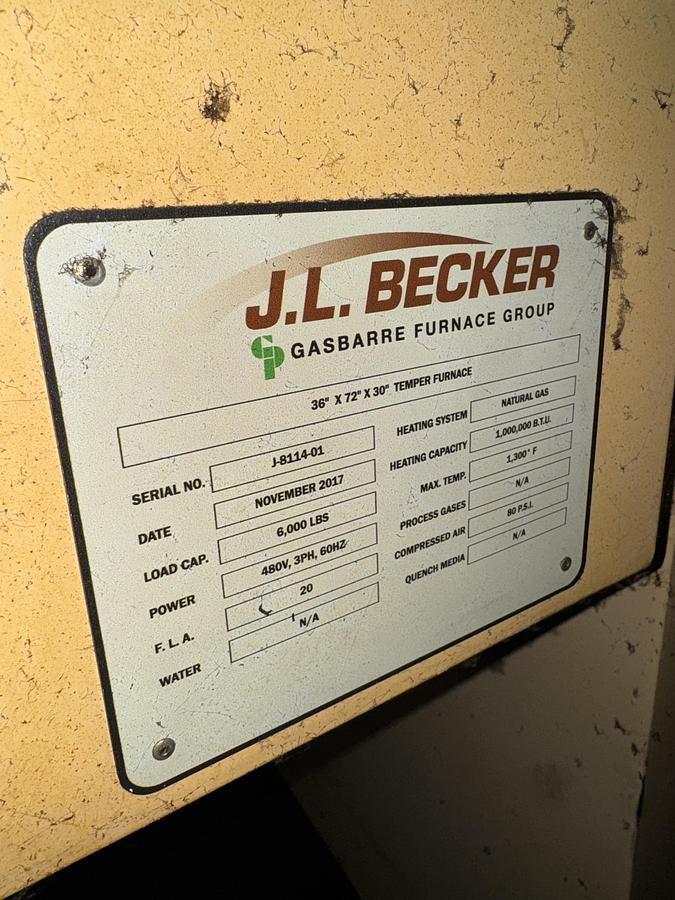

Manufacturer: Gasbarre Furnace Group / J.L. Becker
Serial No.: J-8114-01
Year: 2017

Fuel Type: Natural Gas
Capacity / Output: 36" Wide × 30" High × 72" Deep
Maximum Temperature: 1300°F

Control Panel: Side-Mounted Control Panel
Temperature Controls: Eurotherm Digital Temperature Control
Safety Controls: Partlow Digital High Limit

Power Requirements: 480 V / 3 Ph / 60 Hz

Overall Dimensions: 8' Wide × 10' Deep × 12' High
