36"W x 24" High, 3-Stage Continental Equipment Belt Washer, Gas Fired, Stainless Steel

Description:

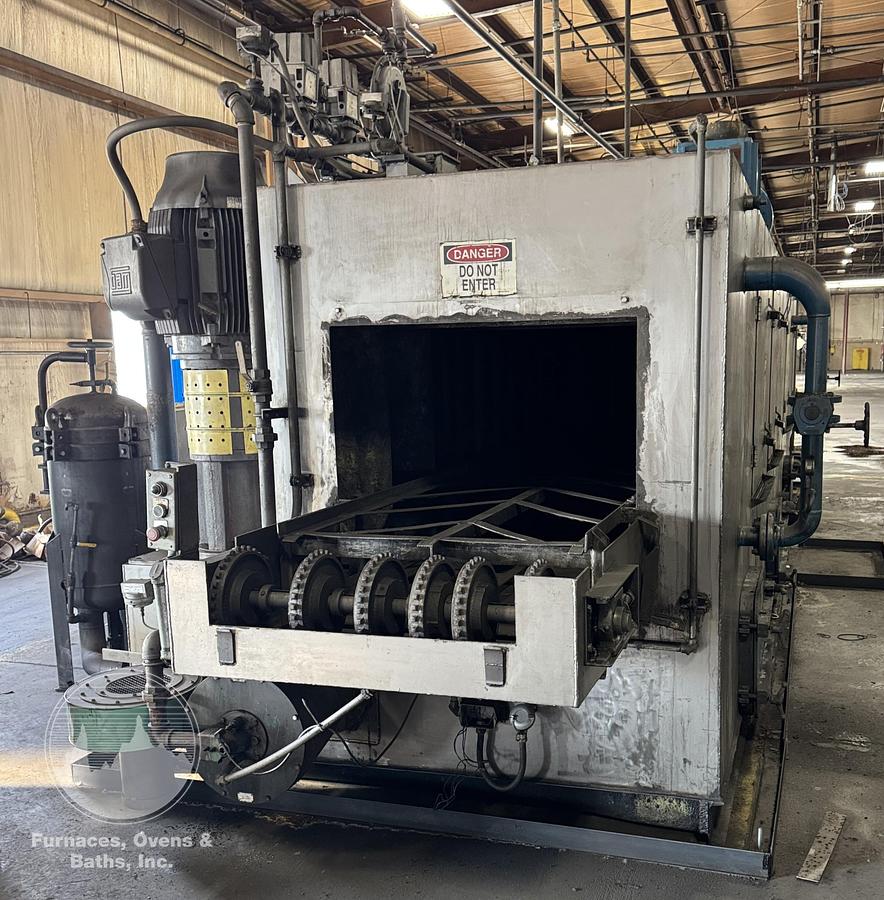

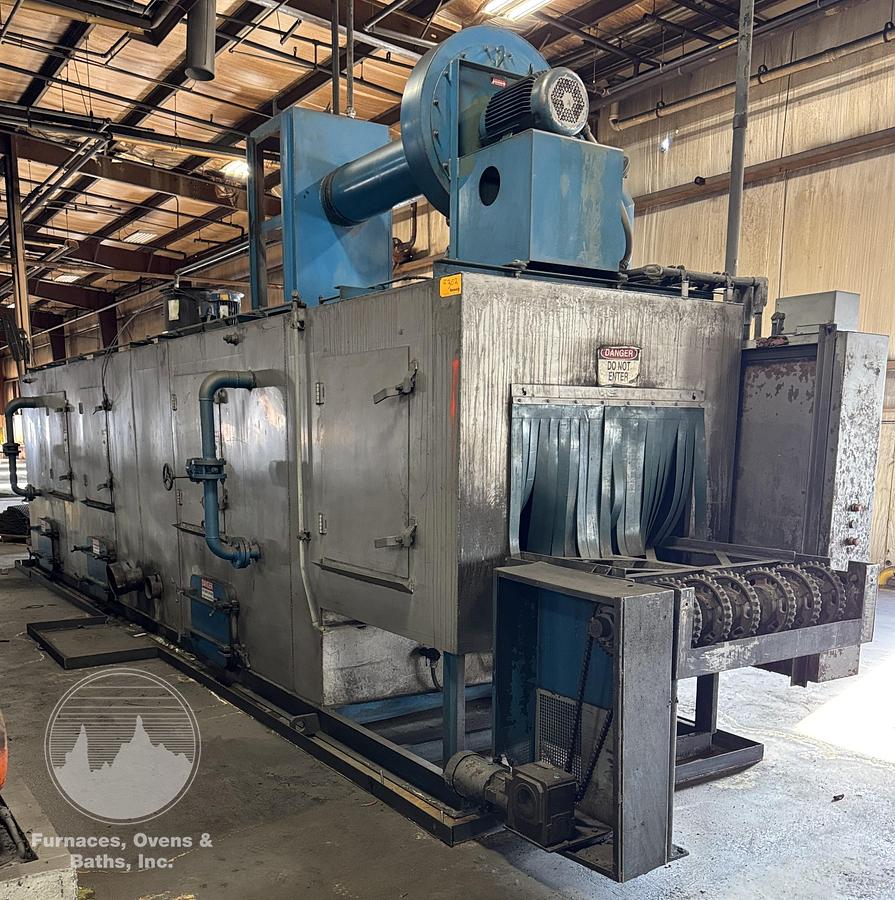

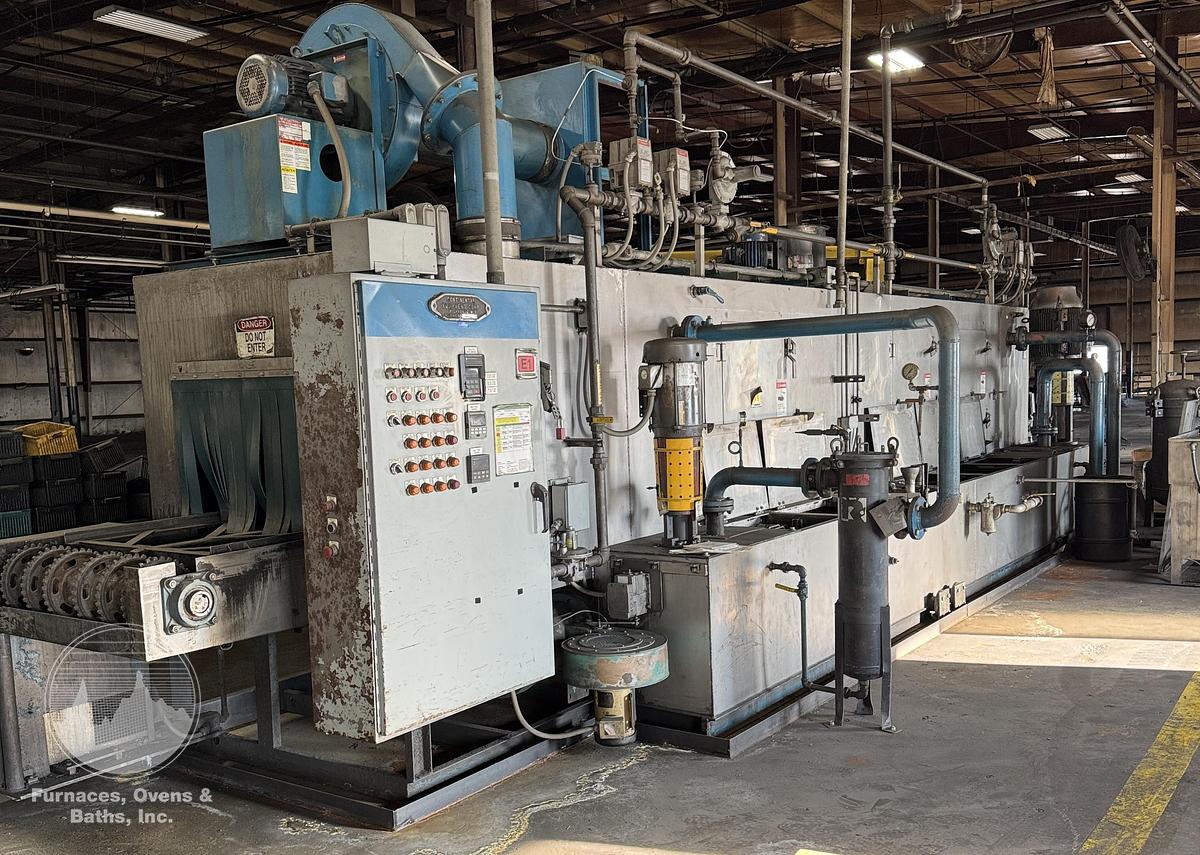

36" W × 24" H Continental Equipment 3-Stage Conveyor Belt Washer. Heavy-duty stainless steel belt washer with natural gas heated wash stage, natural gas heated rinse stage, and ambient blow-off section.

Key Components & Features:
Three-stage stainless steel conveyor washer with 1" × 1" flat wire belt.

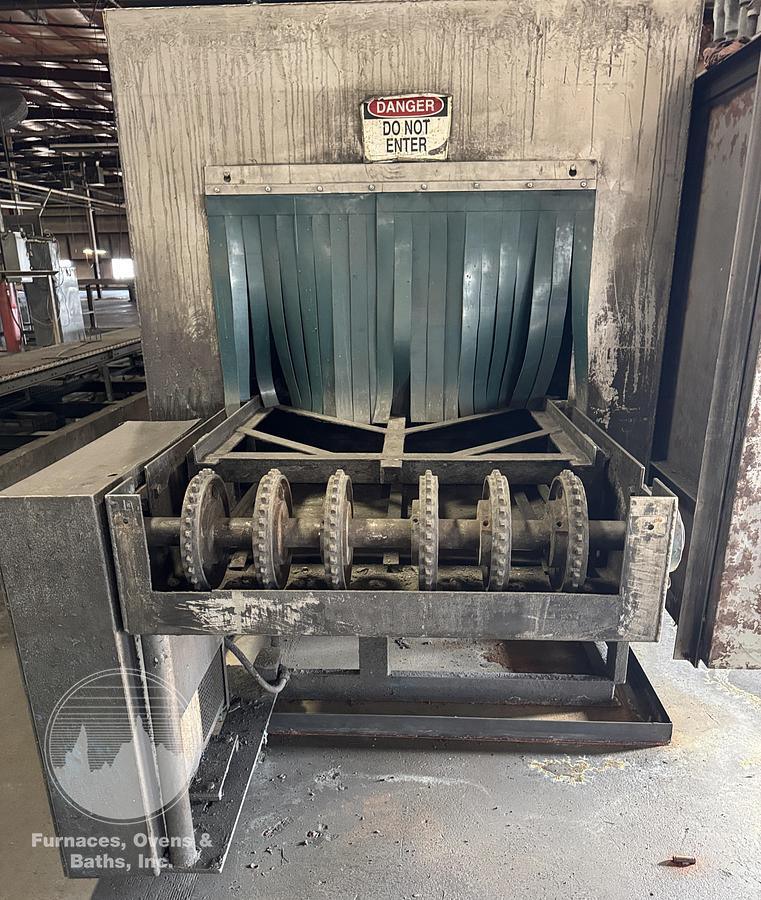

Process sequence: 36" load end, 48" entrance vestibule, 96" wash vestibule, 60" drain, 36" rinse, 48" drain, 48" blow-off, 36" unload end.
60 HP wash pump rated at 475 GPM.
10 HP rinse pump rated at 200 GPM.
400-micron filtration systems on both wash and rinse stages.

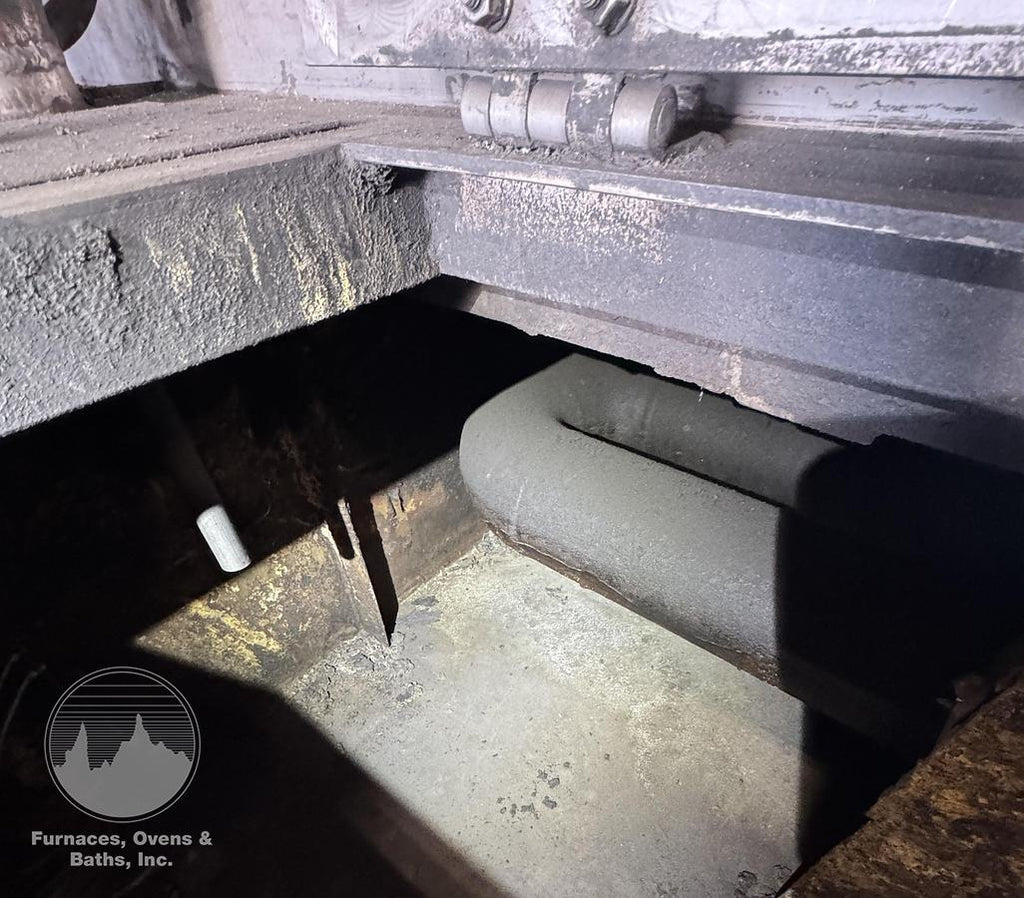

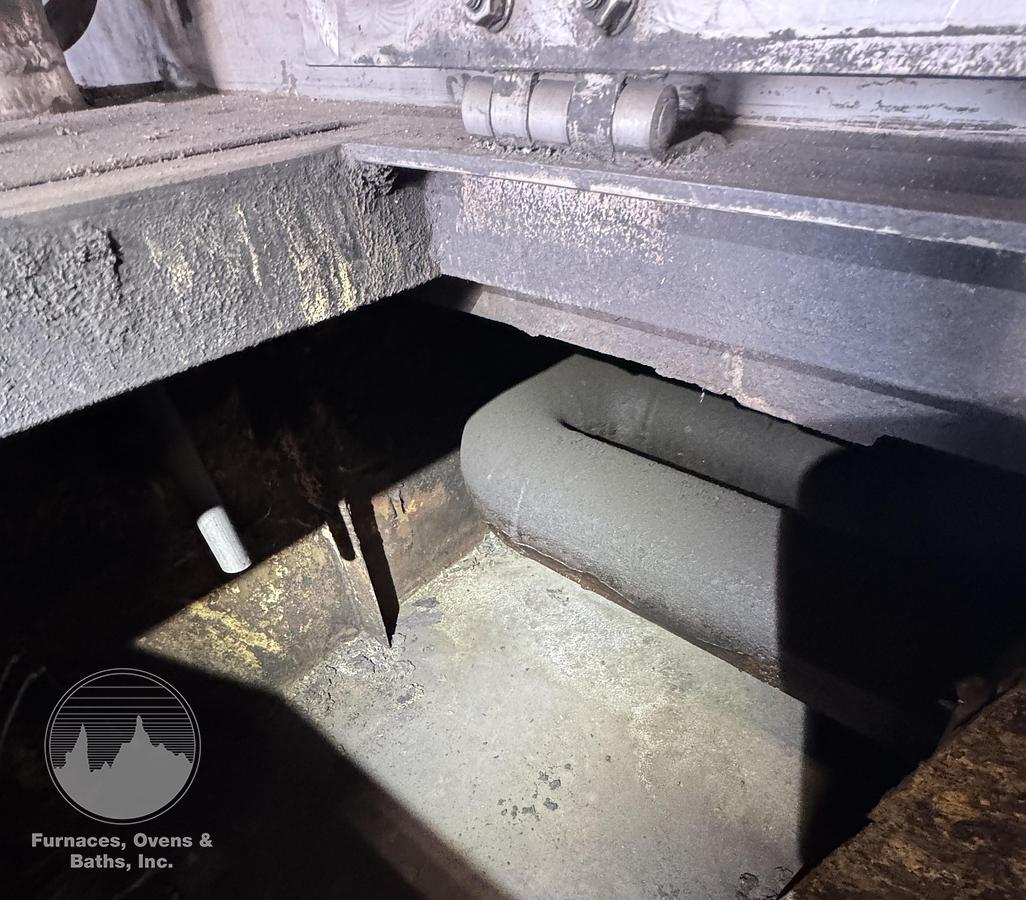

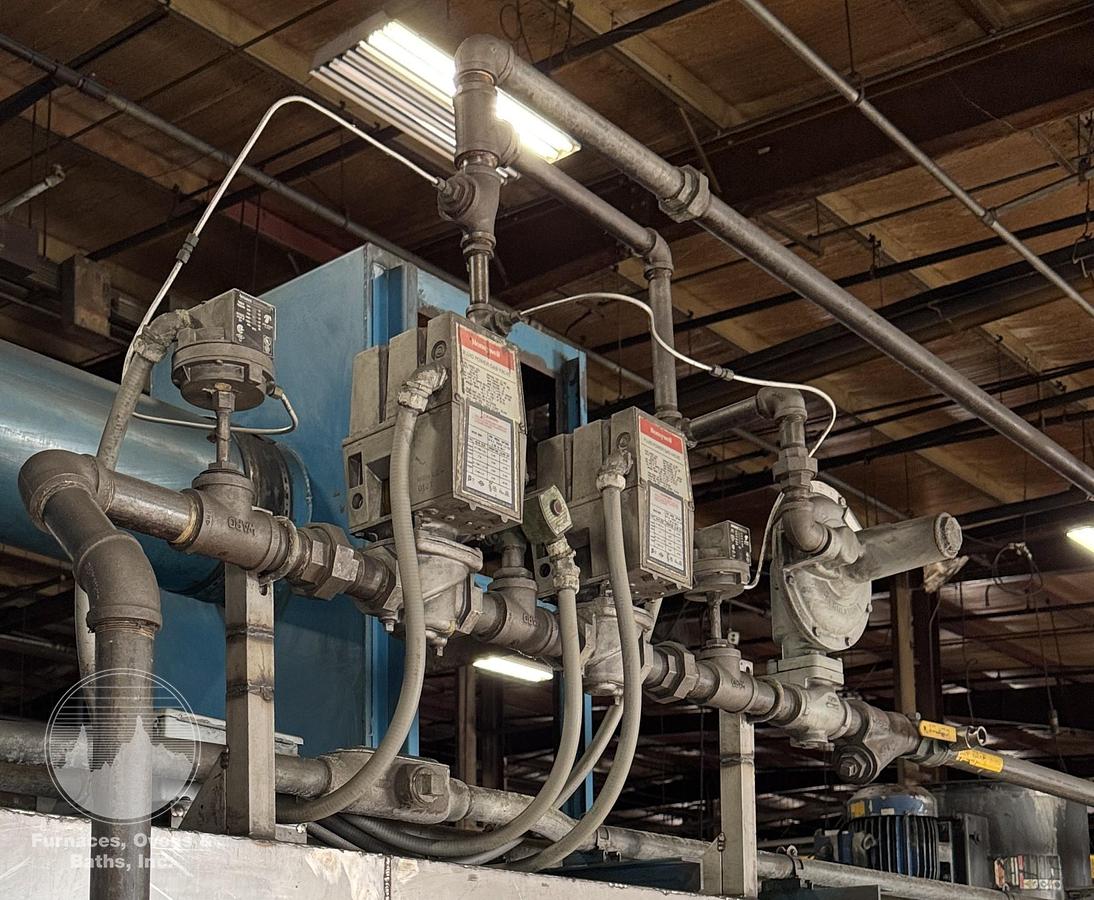

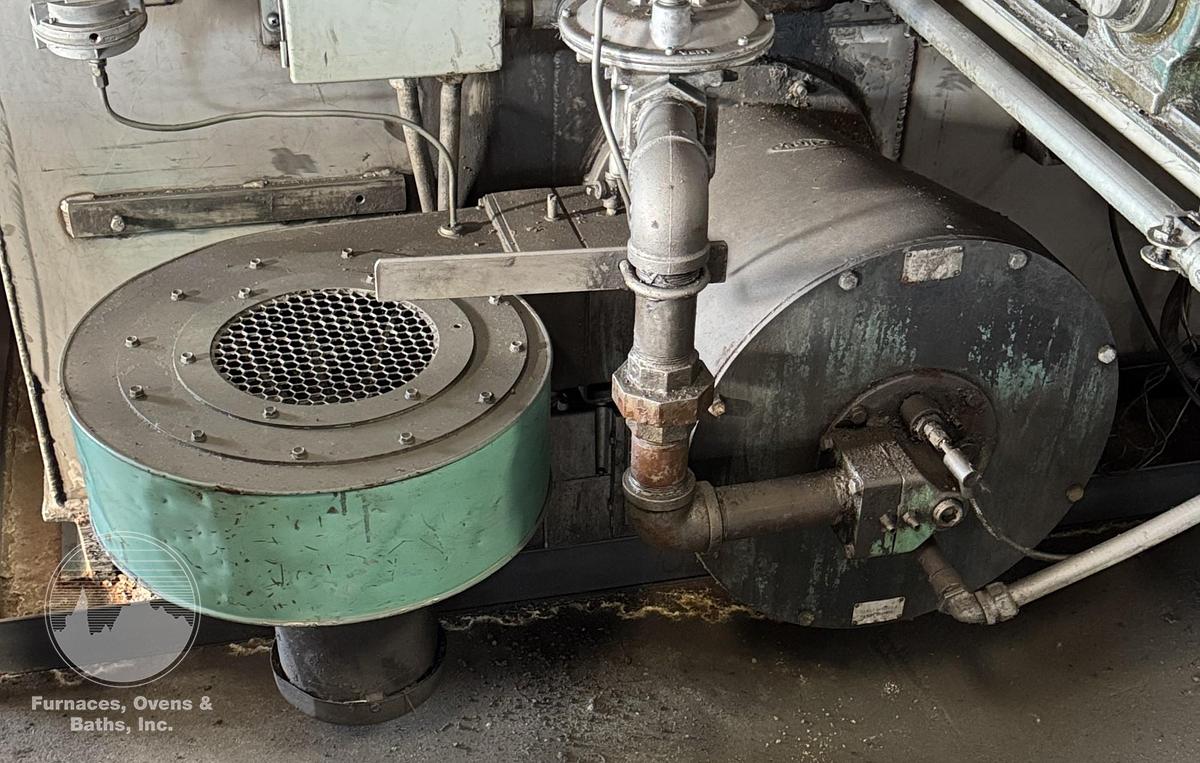

Two (2) Eclipse 6" IMMERO-JET package burner systems with spark ignition.
Honeywell flame safety with UV scanners.

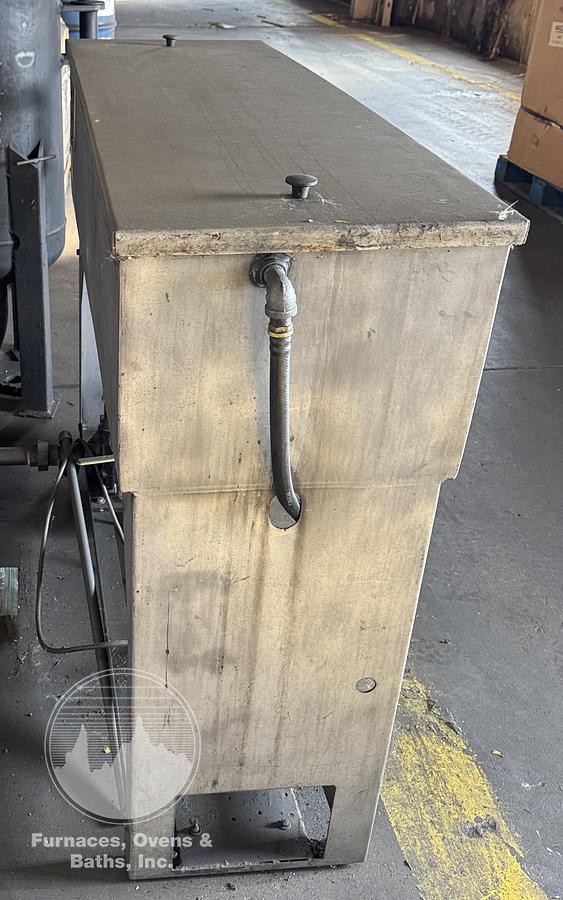

Oil separator with skimmer included.

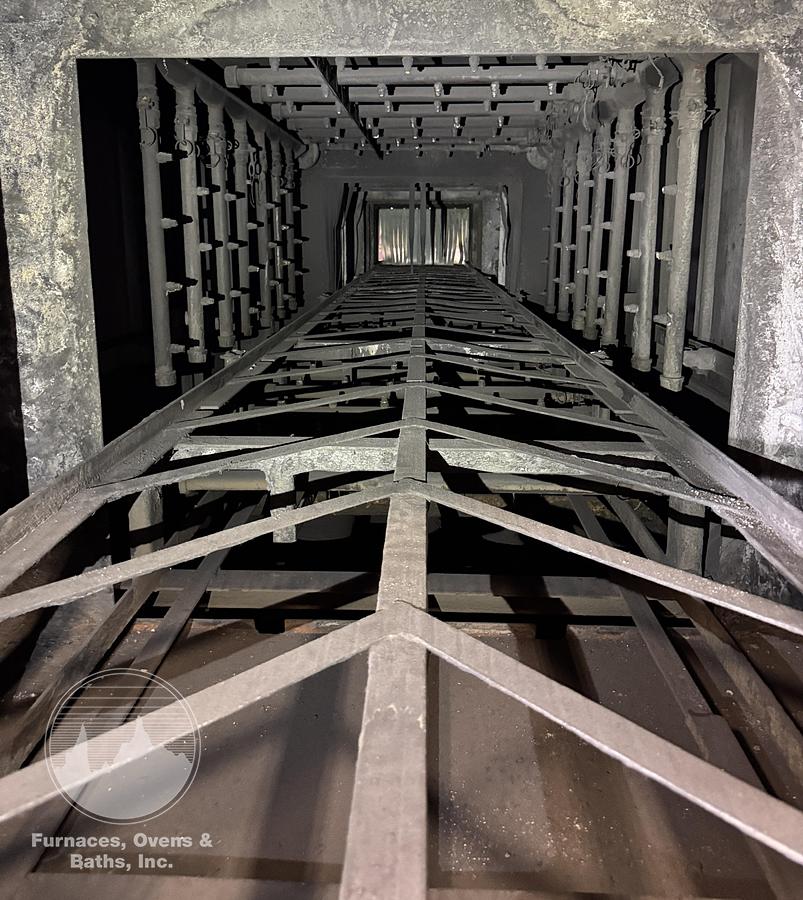

Spray nozzles located on top, sides, and bottom.

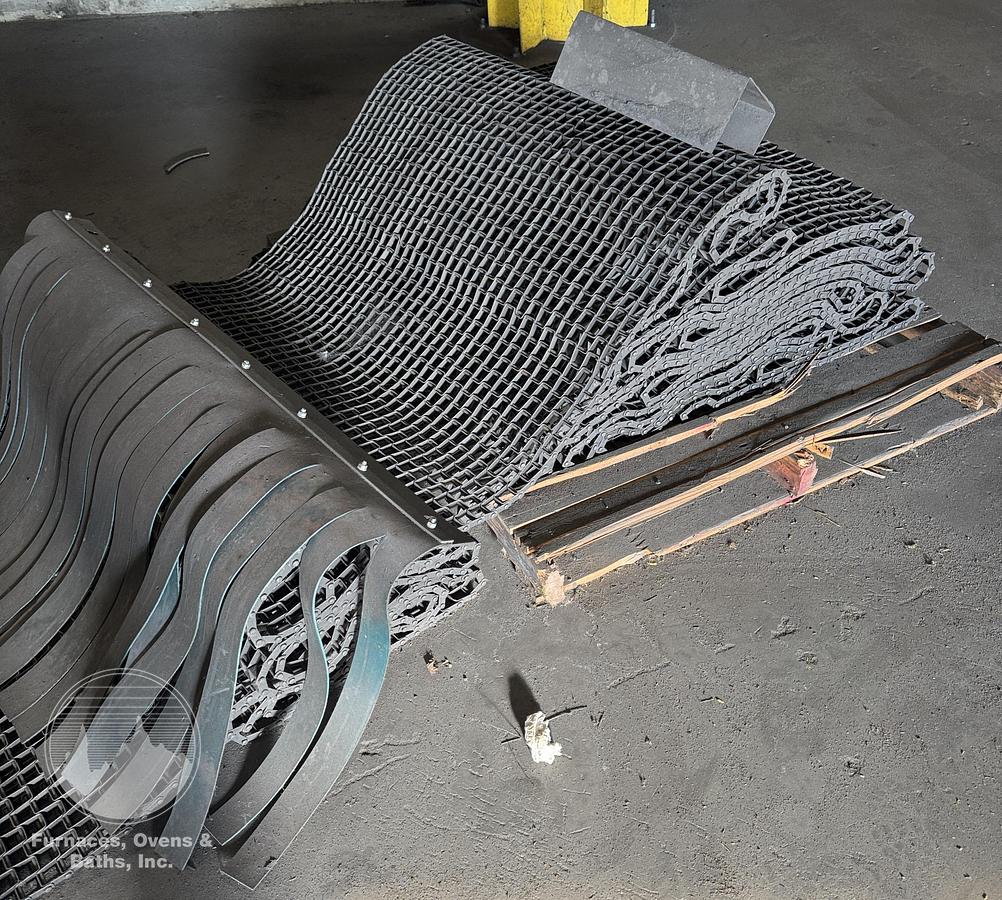

Conveyor belt removed for cleaning and shipped separately on skid for installation.
Drawings included.

Manufacturer: Continental Equipment Company
Model No.: 3 Stage Conveyor Belt Washer
Serial No.: PW02FB753
Year: 2002

Fuel Type: Natural Gas – 2 MBTU/hr wash; 1.5 MBTU/hr rinse; 2 PSI

Capacity / Output: 36" W × 24" H opening
Maximum Temperature: 170°F wash; 160°F rinse

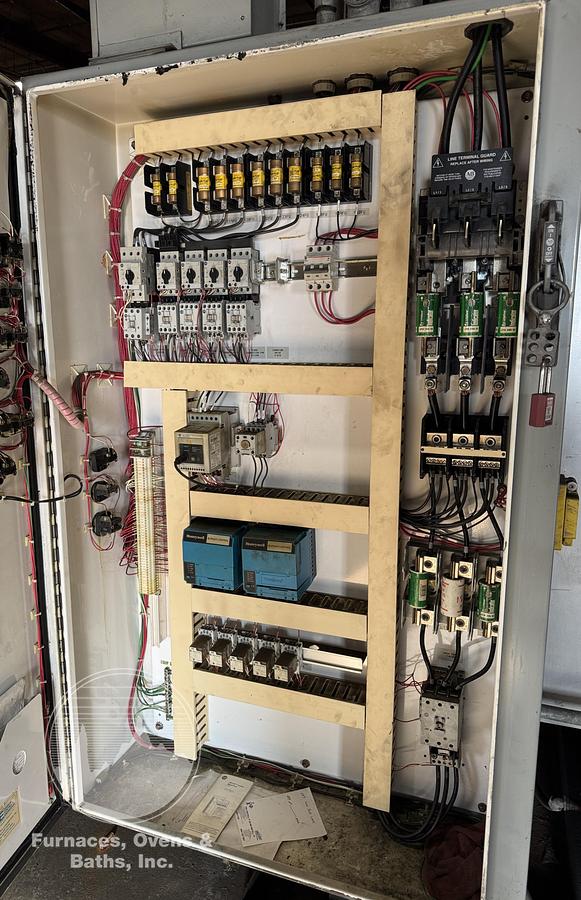

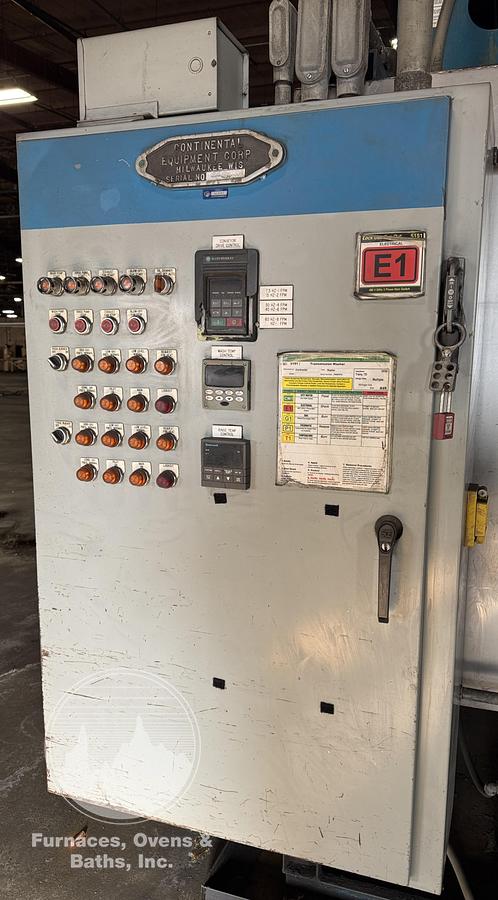

Control Panel: NEMA enclosure with fused disconnect
Temperature Controls: Two (2) Honeywell UDC digital temperature controllers (wash and rinse)
Safety Controls: Honeywell flame relays
Controls: Allen Bradley VFD conveyor drive (1–8 FPM); Allen Bradley pushbuttons and signal lights

Power Requirements: 480 V / 3 Ph / 60 Hz / 135 FLA

Overall Dimensions:
Floor Space: 13' Wide × 10'10" High × 34' Long
Shipping: 8'7" Wide × 10'10" High; approx. 25,000 lbs
