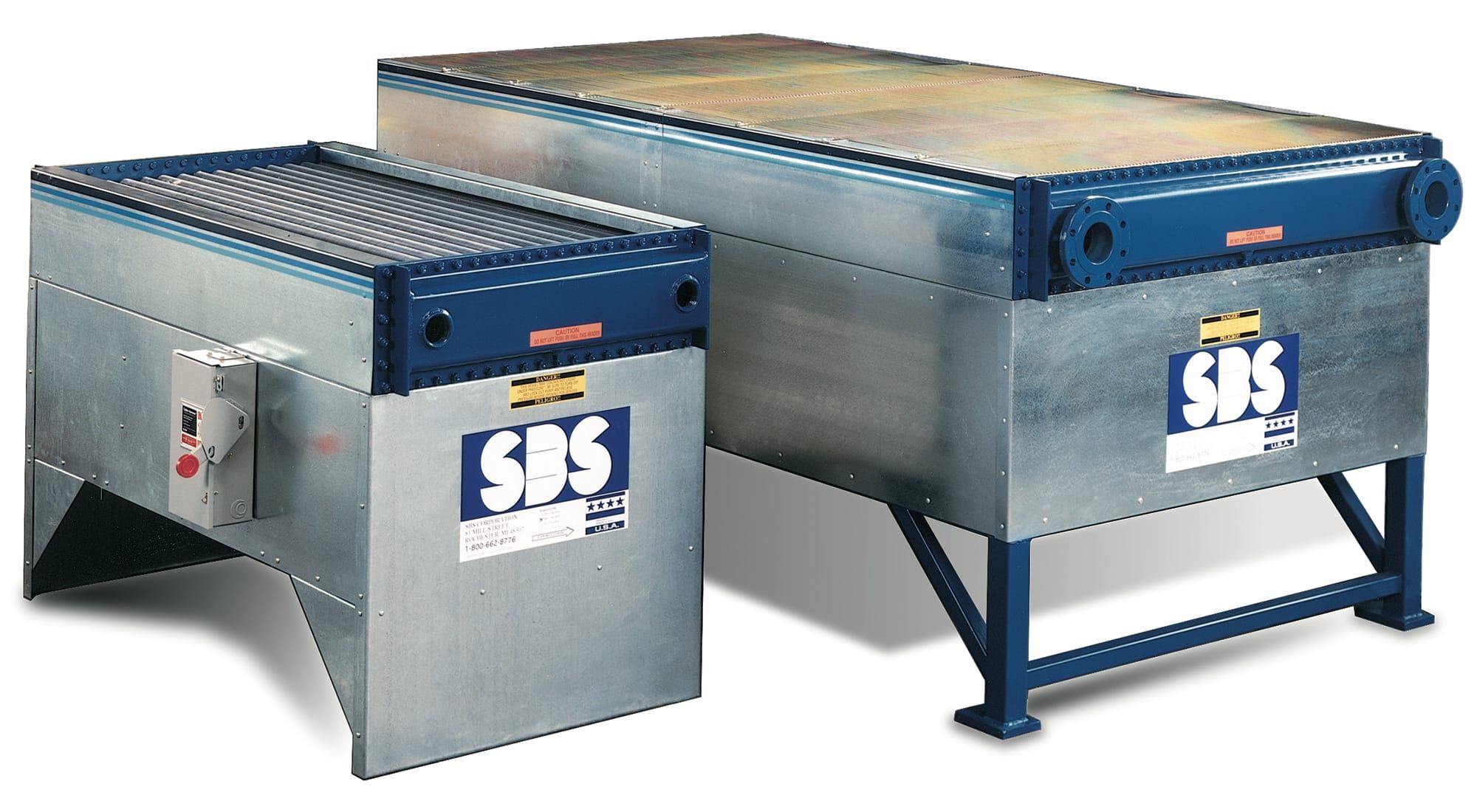

4 SBS Quench Airs (BRAND NEW)

Quench Air Model 5084-1F – 1x Fan – Oil Cooler – $13,900.00 USD

• 230VAC 1Phase 60Hz / FLA: 23.4 / Minimum Breaker Size: 25A
• 1x 42in 5HP Single Speed Motor (NO VFD)
• Noise Level @ 3ft/1m (Full Speed) <74.0db
• NEMA 3R Safety Lockout / Tagout
• Oil Volume: 120L / 34gal
• Connections: 2in ANSI Flange
• Dimensions: 108 x 66 x 60 / In 275 x 168 x 153 cm
• Lifting Eyes: Four (4)
• Inspection Port 2.0in
• Vent / Drain 0.75in
• Materials: Frame: Epoxy Coated Steel
• Plenum: Galvanized Steel
• Tube: Carbon Steel with Aluminum Fins

Quench Air Model 5084-1F – 1x Variable Speed Fan – Oil Cooler – $15,800.00 USD

• 230VAC 1Phase 60Hz / FLA: 23.4 / Minimum Breaker Size: 25A
• 1x 42in 5HP Variable Speed Motor with VFD
• Noise Level @ 3ft/1m (Full Speed) <74.0db
• NEMA 3R Safety Lockout / Tagout
• Oil Volume: 120L / 34gal
• Connections: 2in ANSI Flange
• Dimensions: 108 x 66 x 60 In / 275 x 168 x 153 cm
• Lifting Eyes: Four (4)
• Inspection Port 2.0in
• Vent / Drain 0.75in
• Dry Weight: 2,312 lbs / 1,049 kg
• Materials: Frame: Epoxy Coated Steel
• Plenum: Galvanized Steel
• Tube: Carbon Steel with Aluminum Fins

Quench Air Model 3086-2F – 2x Variable Speed Fans – Oil Cooler – $13,700.00

• 230VAC 1Phase 60Hz / FLA: 16.1 / Minimum Breaker Size: 20A
• 2x 30in 2HP Variable Speed Motor with VFD
• Noise Level @ 3ft/1m (Full Speed) <74.0db
• NEMA 3R Safety Lockout / Tagout
• Oil Volume: 120L / 32gal
• Connections: 2in ANSI Flange
• Dimensions: 107 x 46 x 52 In / 272 x 117 x 132 cm
• Lifting Eyes: Four (4)
• Inspection Port 2.0in
• Vent / Drain 0.75in
• Dry Weight: 2,196 lbs / 996 kg
• Materials: Frame: Epoxy Coated Steel
• Plenum: Galvanized Steel
• Tube: Carbon Steel with Aluminum Fins

Quench Air Model 5084-1F – 1x Variable Speed Fan – Oil Cooler – USD $15,800.00

• 460VAC 3Phase 60Hz / FLA: 9.6 / Minimum Breaker Size: 10A
• 1x 42in 5HP Variable Speed Fan with Thermal Controller
• Noise Level @ 3ft/1m (Full Speed) <74.0db
• NEMA 3R Safety Lockout / Tagout
• Oil Volume: 120L / 34gal
• Connections: 2in ANSI Flange
• Dimensions: 108 x 66 x 60 In

275 x 168 x 153 cm

• Lifting Eyes: Four (4)
• Inspection Port 2.0in
• Vent / Drain 0.75in
• Dry Weight: 2,312 lbs / 1,049 kg
• Materials: Frame: Epoxy Coated Steel
• Plenum: Galvanized Steel
• Tube: Carbon Steel with Aluminum Fins
