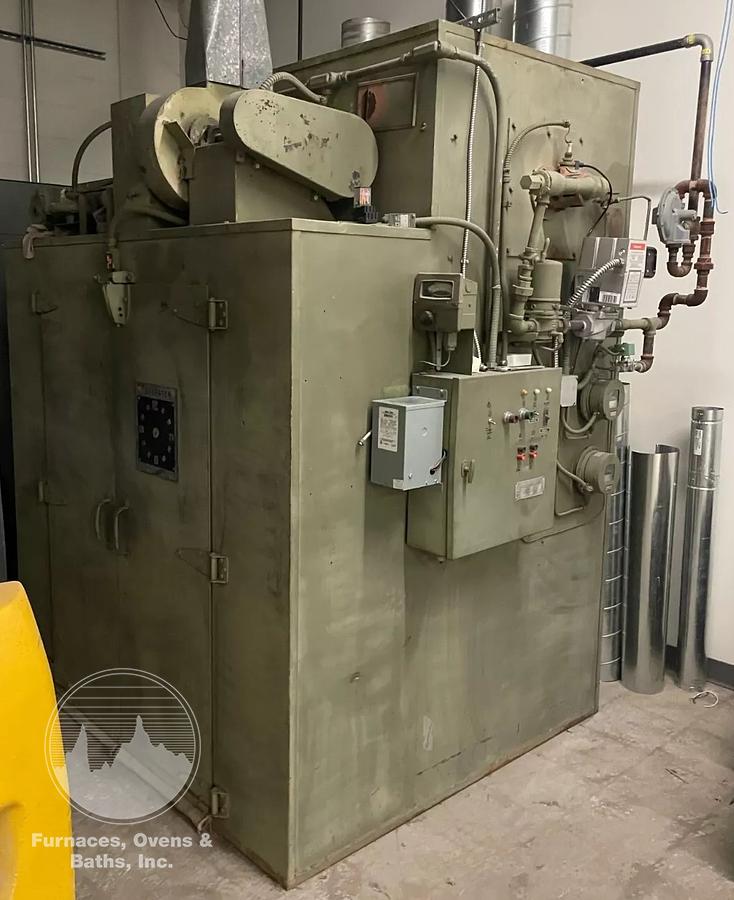

40"W x 63"H x 52"L V-39 STD Walk-In Oven, 500°F, Gas

Description:

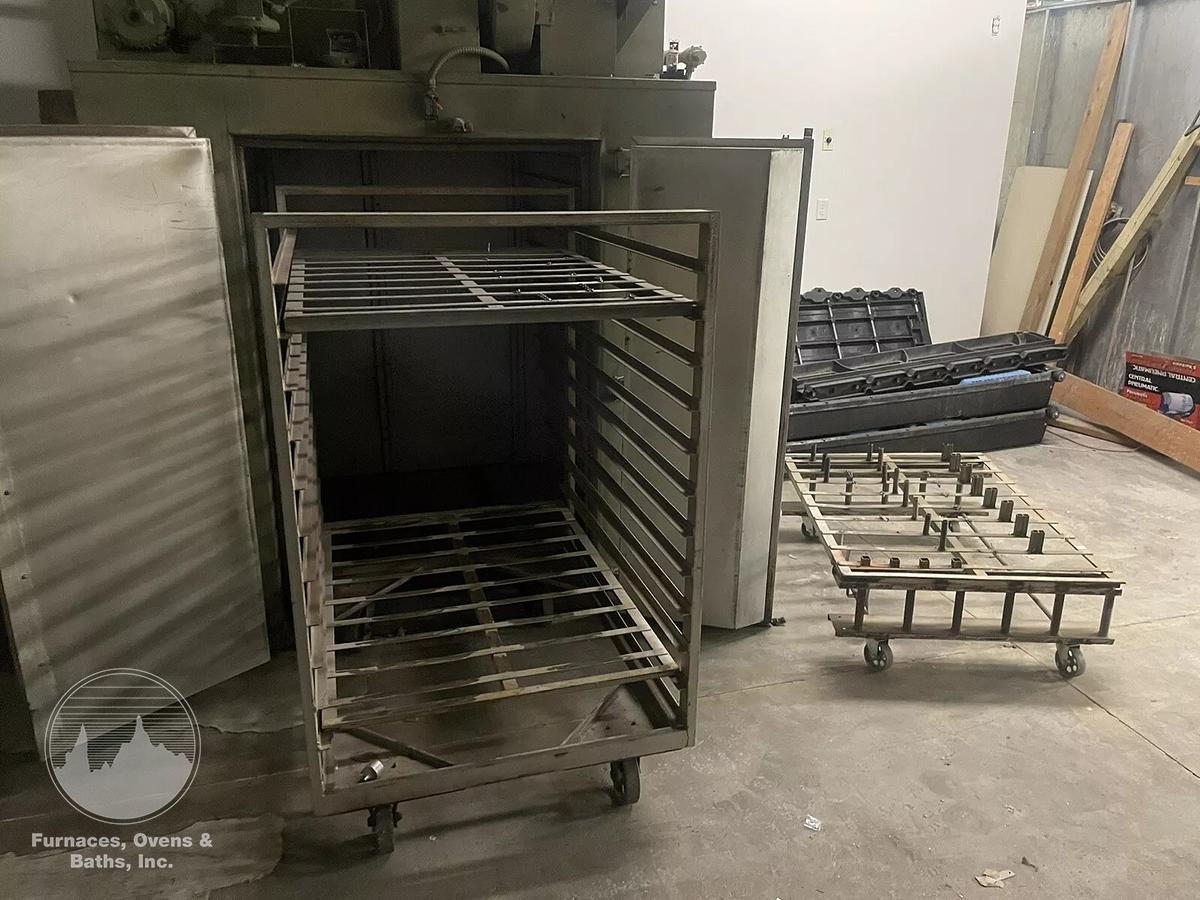

Despatch V-39 STD Walk-In Oven, 40" W × 63" H × 52" L. Gas-fired walk-in oven designed for uniform heating applications up to 500°F. Cart is included.

Key Components & Features:
Double doors with fiberglass gasket.
Brixon spring-tension latches.
Door limit switch.
Aluminized steel interior.
Insulated floor.
Adjustable louvers on each side wall to control airflow through chamber.
Burner and circulating fan mounted in separate plenum above work area.
Horizontal airflow pattern across work chamber for uniform heating.
Fresh air inlet and powered exhauster mounted on top.

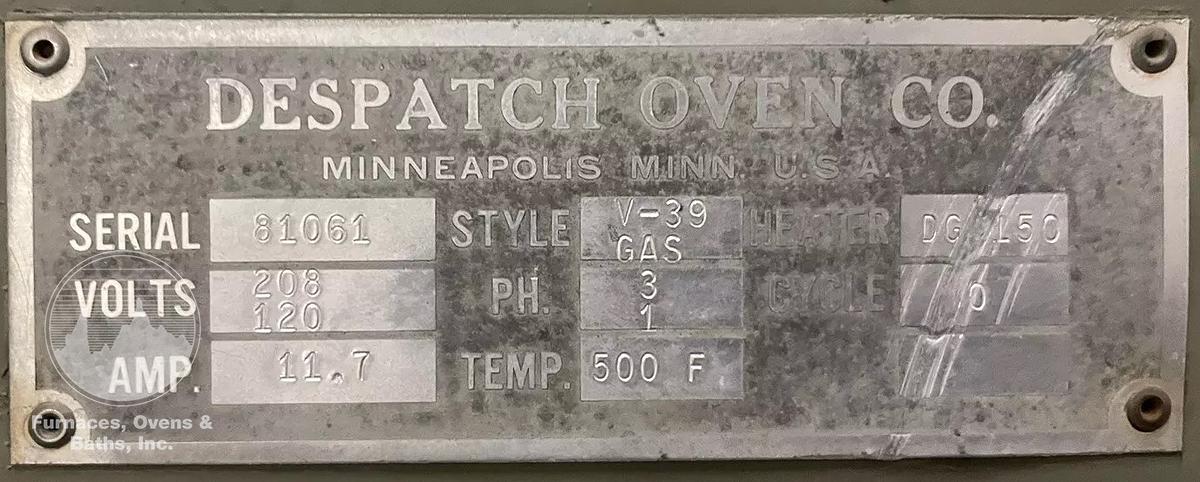

Manufacturer: Despatch
Model No.: V-39 STD
Serial No.: 81061

Fuel Type: Natural Gas – 150,000 BTU/hr
Capacity / Output: 40" W × 63" H × 52" L
Maximum Temperature: 500°F

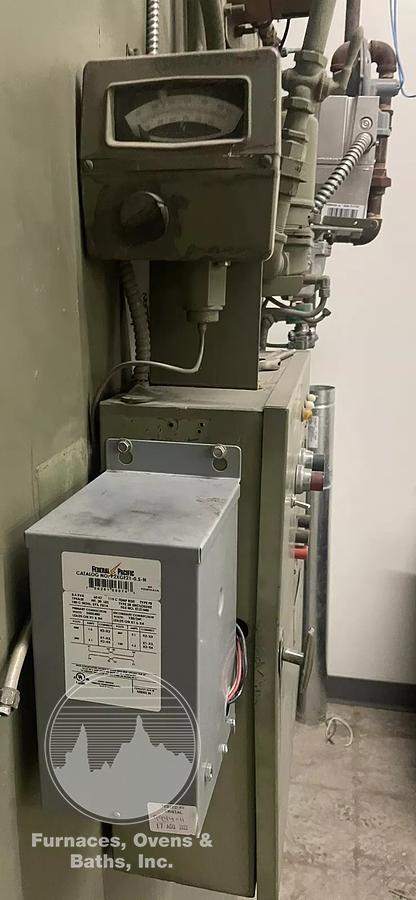

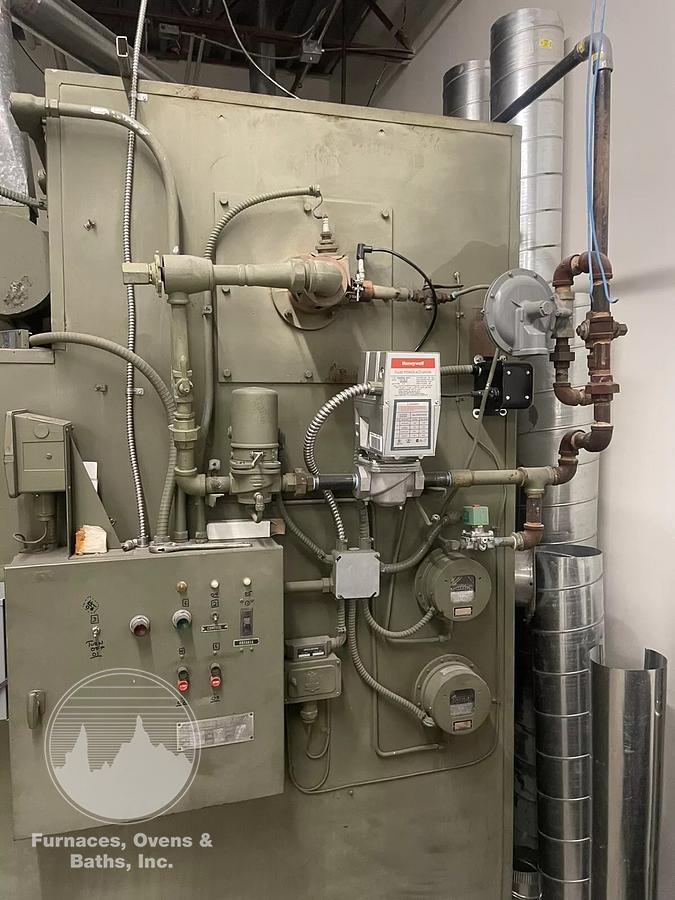

Control Panel: Enclosure attached to right-hand side of oven
Temperature Controls: Partlow analog temperature controller

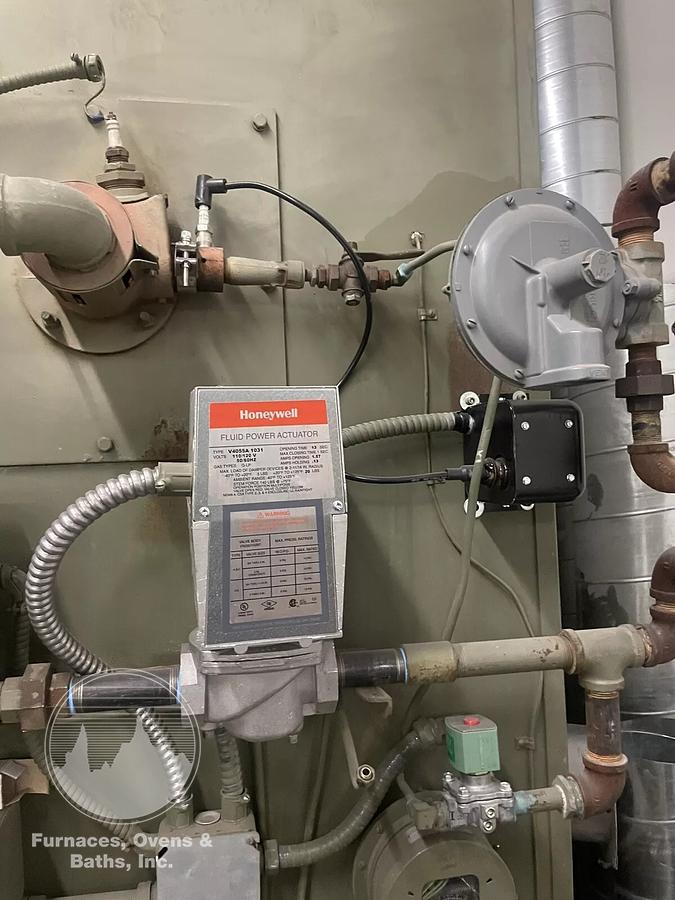

Safety Controls: Door limit switch; Honeywell gas safety valve
Electrical Components: Motor starters, purge timer, fuses, relays

Power Requirements: 208 V / 3 Ph / 60 Hz / 12 Amps

Overall Dimensions: 82" Wide × 93" High × 68" Long
