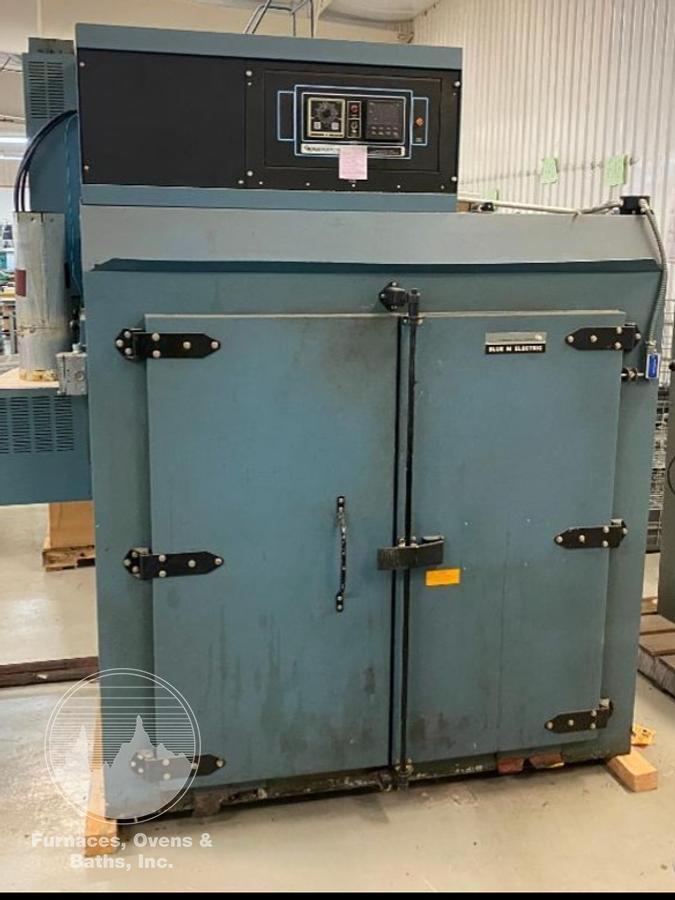

48"W x 48"H x 24"L, Truck Oven, 600°F

Description:
Blue M Truck Oven, 48" W × 48" H × 24" L. Electric truck oven designed for uniform heating applications up to 600°F.

Key Components & Features:
Double doors with three-point cam-action latch.
Door limit switch.
Silicone rubber door gasket for tight seal.
Aluminized steel interior with perforated side wall air duct panels.
Coiled-style heating elements.
Direct-driven circulating fan mounted above work area.
Horizontal airflow pattern across chamber.
Adjustable fresh air inlet on left-hand side.
Powered exhaust fan mounted on side of oven.
Pressure relief panel in rear wall.

Manufacturer: Blue M
Model No.: MP-326-RIFHP
Serial No.: MP-926

Fuel Type: Electric
Capacity / Output: 48" W × 48" H × 24" L
Maximum Temperature: 600°F

Control Panel: Slide-out console located above work area
Safety Controls: Partlow analog high limit
Electrical Components: Digital temperature control; power toggle switch with indicating lights for on/off, over-temp, and exhaust; solid state power relays; high limit contactor; motor starter; fuses; relays

Power Requirements: 208–240 V / 3 Ph / 60 Hz / 63–72 Amps

Overall Dimensions: 67" Wide × 45" Deep × 86" High to top of exhaust fan
