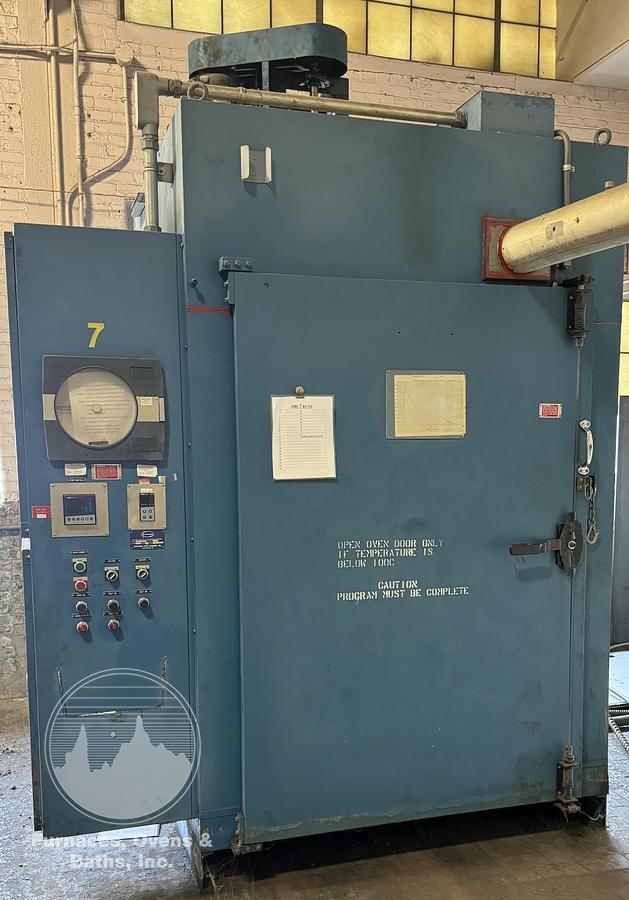

48"W x 72"H x 48"L, Electric Walk-In Oven, 450°F

Description:
Gruenberg Electric Walk-In Oven, 48" W × 72" H × 48" L. Electric walk-in oven designed for uniform heating applications up to 450°F.

Key Components & Features:

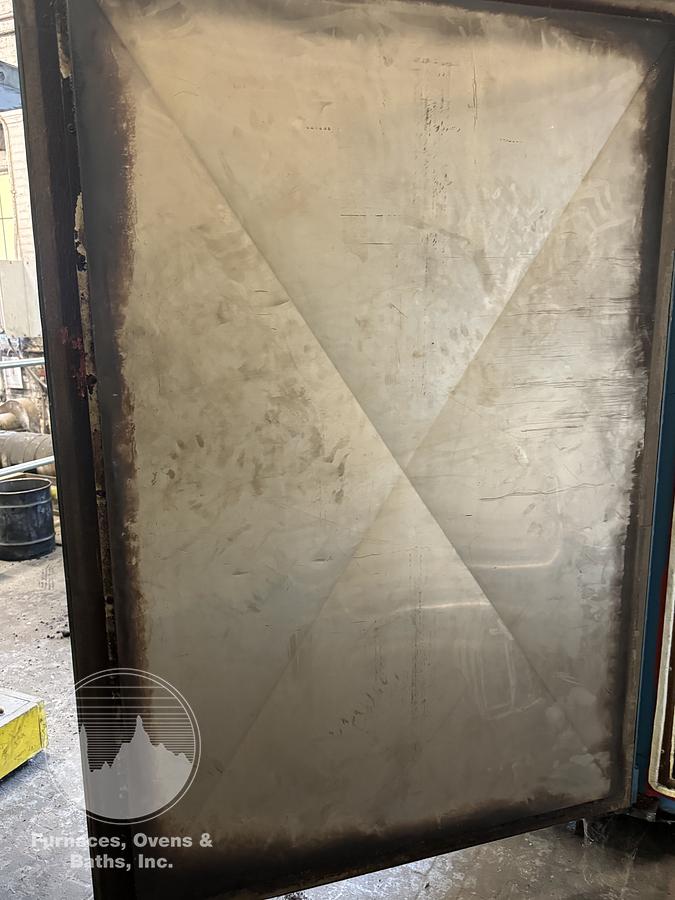

Single door with Brixon spring-tension latches.
Door limit switch.
High-temperature ceramic fiber door gasket for excellent seal.

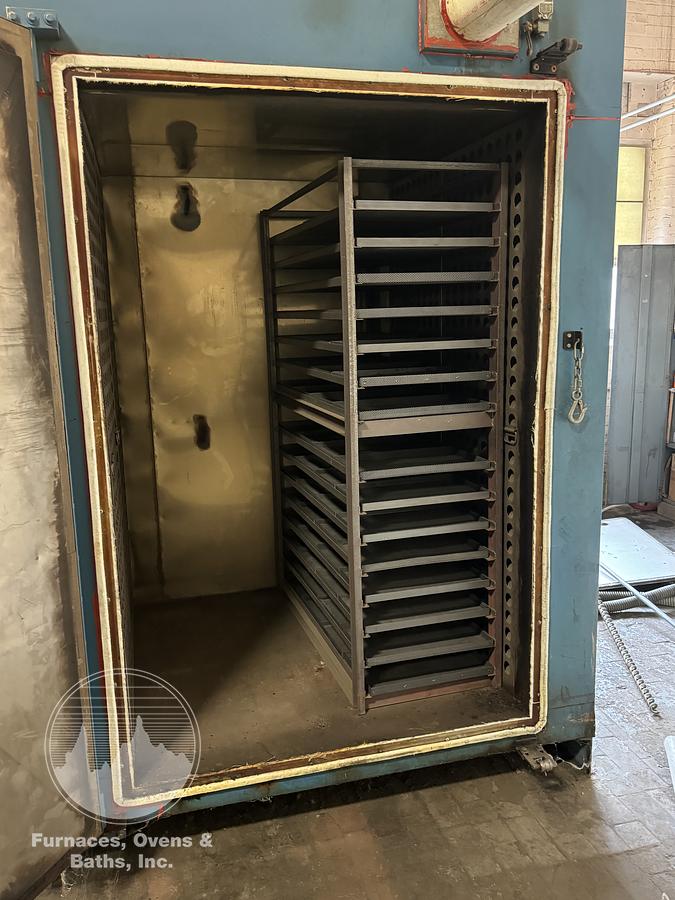

Stainless steel interior with insulated floor.
Perforated air duct panels on both sides.
Tubular-style heating elements.
Belt-driven circulating fan mounted above work chamber.
Horizontal airflow pattern across work area for uniform heating.
Fresh air inlet with slide damper on front wall.

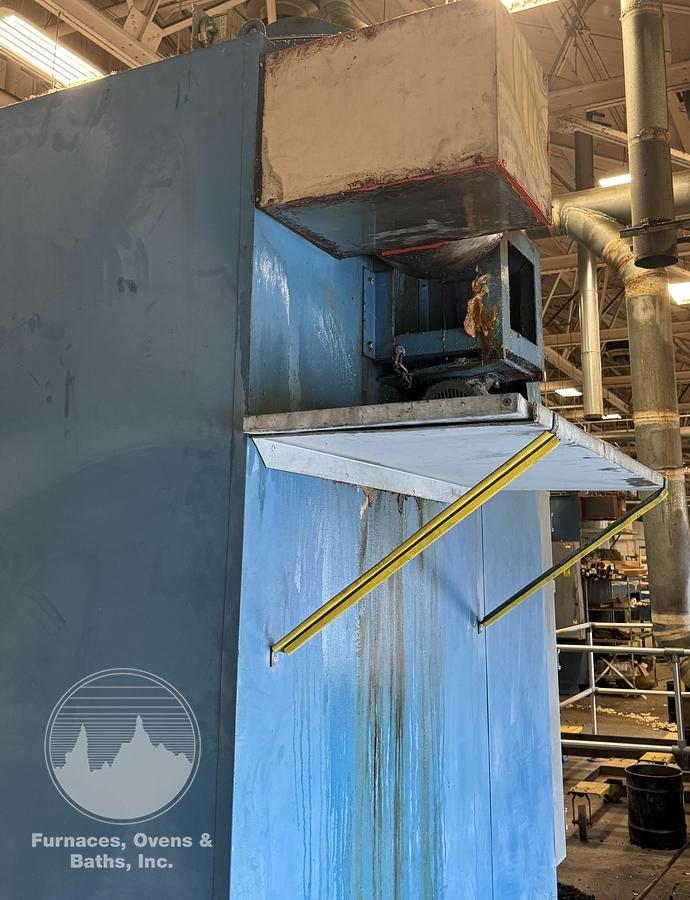

Powered exhauster with adjustable damper mounted on rear.
Heating elements wired in two (2) 72 kW banks for half-power or full-power operation.

Manufacturer: Gruenberg
Model No.: C45H960.M
Serial No.: 19653

Fuel Type: Electric
Capacity / Output: 48" W × 72" H × 48" L
Maximum Temperature: 450°F

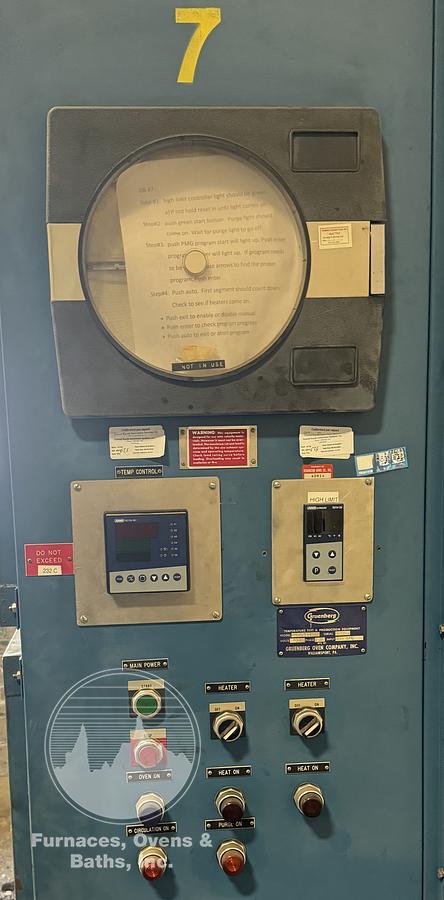

Control Panel: Enclosure attached to right-hand side of oven
Temperature Controls: JUMO digital temperature controller

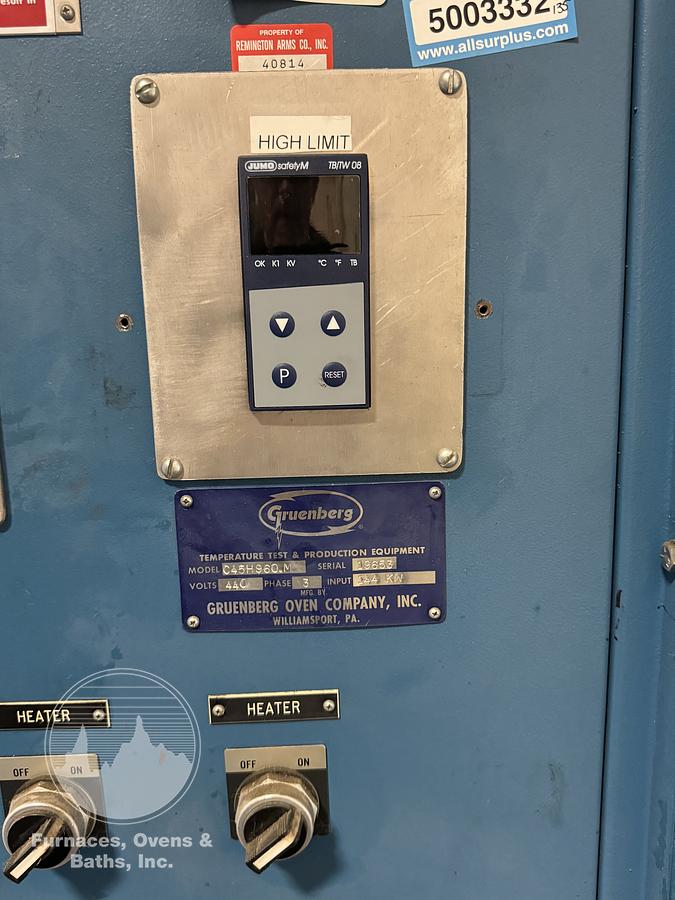

Safety Controls: JUMO digital high limit controller
Instrumentation: Partlow circular recorder

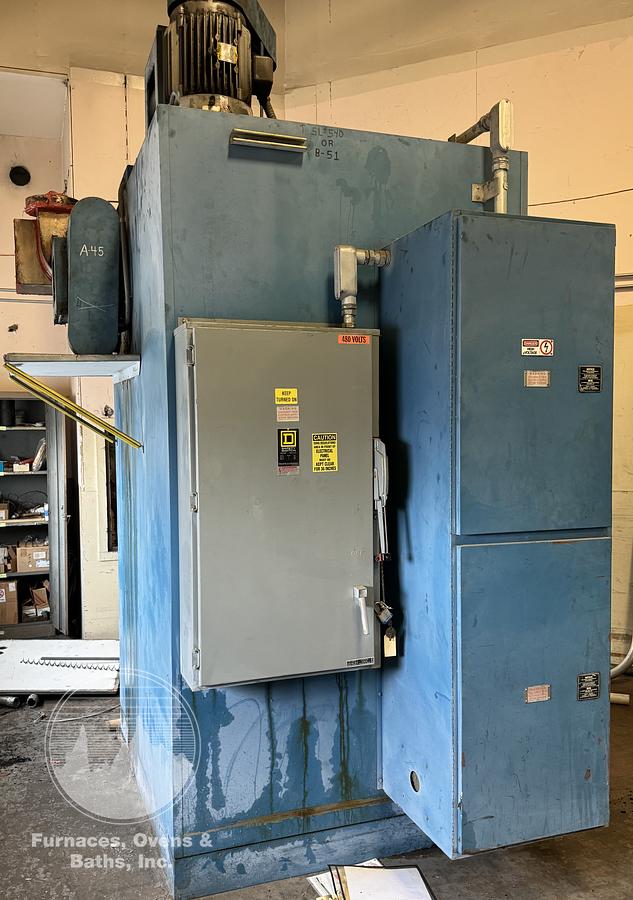

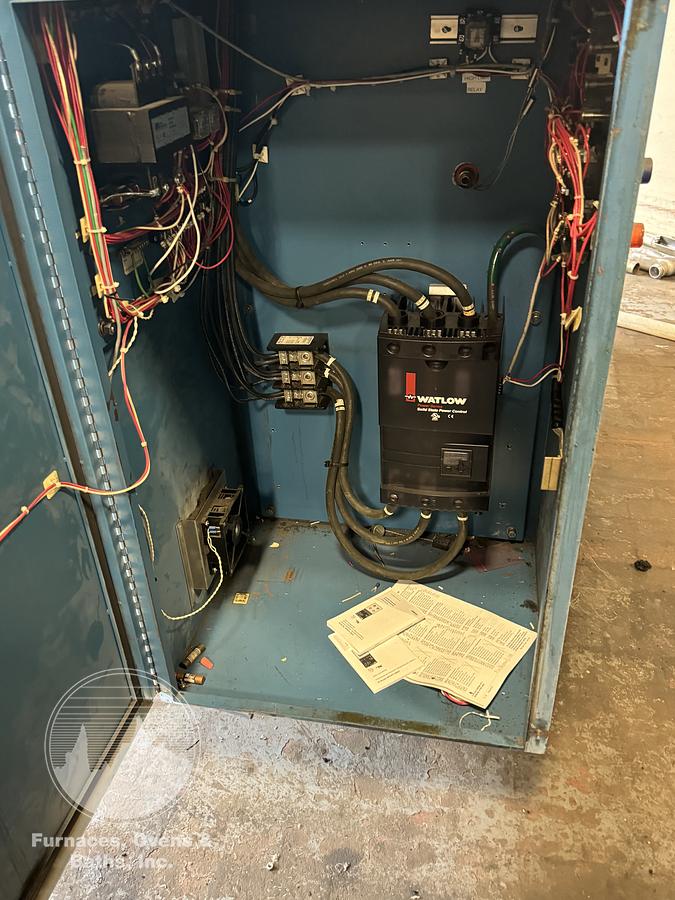

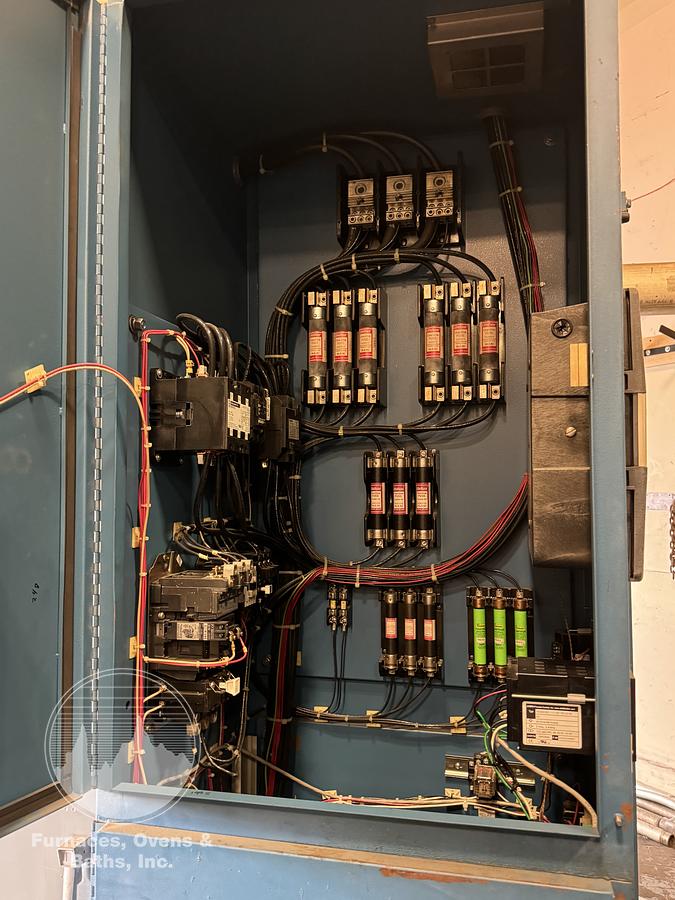

Electrical Components: Pushbuttons, signal lights, high-limit contactors, Watlow SCR, motor starters, fuses, relays, side-mounted fused disconnect switch

Power Requirements: 440 V / 3 Ph / 60 Hz / 144 kW / 2 element banks

Overall Dimensions: 83" Wide × 72" Deep × 120" High
