48"W x 72"H x 48"L, Electric Walk-In Oven, Stainless Steel Interior, Class A, 450-F

Description:

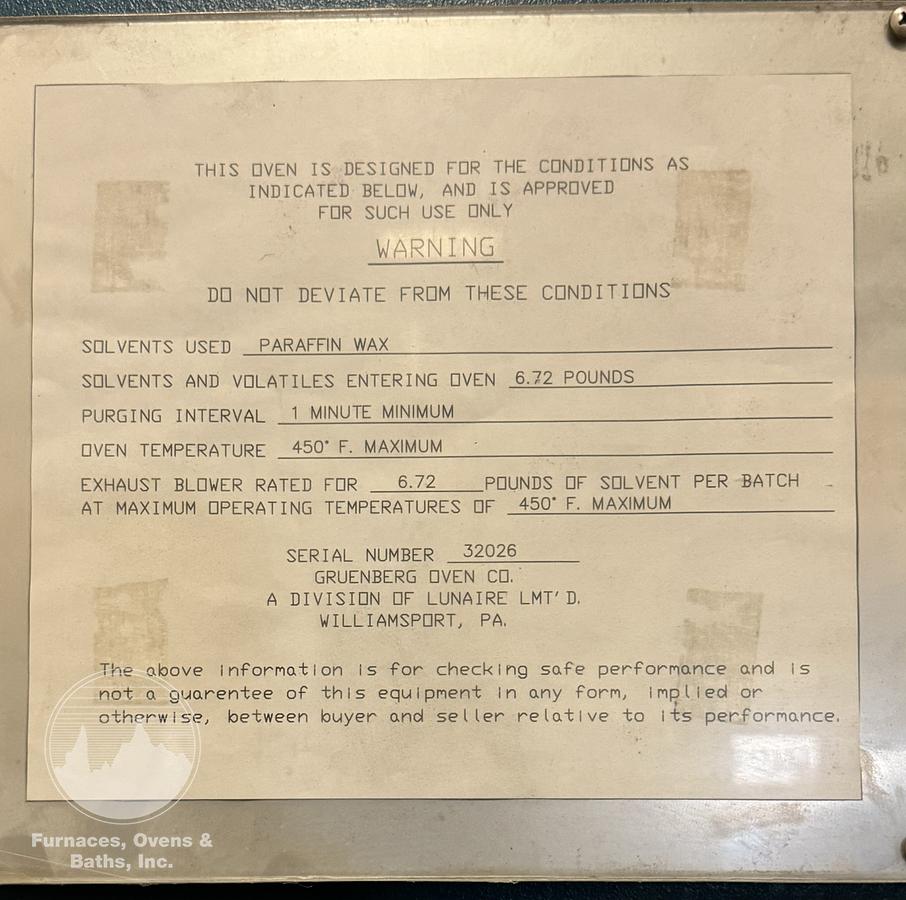

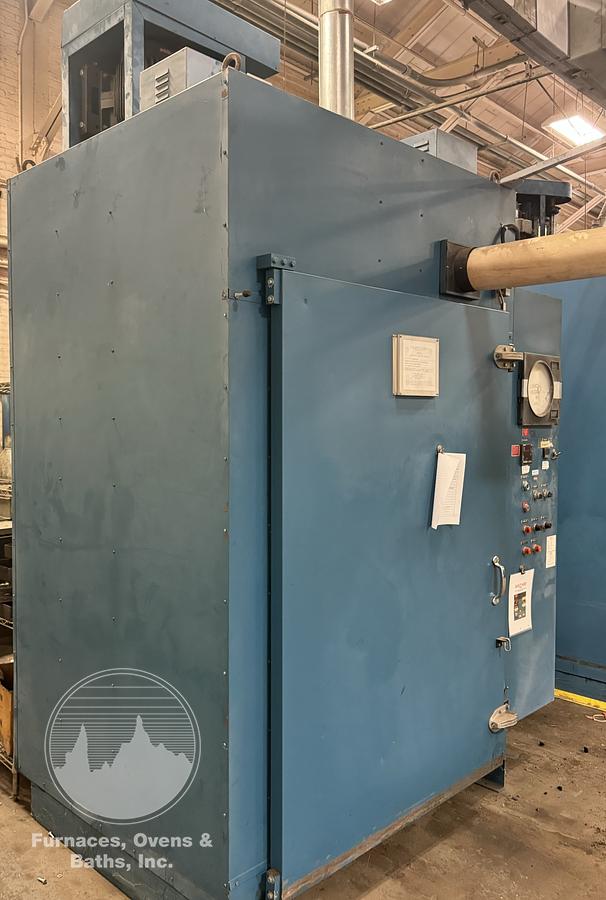

Gruenberg Class A Electric Walk-In Oven, 48" W × 72" H × 48" L. Single-door walk-in oven with stainless steel interior designed for uniform heating applications up to 450°F. Designed for use with some solvents and designated Class A by Gruenberg.

Key Components & Features:
Single door with Brixon spring-tension latches.
Door limit switch.
High-temperature ceramic fiber door gasket for excellent seal.

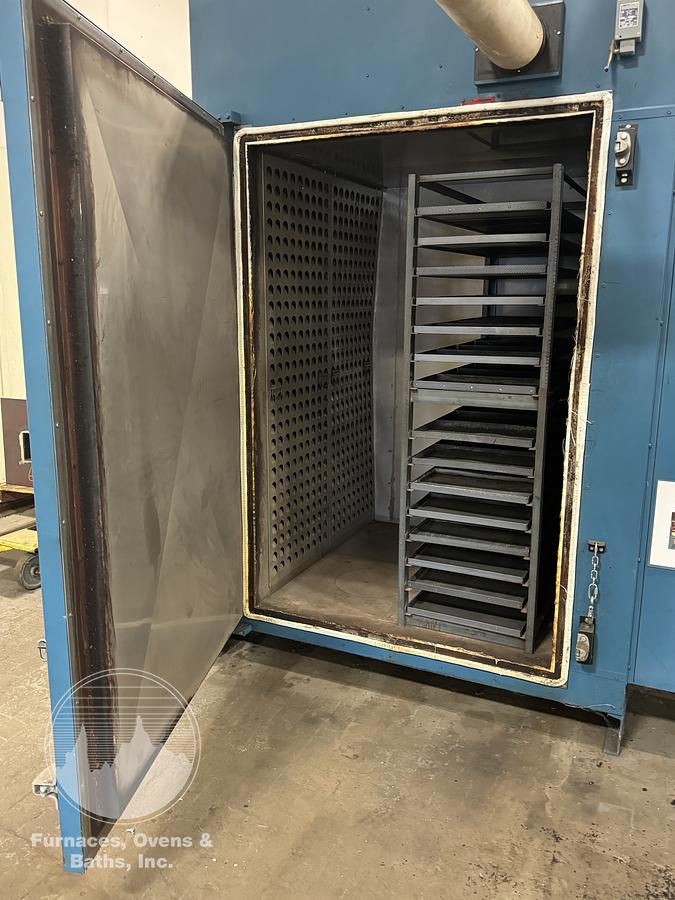

Stainless steel interior with insulated floor.
Perforated air duct panels on both sides.
Tubular-style heating elements.
Belt-driven circulating fan mounted above work chamber.
Horizontal airflow pattern across work area for uniform heating.
Fresh air inlet on front wall.

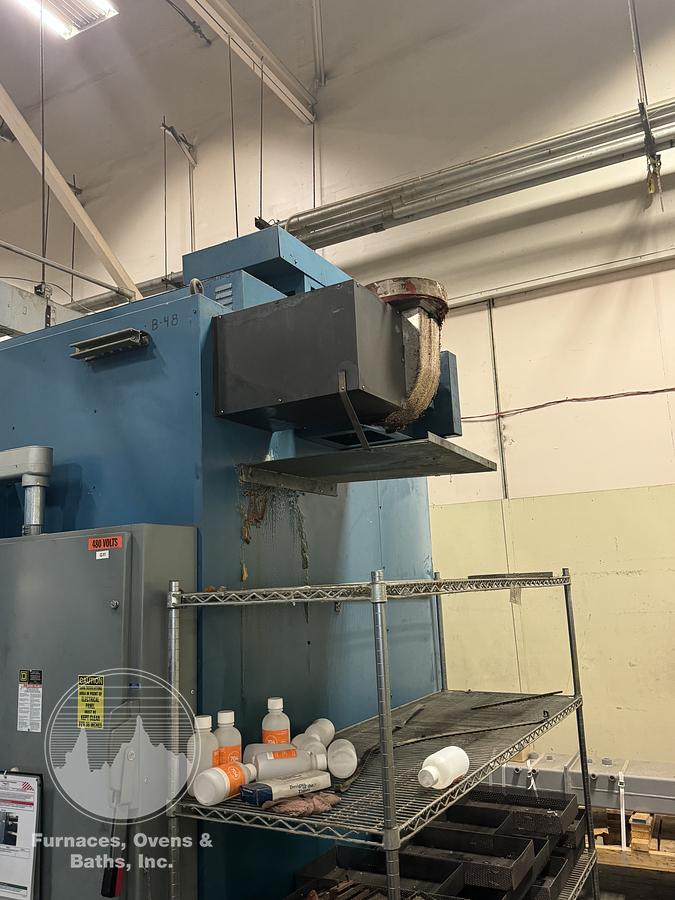

Powered exhauster mounted on top of oven (removed for shipping).
Heating elements wired in three (3) banks: 54 kW, 36 kW, and 54 kW for reduced-power or full-power operation.

Manufacturer: Gruenberg
Model No.: C45H960.1M
Serial No.: 32026, Order #258089

Fuel Type: Electric
Capacity / Output: 48" W × 72" H × 48" L
Maximum Temperature: 450°F

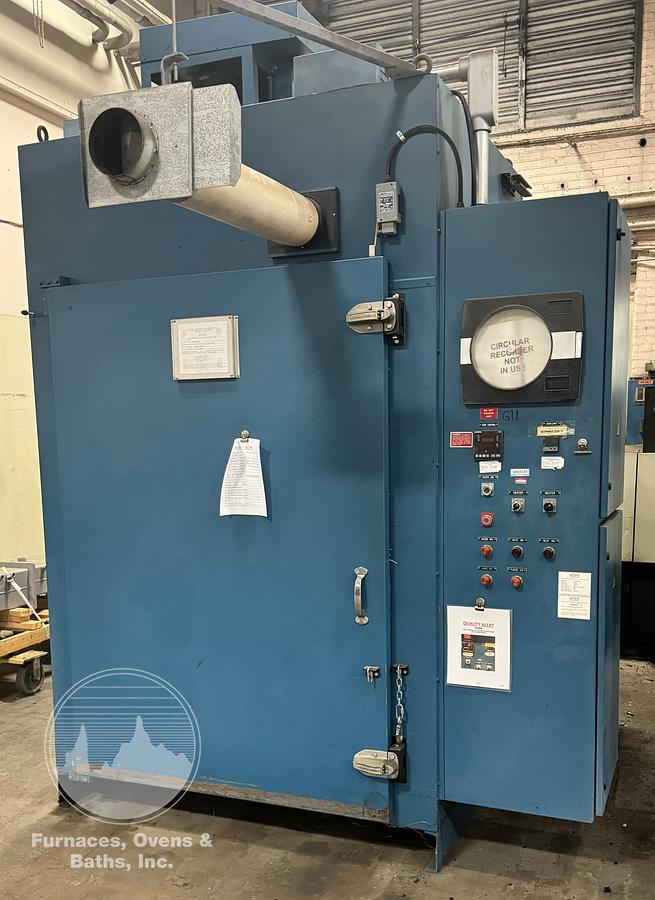

Control Panel: Enclosure attached to right-hand side of oven
Temperature Controls: Partlow Model 1462 digital temperature controller
Safety Controls: Yokogawa UT150L digital high limit controller
Instrumentation: Partlow circular recorder

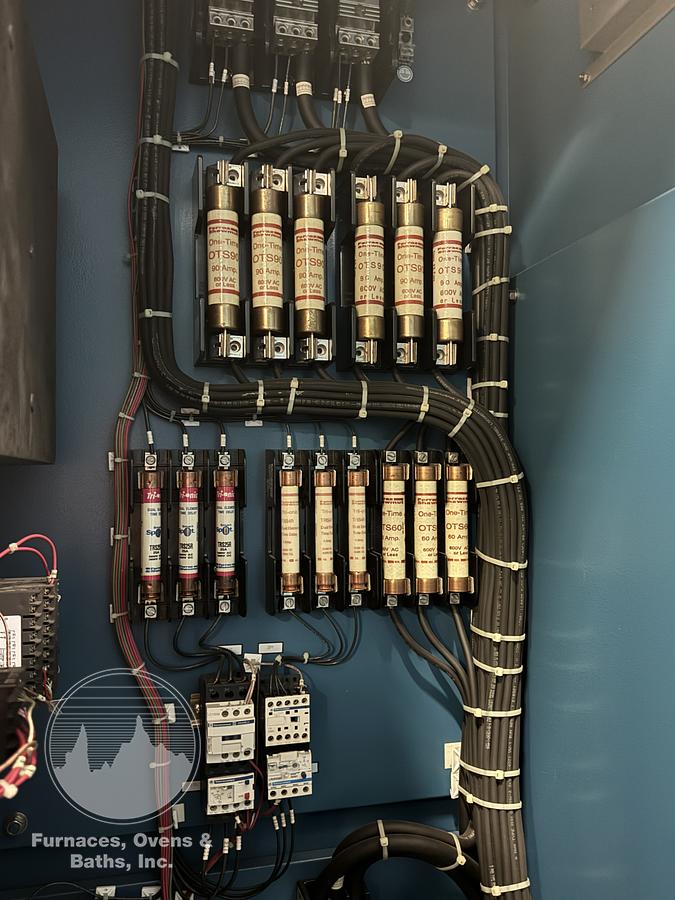

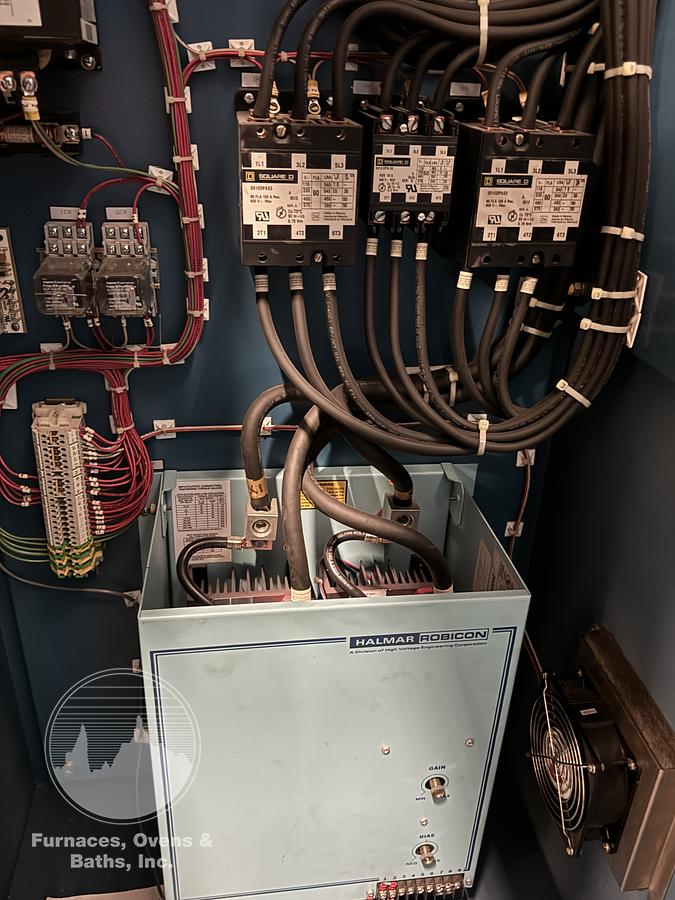

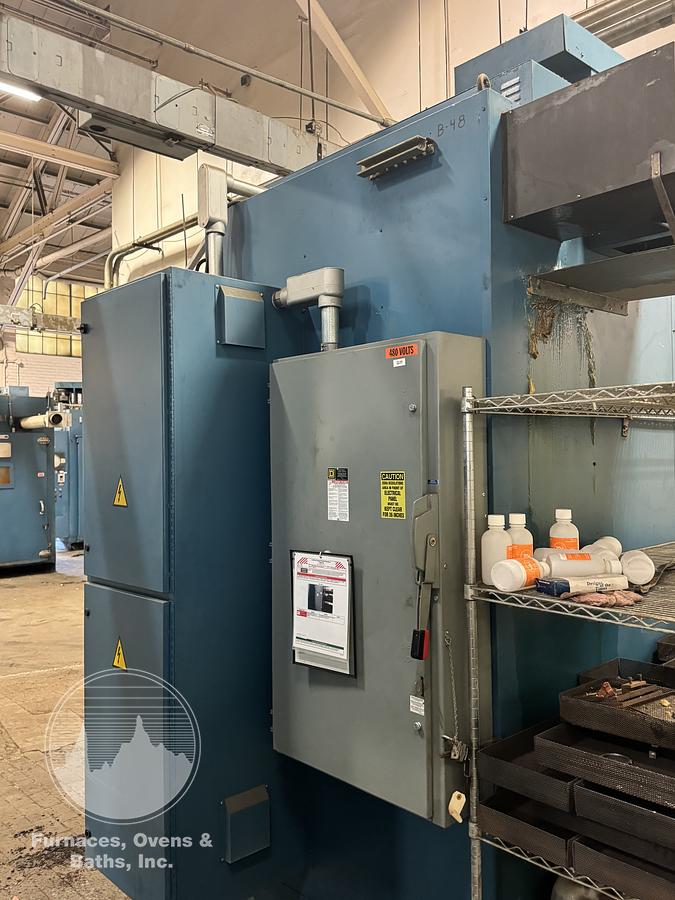

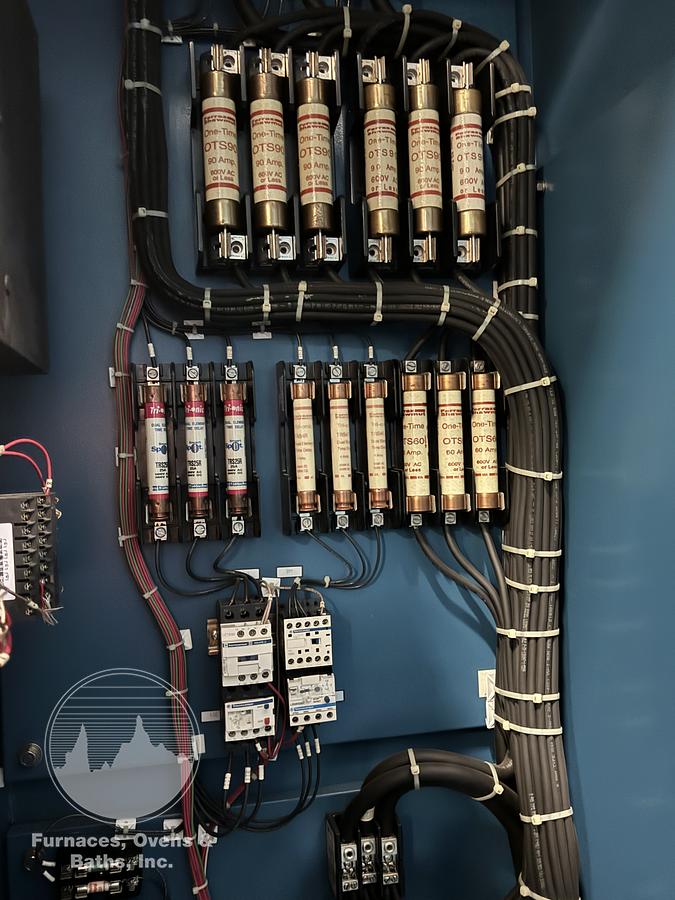

Electrical Components: Pushbuttons, signal lights, high-limit contactors, Ametek SCR, motor starters, fuses, relays, side-mounted fused disconnect switch

Power Requirements: 480 V / 3 Ph / 60 Hz
