48"W x 72"H x 60"L, Gas Fired Walk-In Oven, 500°F

Description:

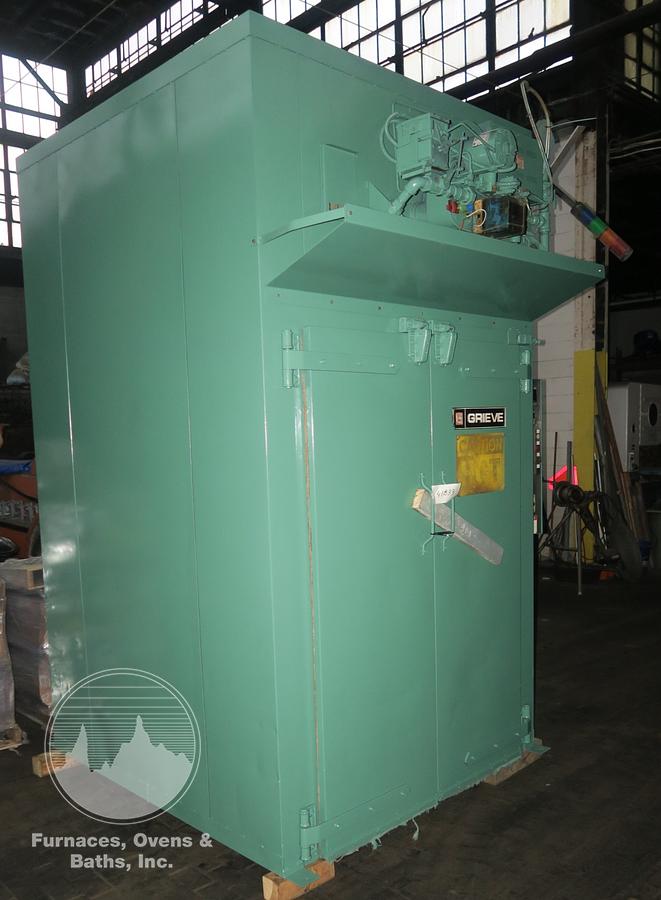

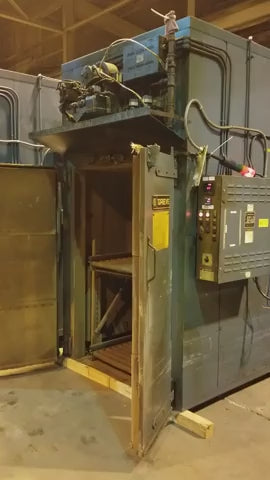

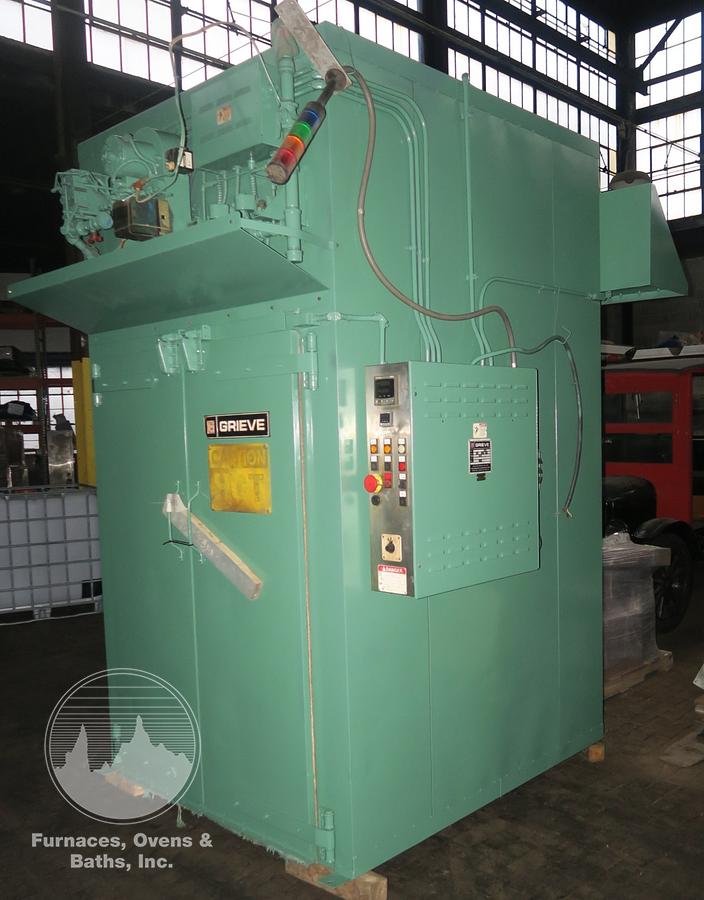

Grieve Gas Fired Walk-In Oven, 48" W × 72" H × 60" L. Gas-fired walk-in oven designed for uniform heating applications up to 500°F. Manual and drawings included.

Key Components & Features:
Double doors with ceramic fiber door gaskets.
Brixon spring-tension latches.
Door limit switch.

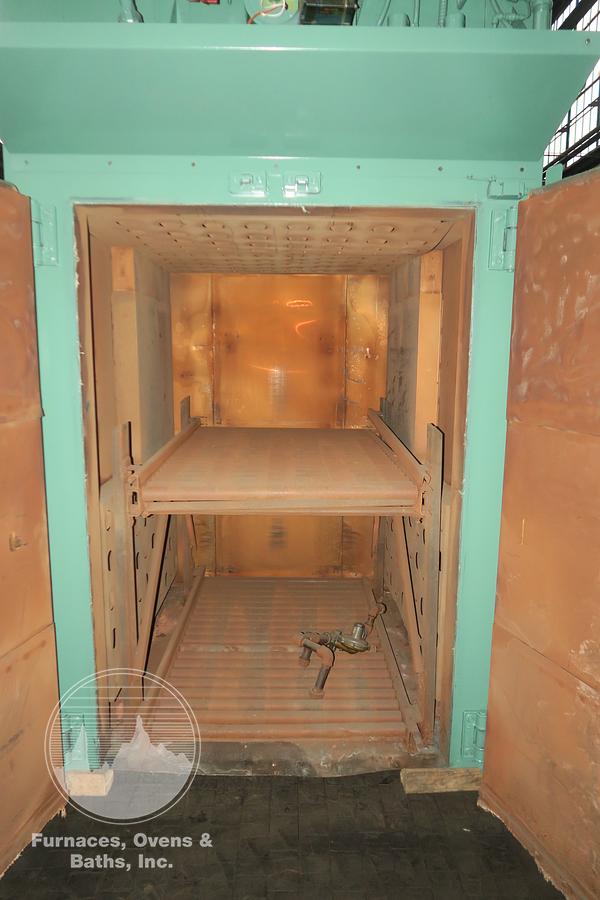

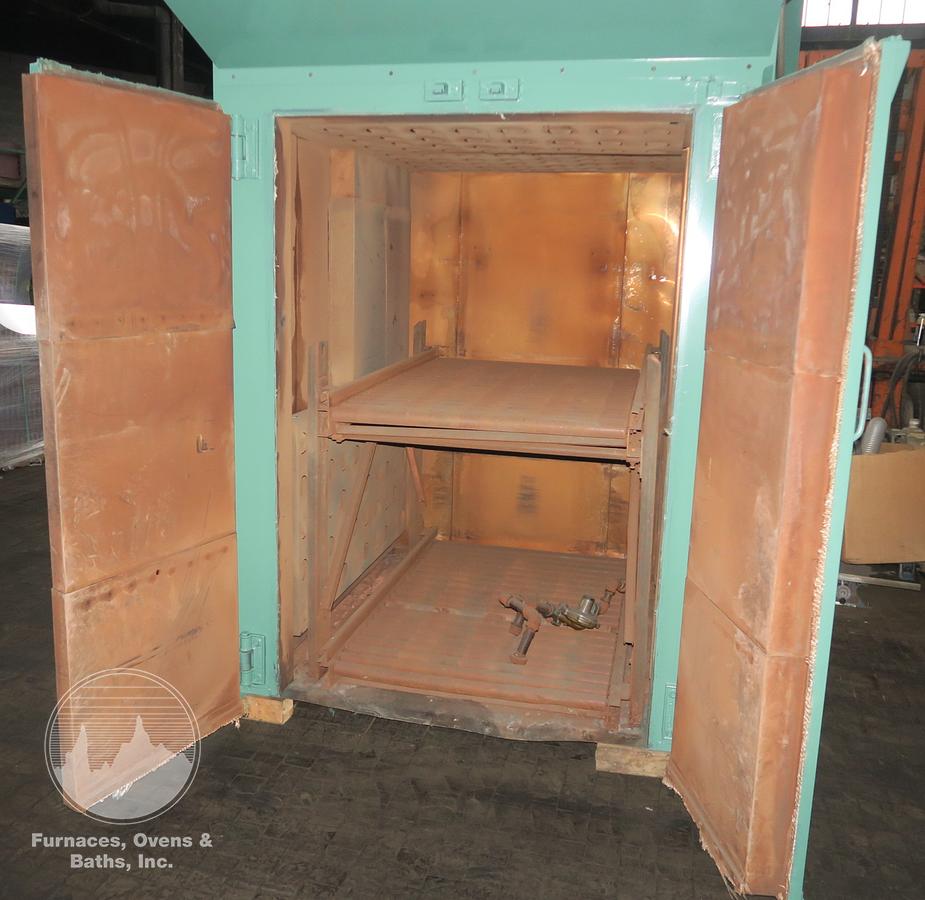

Stainless steel interior with non-insulated floor.
Removable two-tier roller table.
Gas burner firing into combustion chamber above work area.
All gas train components and flame safety relay mounted on top of oven.
Circulating fan mounted through top rear wall.
Combination vertical and horizontal airflow pattern across chamber.

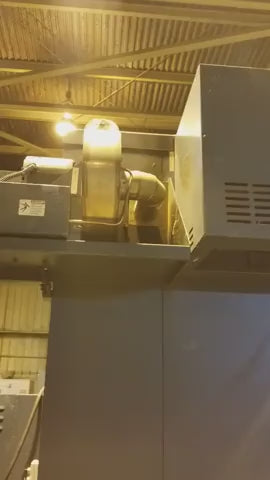

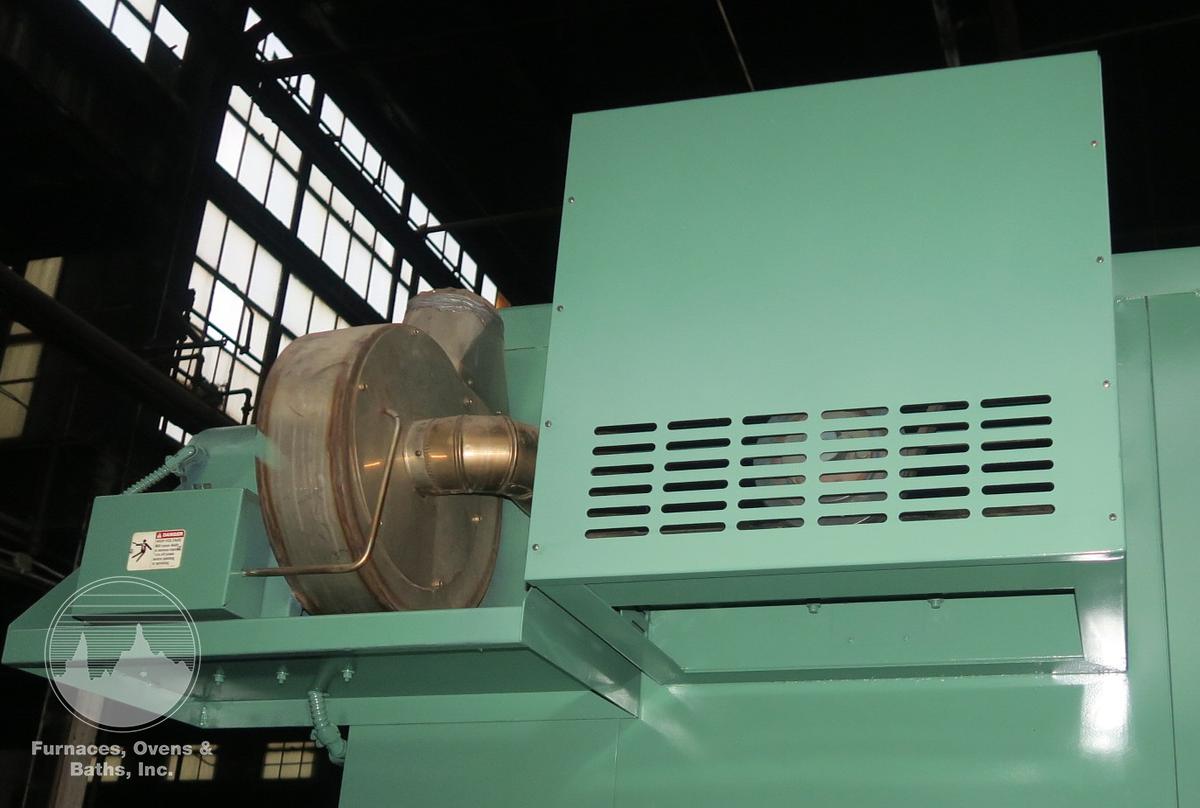

Powered exhaust fan mounted on top rear.

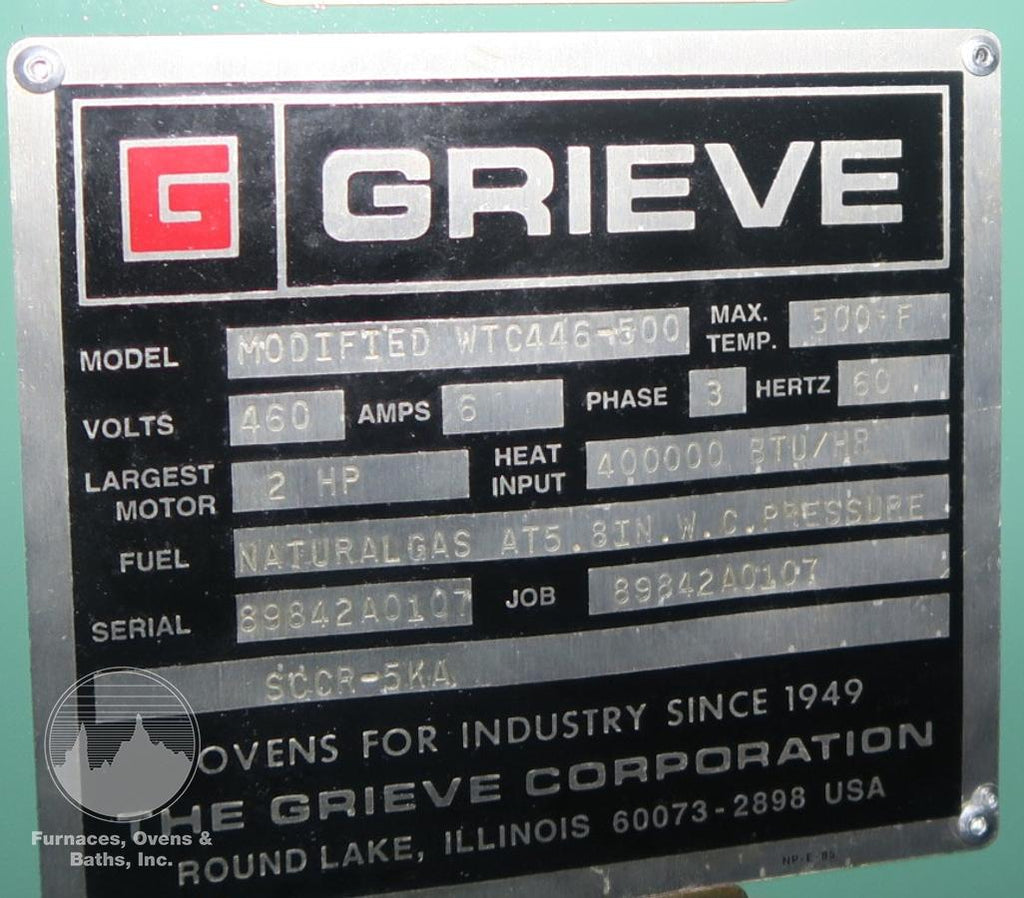

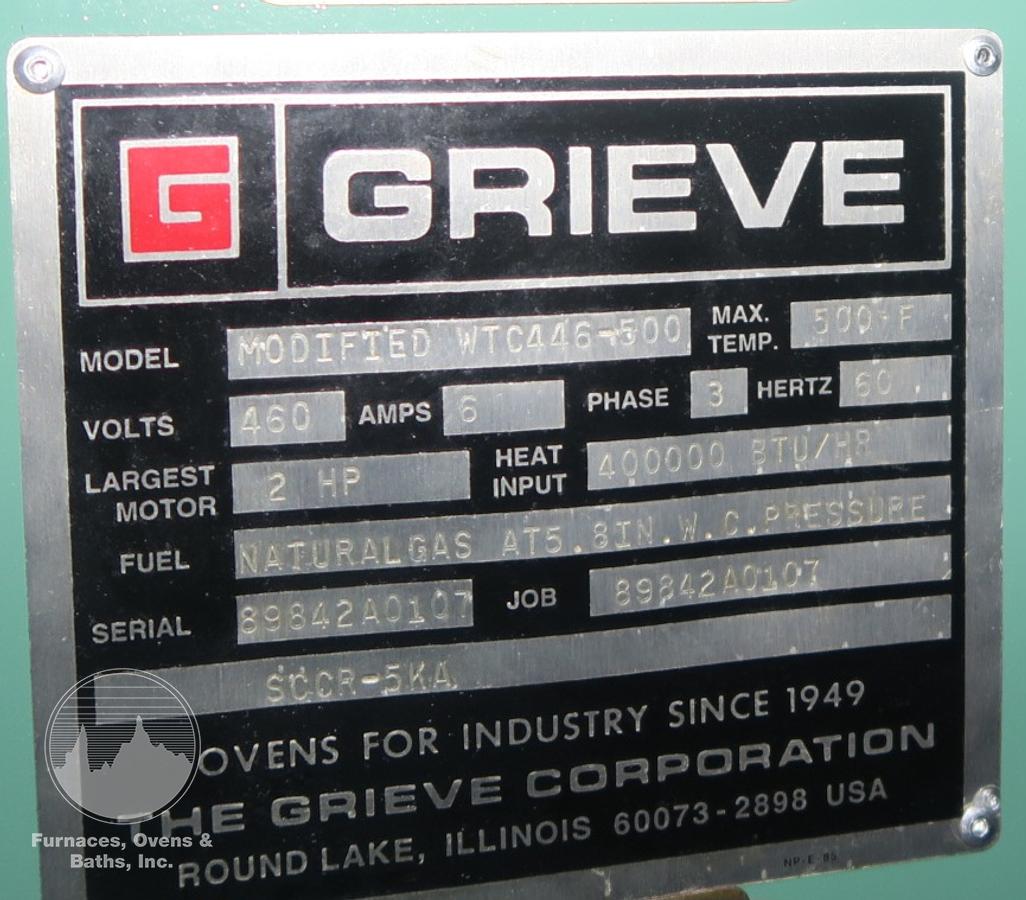

Manufacturer: Grieve
Model No.: MODIFIED WTC-446-500
Serial No.: 89842A0107

Fuel Type: Natural Gas
Capacity / Output: 48" W × 72" H × 60" L
Maximum Temperature: 500°F

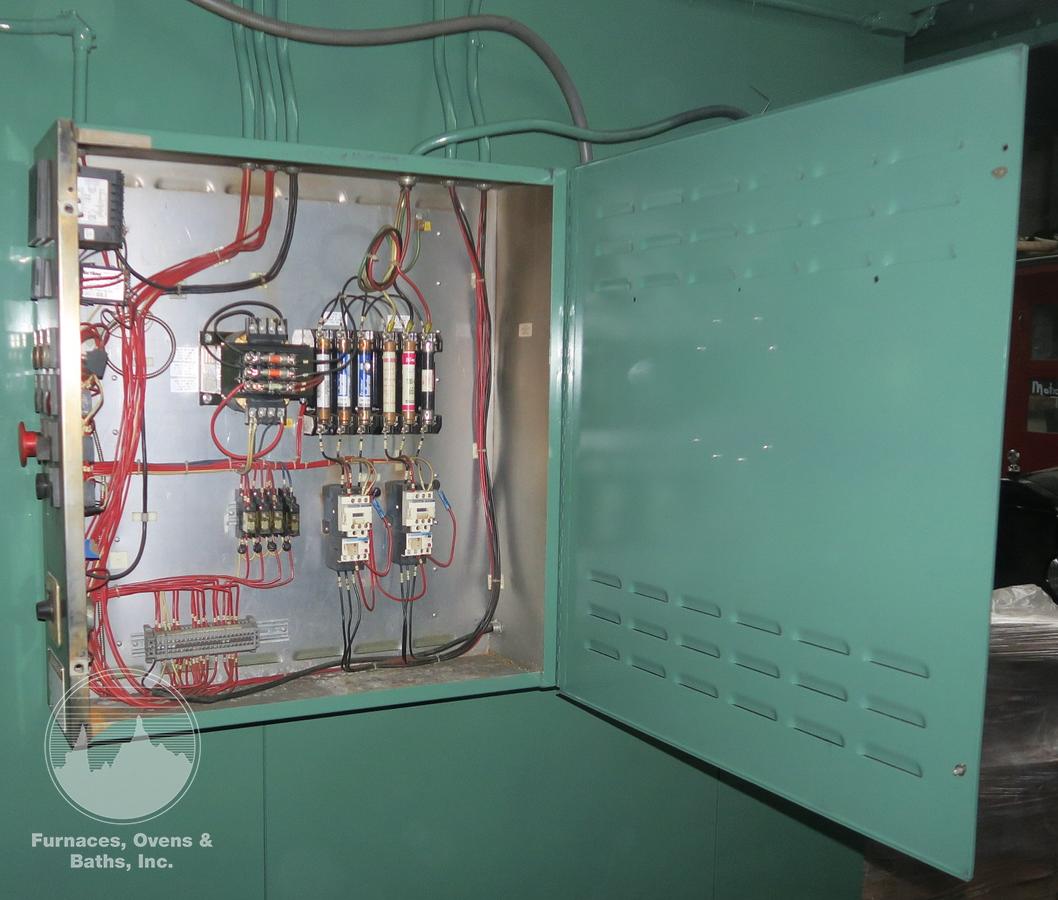

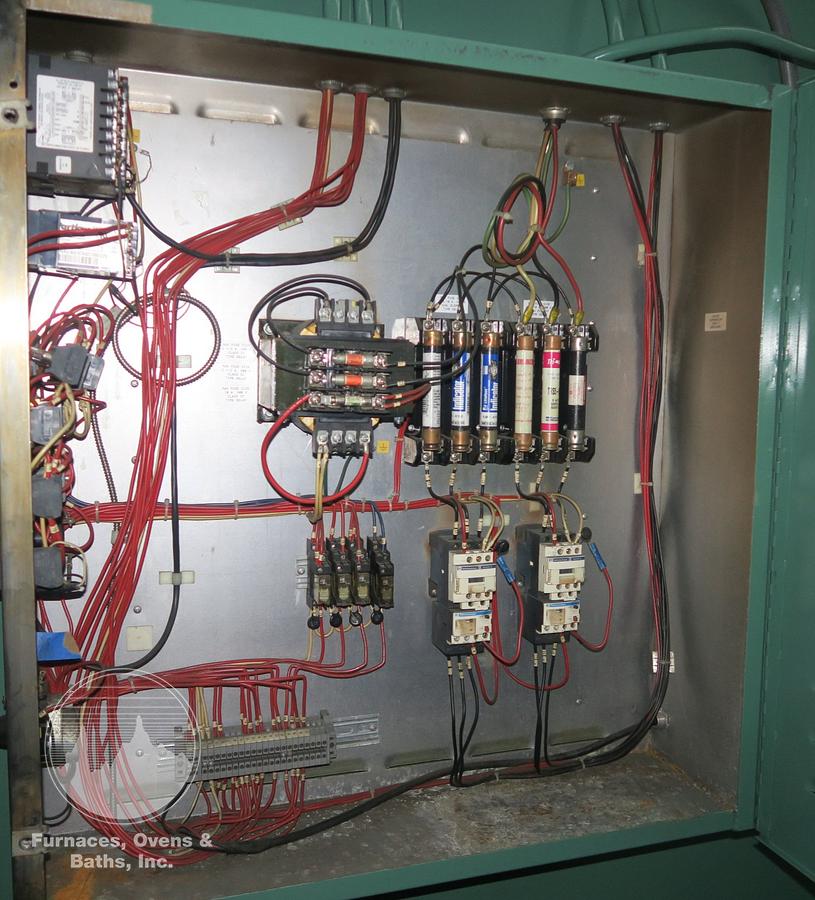

Control Panel: Enclosure mounted to right-hand side of oven

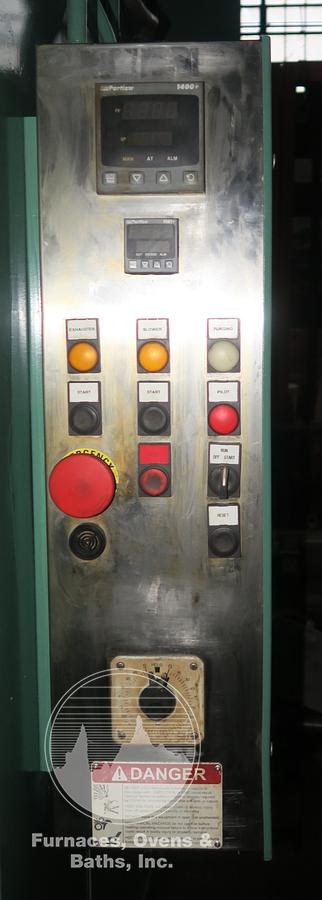

Temperature Controls: Partlow 1400 Plus digital temperature controller
Safety Controls: Partlow 1161 Plus digital high limit; flame safety relay; door limit switch
Controls: On/Off/Run selector switch; reset button; start/stop buttons for blower and exhauster; signal lights; E-Stop button

Power Requirements: 460 V / 3 Ph / 60 Hz / 6 Amps

Overall Dimensions: 72" W × 120" H × 72" L
