48"W x 84"H x 48"L, B1-500, Electric, Walk-In/Truck Oven, 500-F, Solvent Rated

Description:

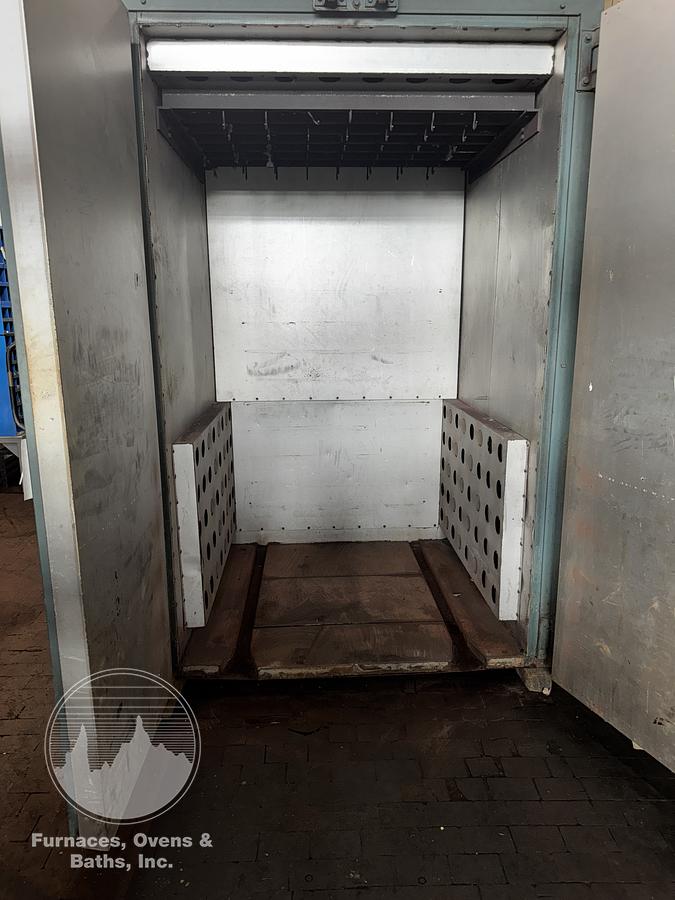

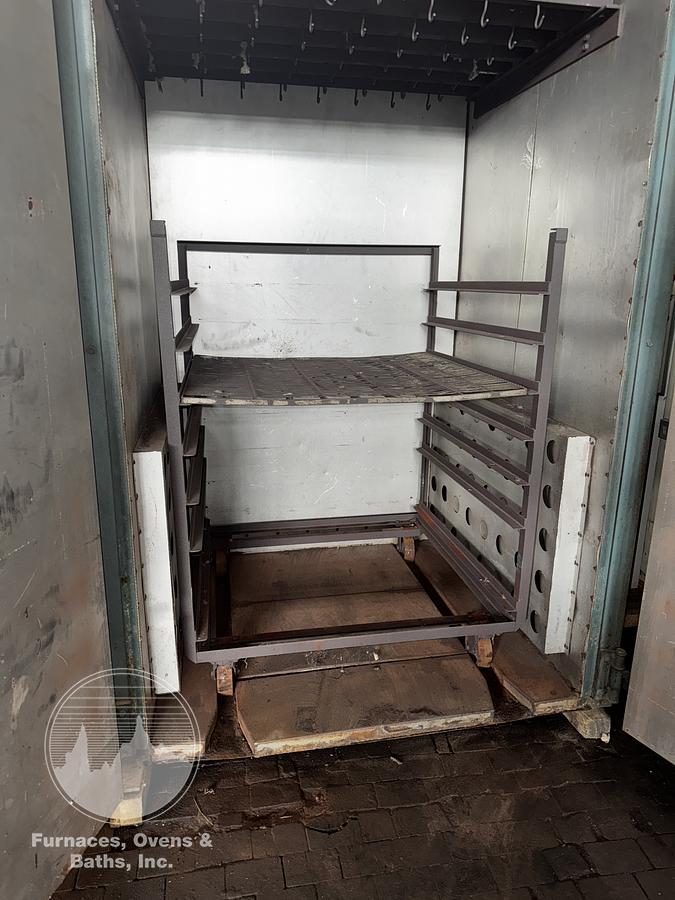

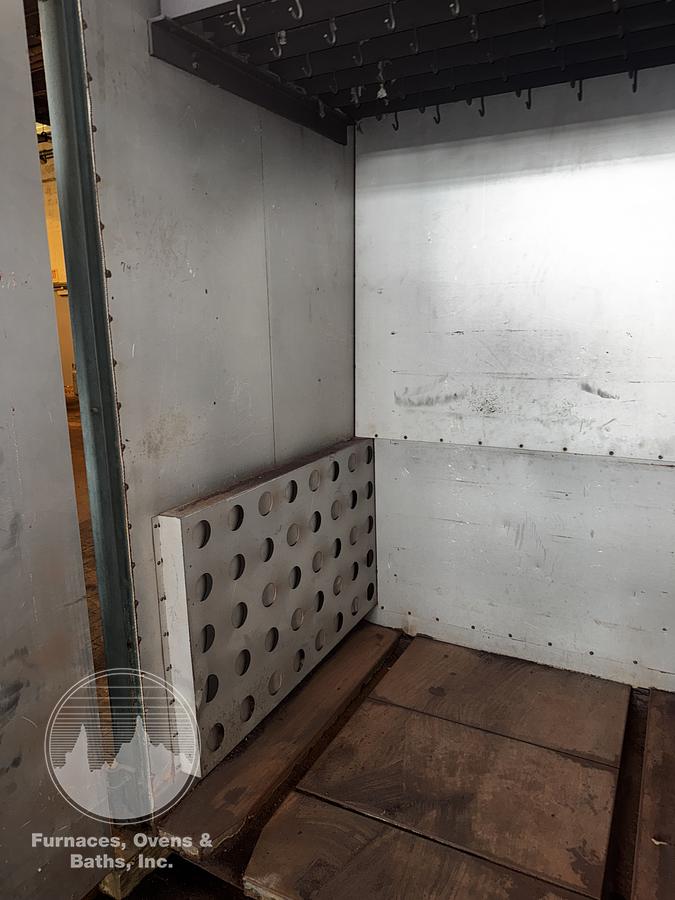

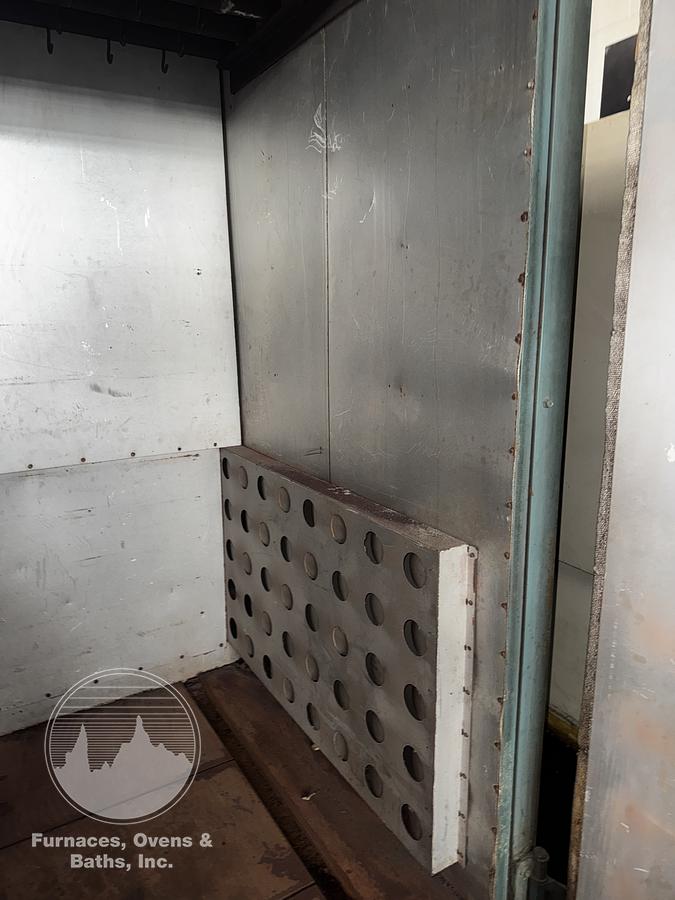

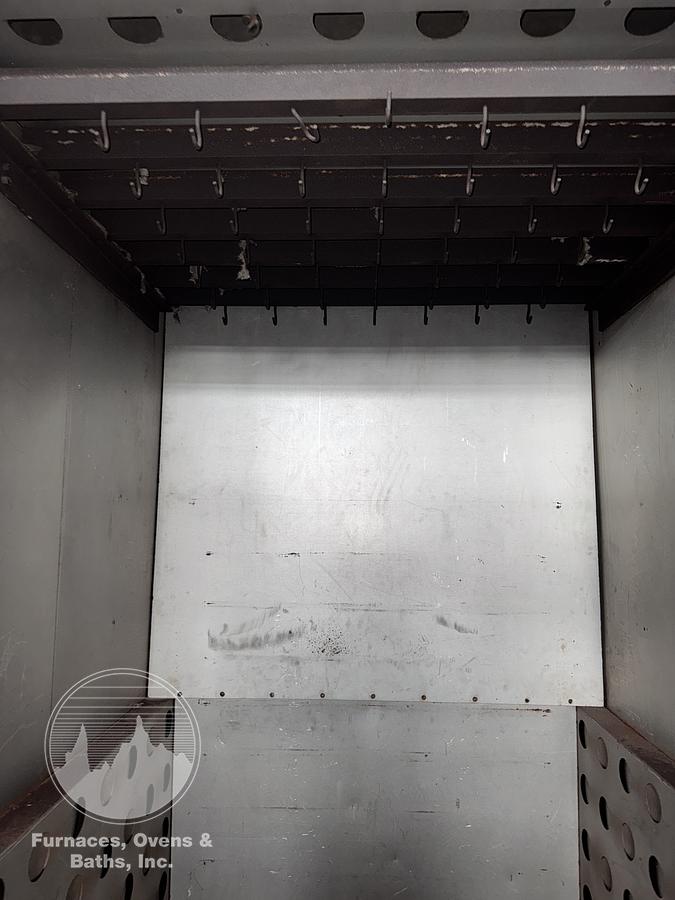

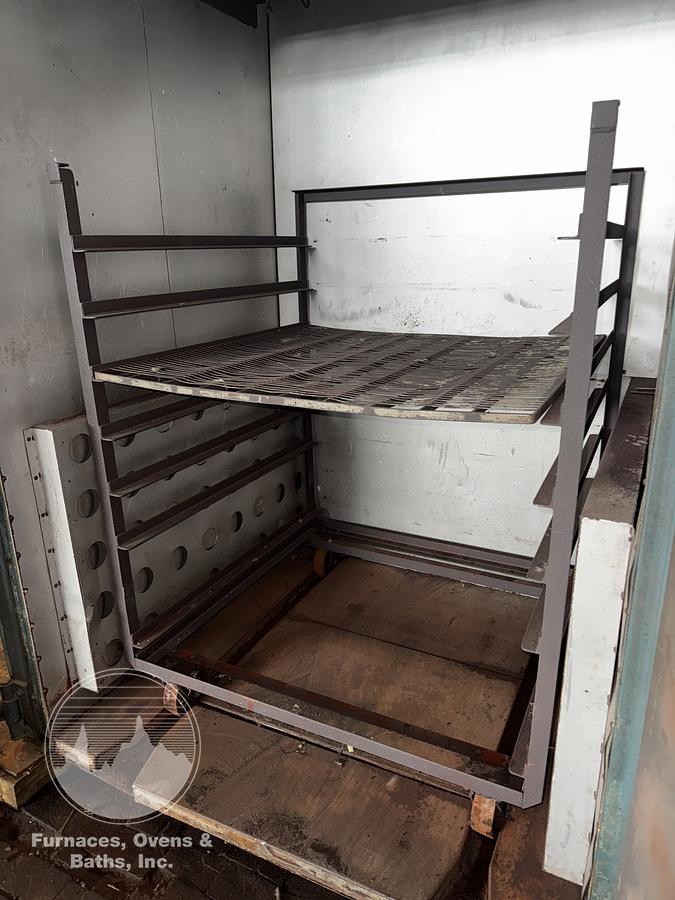

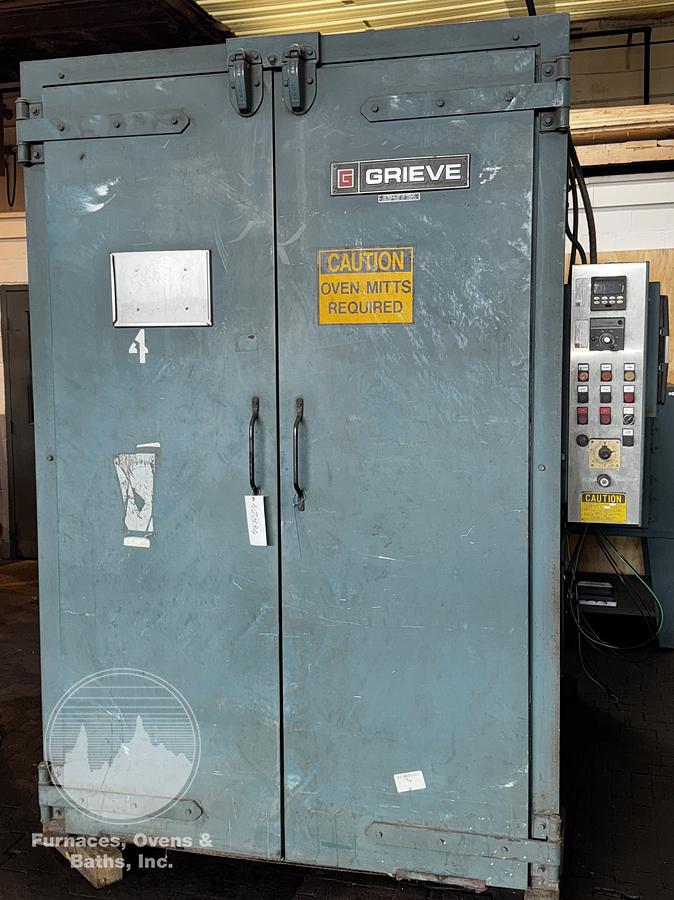

Grieve B1-500 Electric Walk-In / Truck Oven, 48" W × 84" H × 48" L. Solvent-rated walk-in oven designed for heating applications up to 500°F. Roll-in cart included.

Key Components & Features:

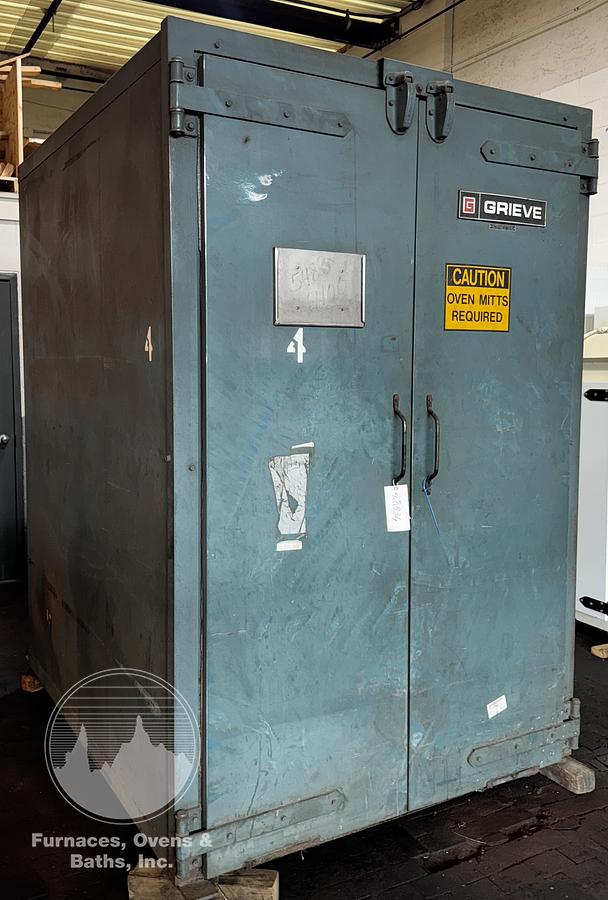

Double doors on one end with Brixon door latches.

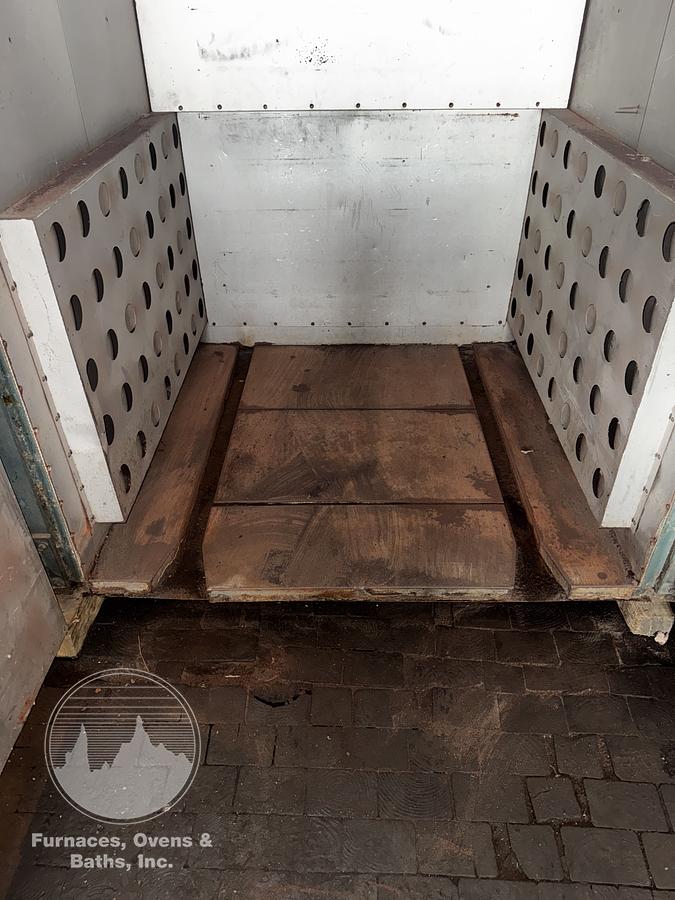

Insulated floor with floor tracks.
High-temperature ceramic fiber door gasketing.
Rear-mounted 1.5 HP recirculating fan.
Combination horizontal and vertical airflow pattern.
Rear-mounted powered exhauster and fresh air inlet.
Rated for use with some solvents (.07 gallons per batch @ 500°F).

Manufacturer: Grieve
Model No.: MODIFIED B1-500
Serial No.: 411491 / JOB #32911D0196

Capacity / Output: 48" W × 84" H × 48" L
Maximum Temperature: 500°F

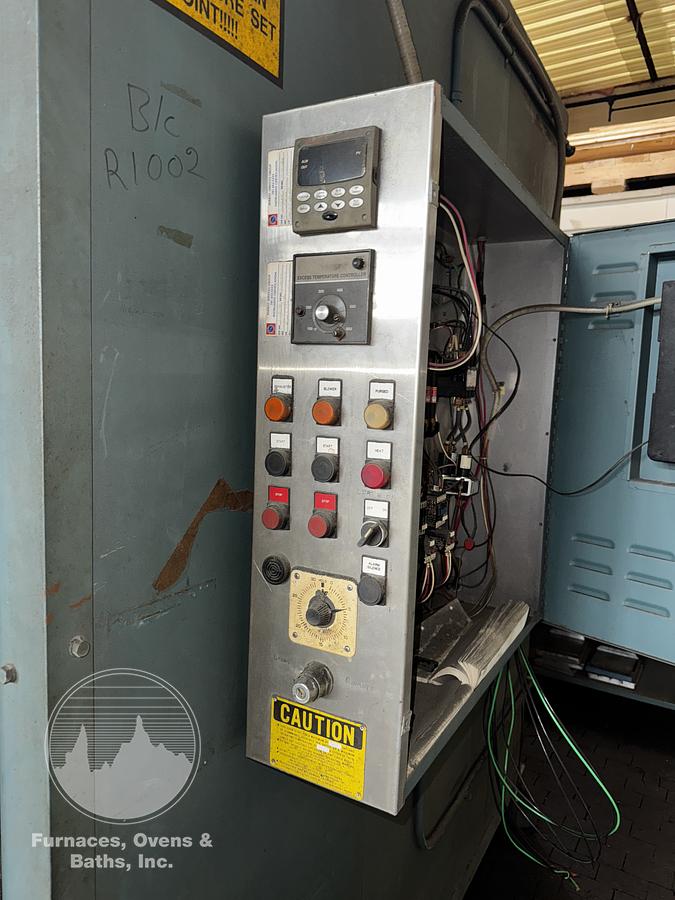

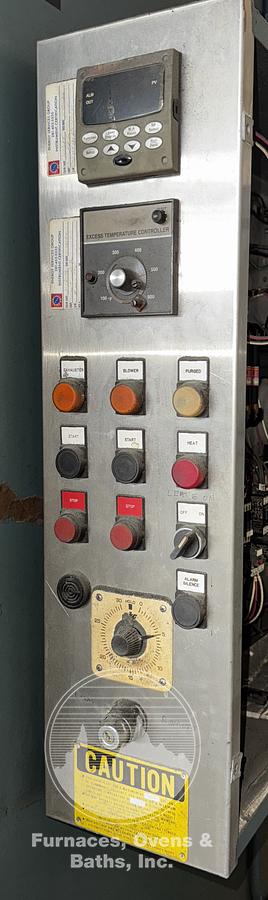

Control Panel: UL-rated enclosure attached to right-hand side of oven
Temperature Controls: Honeywell UDC digital temperature controller
Safety Controls: Partlow analog high limit
Instrumentation: Partlow circular recorder

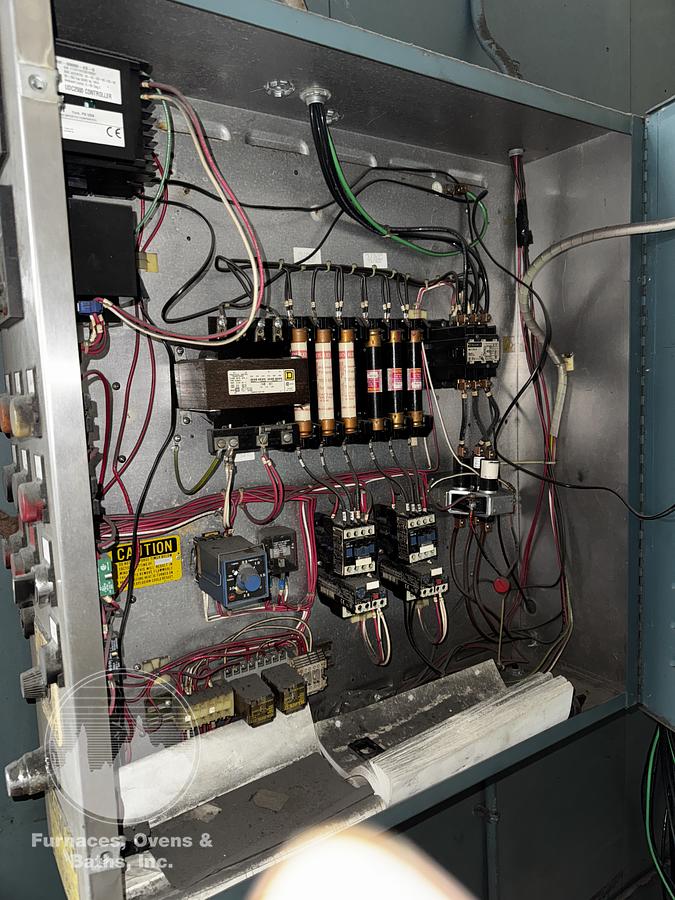

Electrical Components: Control switches, signal lights, motor starter, fuses, contactors, purge timer

Power Requirements: 480 V / 3 Ph / 60 Hz / 35 Amps / 24 kW

Overall Dimensions: 75" Wide × 96" High × 101" Long
