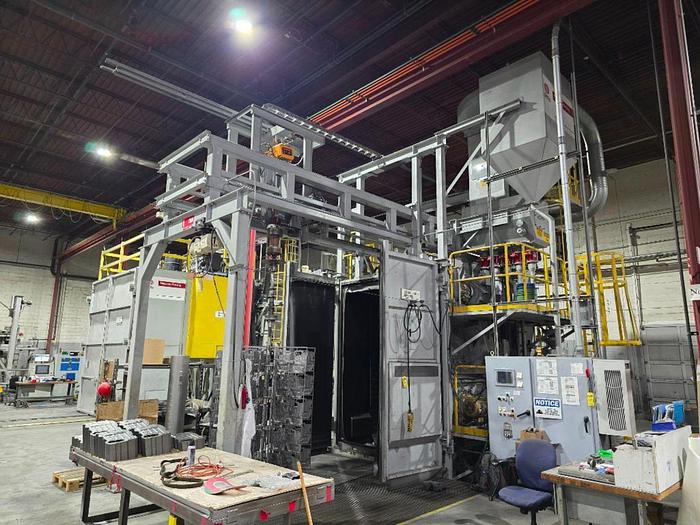

5 Wheel Spinner Hanger Shot Blast System

Description:
5 Wheel Spinner Hanger Shot Blast System manufactured by Sinto Surface Treatment. Spinner hanger shot blast system designed for processing large parts with optional two-mode configuration and 72" turntable for standing up large heavy pieces.

Key Components & Features:
Five (5) 20 HP blast wheels.
Maximum piece weight: 5,000 lbs.
Maximum piece size: 70" diameter × 96" height.
Langtry 25 HP canister dust collector.
Sweco vibratory shot collector.
Profile single spiral separator.
MCC cabinet with Allen Bradley PanelView Plus 1000.
3-ton carriage hanger feed crane.
Spinner parts hanger with Harrington 3-ton carriage crane.
Coffing 1-ton electric chain hoist.
Linear carriage positioner.
Five (5) EI shot peen controls.
Five (5) Magna valves.
Self-regulating flow control.
Shot level probe.
Power doors.
Bucket elevator.
Blast cabinet enclosure.
Optional 2-mode configuration with 72" turntable for large heavy parts.

Manufacturer: Sinto Surface Treatment
Model No.: SZAR1
Year: 2014

Capacity / Output:
Maximum piece weight: 5,000 lbs
Maximum piece size: 70" diameter × 96" height

Controls: MCC cabinet with Allen Bradley PanelView Plus 1000; five (5) EI shot peen controls

Overall Dimensions: 102" Wide × 118" High × 325" Long
