60”W x 60”H x 60”L, TCH-550 Truck Oven, 550-F, Electric

Description:
Grieve TCH-550 Truck Oven, 60" W × 60" H × 60" L. Electric truck oven designed for uniform heating applications up to 550°F. Manual and drawings included.

Key Components & Features:

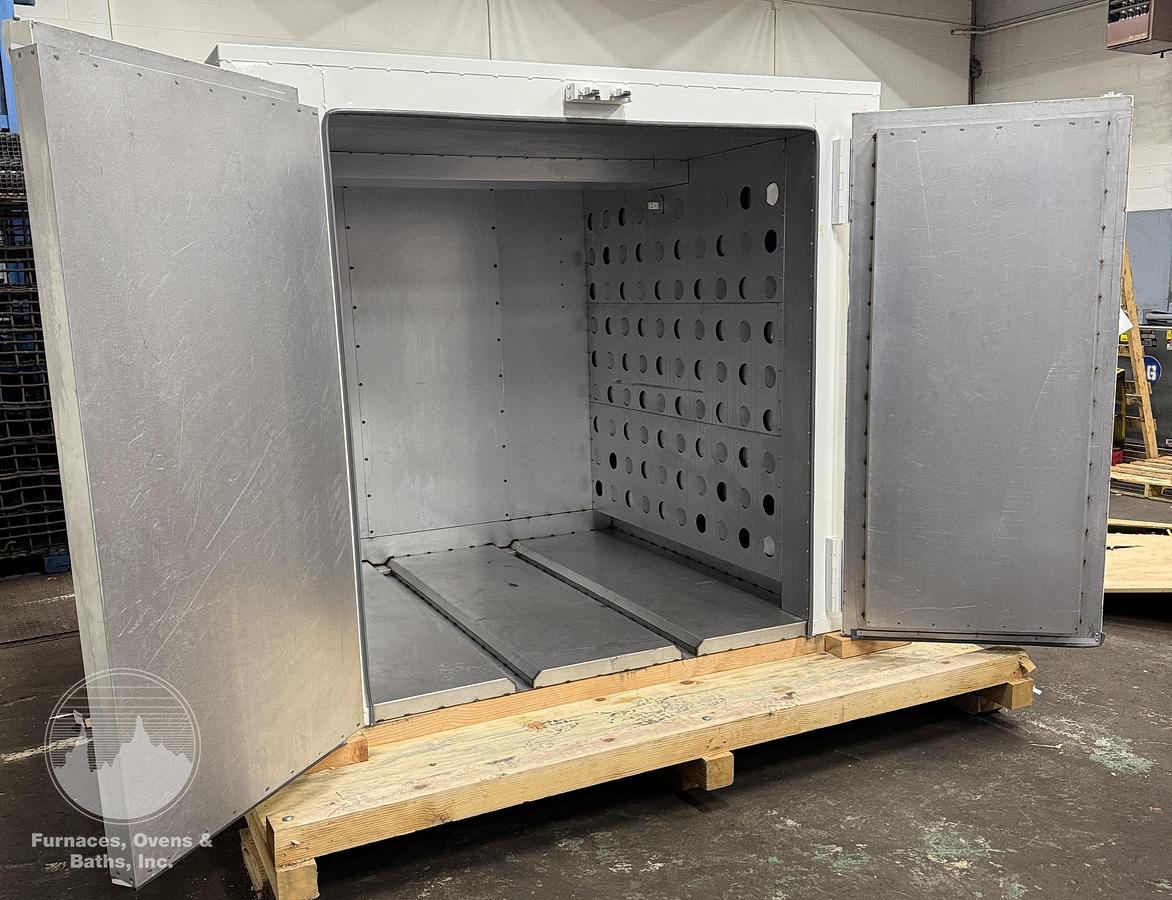

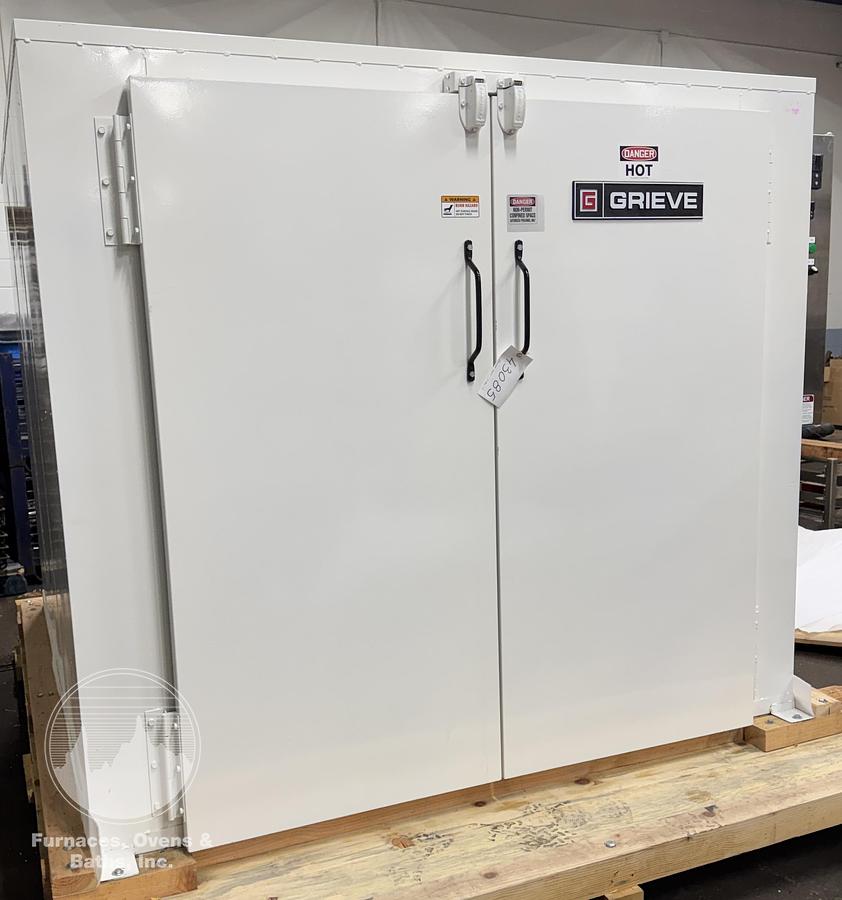

Double doors with silicone rubber gasket.
Brixon spring-tension latches for a secure door seal.

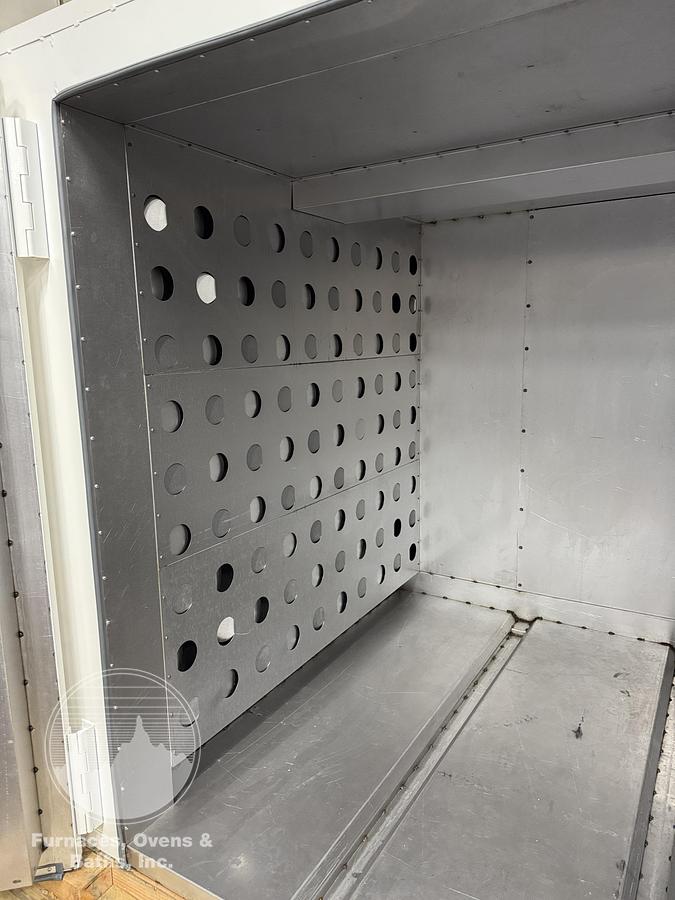

Aluminized steel interior.

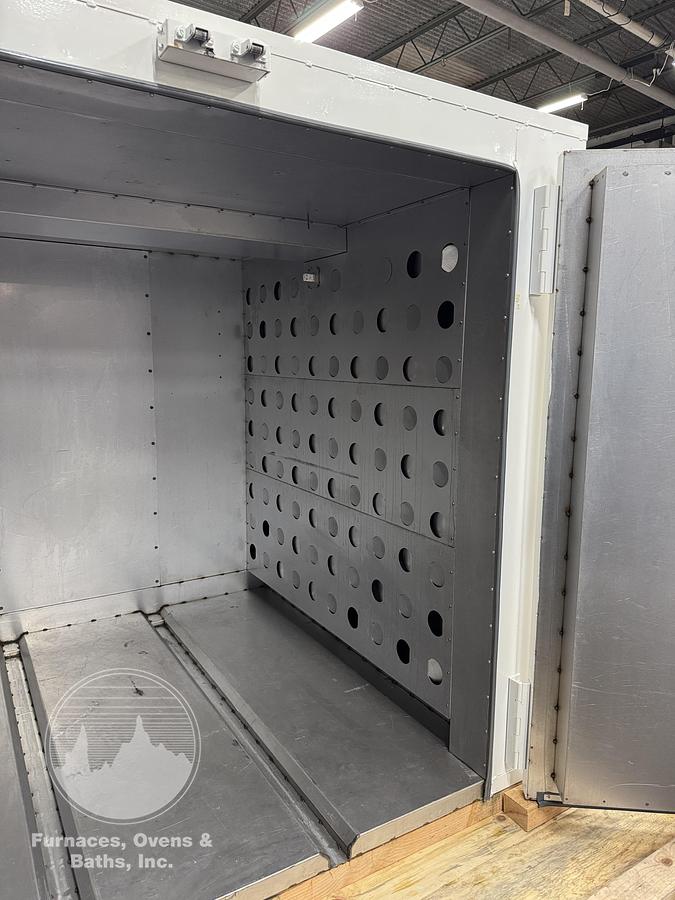

Insulated floor with 4" wide cart tracks on 48" centers.
No cart included.
Heating elements and fresh air inlet located on rear outside wall behind heated area.
2 HP direct-driven circulating fan mounted through rear wall.
Horizontal airflow pattern across the oven.

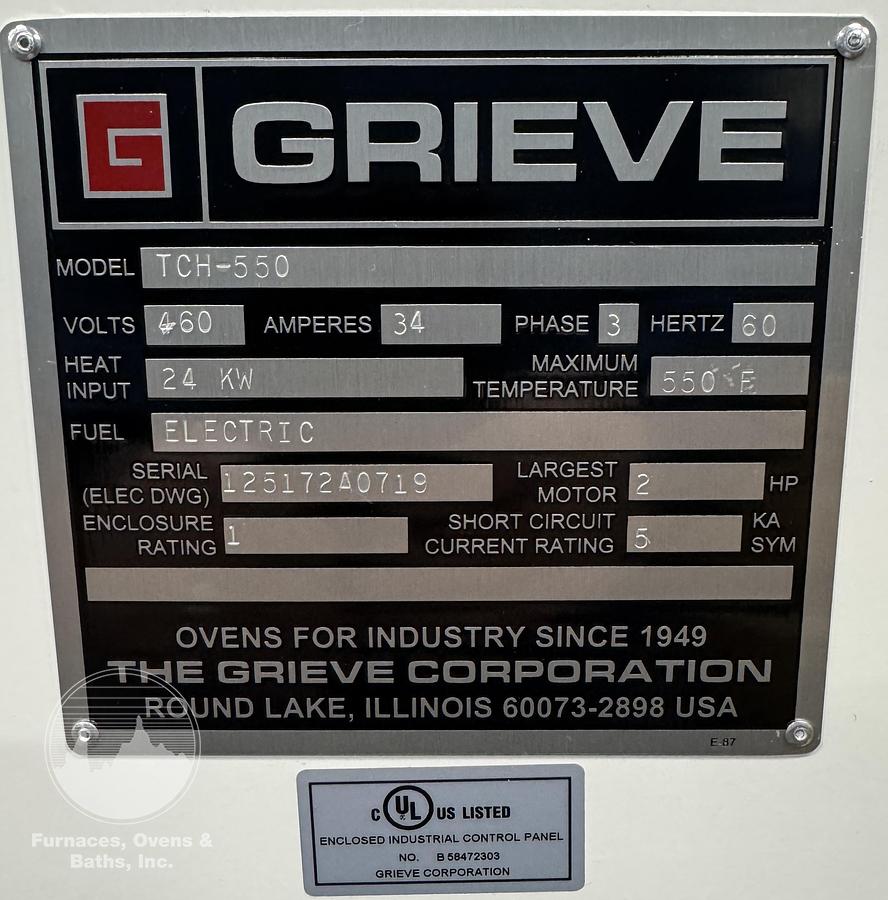

Manufacturer: Grieve
Model No.: TCH-550
Serial No.: 125172A0719
Year: 2019

Fuel Type: Electric
Capacity / Output: 60" W × 60" H × 60" L
Maximum Temperature: 550°F

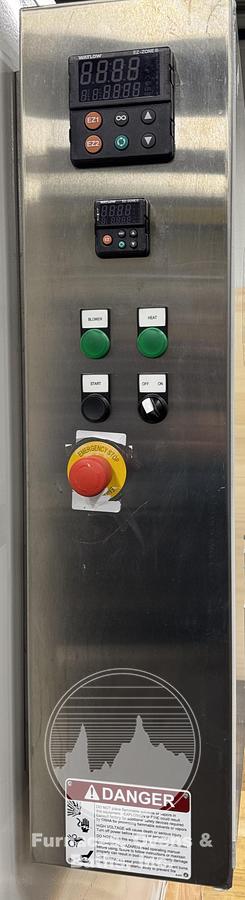

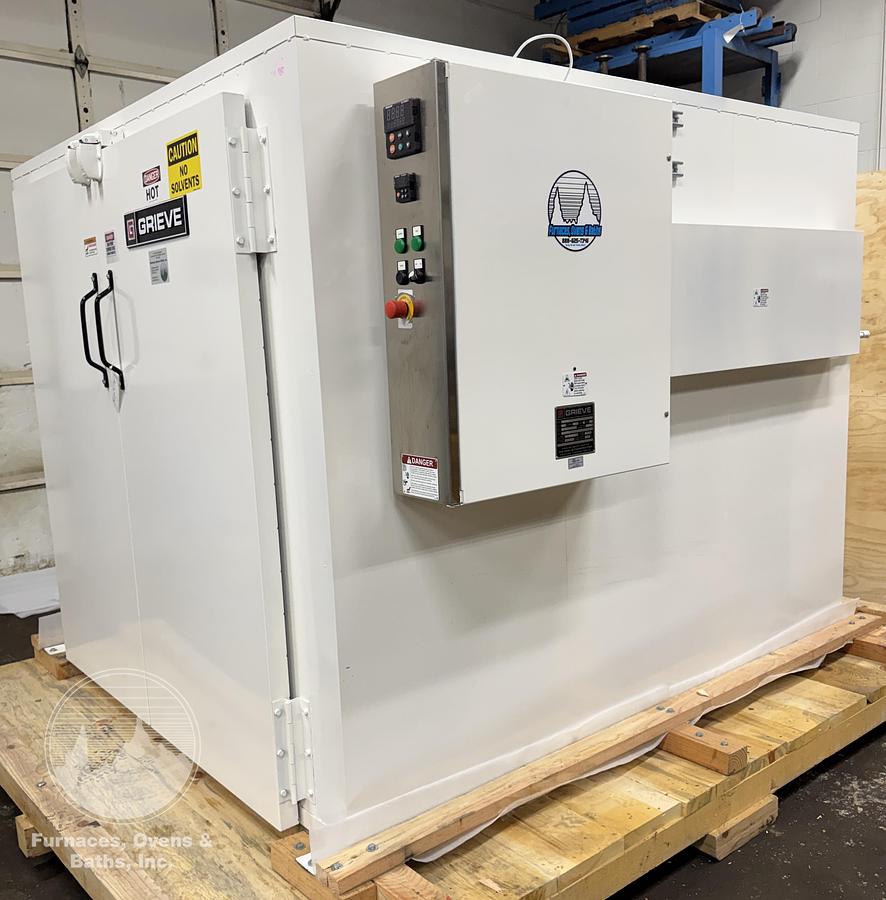

Control Panel: UL-rated enclosure attached to right-hand side of oven
Temperature Controls: Watlow EZ-Zone Digital Temperature Controller
Safety Controls: Watlow EZ-Zone High-Limit
Electrical Components: Control switches with indicating lights, motor starters, fuses, contactor, high-limit contactor

Power Requirements: 460 V / 3 Ph / 60 Hz / 24 kW / 34 Amps

Overall Dimensions: 80" Wide × 74" High × 91" Long; 3,500 lbs
