60"W x 72"H x 72"L WRC566-500 Electrically Heated Walk-In Oven, 500°F

Description:
Grieve WRC566-500 Electrically Heated Walk-In Oven, 60" W × 72" H × 72" L. Electric walk-in oven designed for uniform heating applications up to 500°F. Manual and drawings included.

Key Components & Features:

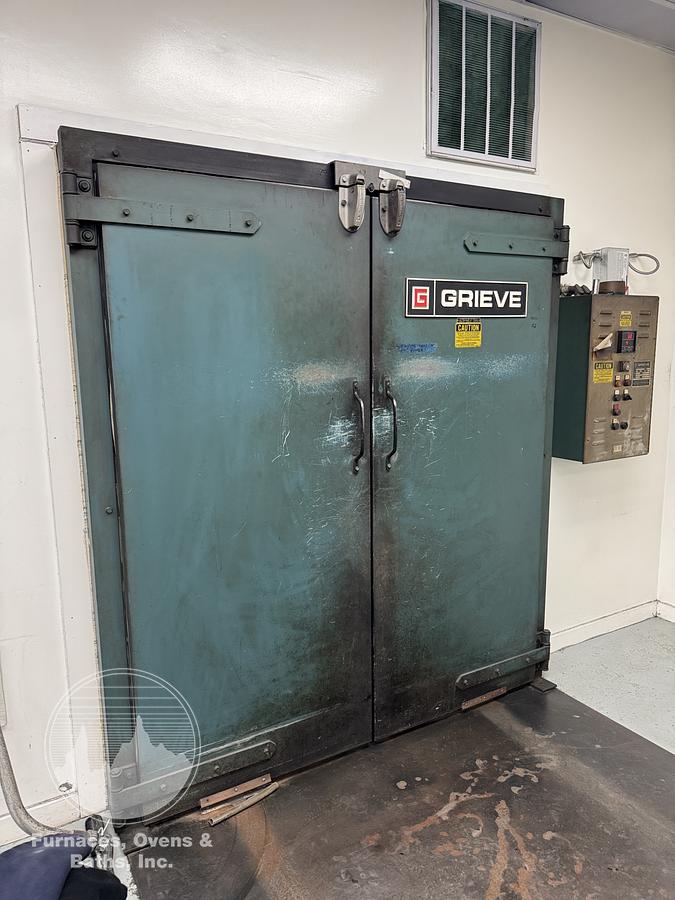

Double swing-out doors with Brixon door latches.
Silicone rubber door gasket for good seal.

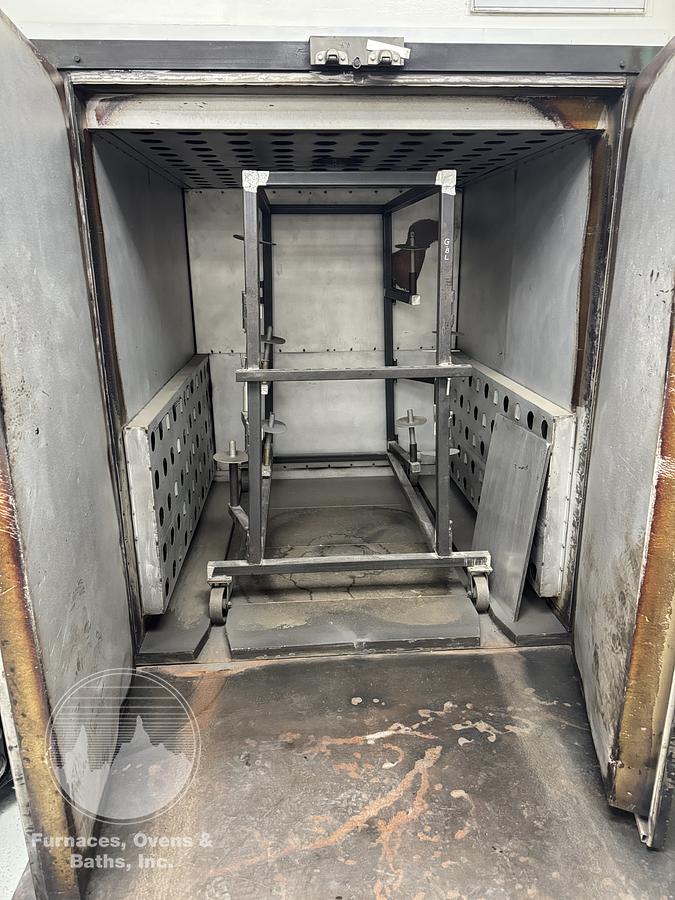

Aluminized steel interior with insulated floor and cart grooves.
Cart included.

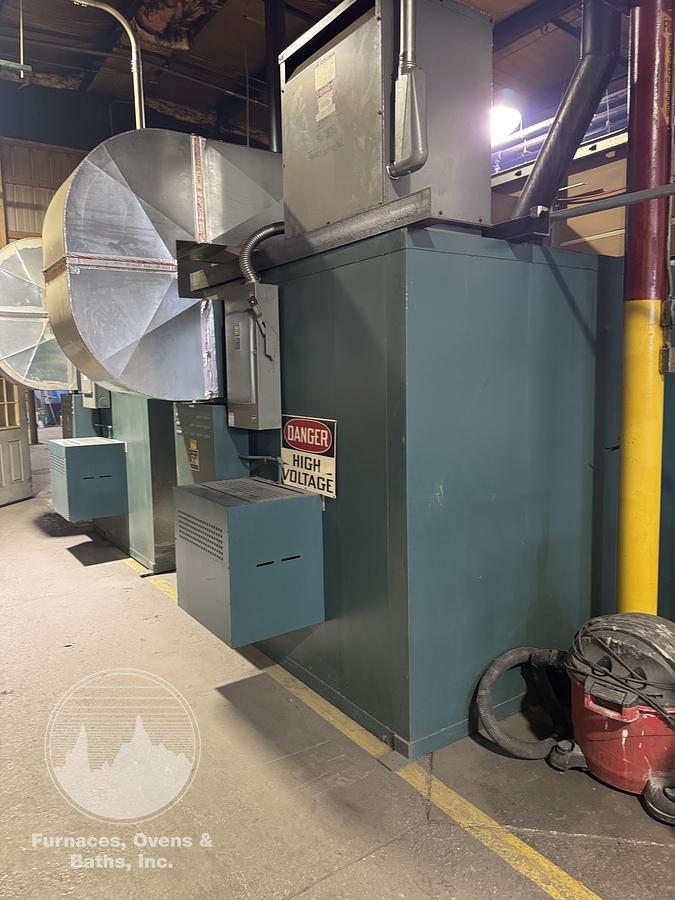

Rear-mounted 2 HP recirculating fan and heating elements.
Combination horizontal and vertical airflow pattern for uniform heating.
Fresh air inlet with filter box on rear outside wall.
Gravity exhaust port mounted on top.
Fused disconnect mounted on rear of oven.

Manufacturer: Grieve
Model No.: WRC566-500
Serial No.: 411903
Year: 2001

Fuel Type: Electric – 48 kW
Capacity / Output: 60" W × 72" H × 72" L
Maximum Temperature: 500°F

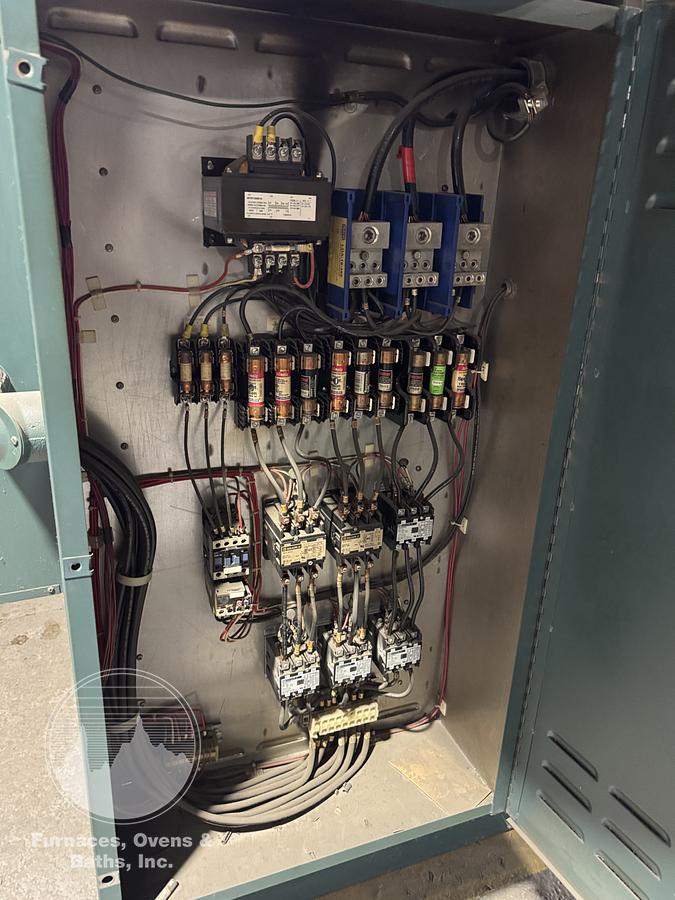

Control Panel: UL-rated enclosure attached to right-hand side of oven
Temperature Controls: Watlow 942 digital programmable controller
Safety Controls: Love analog high limit
Electrical Components: Switches, signal lights, motor starters, contactors

Power Requirements: 208 V / 3 Ph / 60 Hz / 145 Amps

Overall Dimensions: 96" Wide × 90" High × 110" Long; 5,000 lbs
