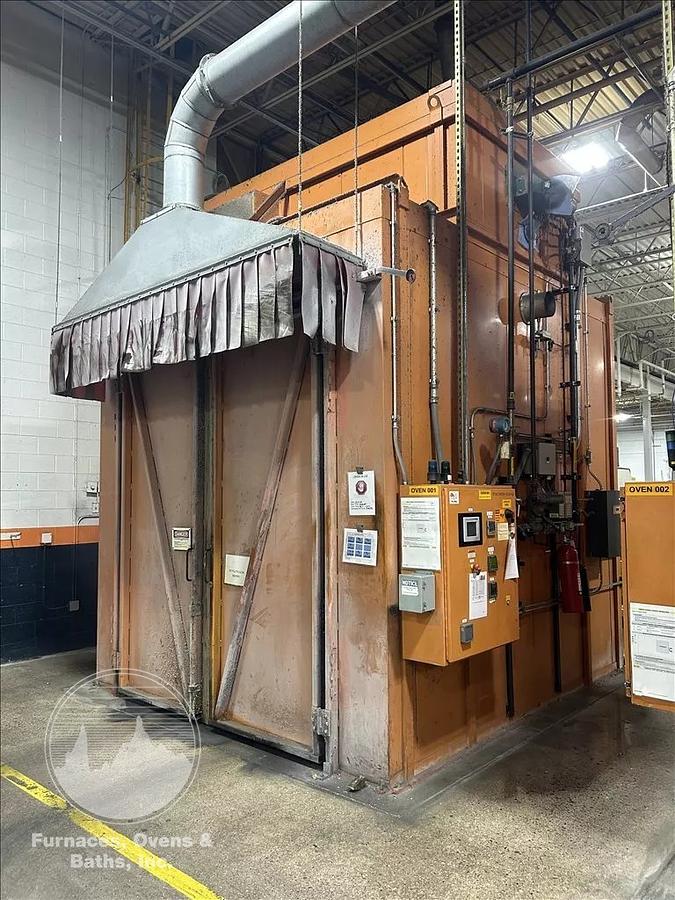

96"W x 120"H x 144"L, Walk-In Oven SWH-81210-G, 500°F, Gas Fired

Description:

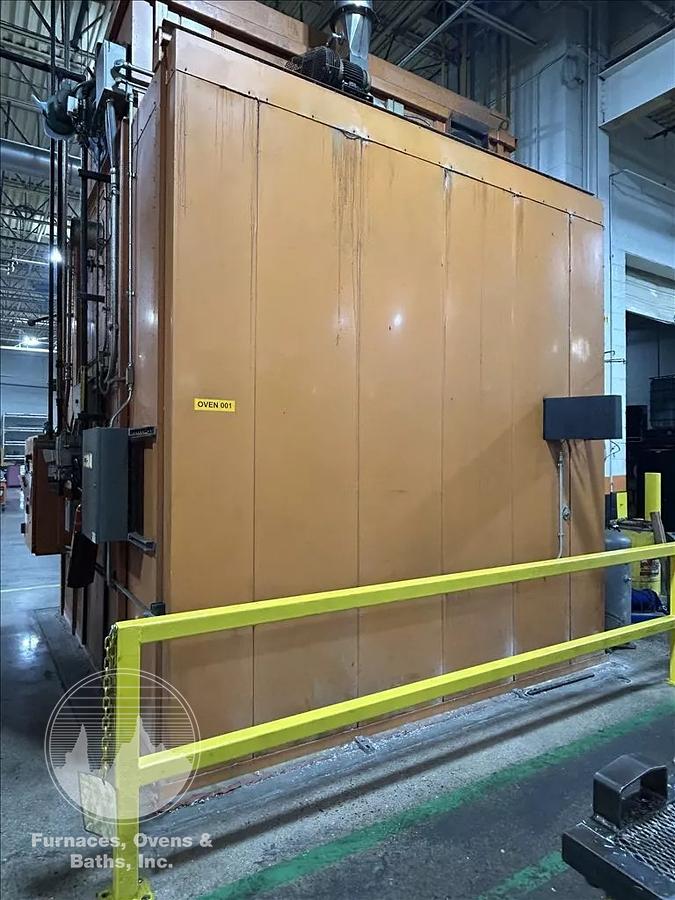

Wisconsin Oven Walk-In Oven SWH-81210-G, 96" W × 120" H × 144" L. Gas-fired walk-in oven designed for uniform heating applications up to 500°F. Drawings are included. Oven was removed from service fully operational. Per the original equipment manufacturer, this oven has a 20-point TUS ±10°F at 250°F and 500°F, conducted per AMS 2750E Class 2 Furnaces and Type D Instrumentation.

Key Components & Features:

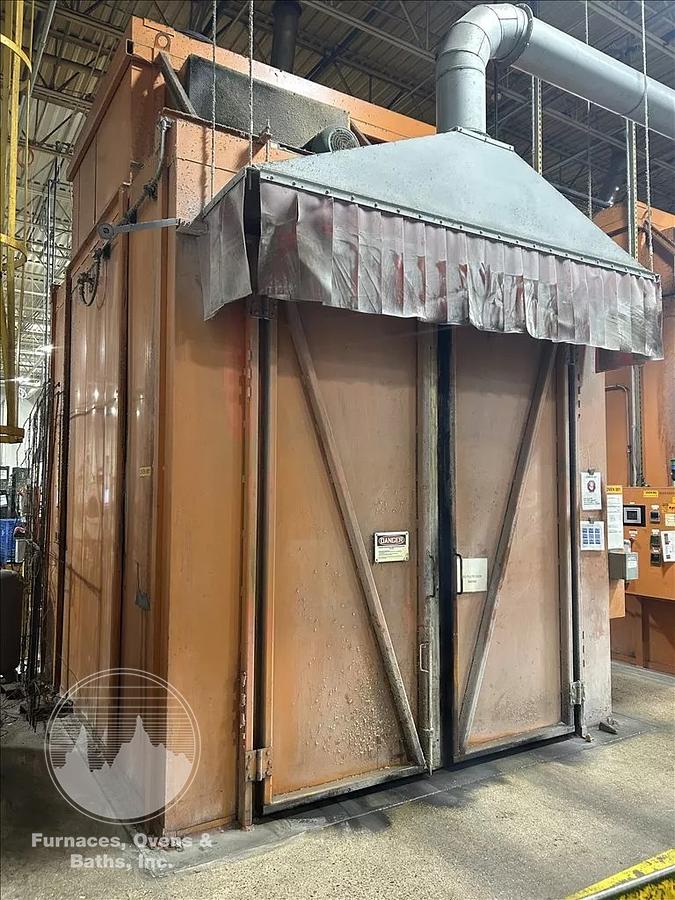

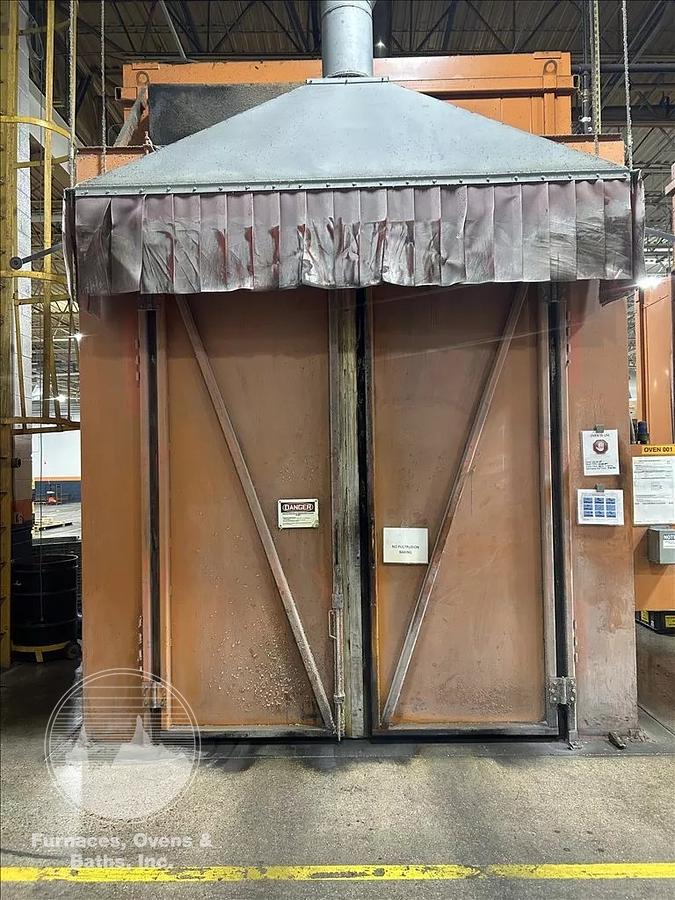

Double doors on one end.
Ceramic fiber door gaskets.
Brixon spring latches for secure seal.
1/4" steel plate floor.

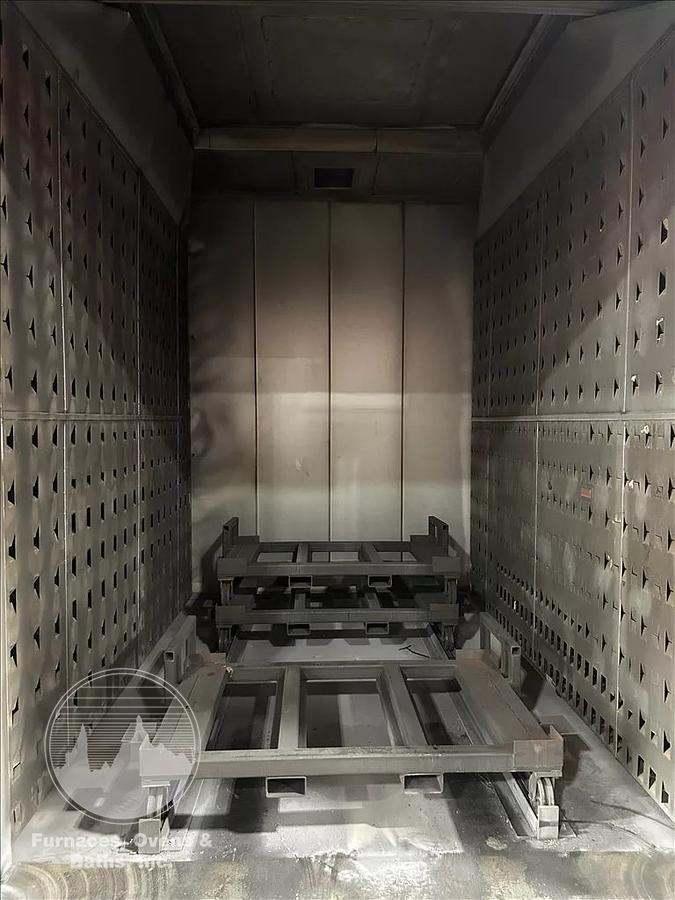

Aluminized steel interior with punched louvered air duct panels on both side walls and ceiling.
Eclipse AH150 package burner.
25 HP circulating fan rated at 21,000 CFM located in separate doghouse above the work area.
Full combination vertical and horizontal airflow pattern for uniform heating.
3500 CFM, 2 HP modulated powered exhauster mounted on top.
Two fresh air inlets: one 8" inlet on the doghouse and one 18" modulating inlet on the right-hand side of the oven.

Manufacturer: Wisconsin Oven Corporation

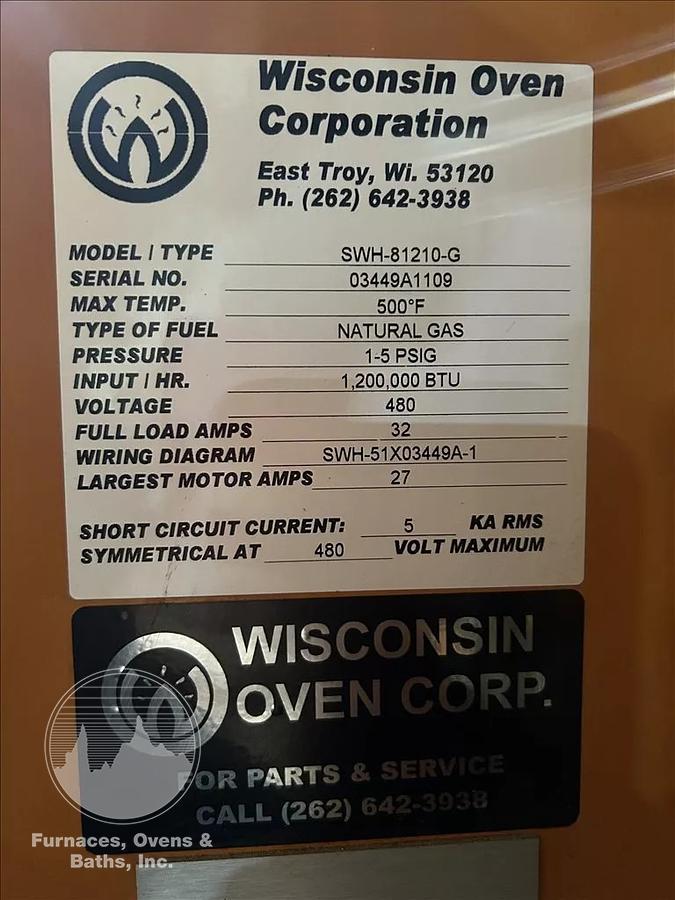

Model No.: SWH-81210-G
Serial No.: 03449A1109
Year: 2015

Fuel Type: Natural Gas – 1.2 MBTU/hr
Capacity / Output: 96" W × 120" H × 144" L
Maximum Temperature: 500°F

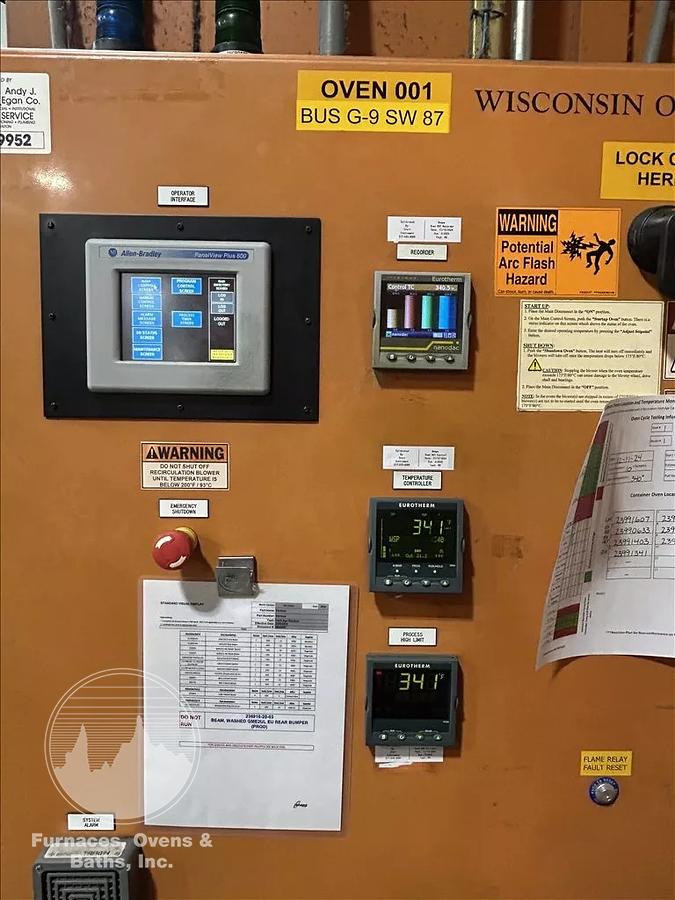

Control Panel: UL-certified enclosure with fused disconnect attached to right-hand side of oven

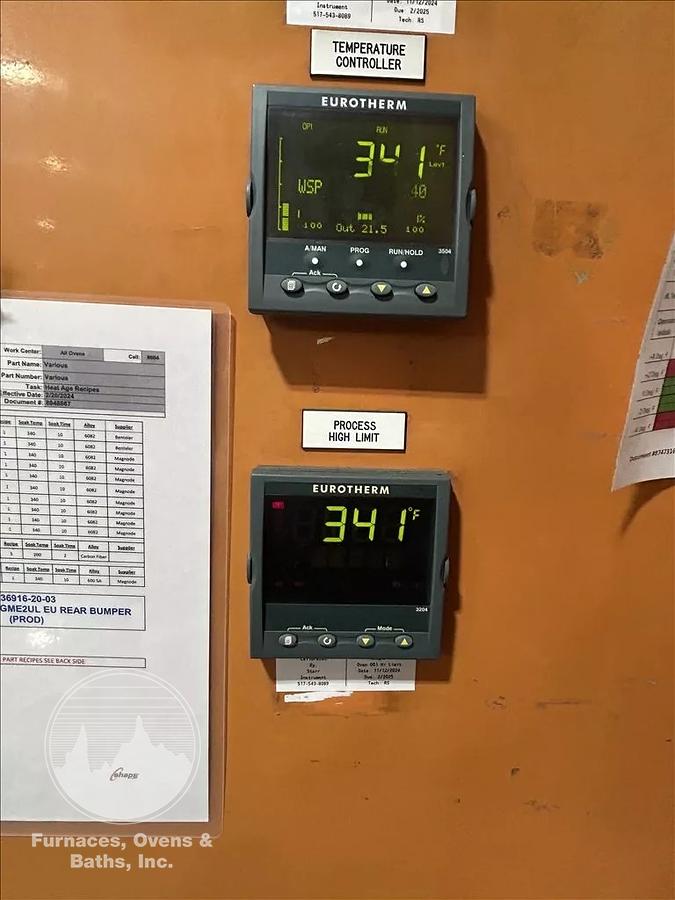

Temperature Controls: Eurotherm 3504
Safety Controls: Eurotherm 3204 high limit

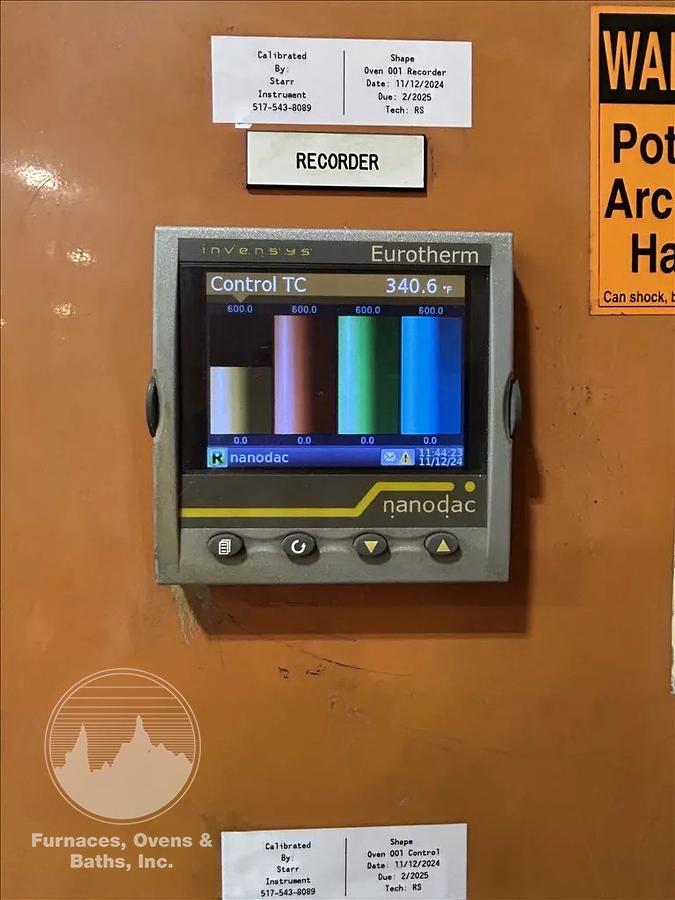

Instrumentation: Eurotherm Nanodac paperless recorder

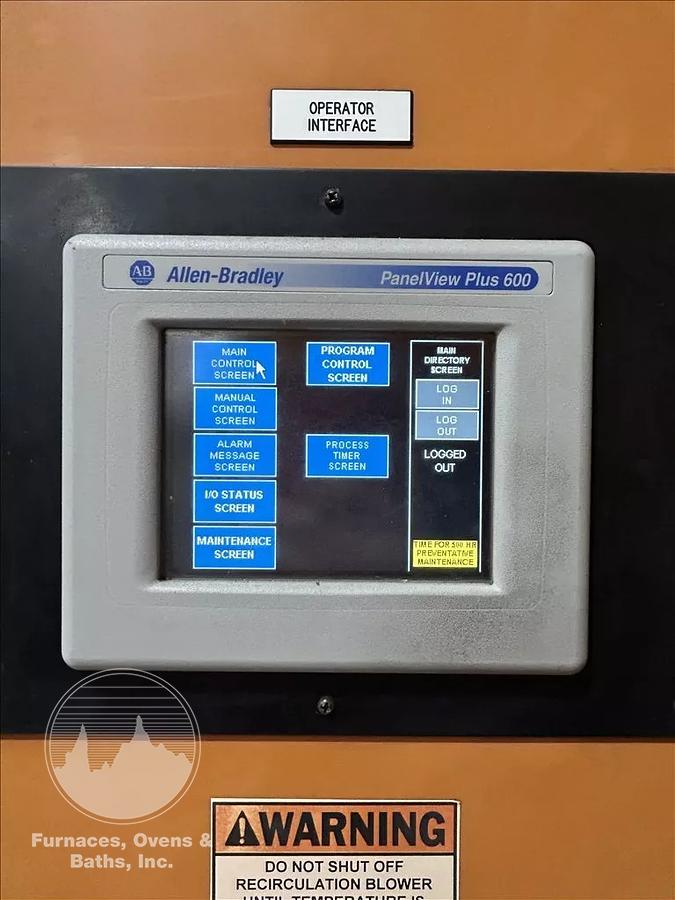

Controls: Allen Bradley PLC with PanelView Plus 600 HMI touchscreen interface

Power Requirements: 480 V / 3 Ph / 60 Hz / 39 FLA

Overall Dimensions: 14' Wide × 17' High × 13' Long; 13,000 lbs total
