Batch Furnace 1300F, 72"W x 48"H x 48"L work zone

Little-used Wisconsin Oven Batch Furnace with recirculation and vacuum pump-aided evacuation.

Specifications

• Model: BATCH – 7/3/5-E13

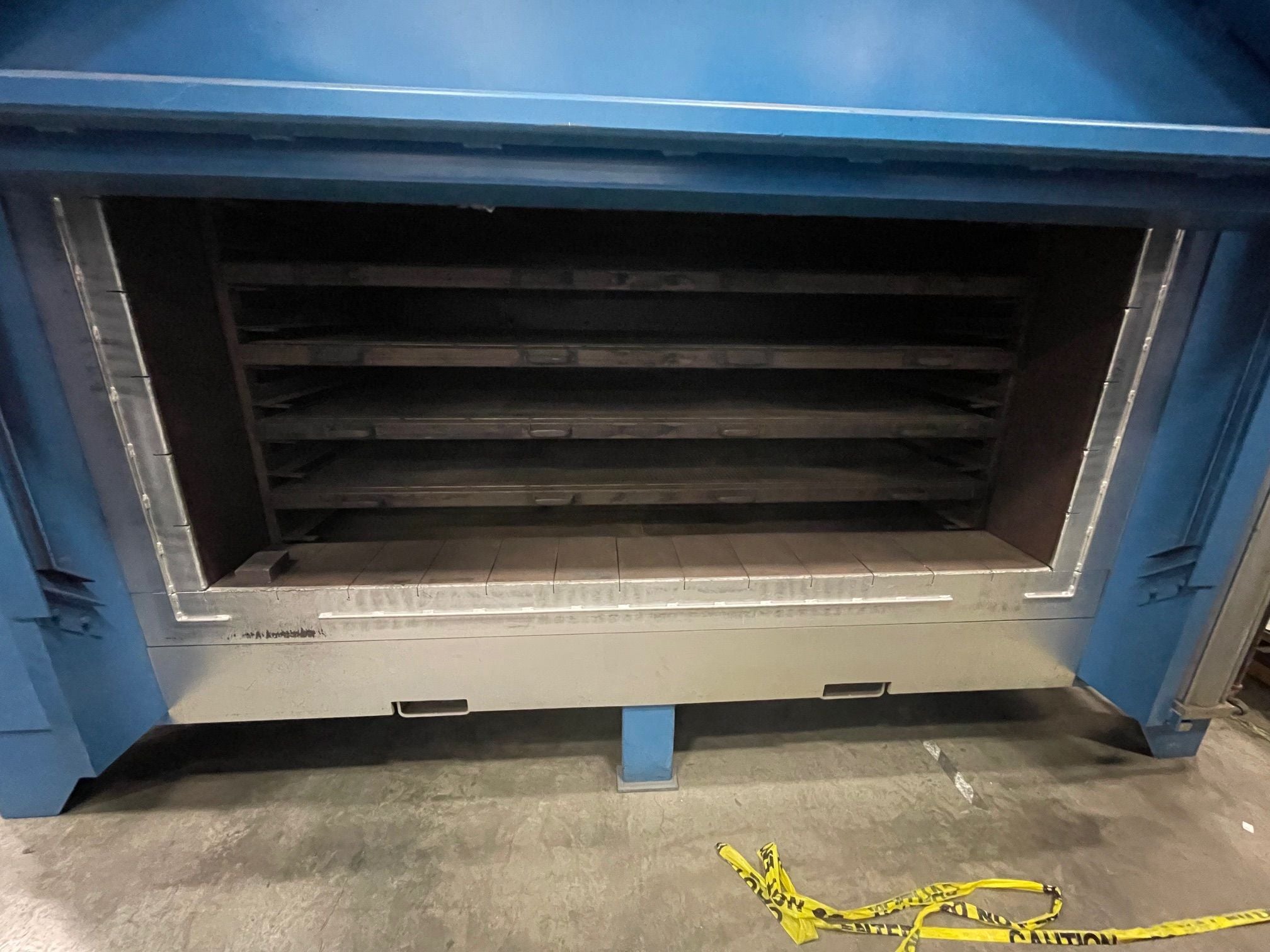

• Internal useable dimensions: 72” wide x 48” high x 48” deep

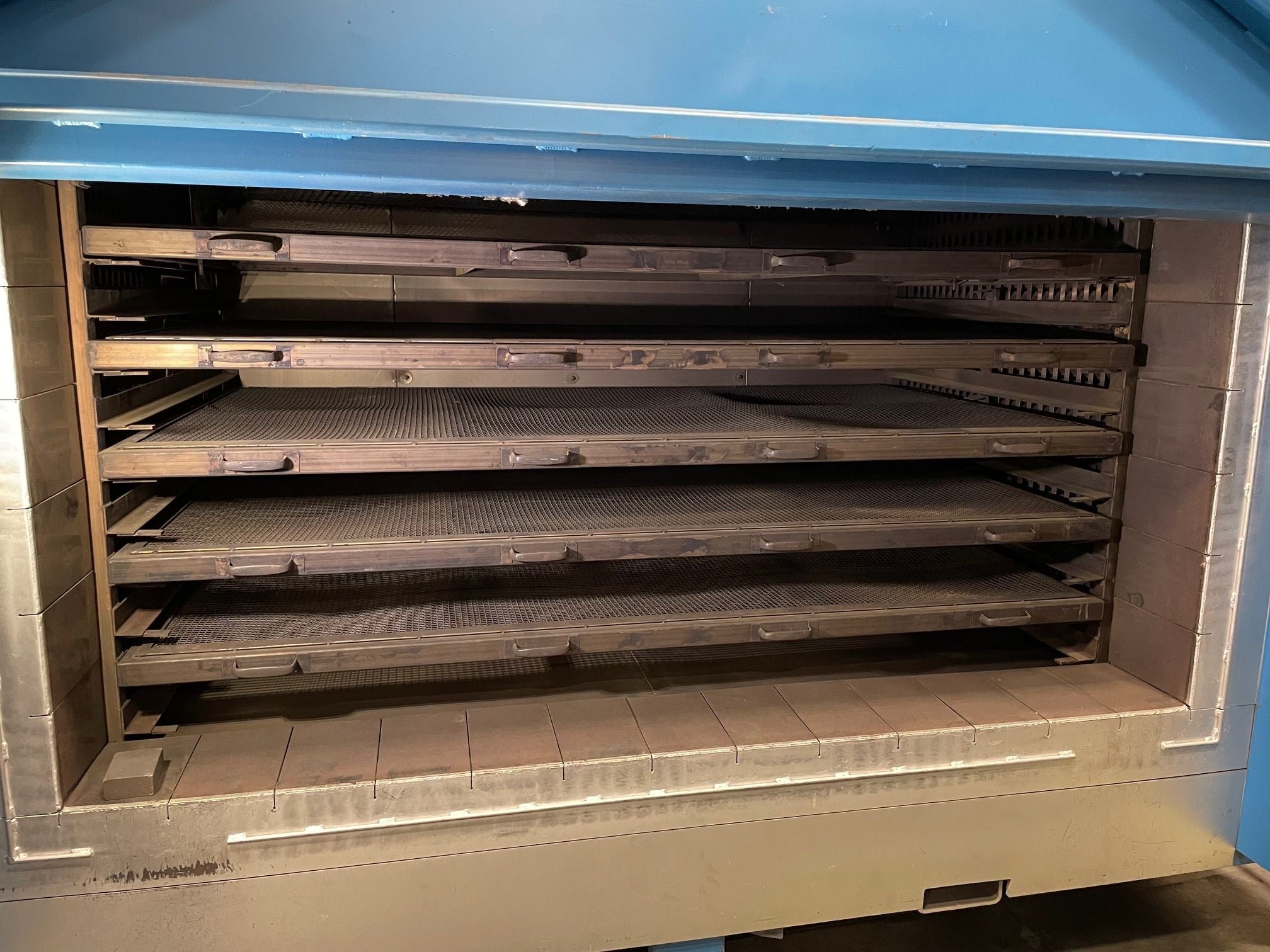

• Fitted with ten (10) shelves, 72” wide x 48” deep with 4” separation
• Operating Temperature: 1300° F Maximum, 400°-1200° F Normal
• 250° F Above Ambient Minimum
• Temperature uniformity: +/- 25° F @ 400° F & 900° F, (20) point test, 2 points per shelf
• Input / Hr.: 144 KW
• Voltage: 480/3/60
• Controls: Honeywell with chart recorder

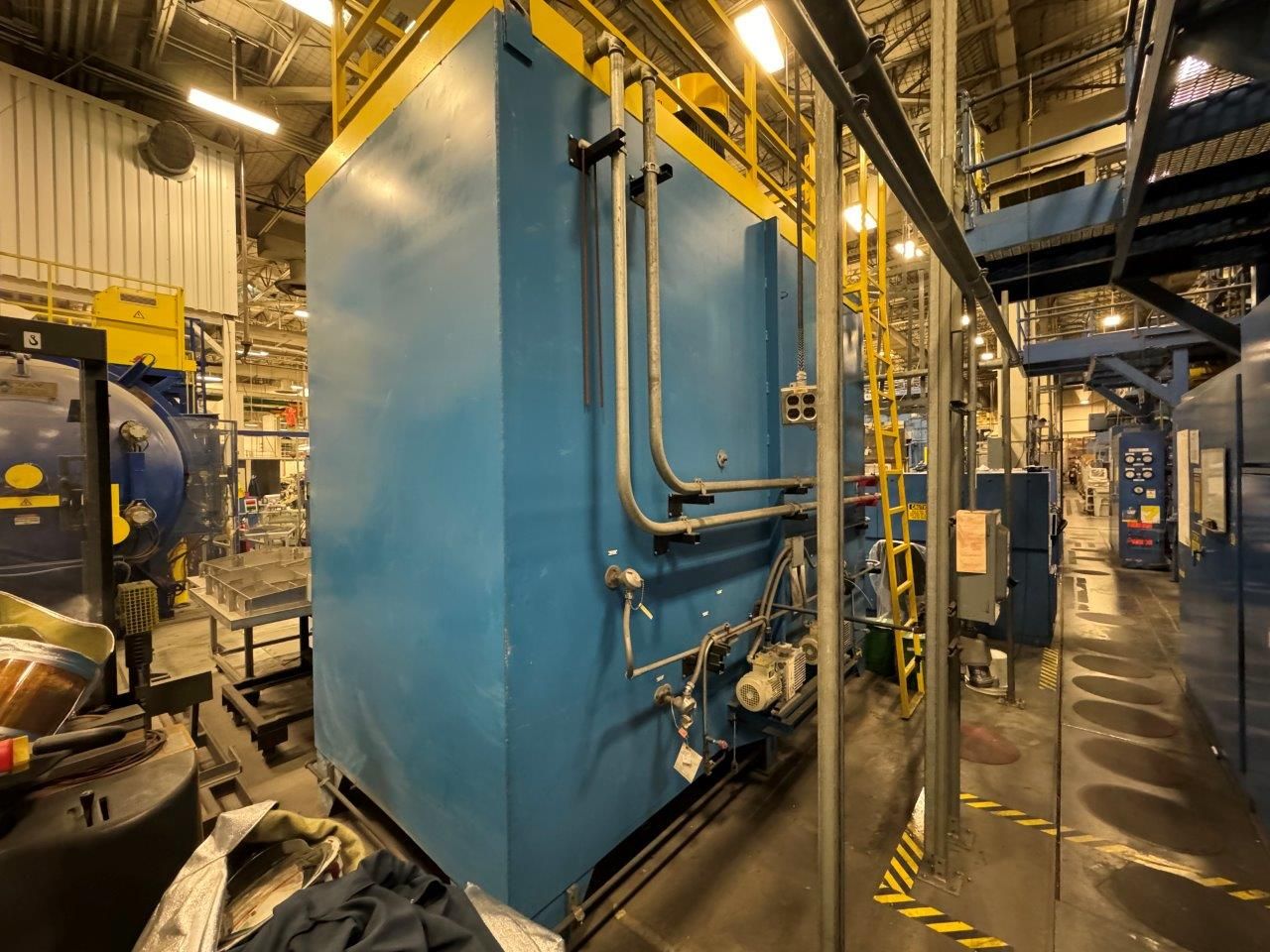

• Two (2) 1 hp vacuum pumps and one (1) 10 hp circulation pump

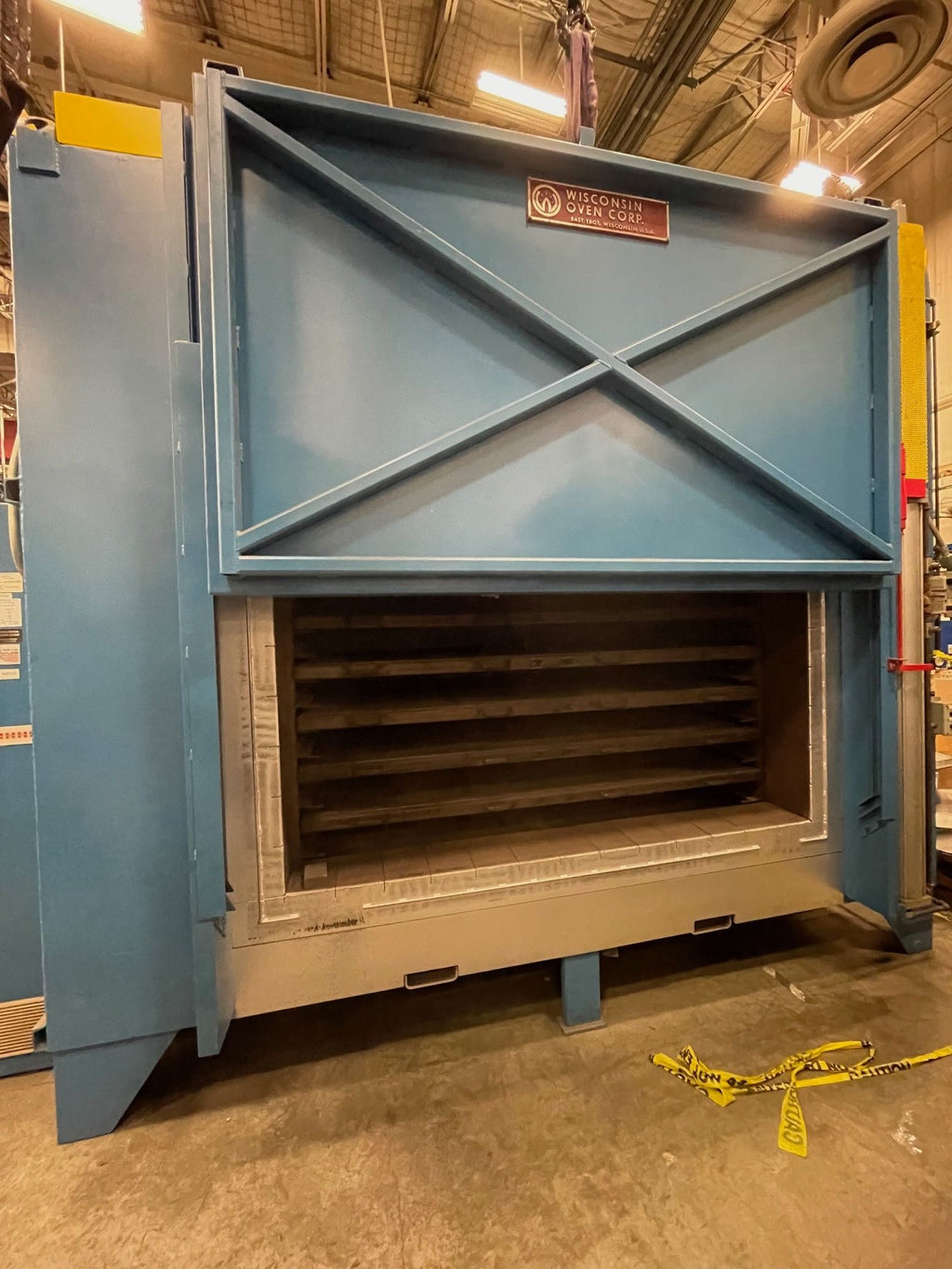

• Gate type up acting door - hydraulic with two (2) cylinders.

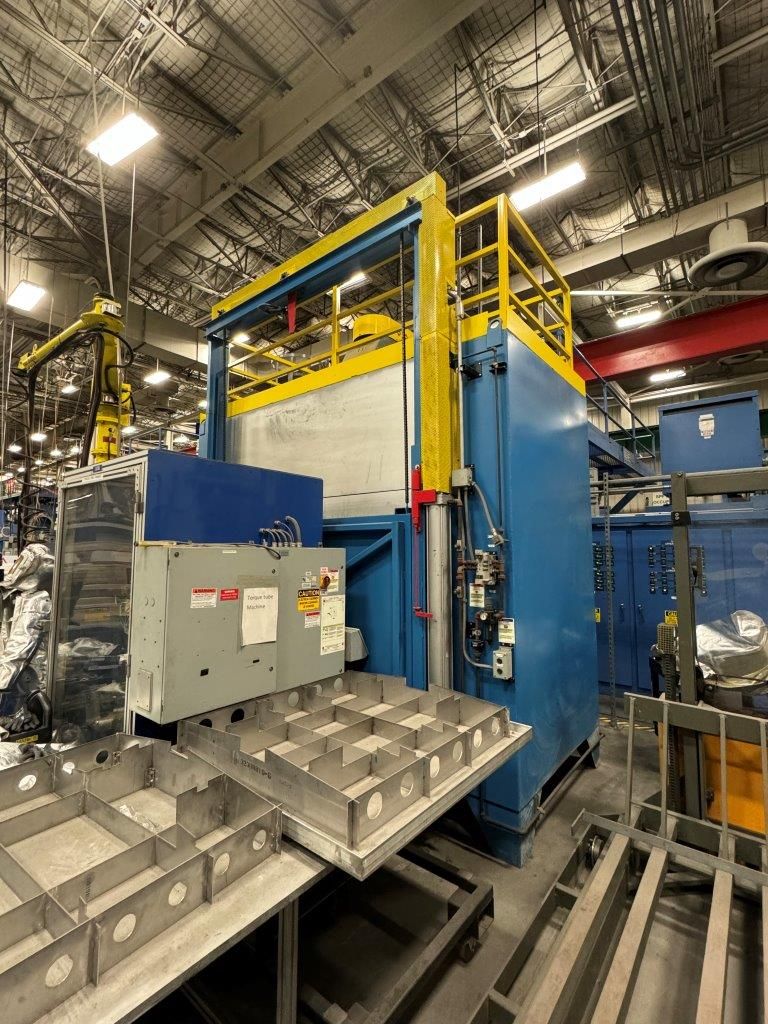

• Overall dimensions: 14’ high x 13’ wide x 6’ deep (approx..)
• Approximate shipping weight: 9,500 lbs.
• Shelf Loading: 40 lb. per shelf, evenly distributed, can be removed.
• Safety interlocks
• Ex-major aerospace facility. Used as “burn off” oven for SPF and diffusion bonding work.
• Has seen little use.
