Conveyor Oven, 18"W x 23"H x 12'L, Gas Fired, 550°F

Description:

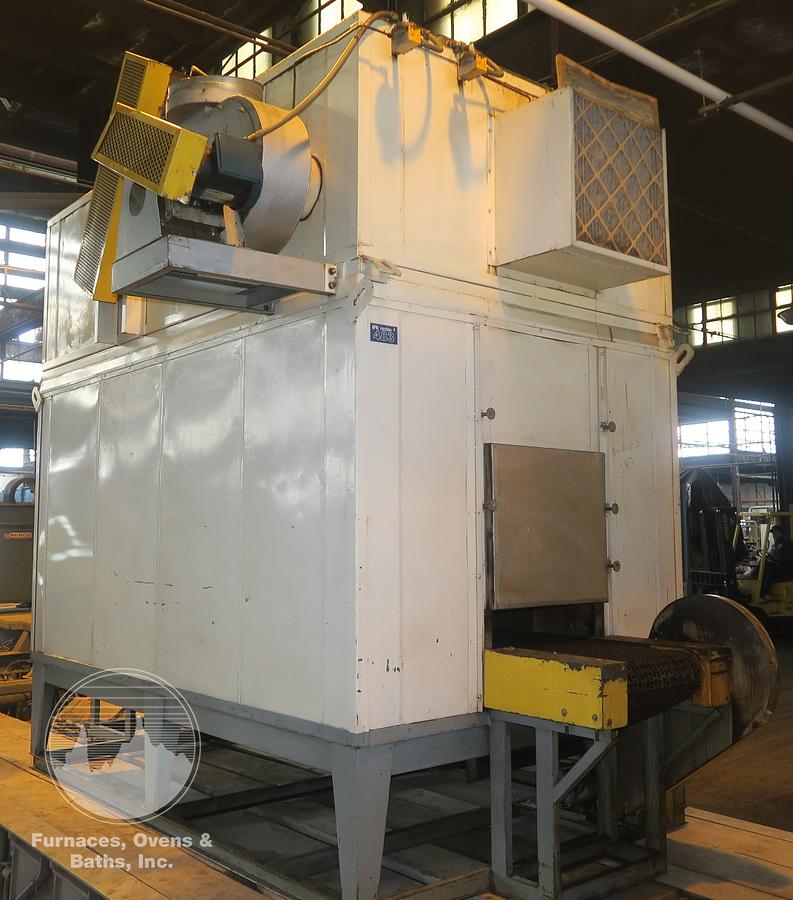

Jensen Industries Conveyor Oven, 18" W × 23" H × 12' L. Standard gas-fired belt conveyor oven with wire-on-edge style belt designed for processing applications up to 550°F. Oven is solvent rated with a maximum of 1.2 gallons/hour at 550°F.

Key Components & Features:

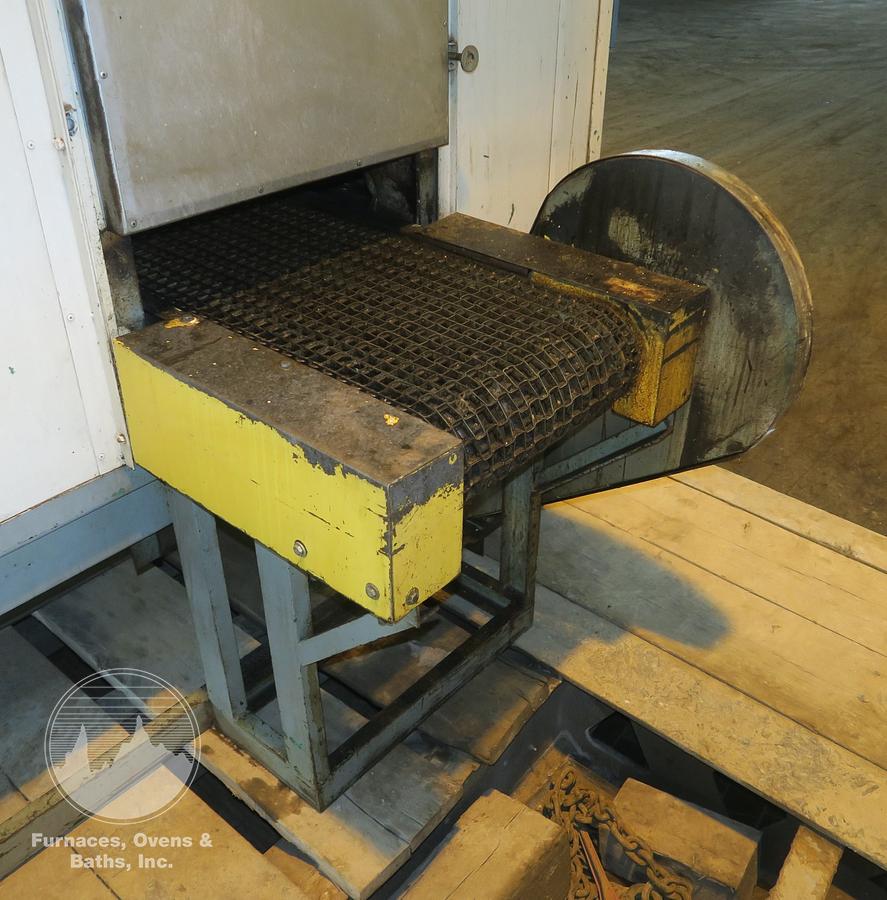

Wire-on-edge style belt.
Designed conveyor speed of 0.5 FPM.
34" load height.
Eclipse AH style burner.

Manufacturer: Jensen Industries
Model No.: 4773
Serial No.: 7156
Year: 2006

Fuel Type: Natural Gas – 1.5 MBTU/hr
Capacity / Output: 18" W belt (23" wide opening) × 23" H × 12' L
Maximum Temperature: 550°F

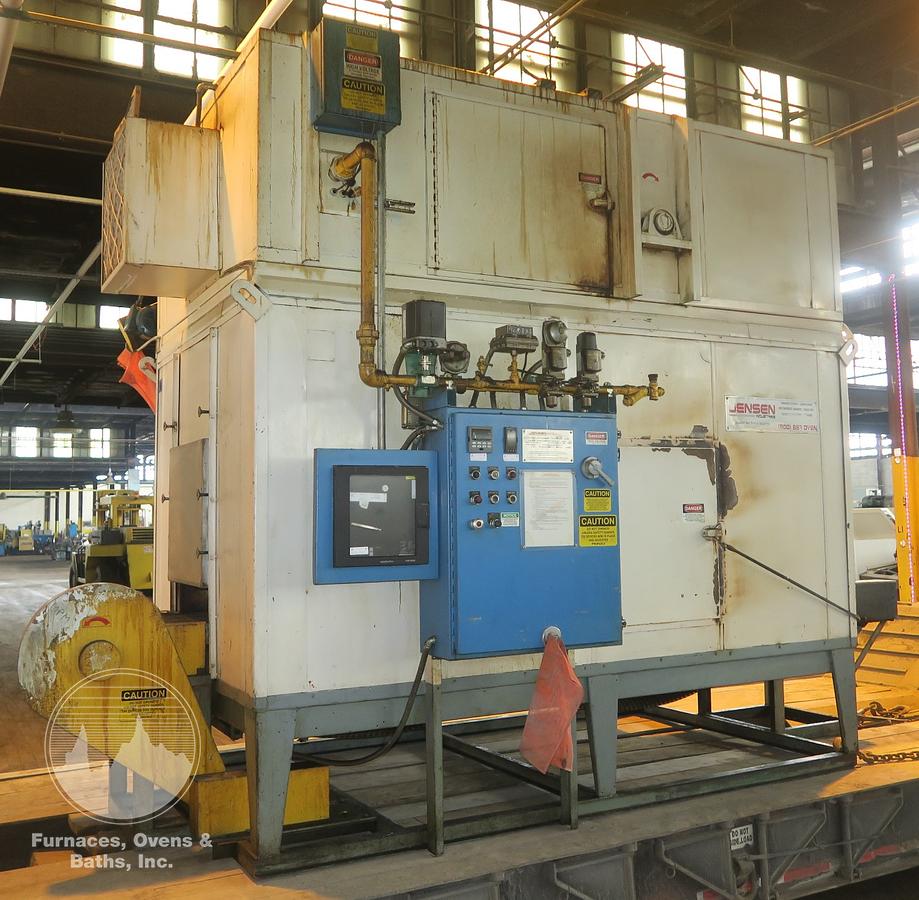

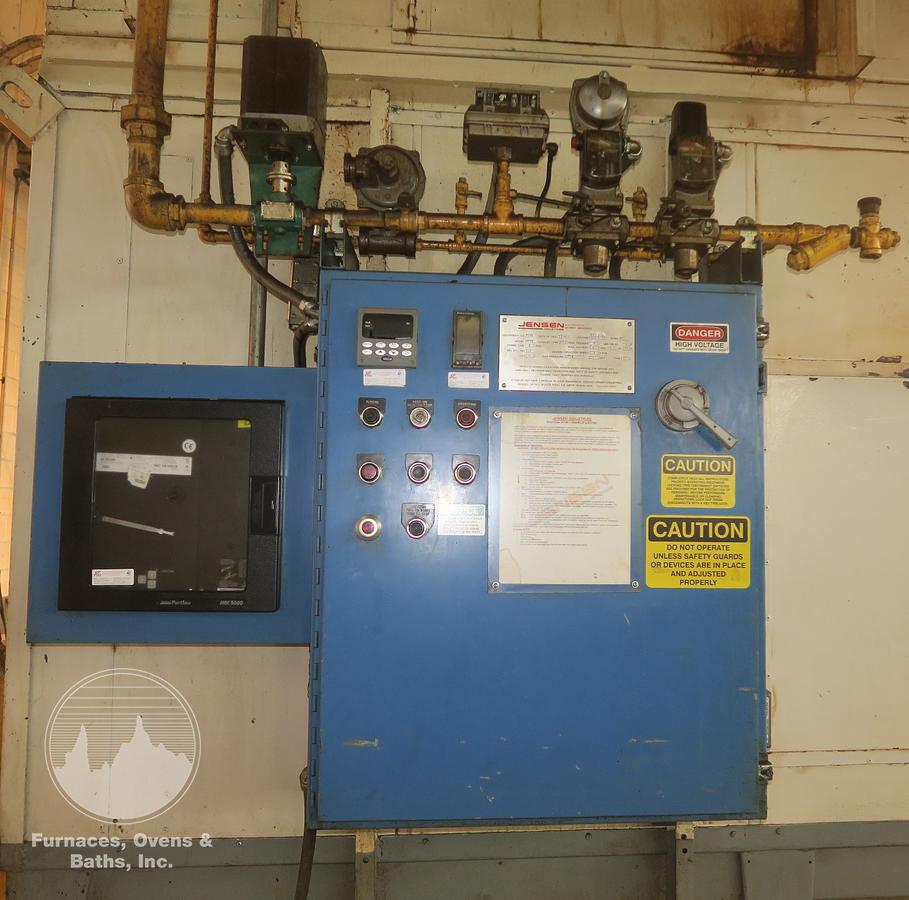

Control Panel: Control panel attached to oven with fused disconnect
Temperature Controls: Honeywell digital temperature controller
Safety Controls: Barber Colman digital high limit; Protection Controls flame safety system with UV scanner
Instrumentation: Partlow MRC 5000 digital circular chart recorder
Controls: Allen Bradley PowerFlex VFD for conveyor drive

Power Requirements: 480 V / 3 Ph / 60 Hz / 30 Amps

Overall Dimensions: 9' Wide × 12' High × 15' Long
