Dry Coolers Industrial Cooling System Package

Description:
Dry Coolers industrial cooling system package consisting of an Omni-Chill industrial packaged chiller and an Aqua-Vent furnace cooling package. System includes the refrigerated chiller, Aqua-Vent pump station with water tank, and outdoor air-cooled heat exchanger. Designed for furnace cooling service.

Key Components & Features:

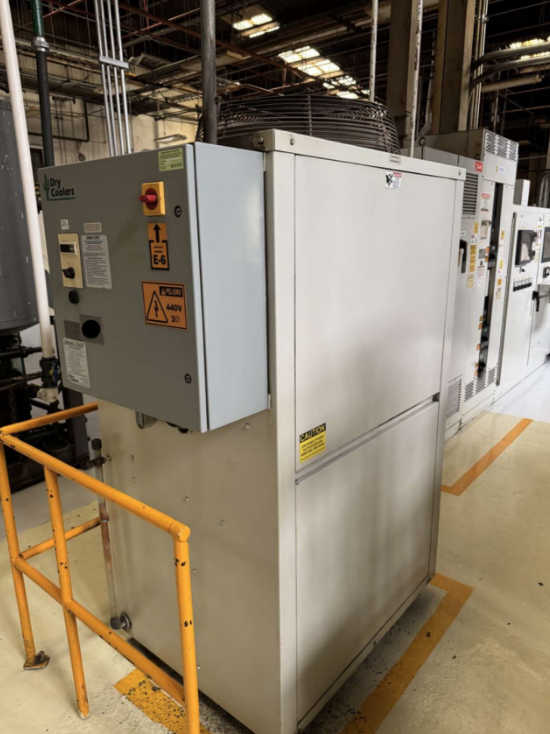

Dry Coolers Omni-Chill industrial packaged chiller.
Dry Coolers Aqua-Vent furnace cooling package.

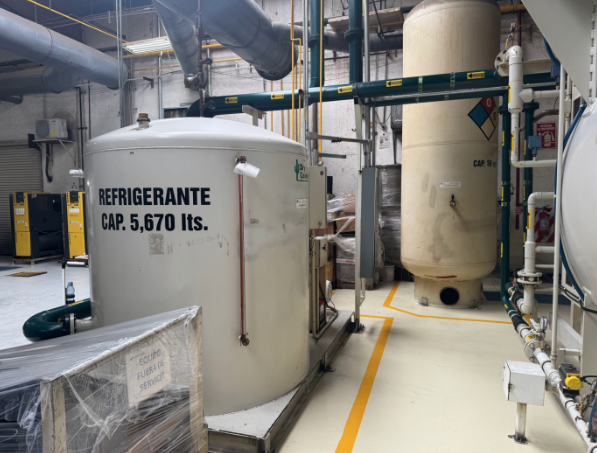

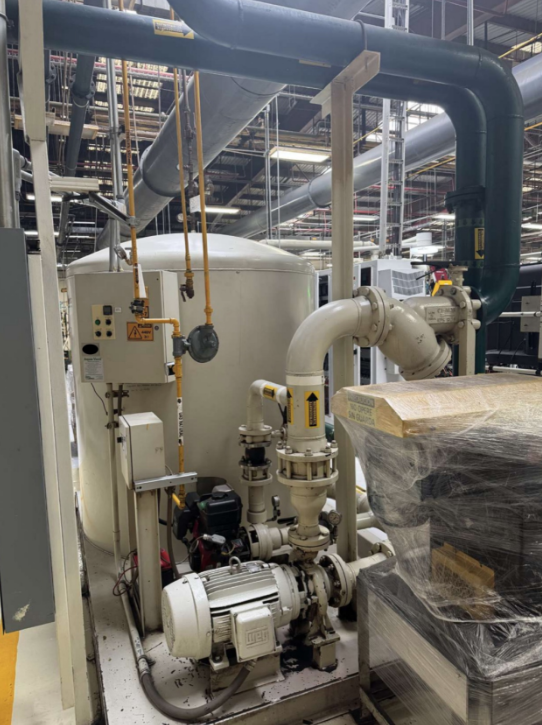

Aqua-Vent pump station with water tank.

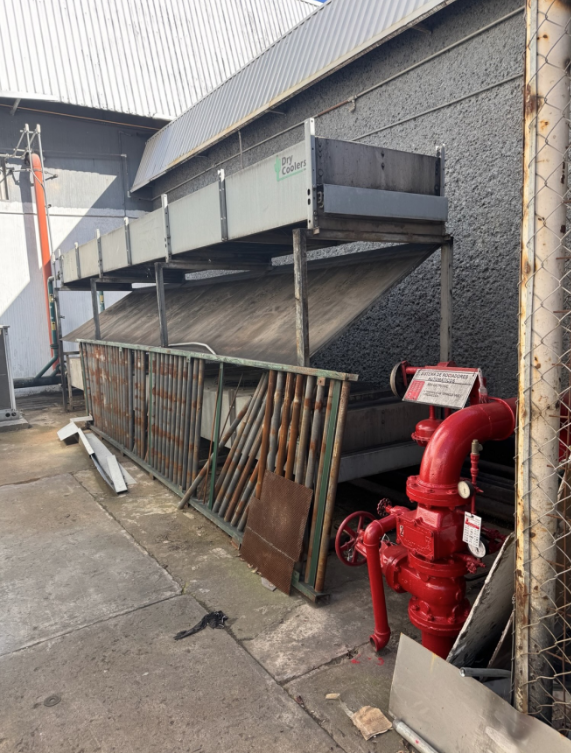

Outdoor air-cooled heat exchanger.
Closed loop cooling system for furnace application.

Manufacturer: Dry Coolers, Inc.

Model No.:

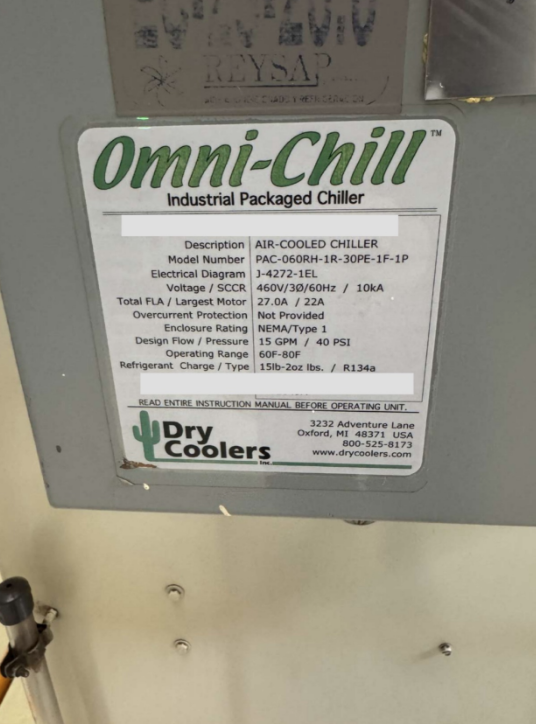

Omni-Chill: PAC-060RH-1R-30PE-1F-1P

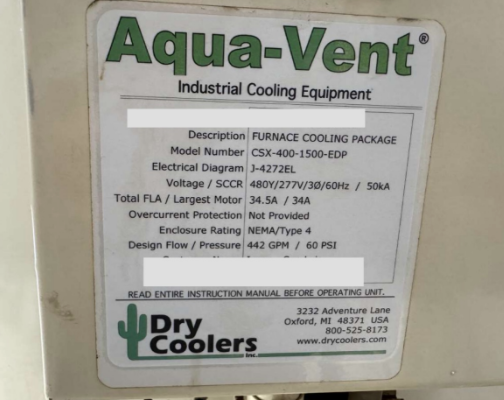

Aqua-Vent: CSX-400-1500-EDP

Power Requirements:
Omni-Chill: 460V / 3 Ph / 60 Hz, 10 kA
Aqua-Vent: 480Y/277V / 3 Ph / 60 Hz, 50 kA

Capacity / Output:
Omni-Chill design flow / pressure: 15 GPM / 40 PSI
Aqua-Vent design flow / pressure: 442 GPM / 60 PSI

Controls:
Omni-Chill electrical diagram: J-4272-1EL
Aqua-Vent electrical diagram: J-4272EL

Construction:
Omni-Chill enclosure rating: NEMA / Type 1
Aqua-Vent enclosure rating: NEMA / Type 4

Performance:
Omni-Chill operating range: 60°F–80°F

Cooling System:
Omni-Chill refrigerant charge / type: 15 lb 2 oz / R134a
Omni-Chill total FLA / largest motor: 27.0A / 22A
Aqua-Vent total FLA / largest motor: 34.5A / 34A
