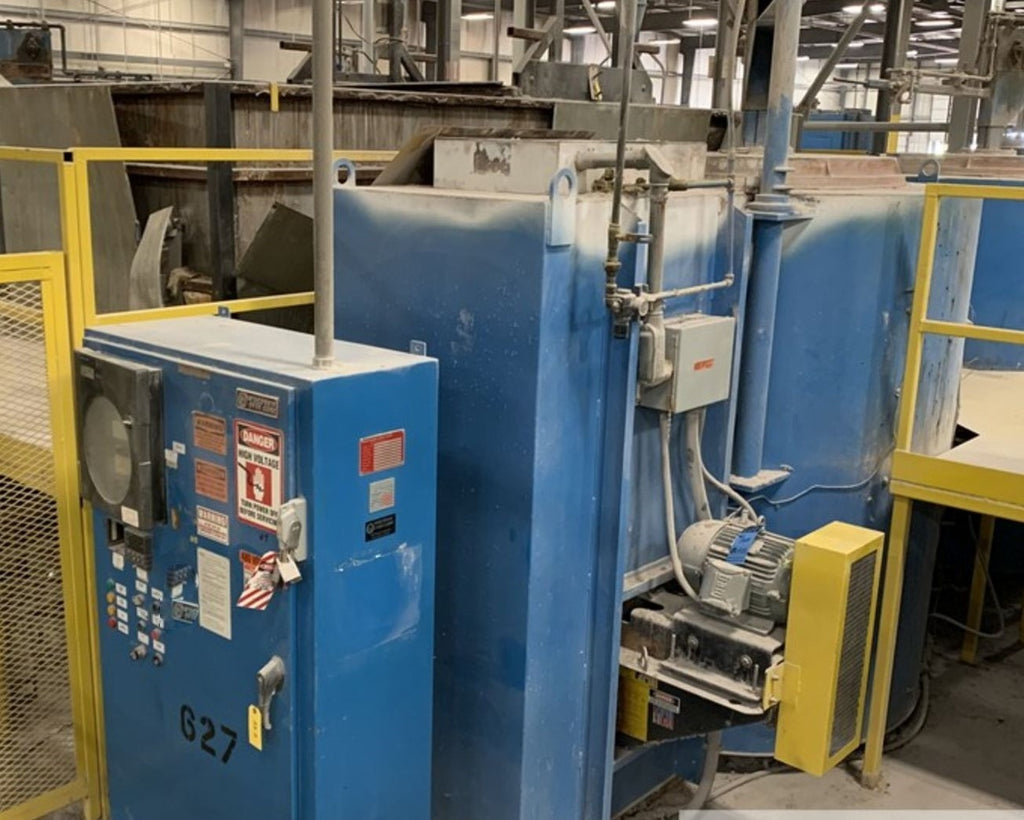

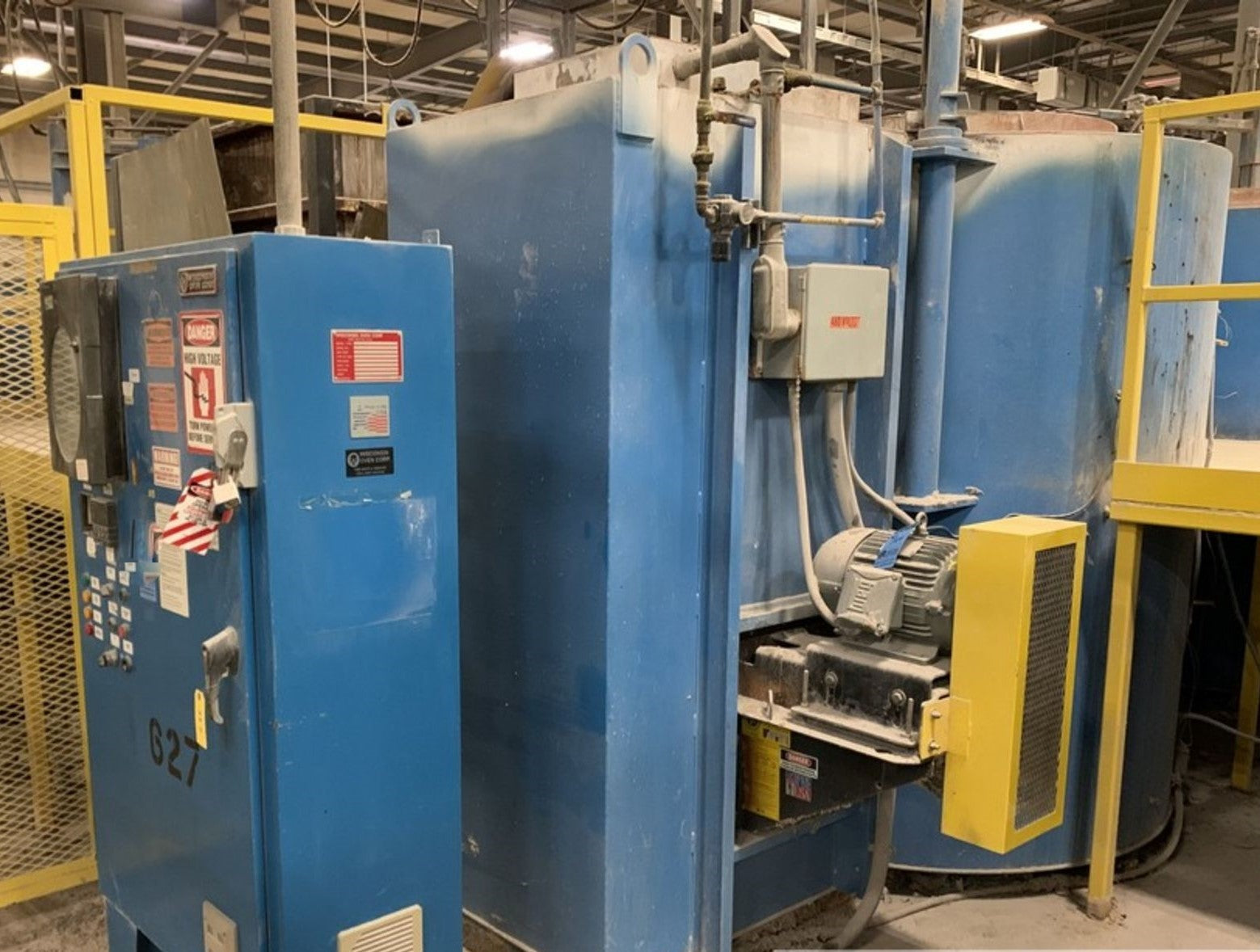

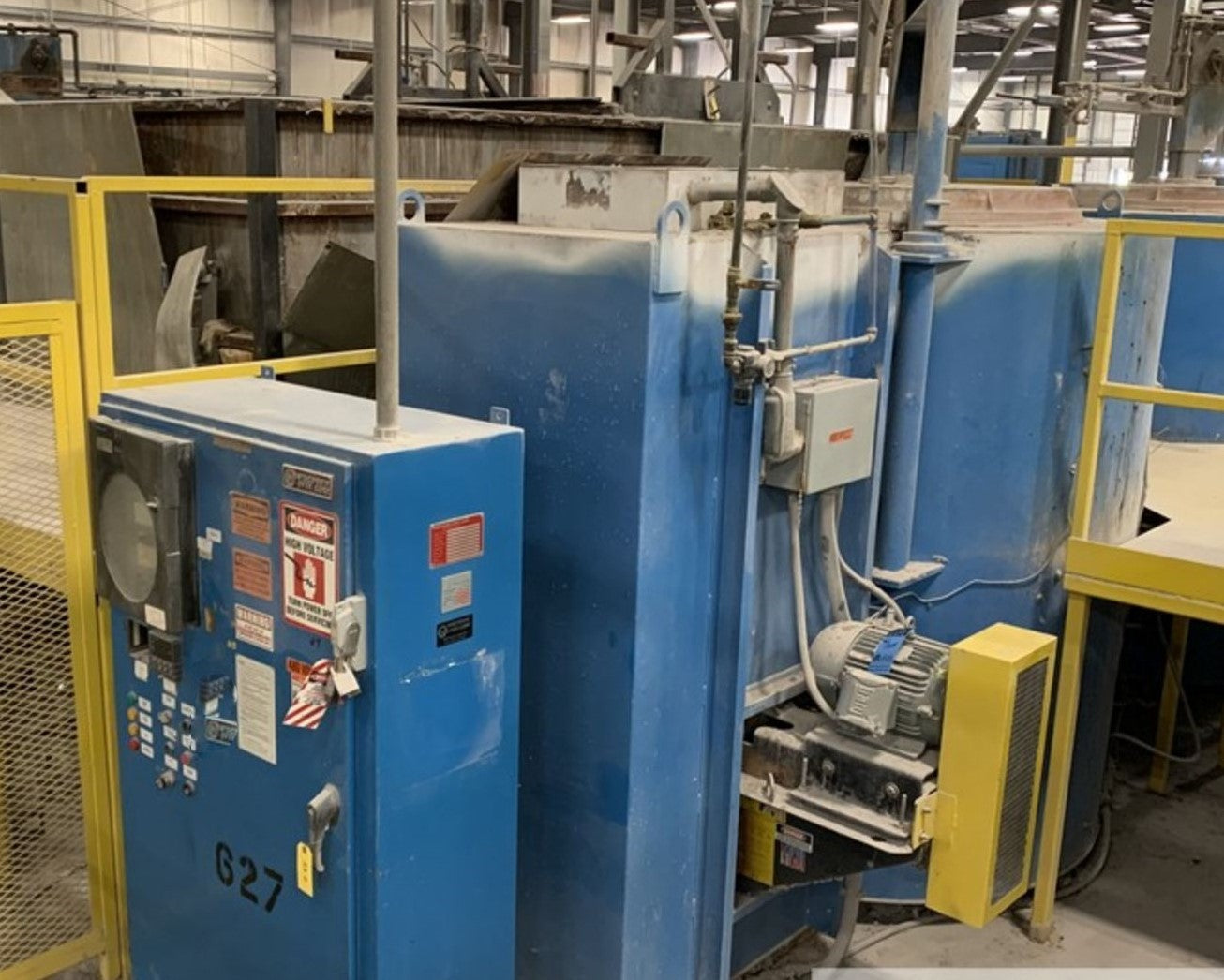

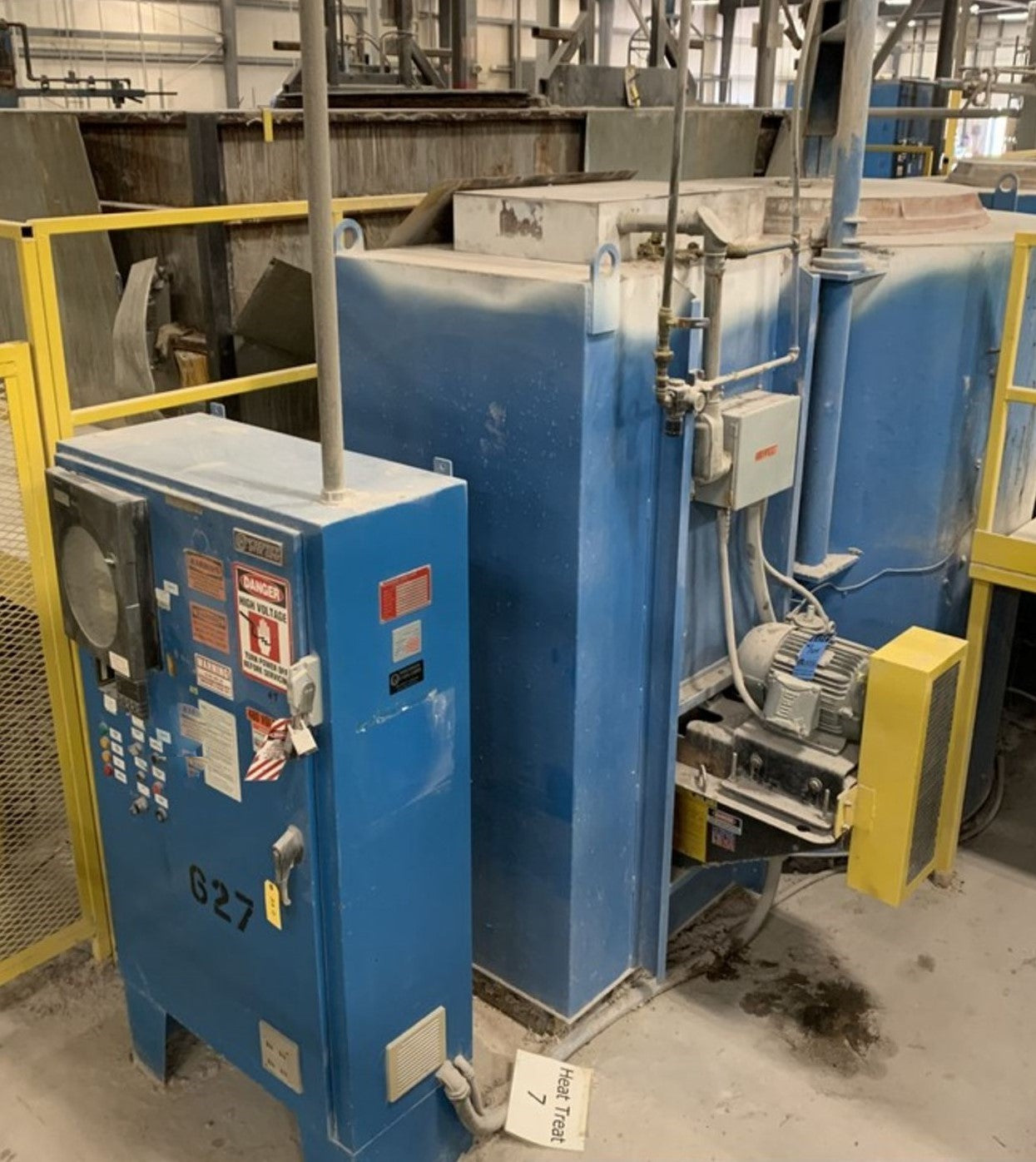

Electric 1250F Pit Temper 38" Dia x 48"

Description:
Wisconsin Oven recirculating pit tempering furnace, built in 2004, with effective working dimensions of 38” diameter × 48” deep. Electric furnace designed for operation to 1250°F. Unit is reported to be in excellent condition.

Key Components & Features:

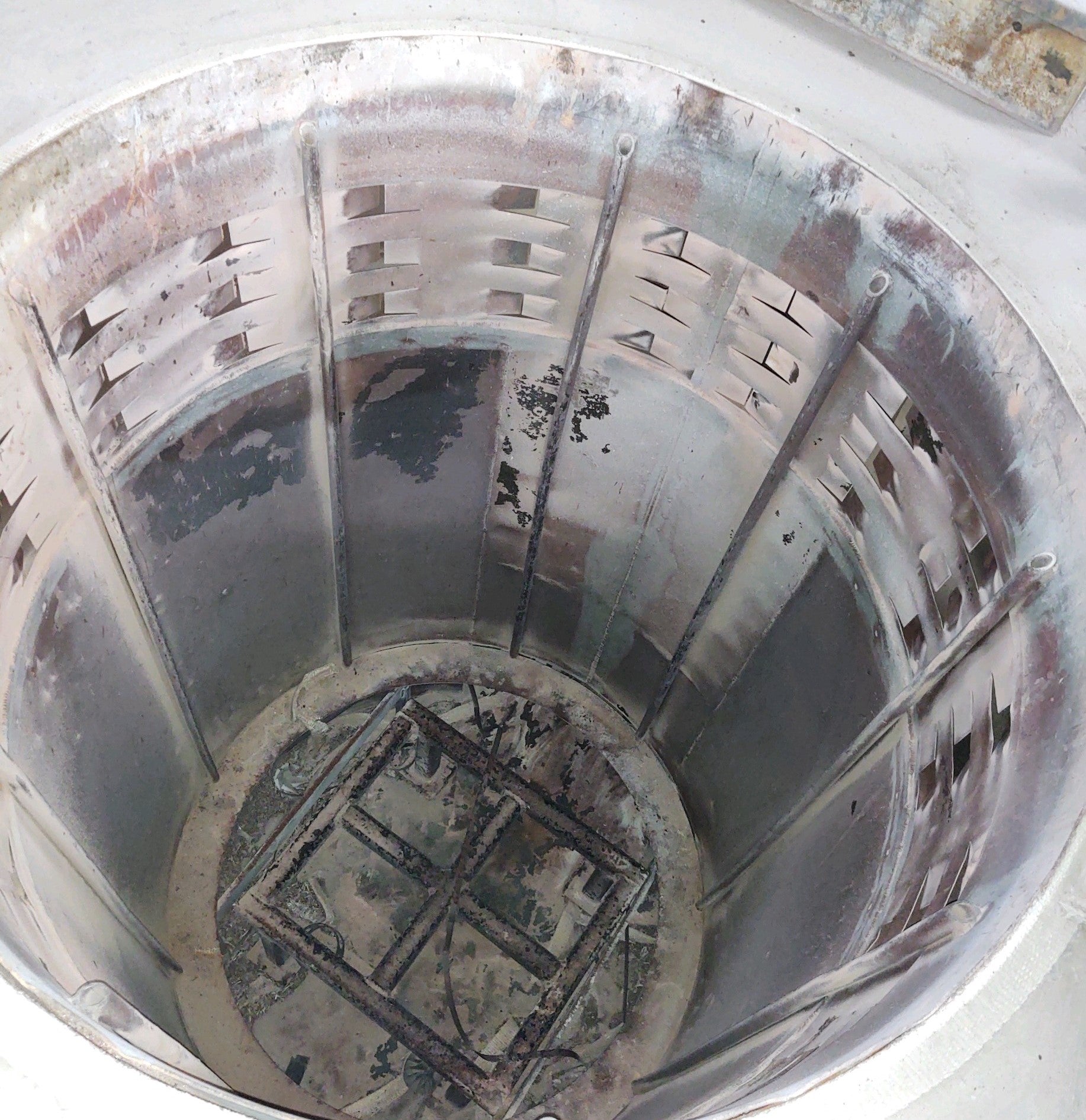

Alloy liner.
7.5 H.P. alloy recirculating fan.

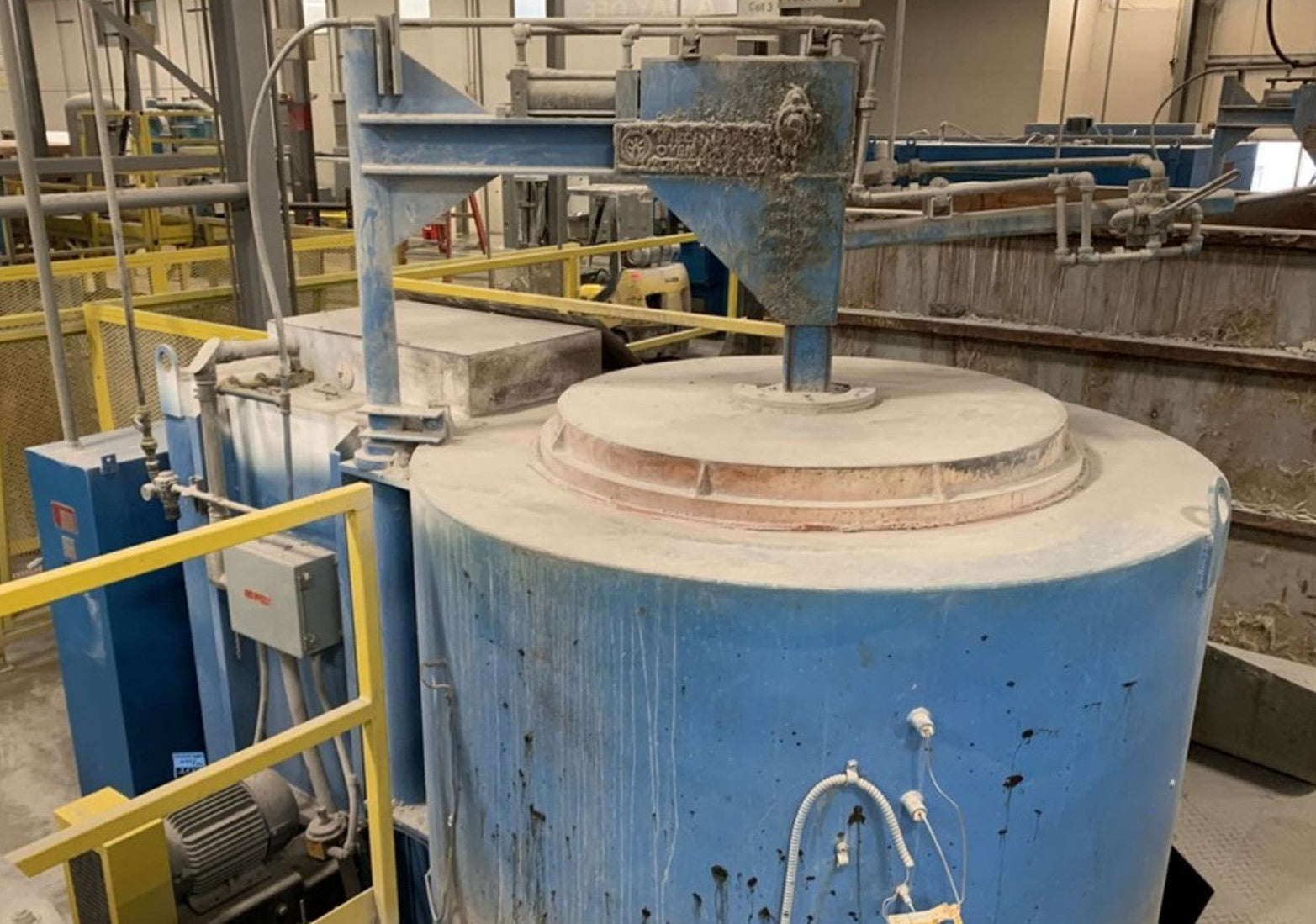

Pneumatic operated swing-away lid.

Manufacturer: Wisconsin Oven
Model No.: PIT OVEN-E12.5
Serial No.: 096230410
Year: 2004

Fuel Type: Electric – 480/3/60 – 72 kW

Capacity / Output: 38” Diameter × 48” Deep

Maximum Temperature: 1250°F

Control Panel: Free-Standing Control Panel

Controls: Honeywell Digital Temperature Controller

Safety Controls: Digital High Limit Controller

Instrumentation: Honeywell DR4500 Powered Chart Recorder

Power Requirements:
480V / 3 Ph / 60 Hz
72 kW

Power Control: Halmer SCR Power Controller (90 Amps)

Weight: Approx. 8,500 lbs.

Overall Dimensions: 72” Wide × 112” Long × 122” High
