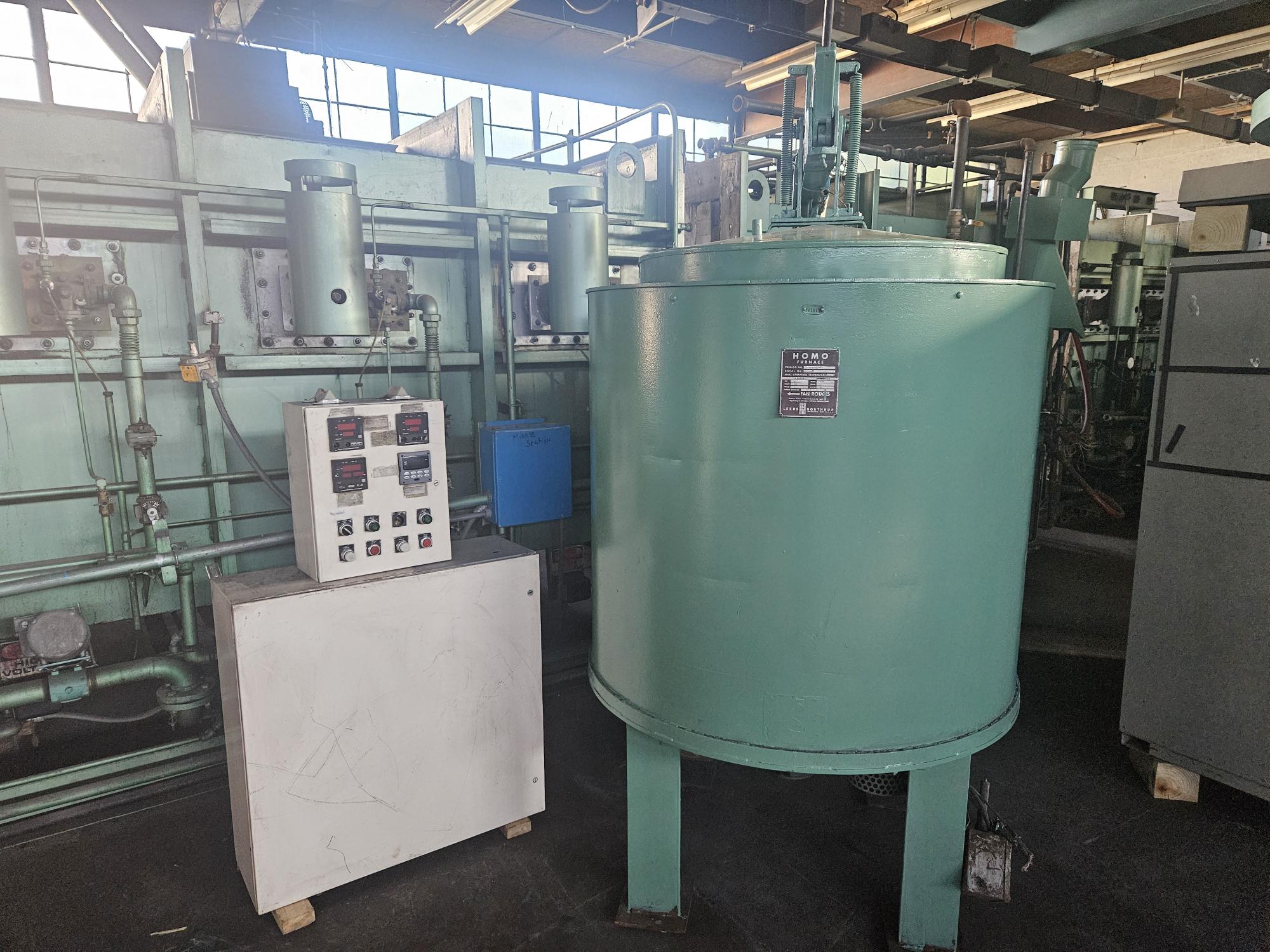

Electric 1400F Pit Temper 22" Dia x 26"

Description:

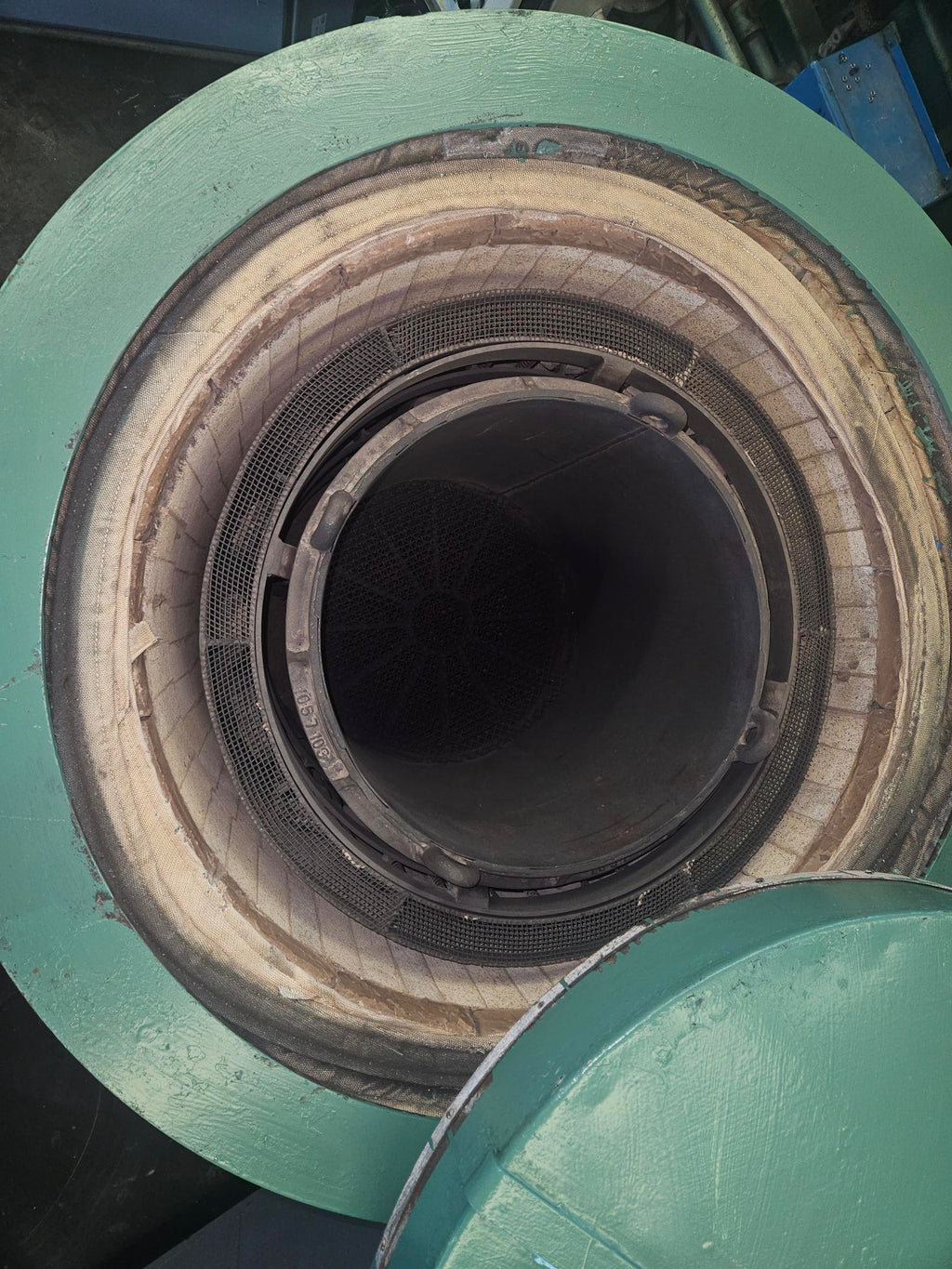

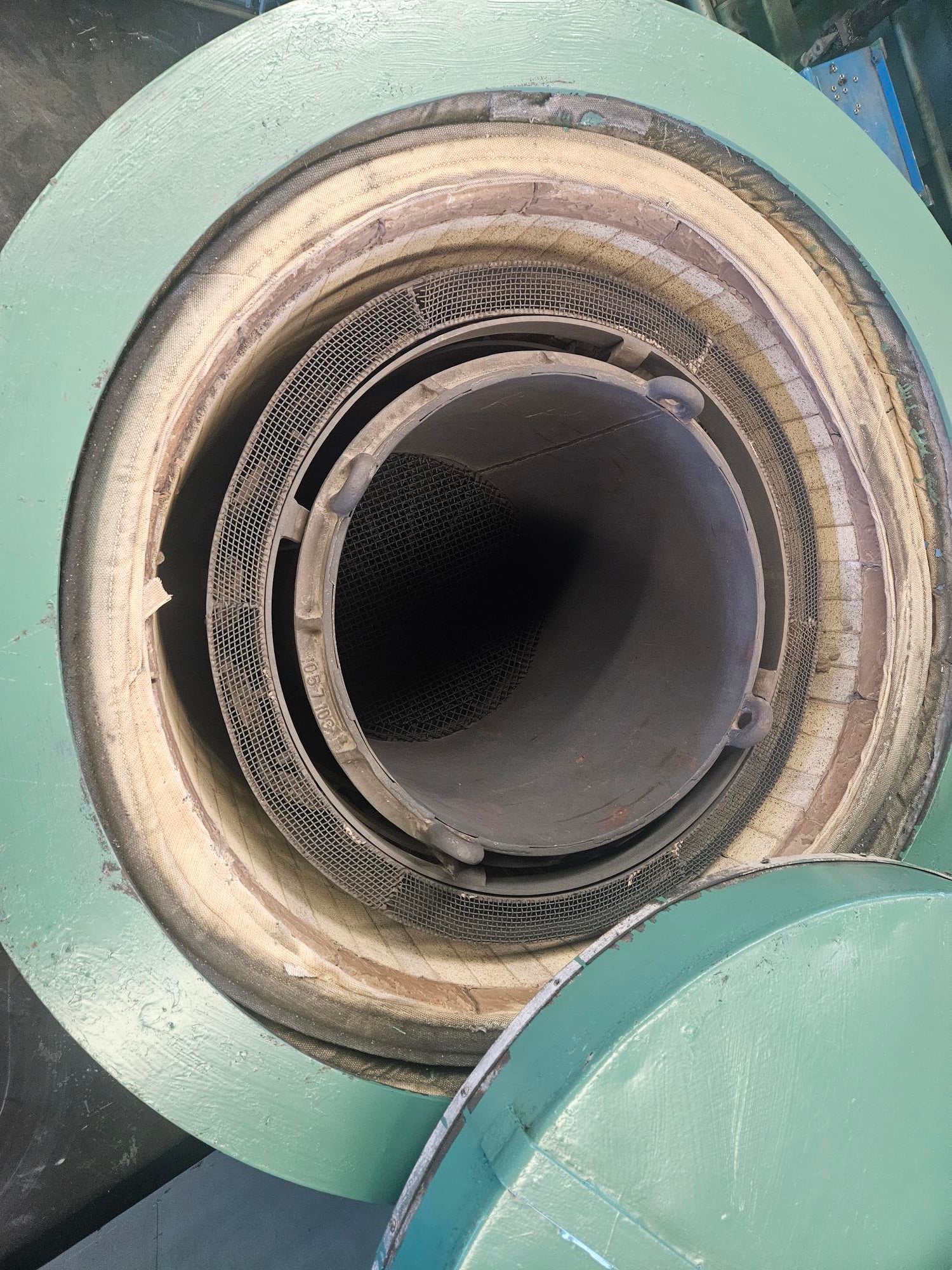

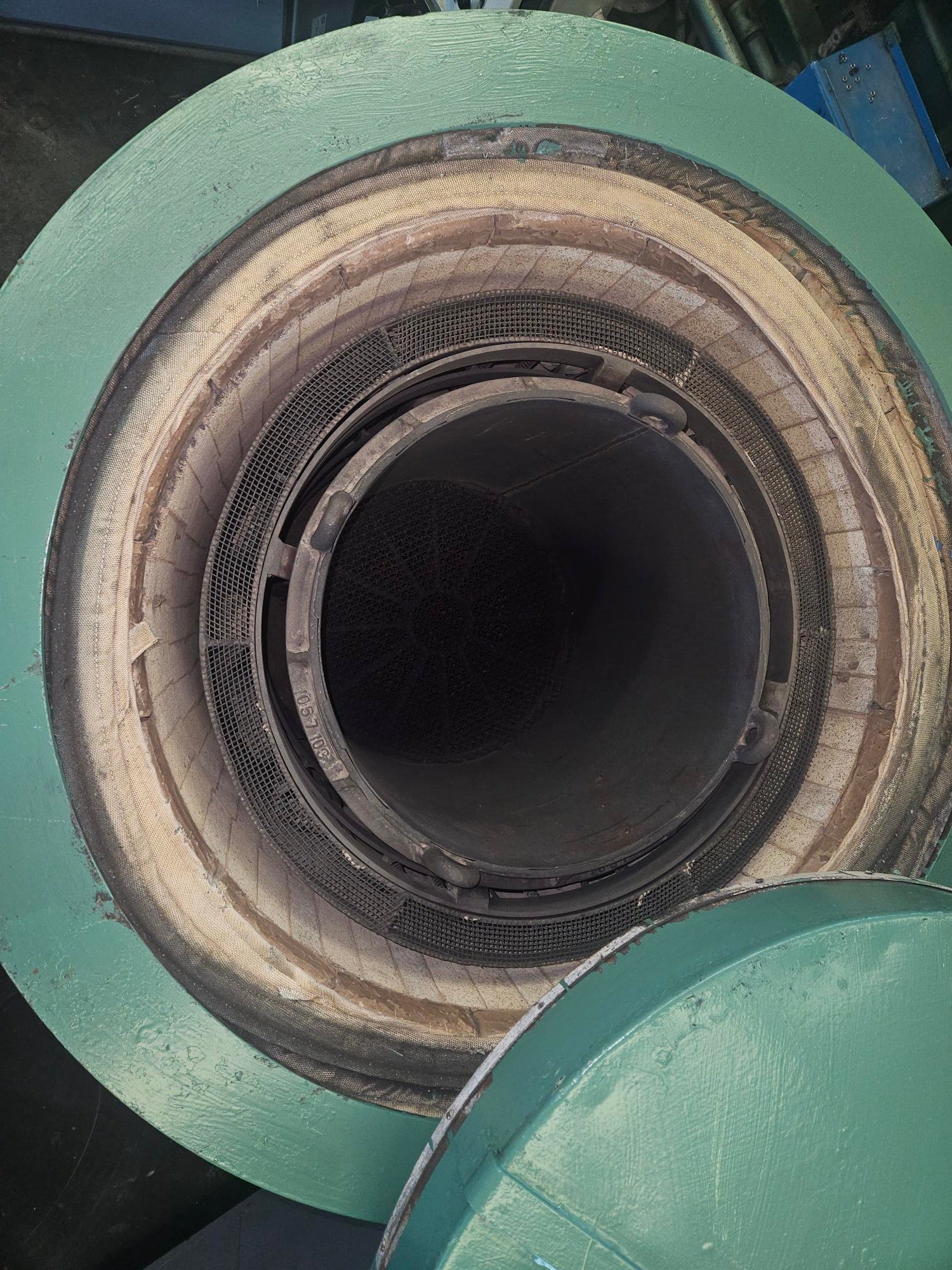

L&N (Leeds & Northrop) brick lined recirculating pit tempering furnace with effective working dimensions of 22” diameter × 26” deep. Electric furnace designed for operation to 1400°F. Unit is reported to be in very good condition.

Key Components & Features:
Brick lined construction.
Alloy recirculating fan mounted in hearth.
Swing-away lid.
Alloy liner.
Alloy work basket.

Manufacturer: L&N (Leeds & Northrop)
Model No.: 9470UB-26-40S
Serial No.: 1340286

Fuel Type: Electric – 440/3/60 – 45 kW

Capacity / Output: 22” Diameter × 26” Deep

Maximum Temperature: 1400°F

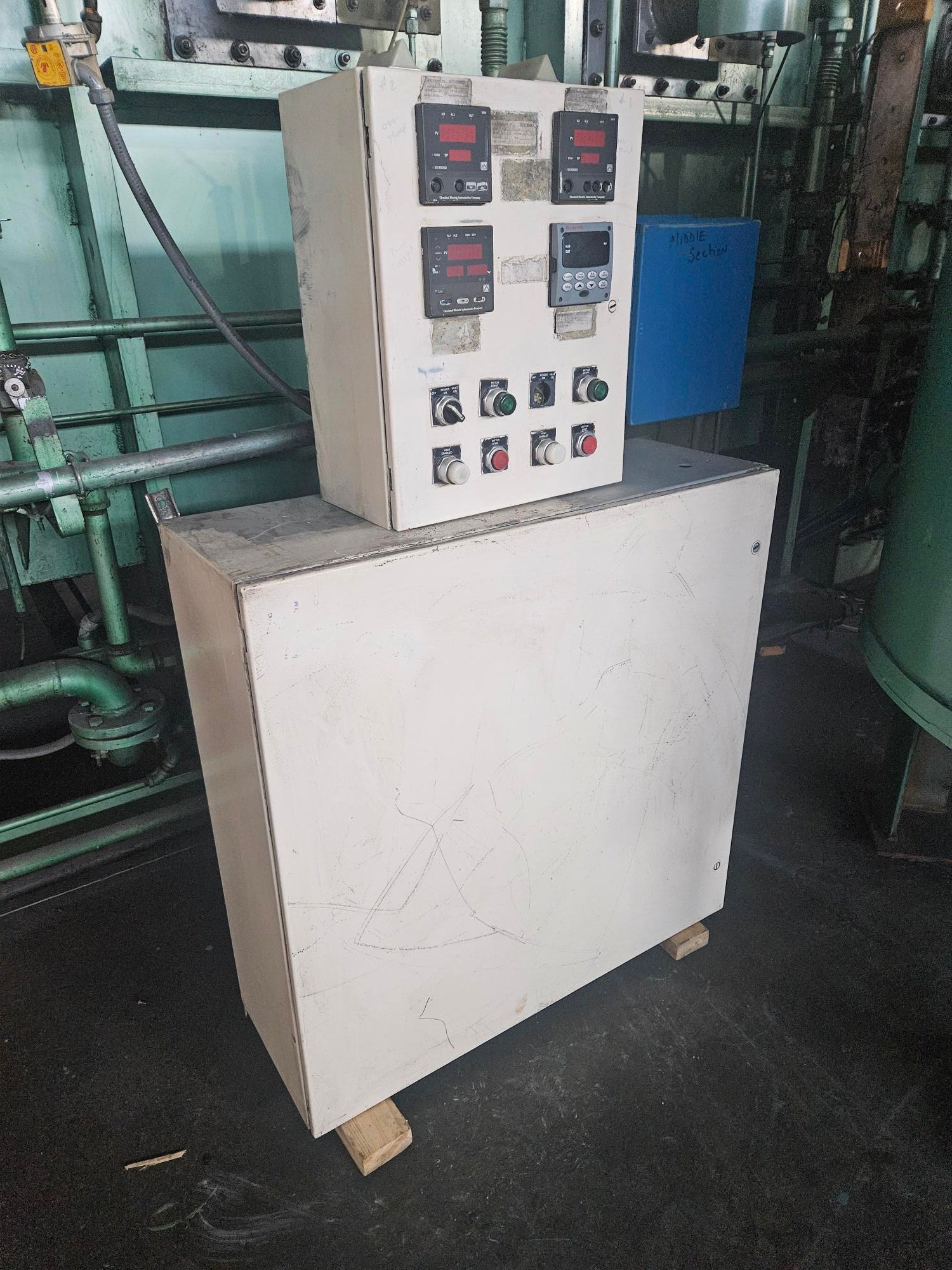

Control Panel: Wall Mounted Control Panel

Controls: Yokogawa Digital Temperature Controller

Safety Controls: Cleveland Electric Labs High Limit

Power Requirements:
440V / 3 Ph / 60 Hz
45 kW

Instrumentation:

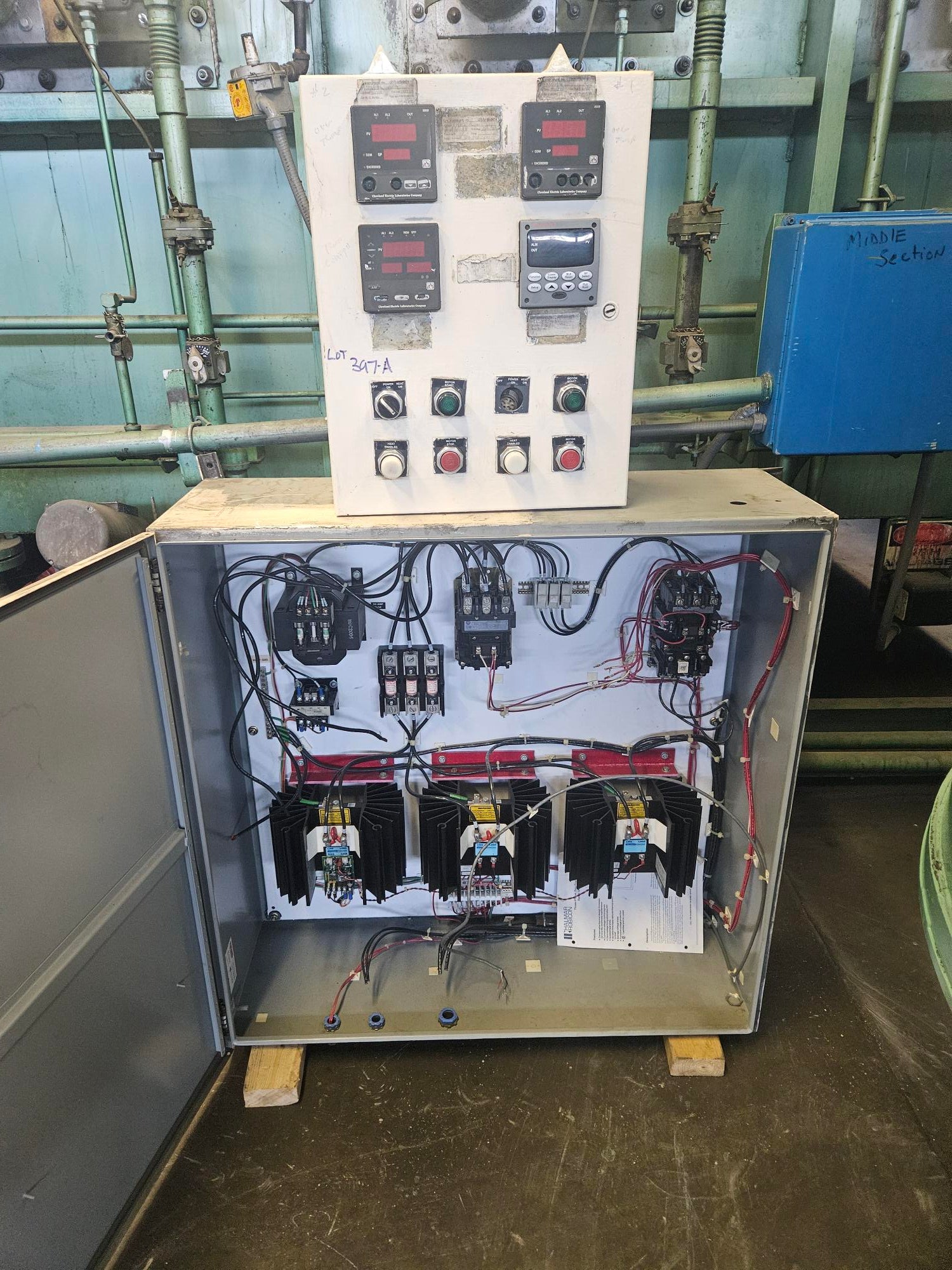

Wall mounted power control panel with proportional SCR power controller (70 Amps)

Weight: Approx. 2,500 lbs.

Overall Dimensions: 50” Diameter × 84” High
