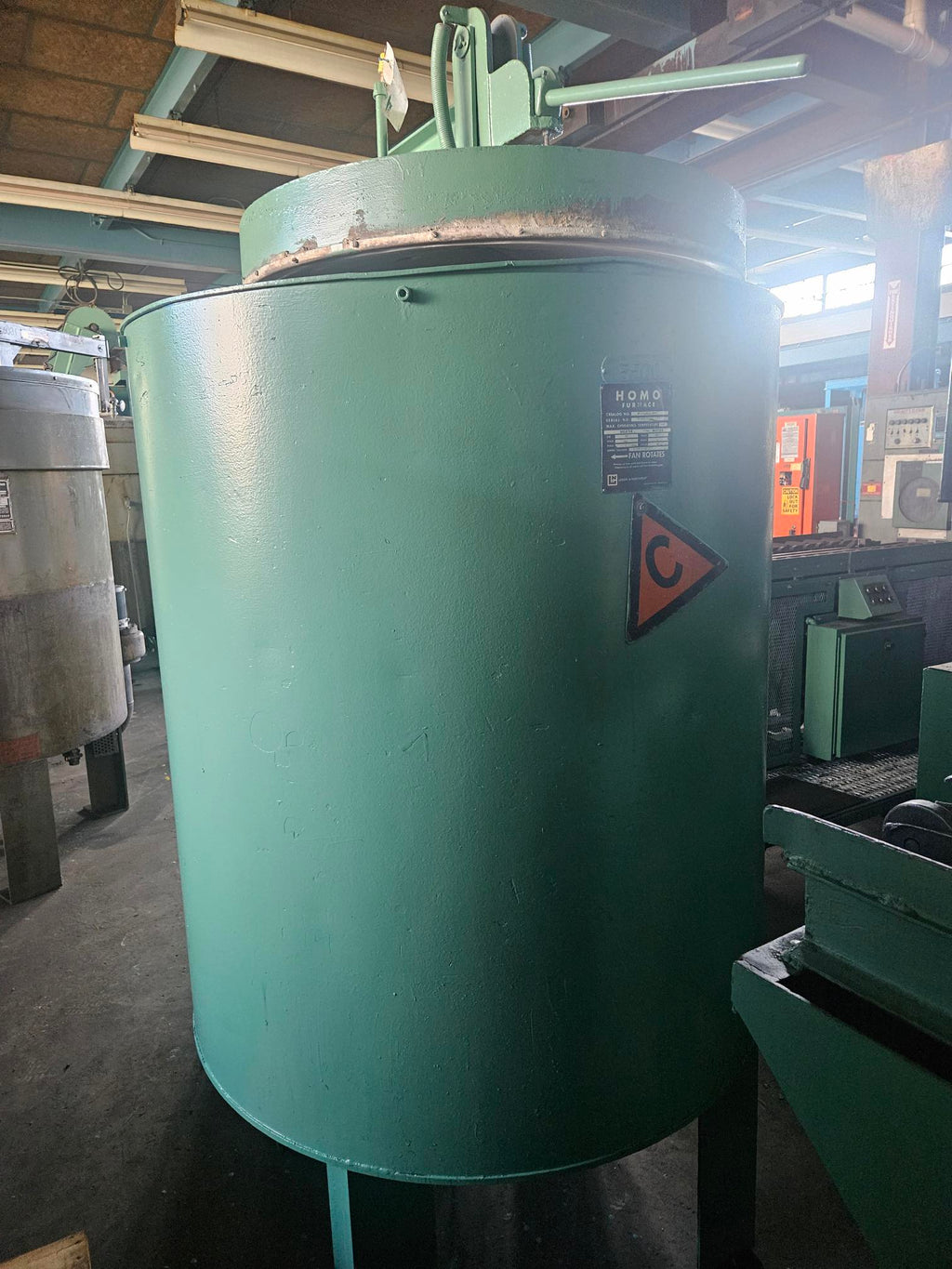

Electric 1400F Pit Temper 22" Dia x 36"

Description:

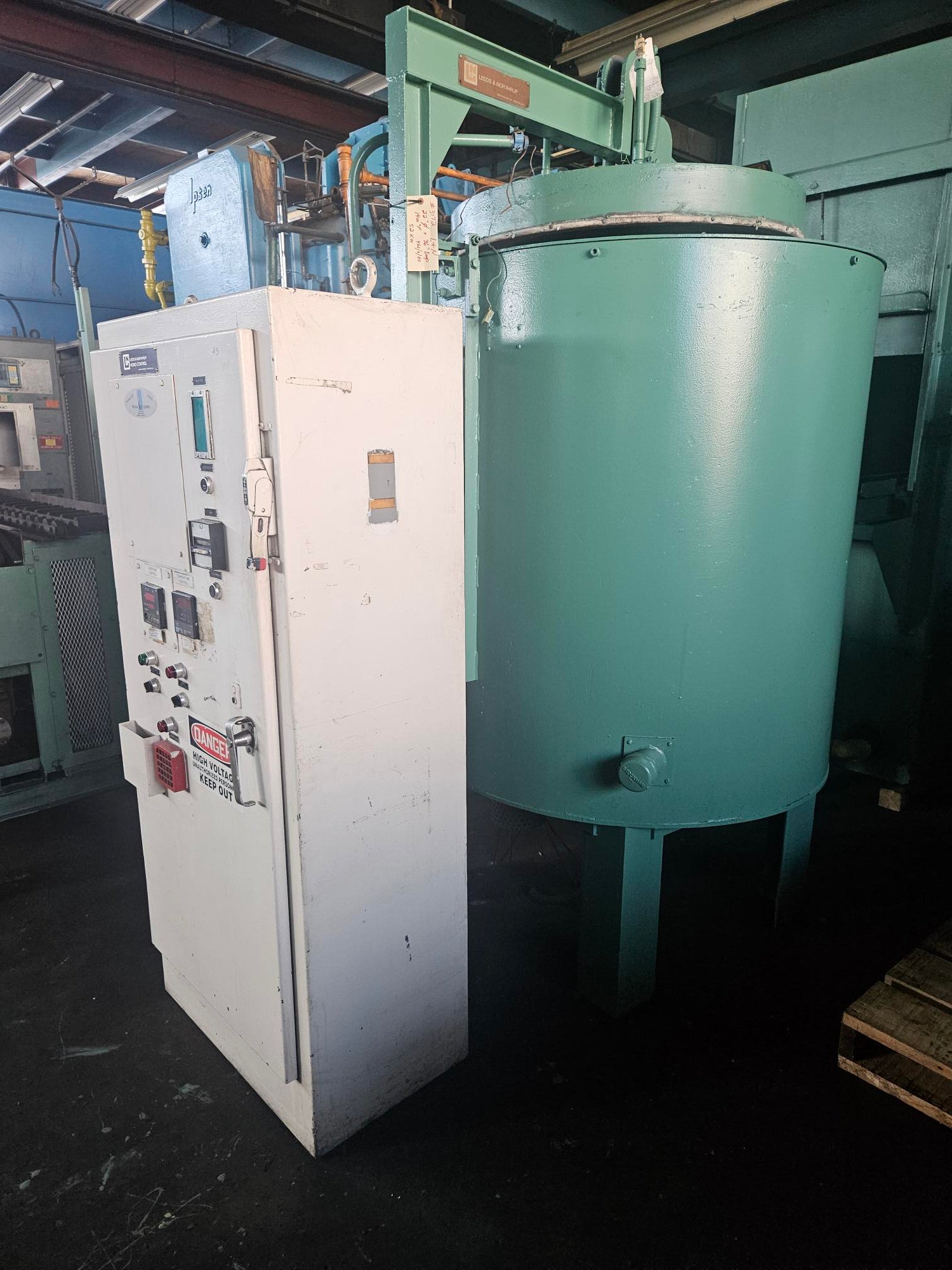

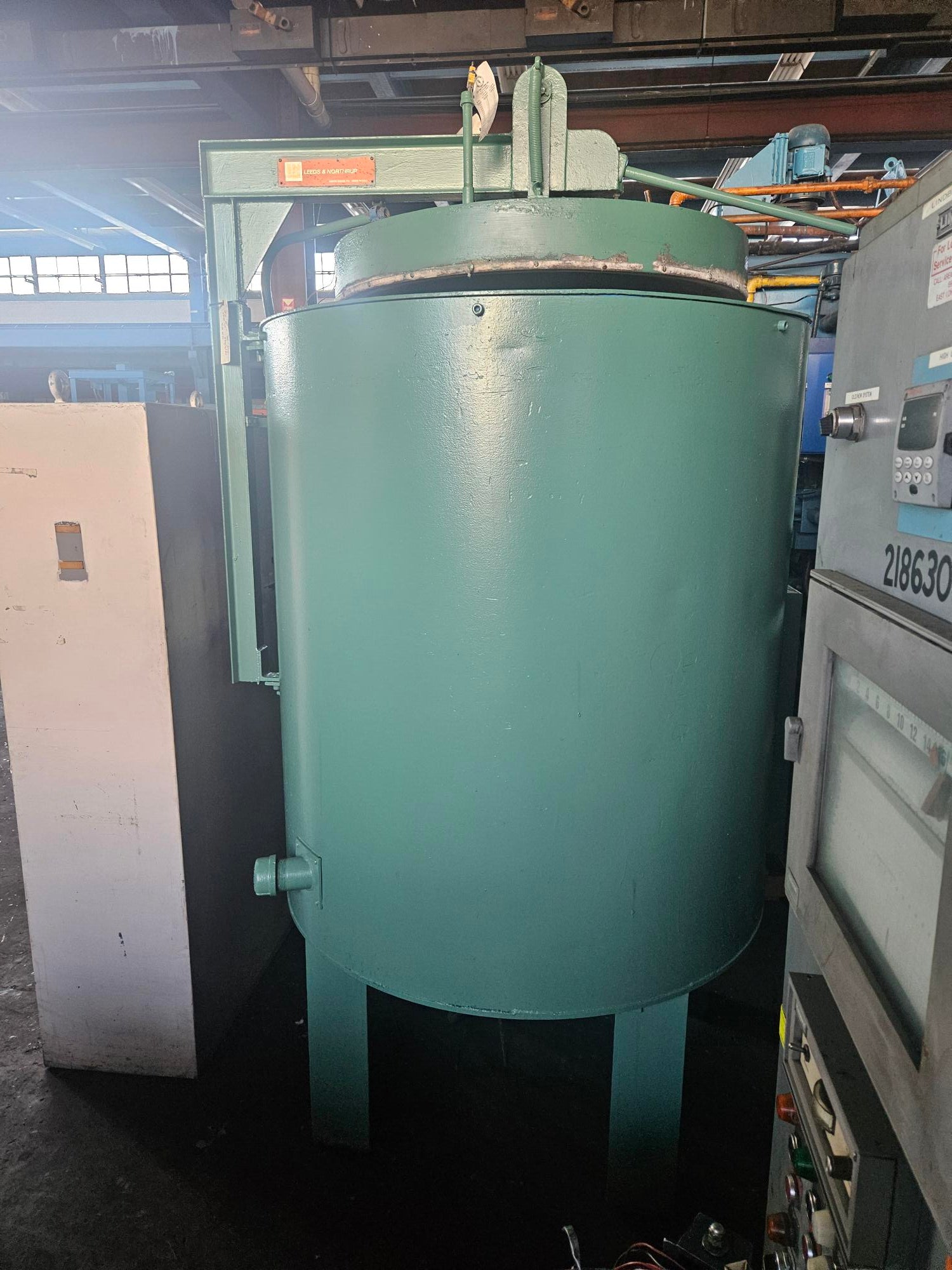

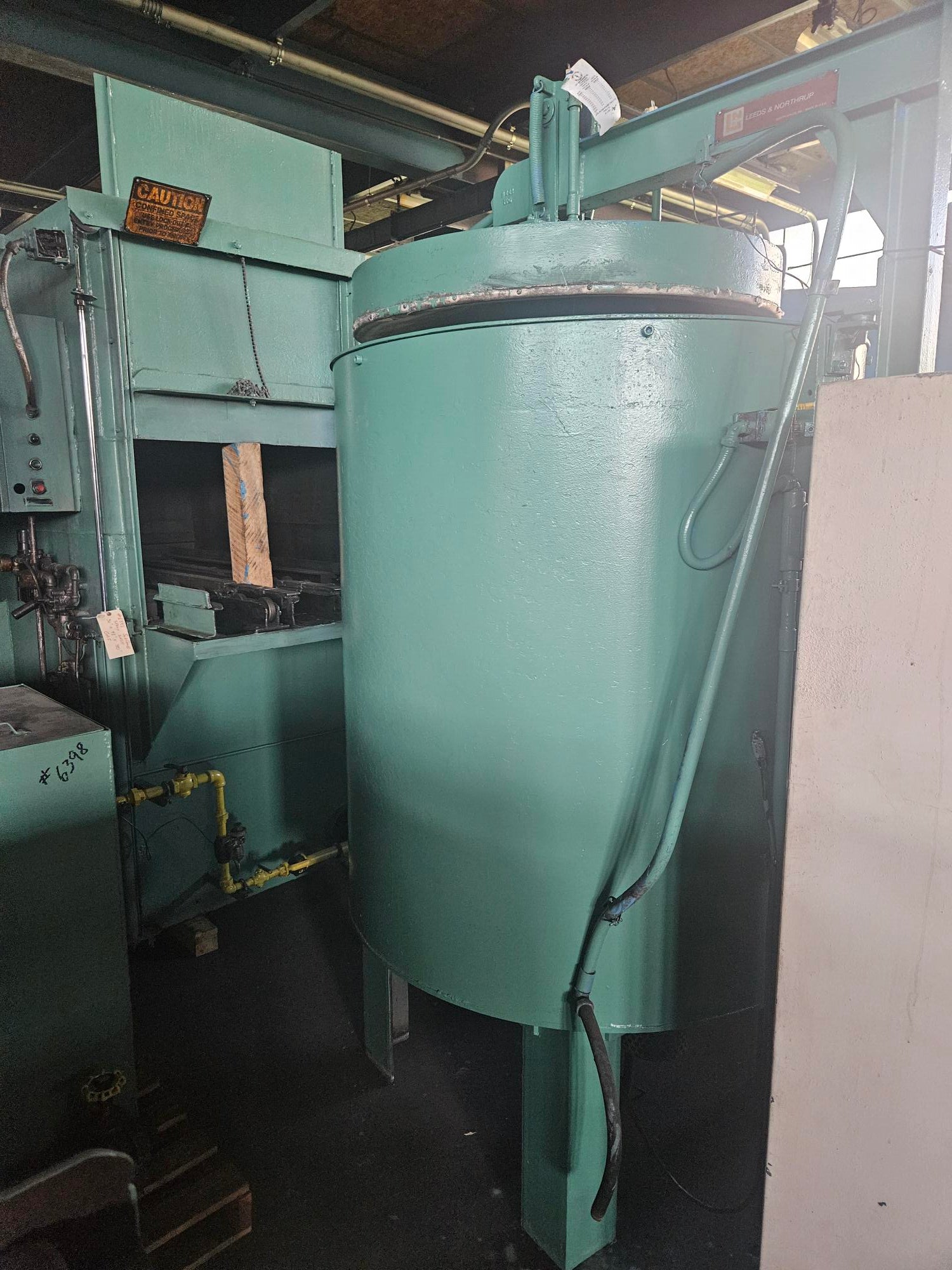

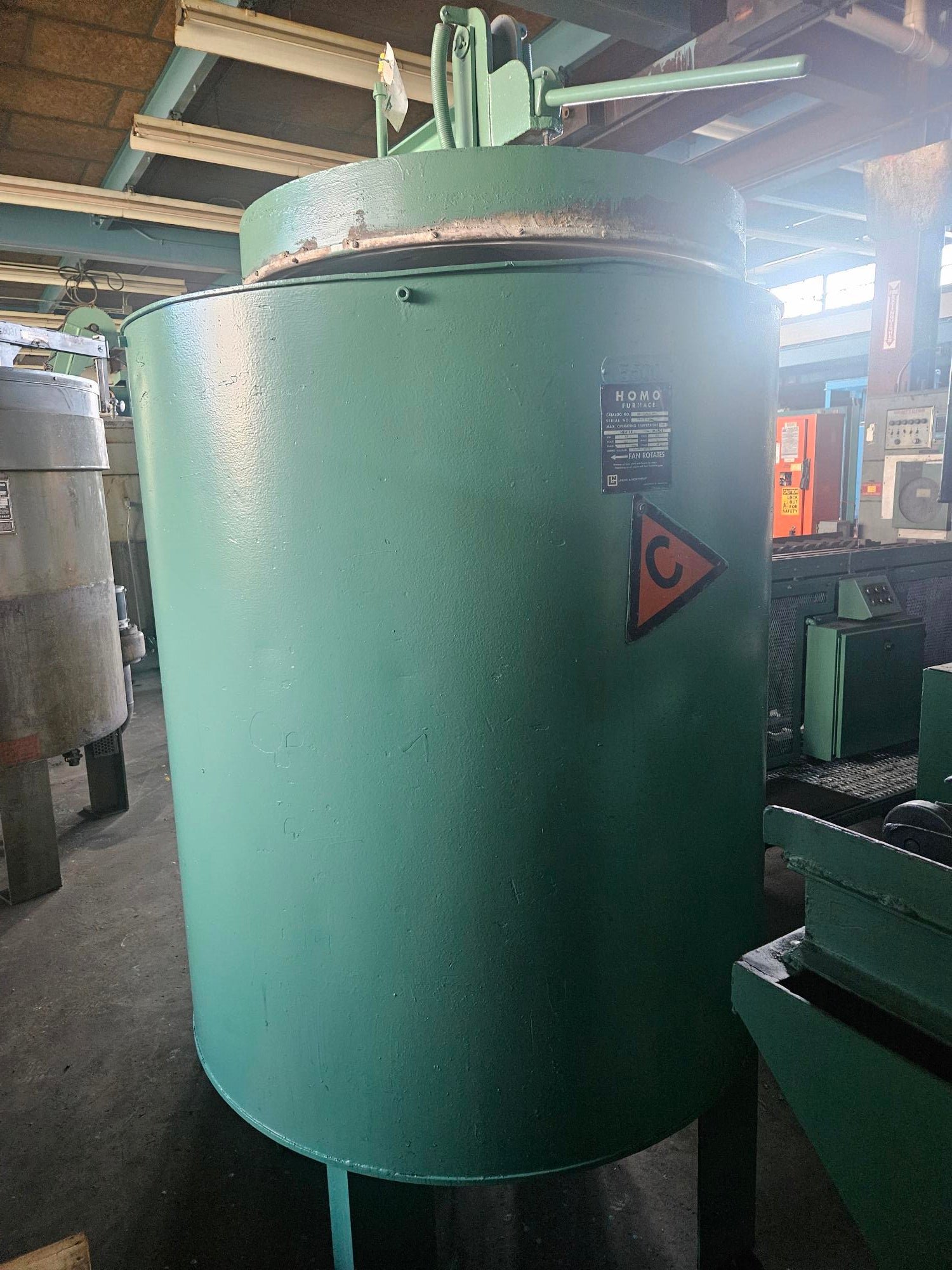

L&N (Leeds & Northrop) brick lined recirculating pit tempering furnace with effective working dimensions of 22” diameter × 36” deep. Electric furnace designed for operation to 1400°F. Unit is reported to be in very good condition.

Key Components & Features:
Brick lined construction.
Alloy recirculating fan mounted in hearth.

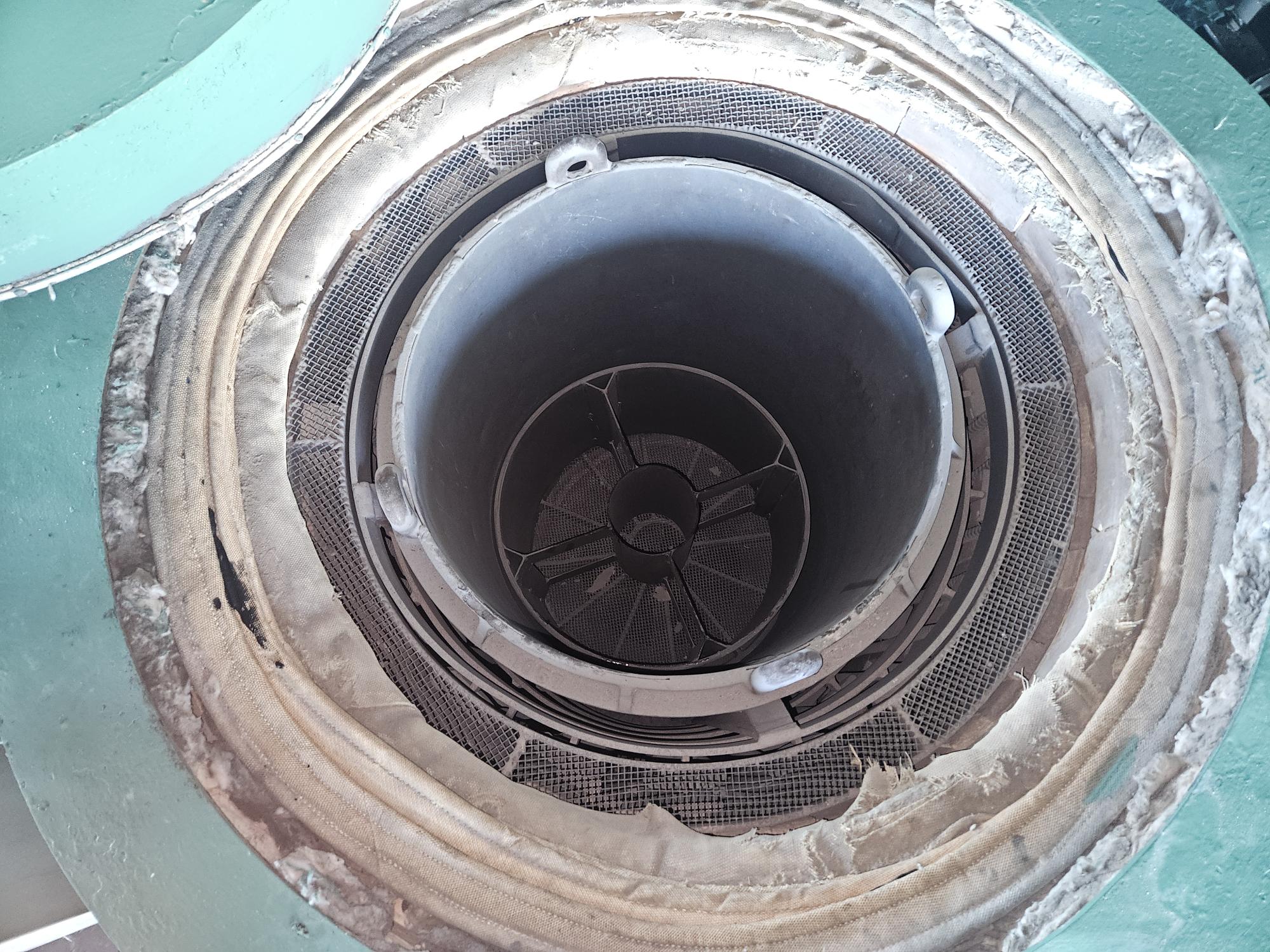

Alloy liner.

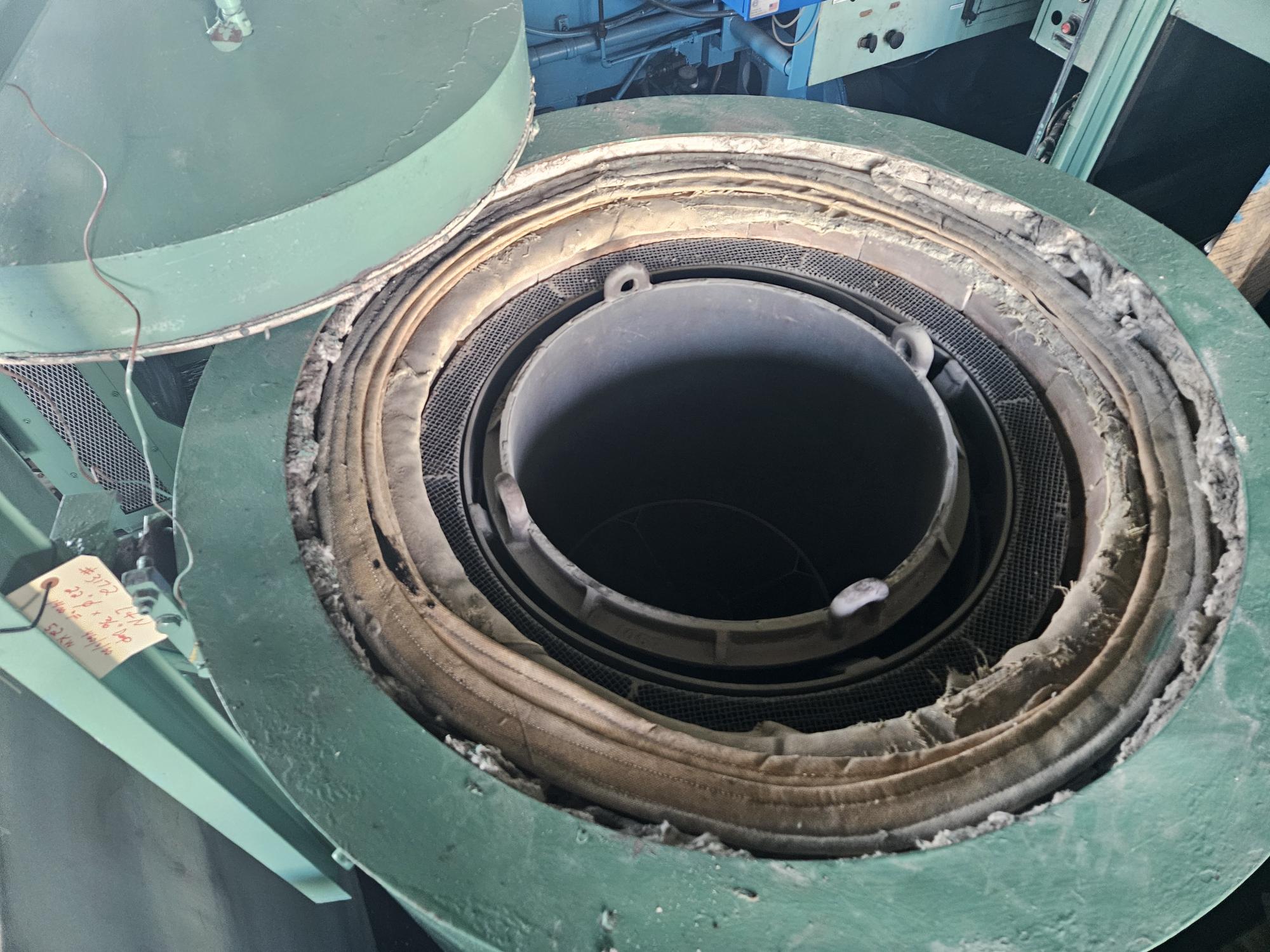

Swing-away lid.
Alloy work basket.

Manufacturer: L&N (Leeds & Northrop)
Model No.: 90470-364X-HOMO
Serial No.: 77-67218-5-1

Fuel Type: Electric – 460/3/60 – 52 kW

Capacity / Output: 22” Diameter × 36” Deep

Maximum Temperature: 1400°F

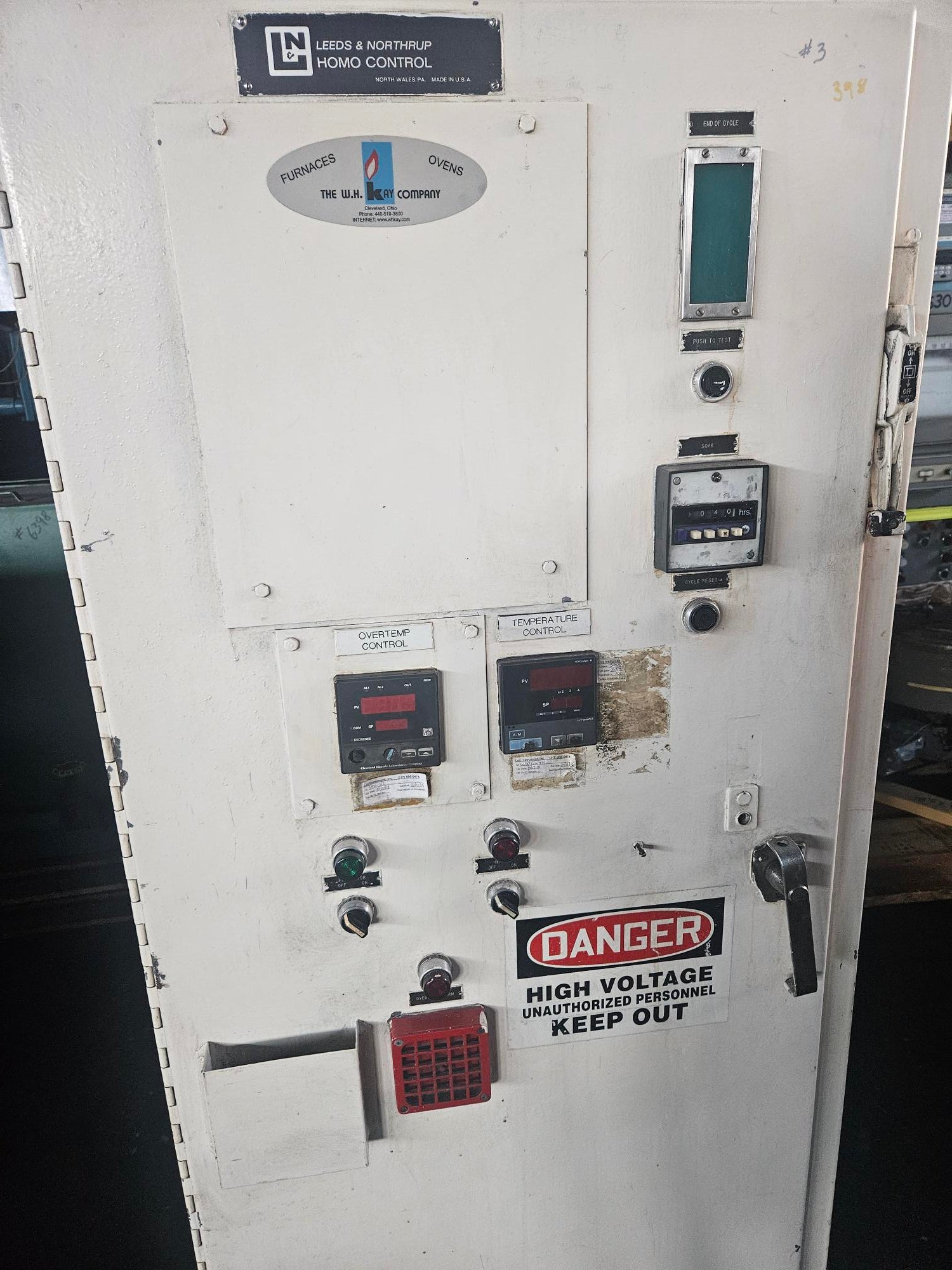

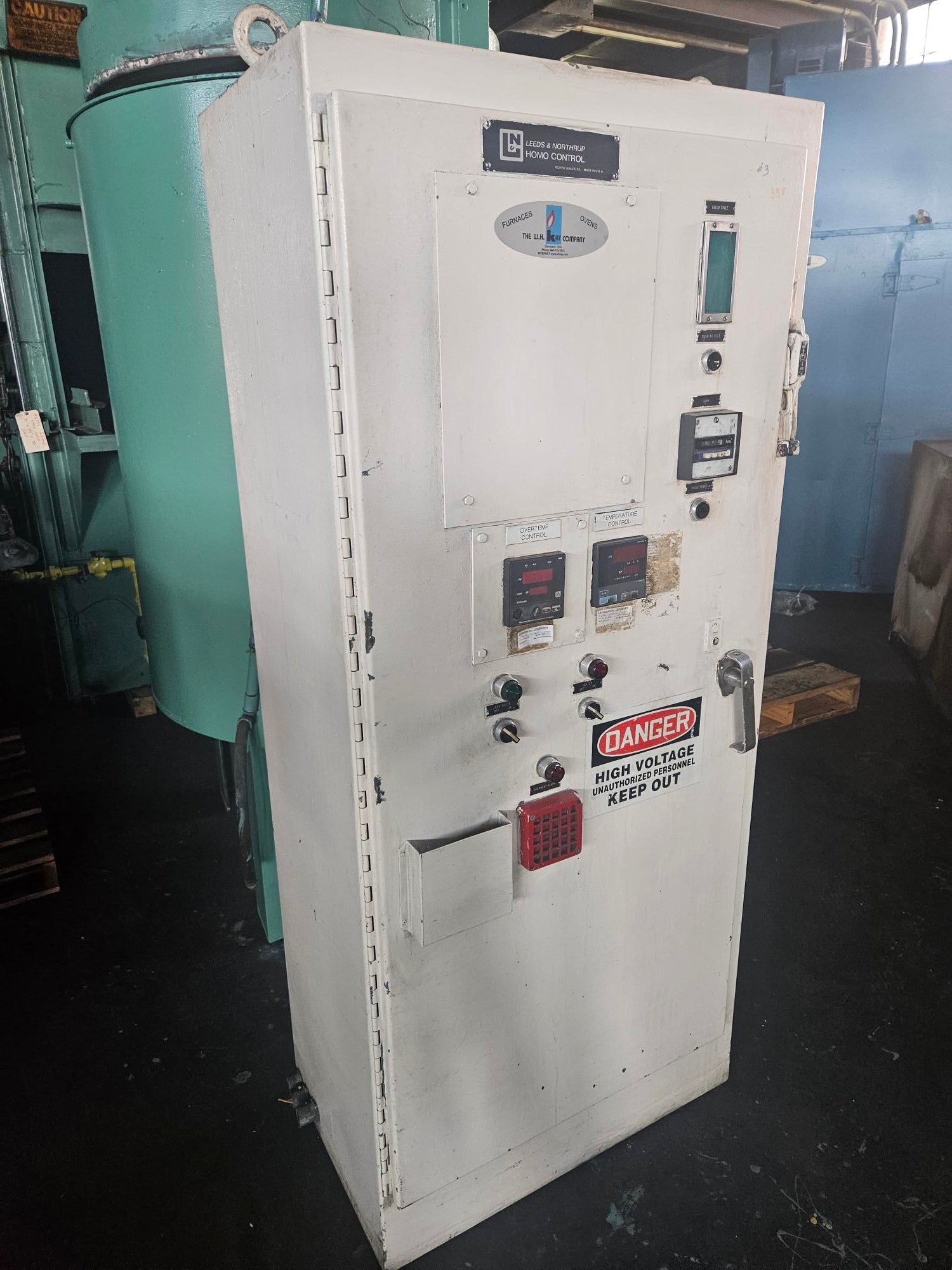

Control Panel: Free Standing Control Panel

Controls: Yokogawa Digital Temperature Controller

Safety Controls: Cleveland Electric Labs High Limit

Power Requirements:
460V / 3 Ph / 60 Hz
52 kW

Weight: Approx. 4,000 lbs.

Overall Dimensions: 58” Diameter × 96” High
