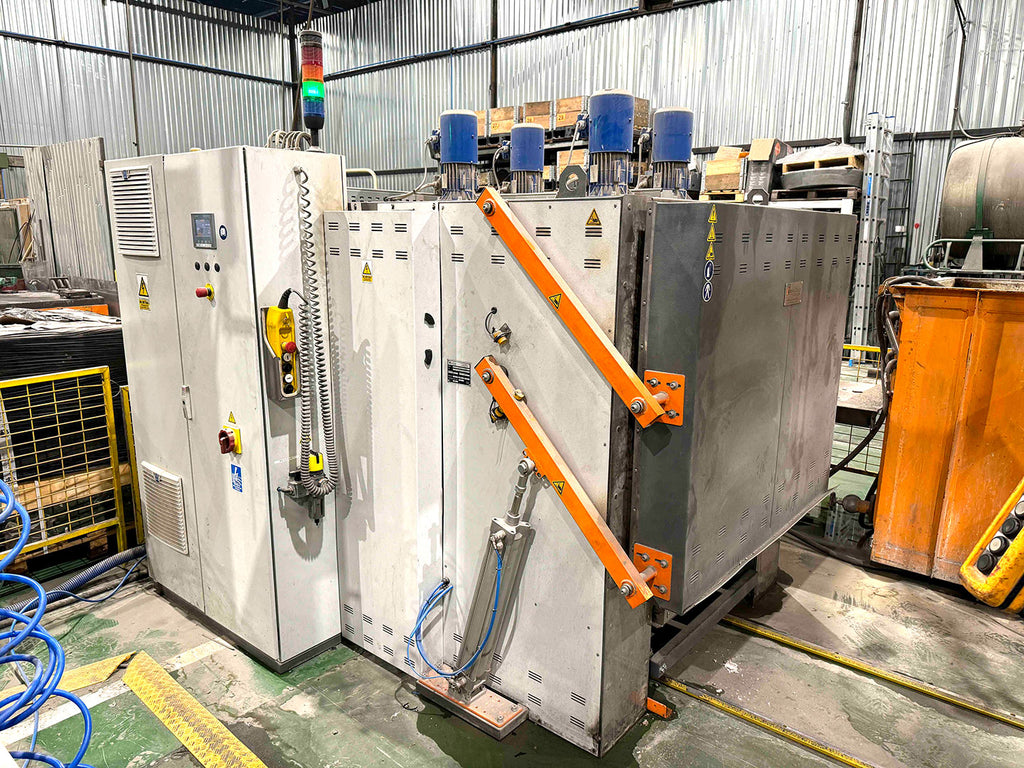

Electric Chamber Furnace

Description:
Electric chamber furnace with retractable hearth and forced air circulation. Electric resistance furnace intended for heat treatment of metals in an oxidizing atmosphere at temperatures up to 700°C. Furnace is operational with on-site testing possible. Technical assessment, relocation, and installation within the EU are available.

Key Components & Features:

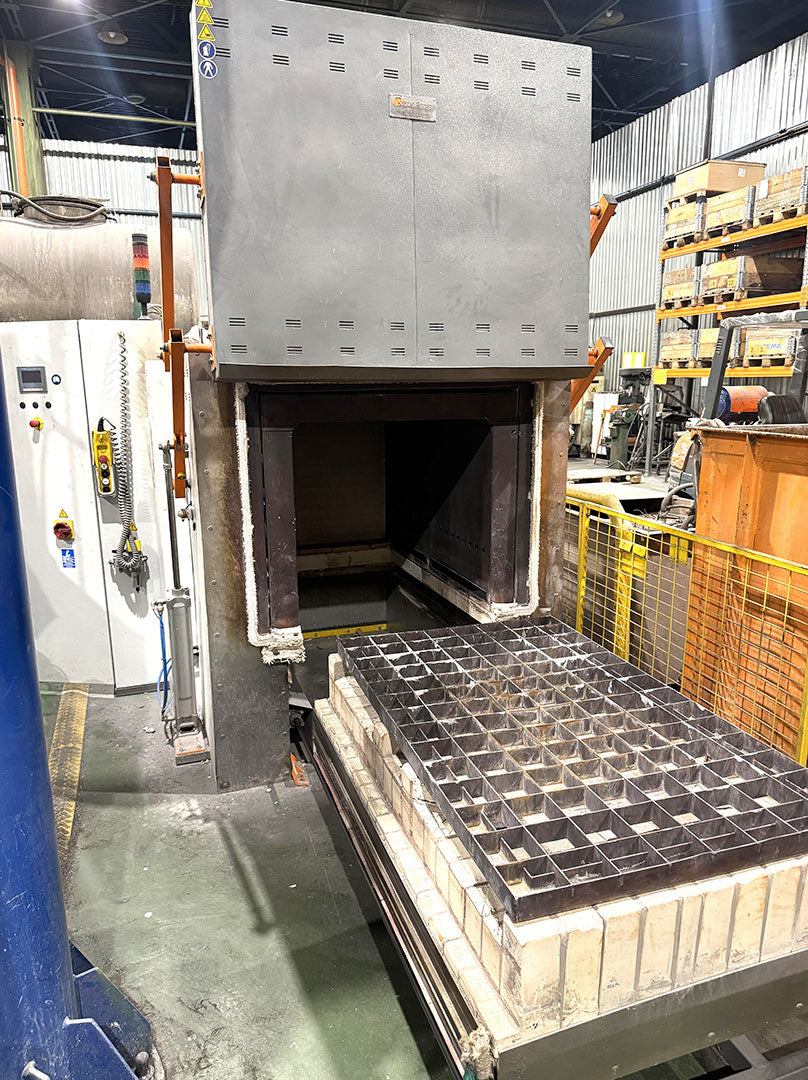

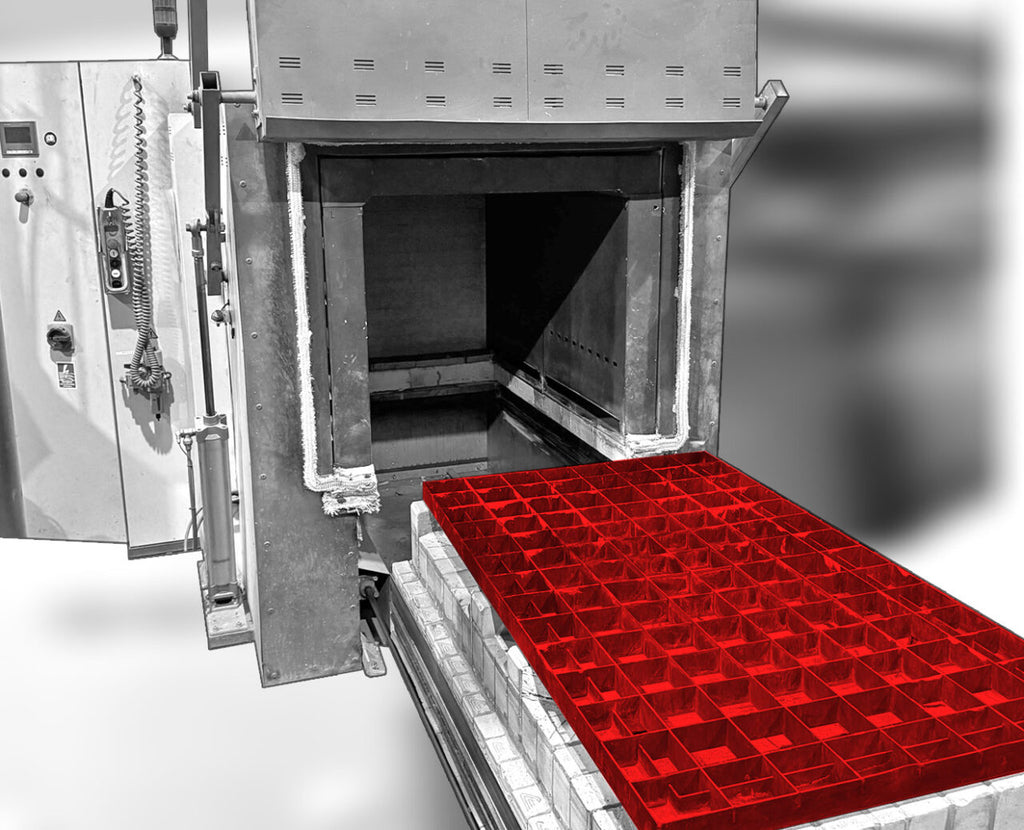

Retractable hearth.
Forced air circulation.
Electric resistance heating.
Designed for operation in an oxidizing atmosphere.
Two heating zones with SSR control.

Manufacturer: Kepka Group Furnace Production
Year: 2019
Location: Central Poland

Fuel Type: Electric

Capacity / Output:

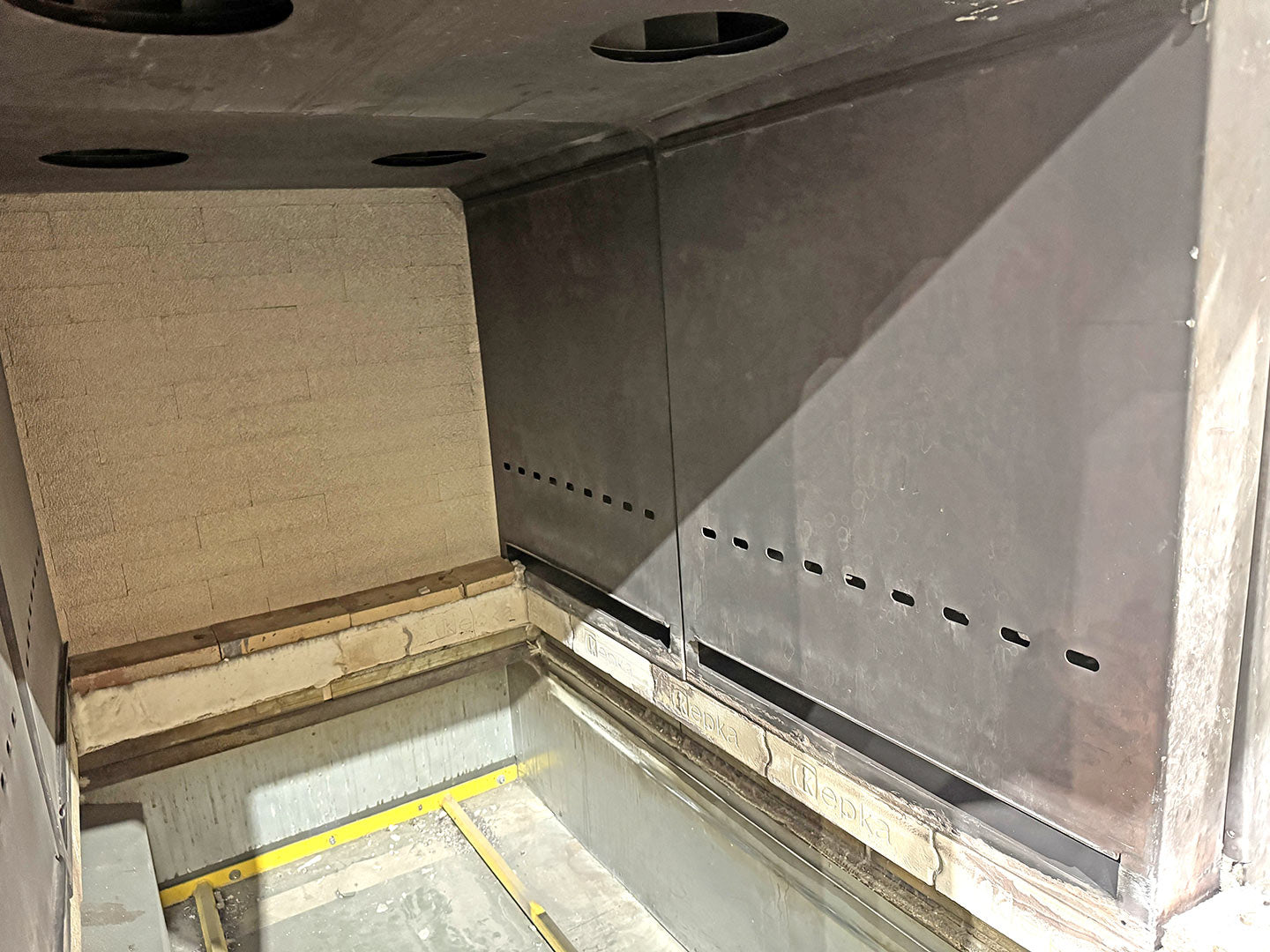

Heating chamber capacity: 780 dm3
Heating chamber dimensions: 800 mm W × 1300 mm D/L × 750 mm H
Permissible hearth load: 800 kg

Maximum Temperature: 700°C

Power Requirements:
Rated voltage: 230/400 AC [V]
Rated power: 60 kW

Controls:

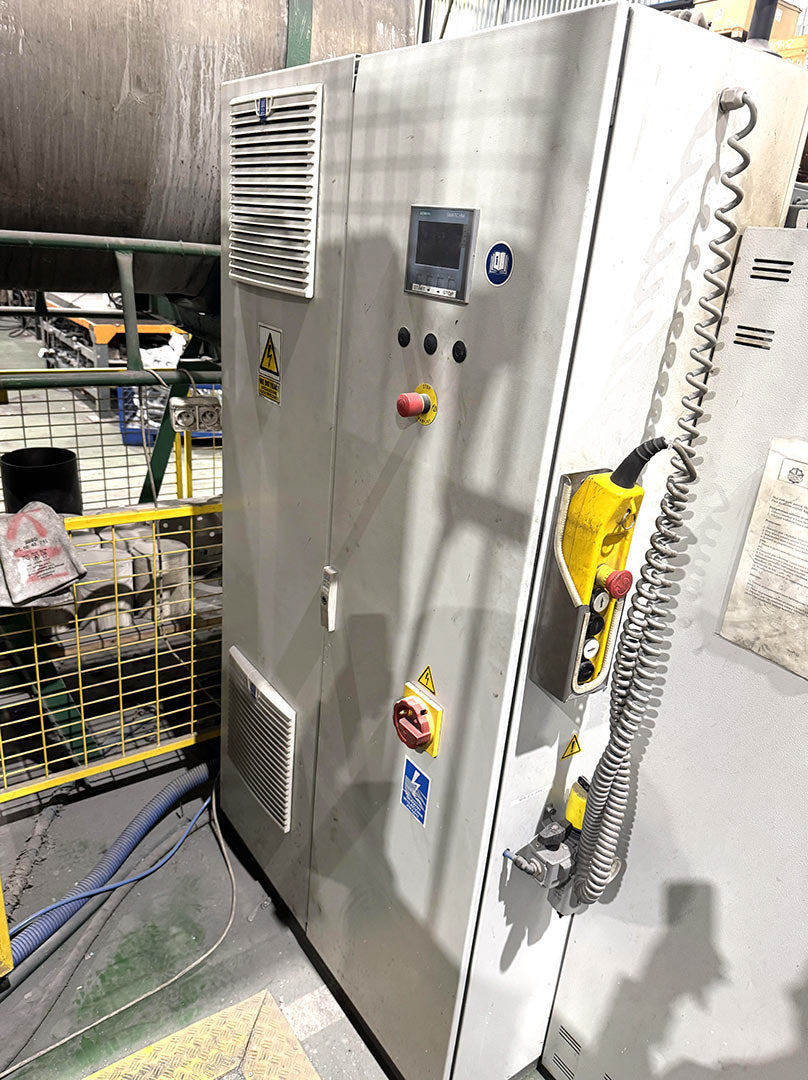

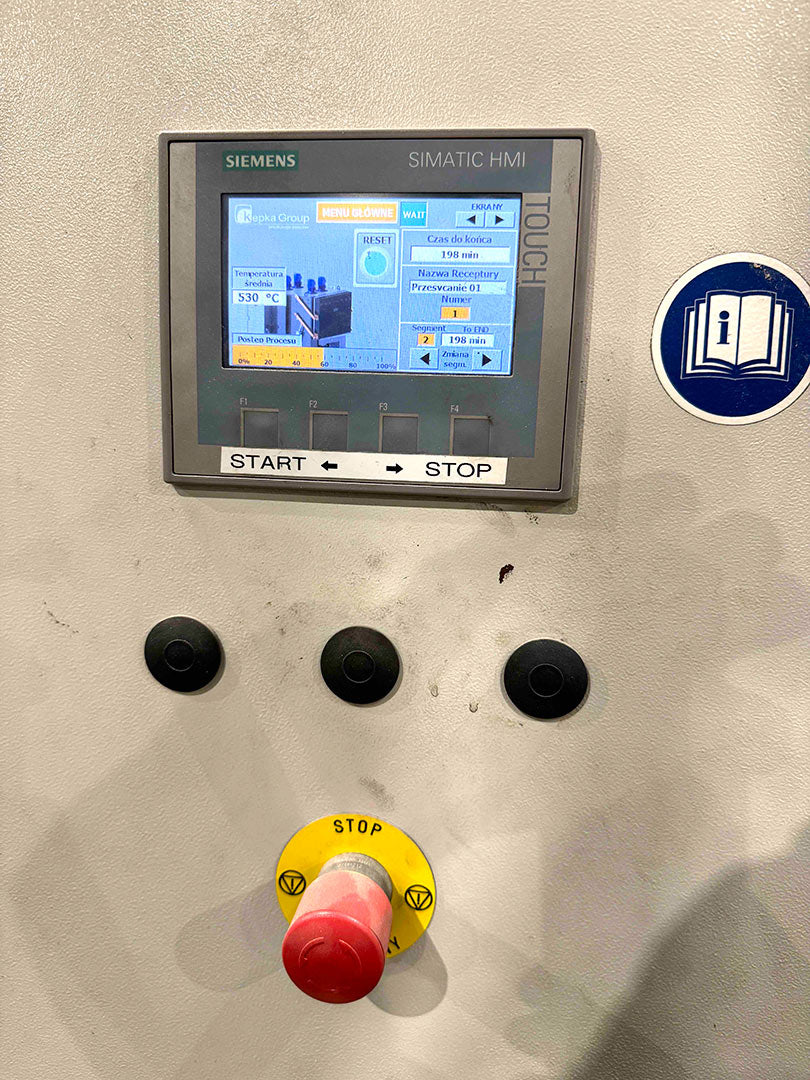

PLC panel: Siemens KTP 400 COMFORT

Instrumentation:
Thermocouples: 2 × Guenther Type K, 280 mm

Performance:
Deviation from rated temperature: ±10°C
