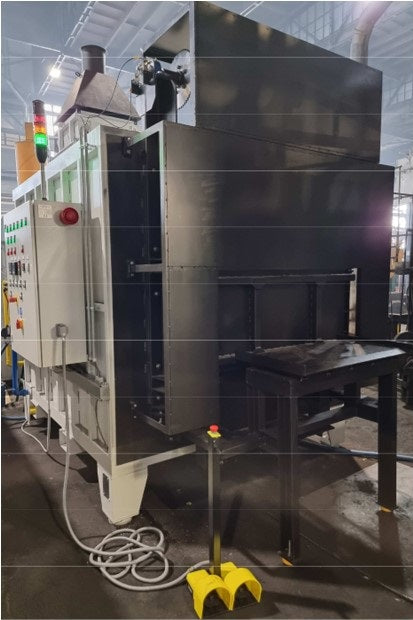

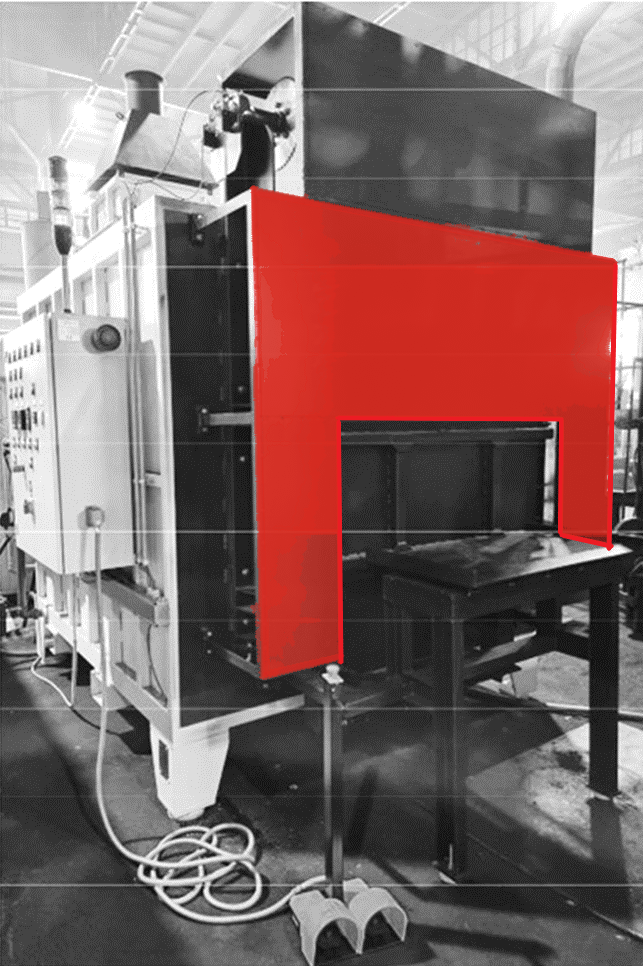

FORGING CHAMBER FURNACE

Description:
Industrial Process Technology gas chamber forging furnace, Type IPT. Gas chamber forging furnace designed for heating steel parts placed directly on the furnace shaft at temperatures up to 1300°C in a flue gas atmosphere. Furnace is disconnected and ready for relocation. Unit has not performed any production process other than initial startup after first installation. Technical evaluation, relocation, and installation within the E.U. are available.

Key Components & Features:
Gas chamber forging furnace.
Manual loading.
Electromechanical thermal door.
Up/down door opening and closing direction.
Single heating zone.
Two (2) BIO65HB-400/335-(34)E burners.

Manufacturer: Industrial Process Technology
Model No.: IPT
Year: 2021
Location: Southern Poland

Fuel Type: Natural Gas – (E) or GZ50
Capacity / Output:
Batch window: 800 mm W × 400 mm H
Usable space: 800 mm W × 300 mm H × 1200 mm L
Maximum stem load: 800 kg
Maximum furnace capacity: 400 kg/h

Maximum Temperature:
Rated temperature: 1300°C
Recommended operating temperature: 1280°C

Power Requirements:
3/N/PE 400/230 V AC
50 Hz

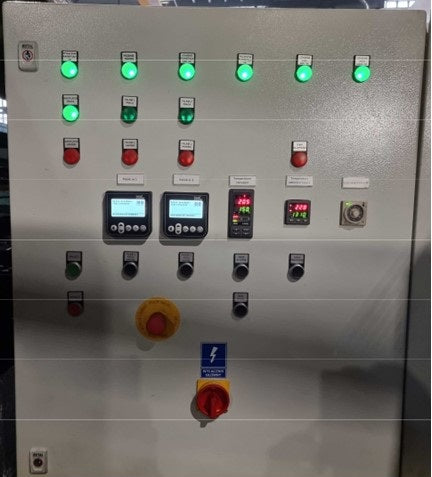

Control circuits: 24 V DC
Installed electrical power: approx. 4 kW

Heating System:
Number of heating zones: 1
Total number of burners: 2
Burner heating power: 180 kW
Recommended heating power adjustment range: approx. 19 kW to 75 kW
Gas connection pressure: 250 mbar
Connection size: 1½”
Connection capacity: approx. 30 m3/h

Performance:
Heating speed of empty furnace: 150°C/h
Atmosphere: exhaust
Loading level: approx. 1100 mm

Overall Dimensions:
Approx. 3000 mm W × 4500 mm H × 4800 mm L

Weight:
Approx. 9800 kg
