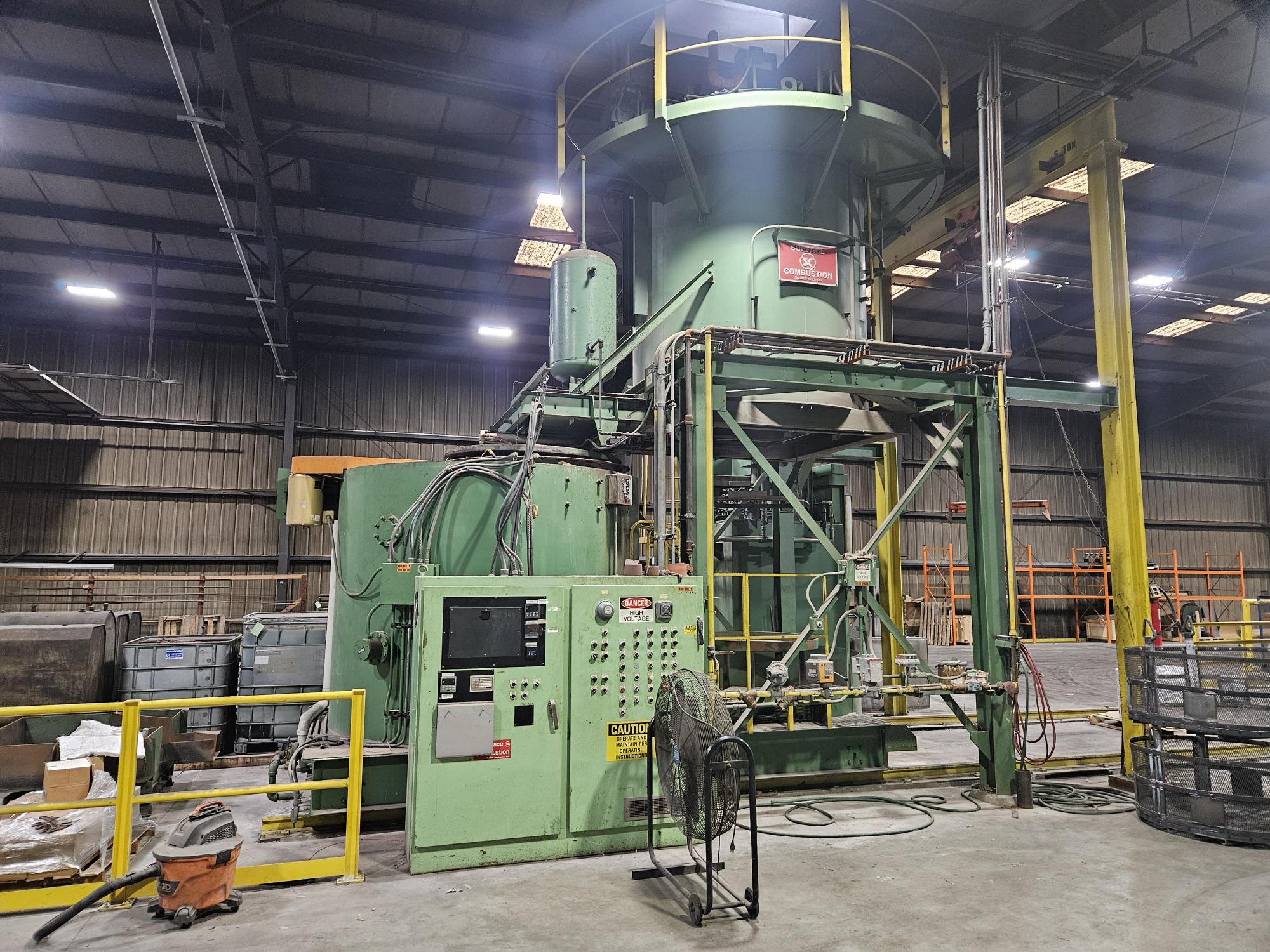

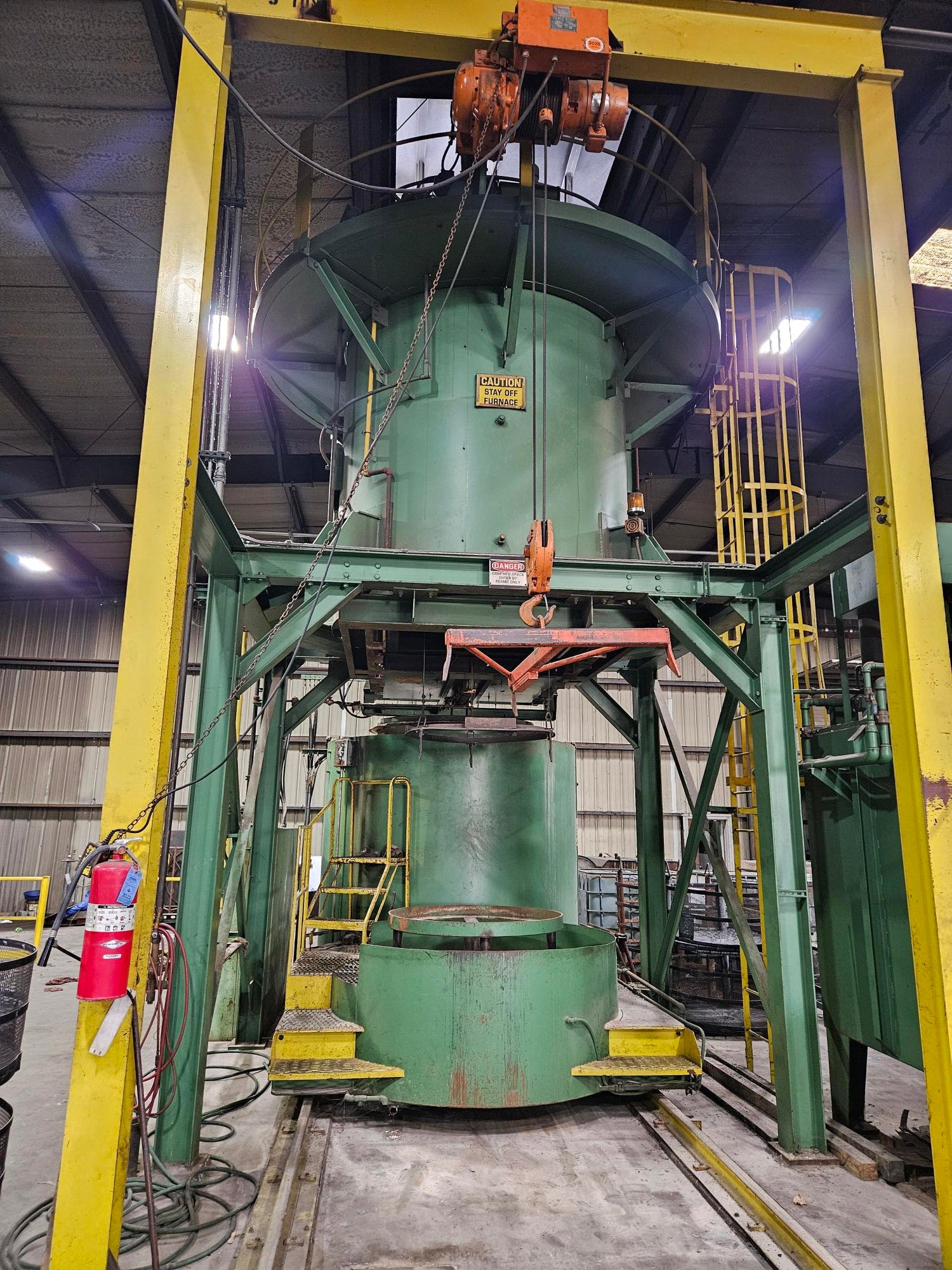

Gas 1200F Aluminum Drop Bottom Furnace

Description:

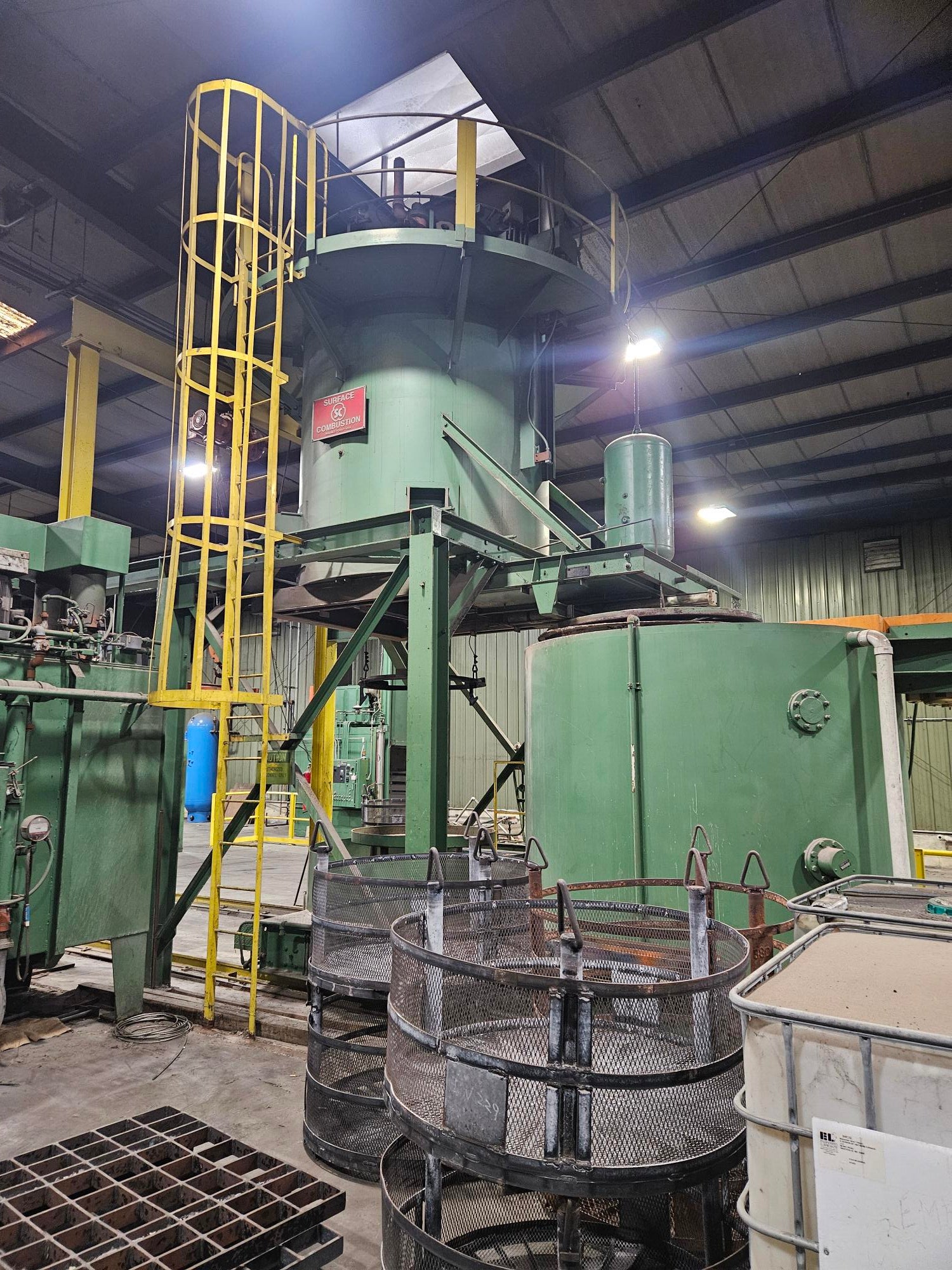

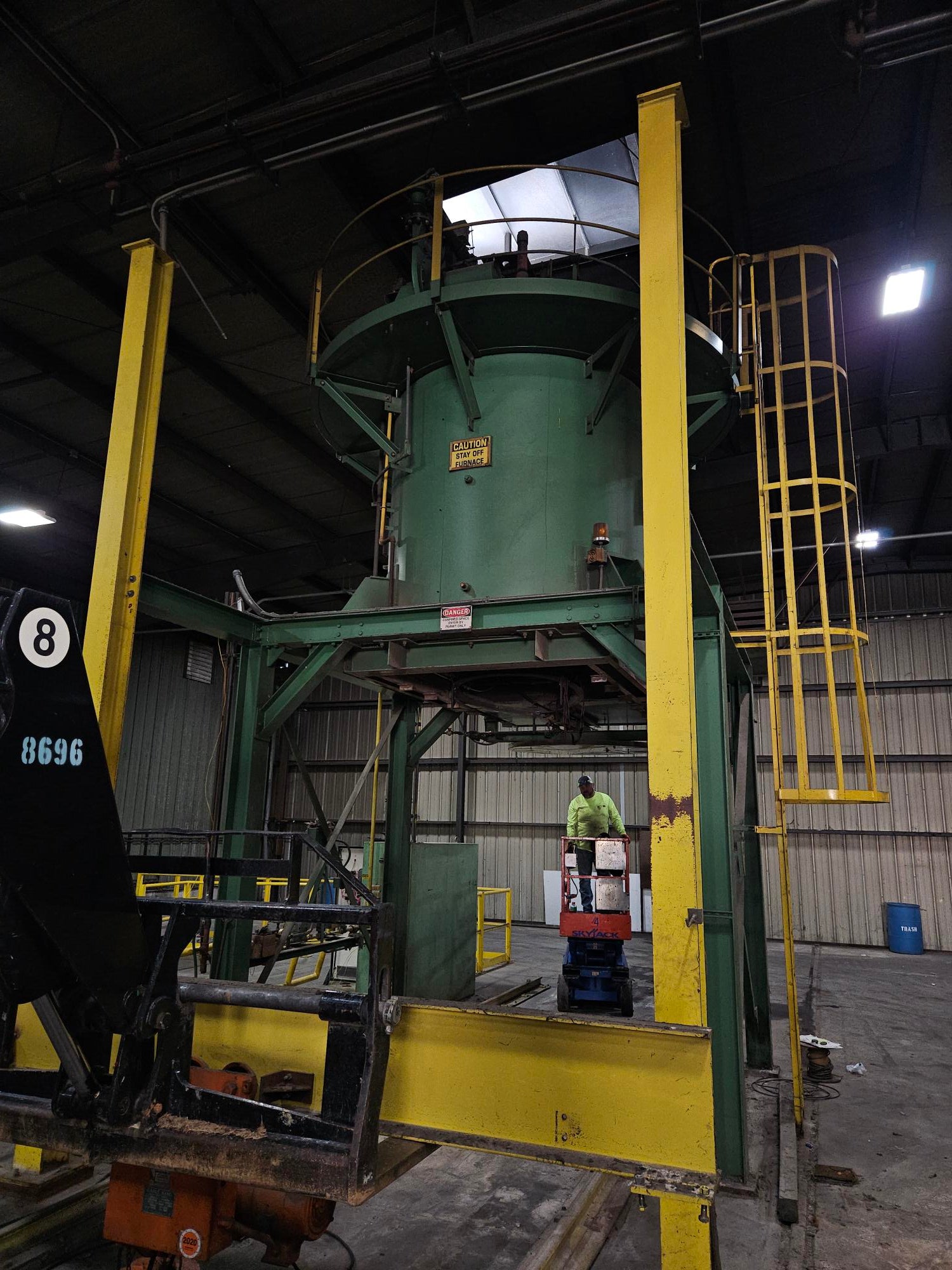

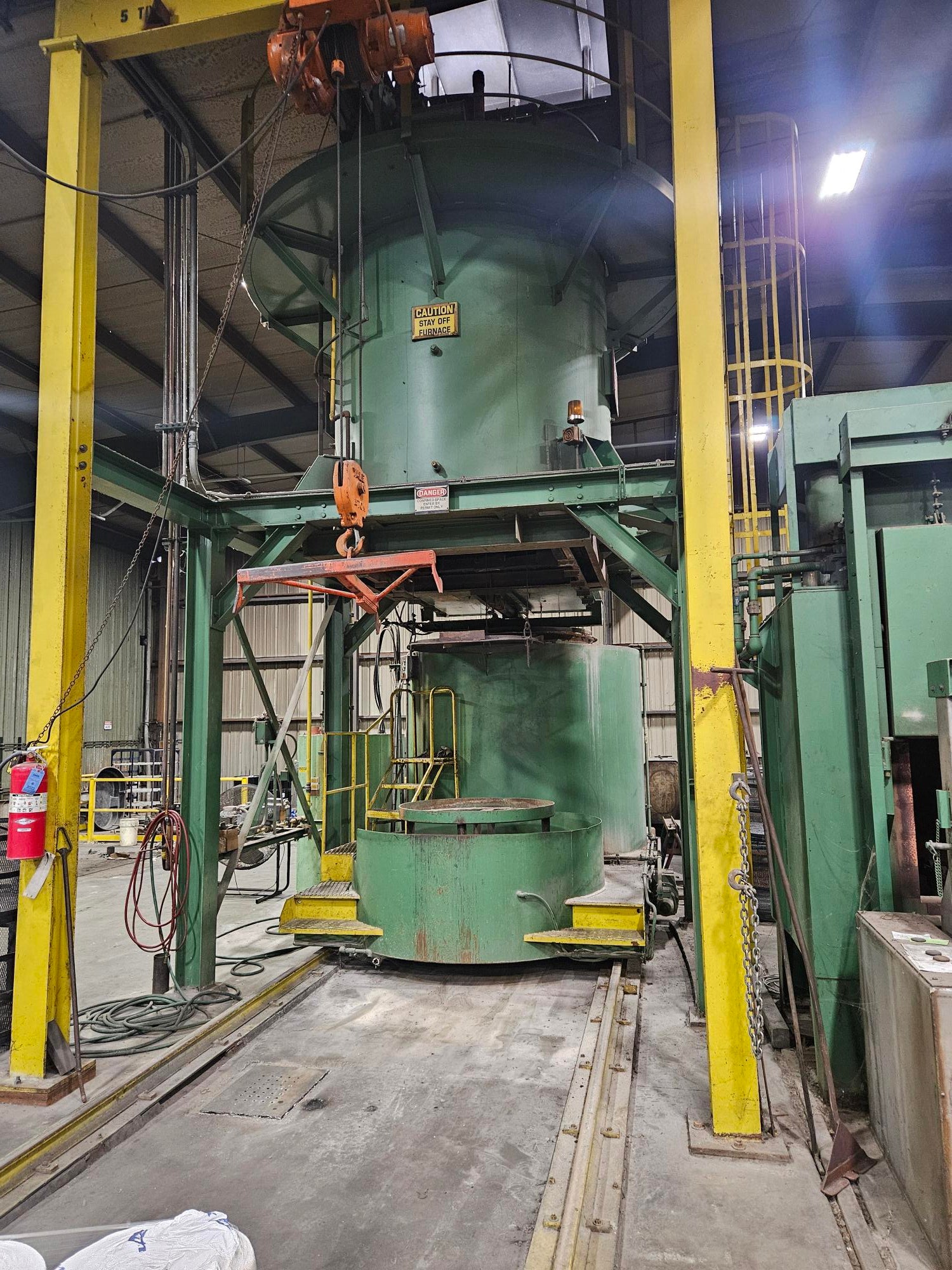

Surface aluminum drop bottom furnace system, built in 1995. Model 48-48 Unidrop with effective working dimensions of 48” diameter × 48” deep. Stainless steel lined, indirect gas fired system designed for operation to 1200°F. Unit is reported to be in excellent condition.

Key Components & Features:

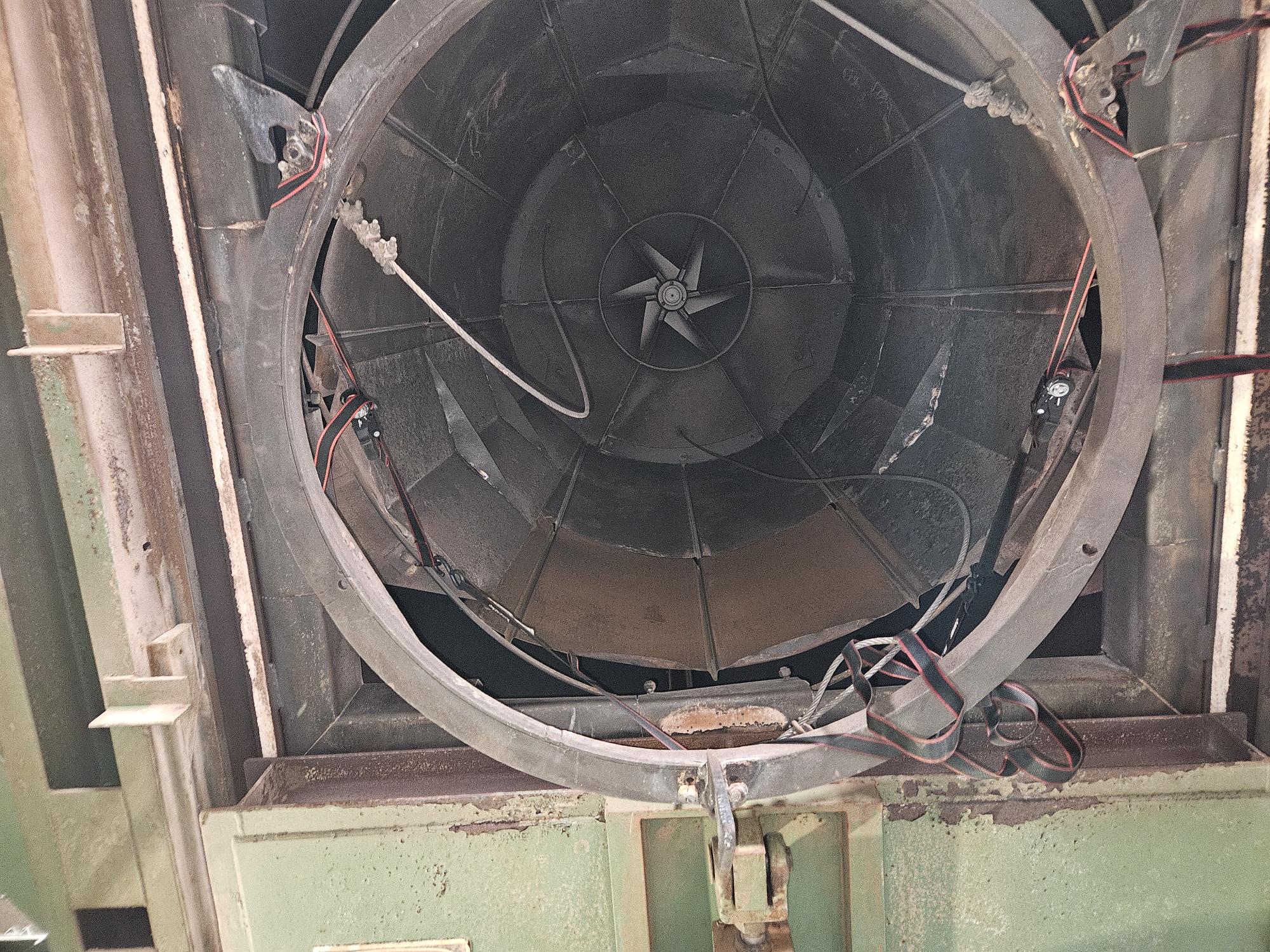

10 H.P. top-mounted alloy recirculating fan.
Heated and powered water quench tank with 7 1/2 H.P. agitator.
Pneumatic quenching mechanism.

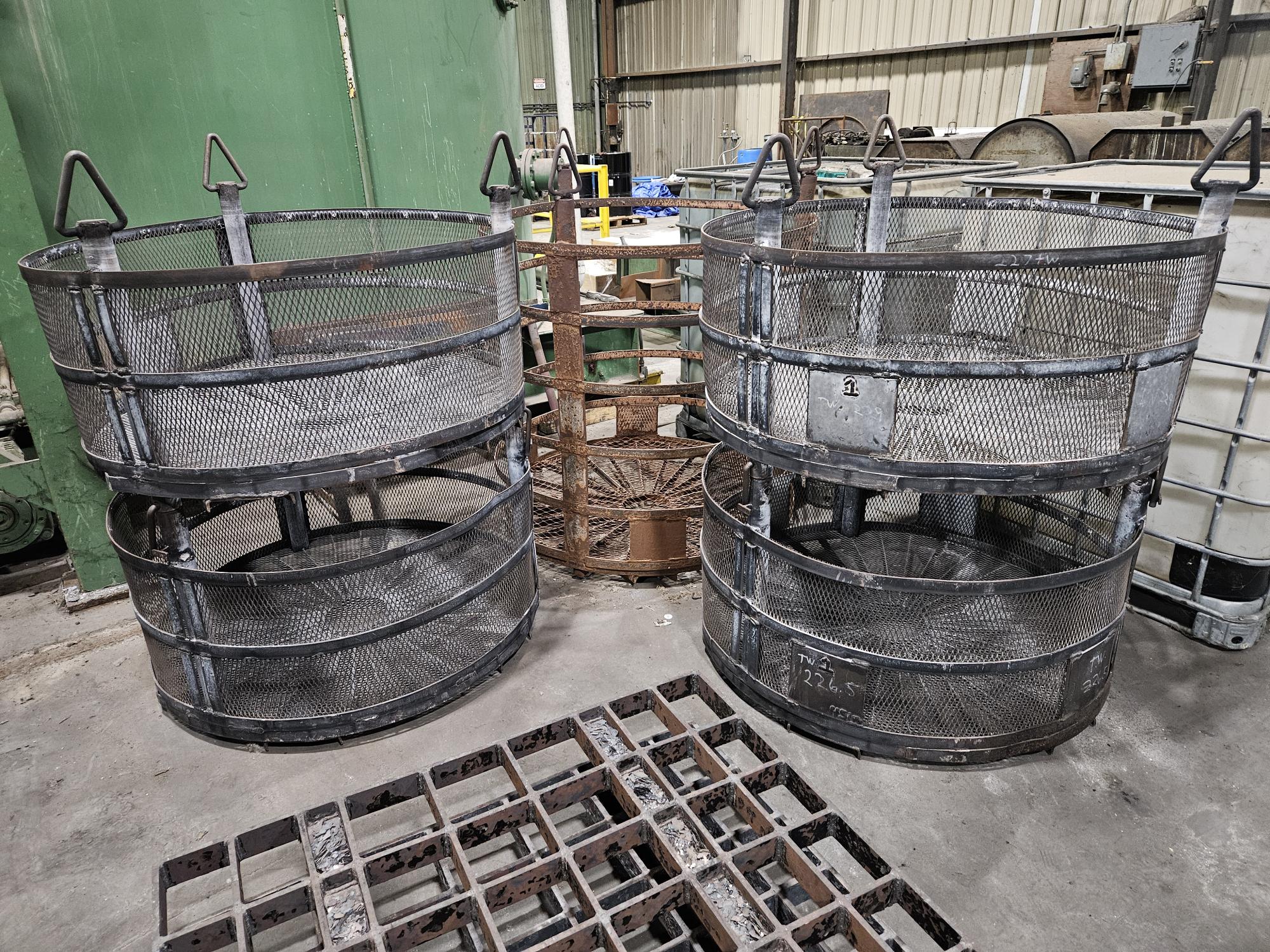

(6) alloy work baskets.
Above ground tracks.

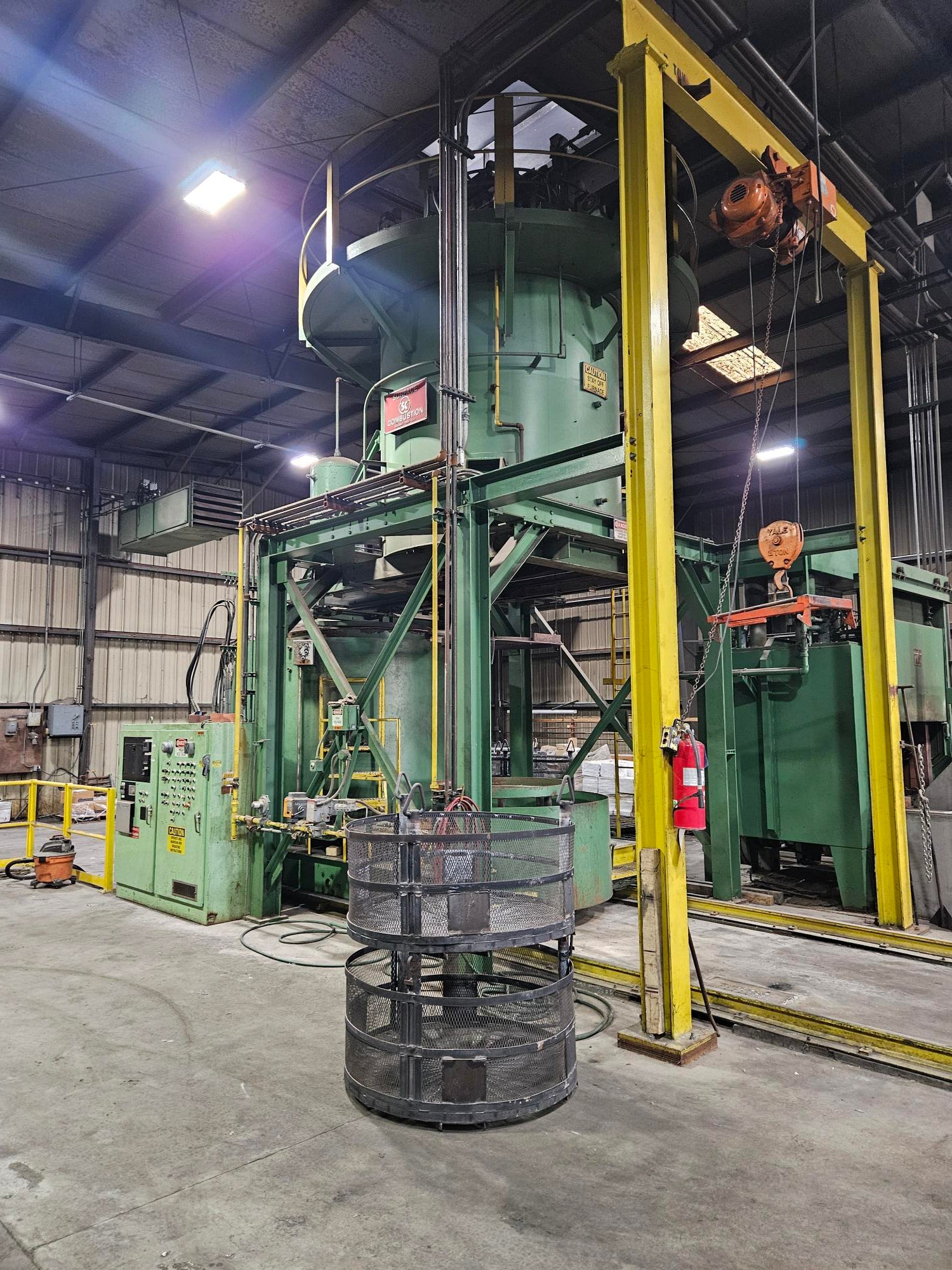

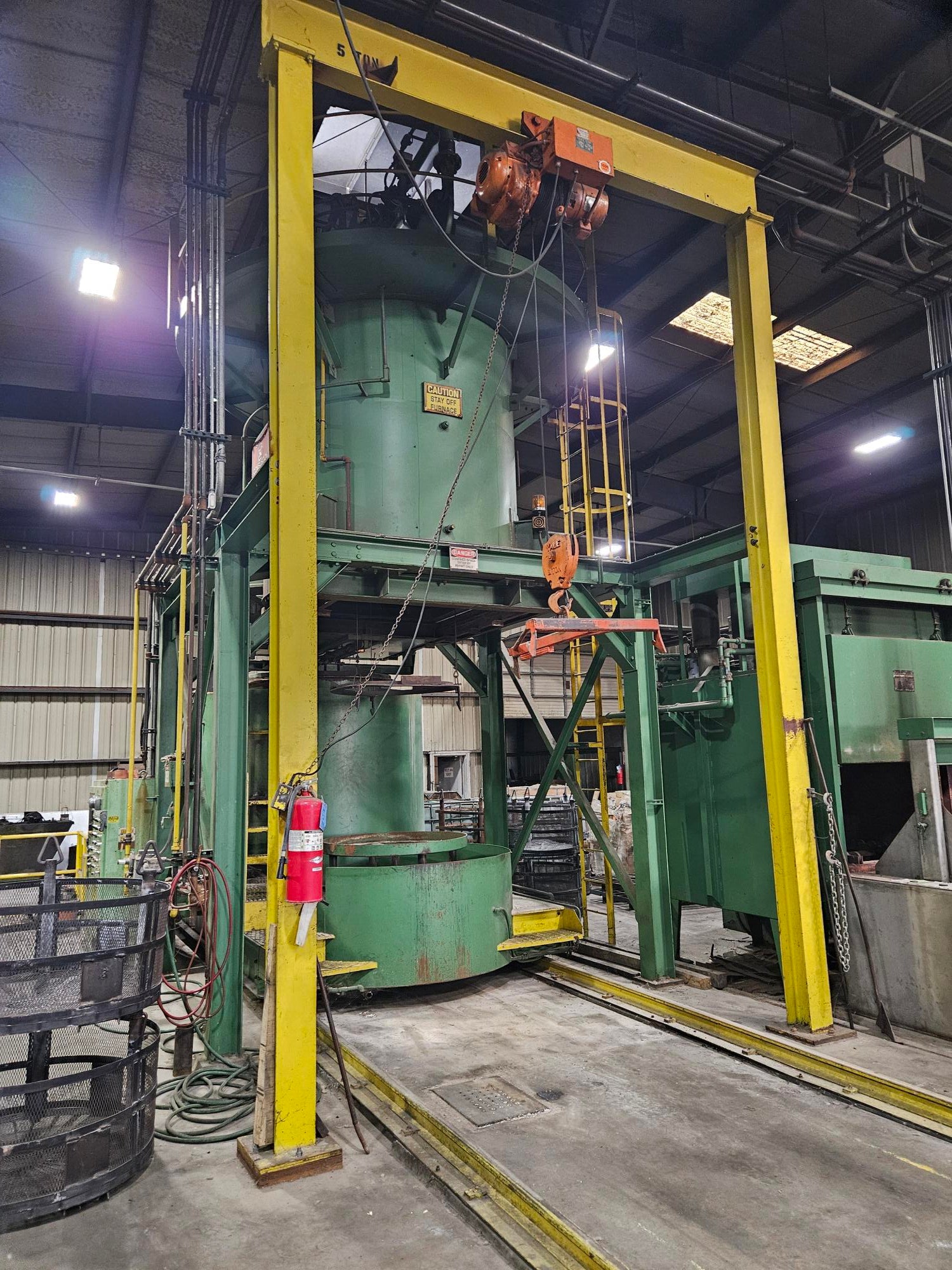

JIB crane system for loading / unloading.
(3) single ended radiant tube burners.
Maxon safety valve train.

Manufacturer: Surface
Model No.: 48-48 Unidrop
Serial No.: CC-12269-1
Year: 1995

Fuel Type: Natural Gas (Indirect Fired)

Capacity / Output: 48” Diameter × 48” Deep

Maximum Temperature: 1200°F

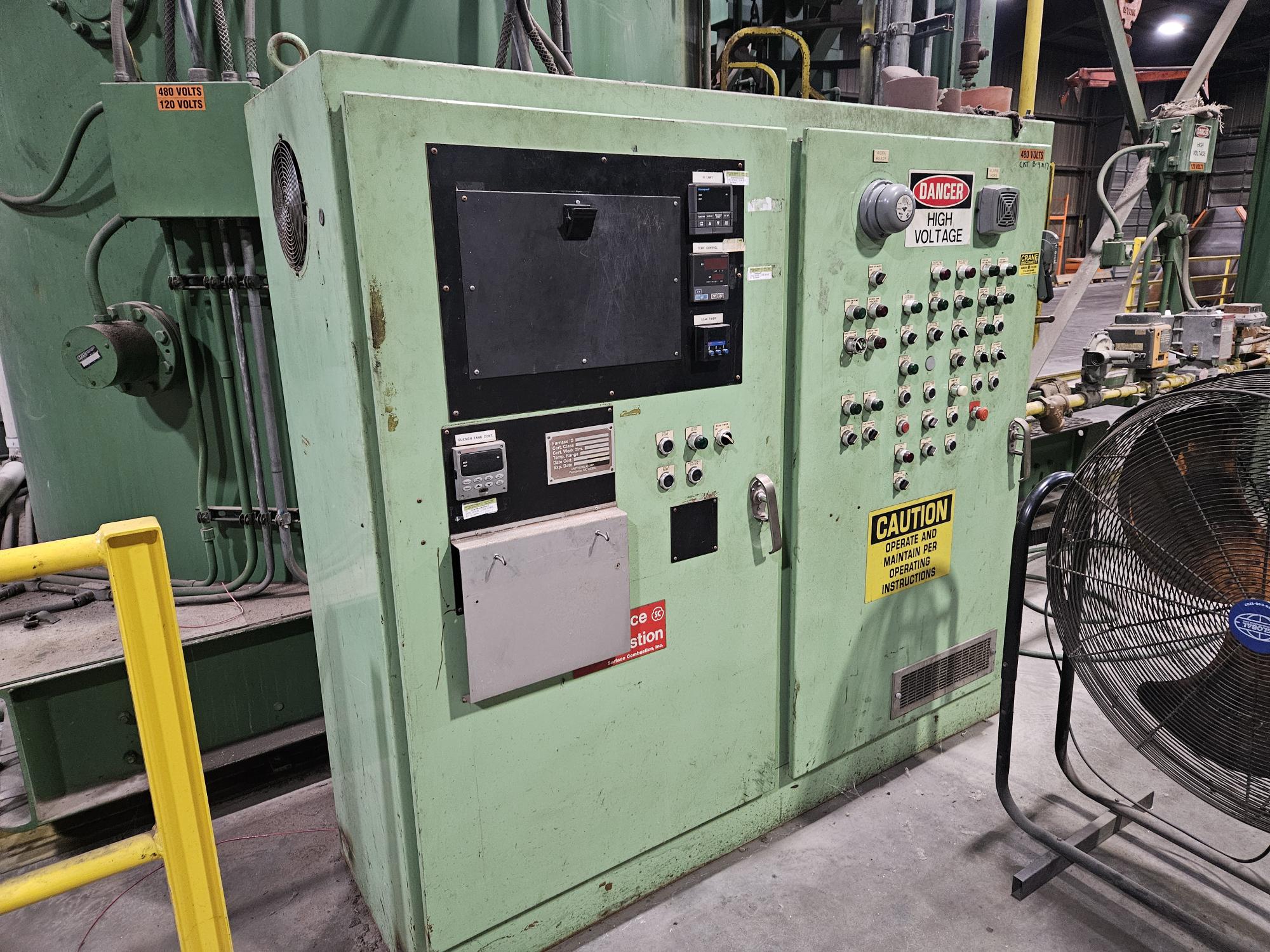

Control Panel: Free-Standing Control Panel

Controls: Honeywell Digital Temperature Controller; Honeywell Digital Quench Tank Controller; ATC Process Timer

Safety Controls: Honeywell Digital High Limit

Weight: Approx. 30,000 lbs.

Overall Dimensions:
Furnace: 12’ Diameter × 12’8” High (Shipping Dimensions)
Q-Tank: 10’ Wide × 18’ Long × 9’6” High
