Gas 1400F Pit Temper 48" Dia x 72"

Description:

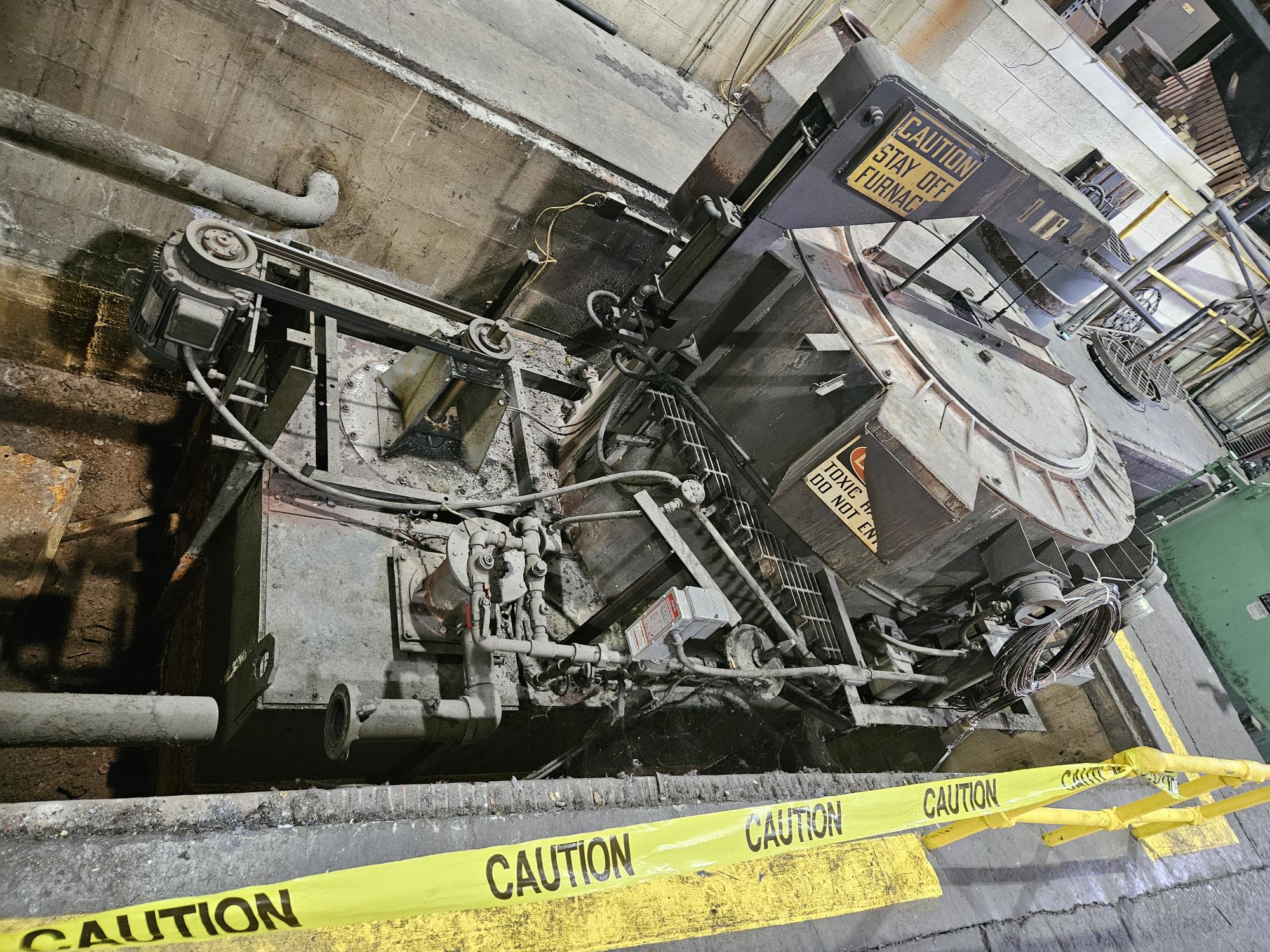

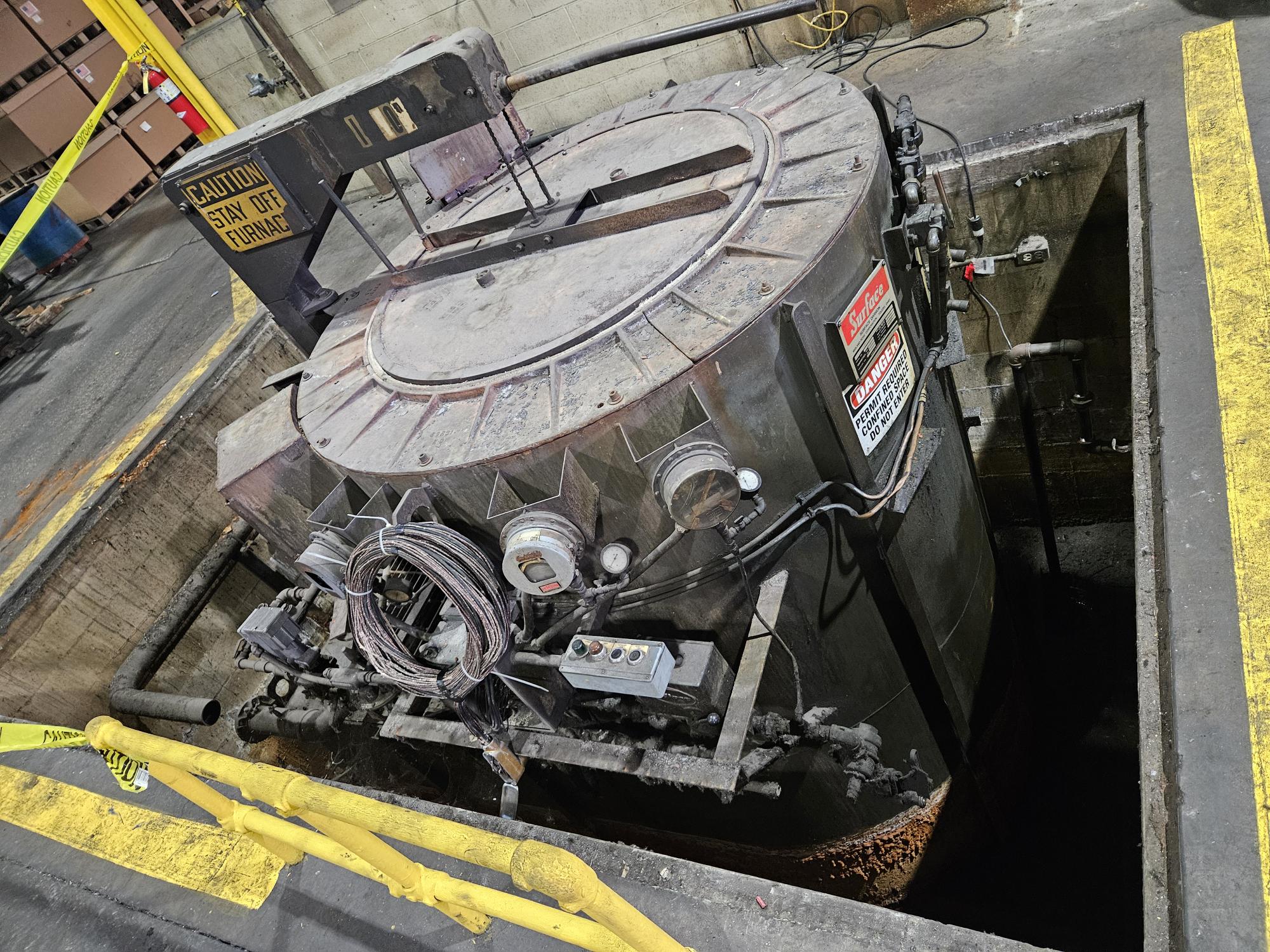

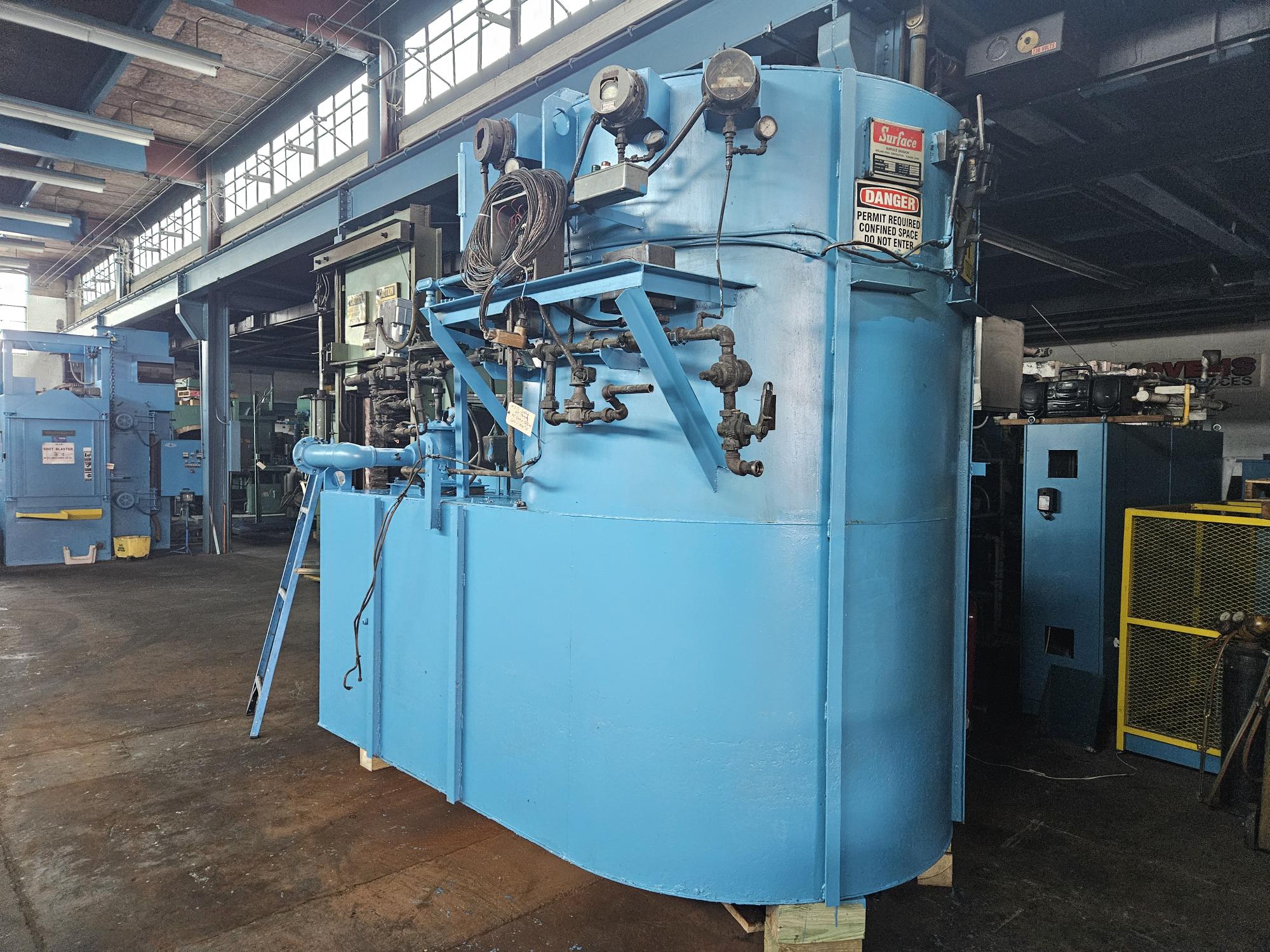

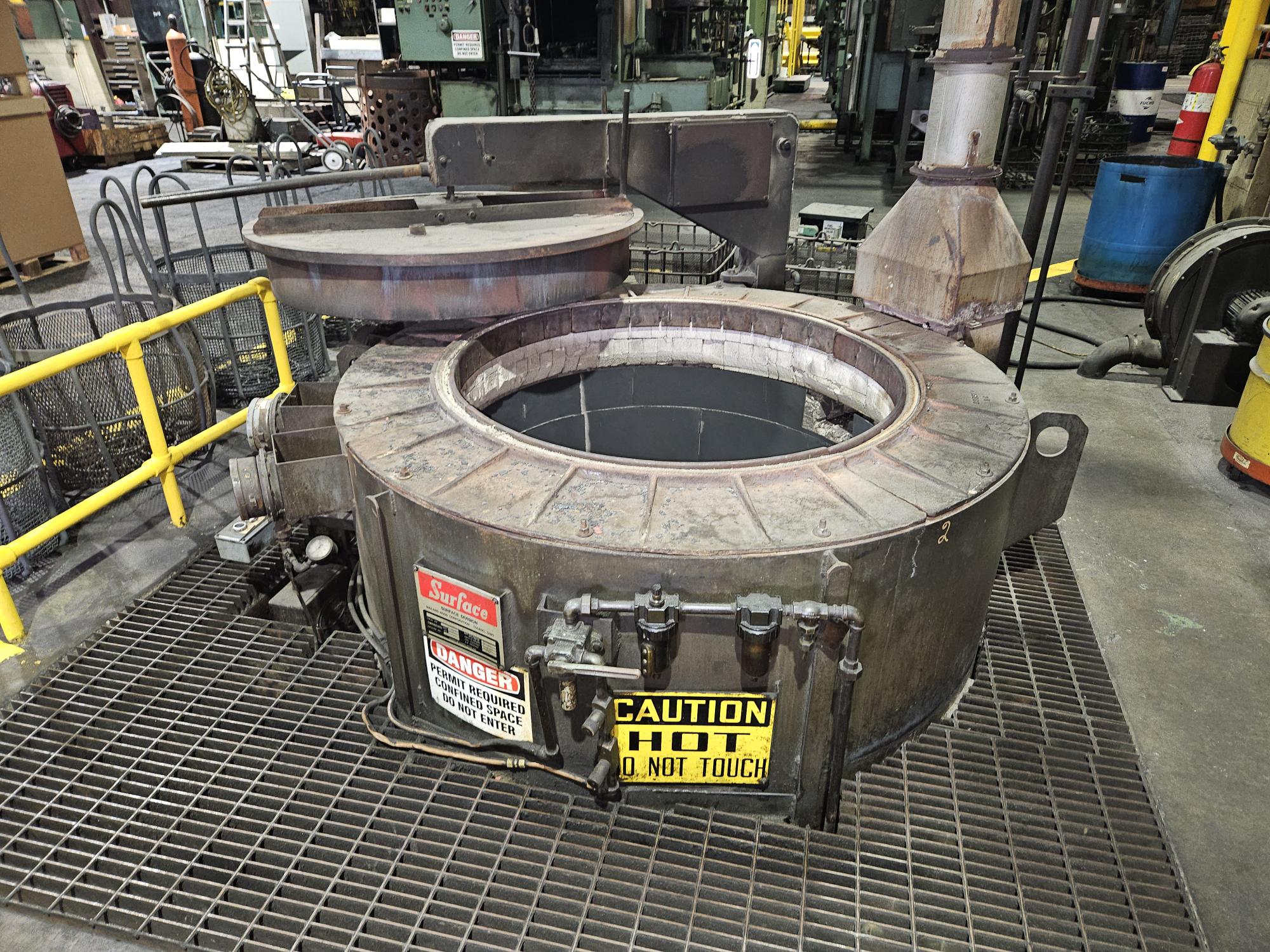

Surface recirculating pit tempering furnace with effective working dimensions of 48” diameter × 72” deep. Natural gas fired furnace designed for operation to 1400°F. Unit is reported to be in excellent operational condition.

Key Components & Features:

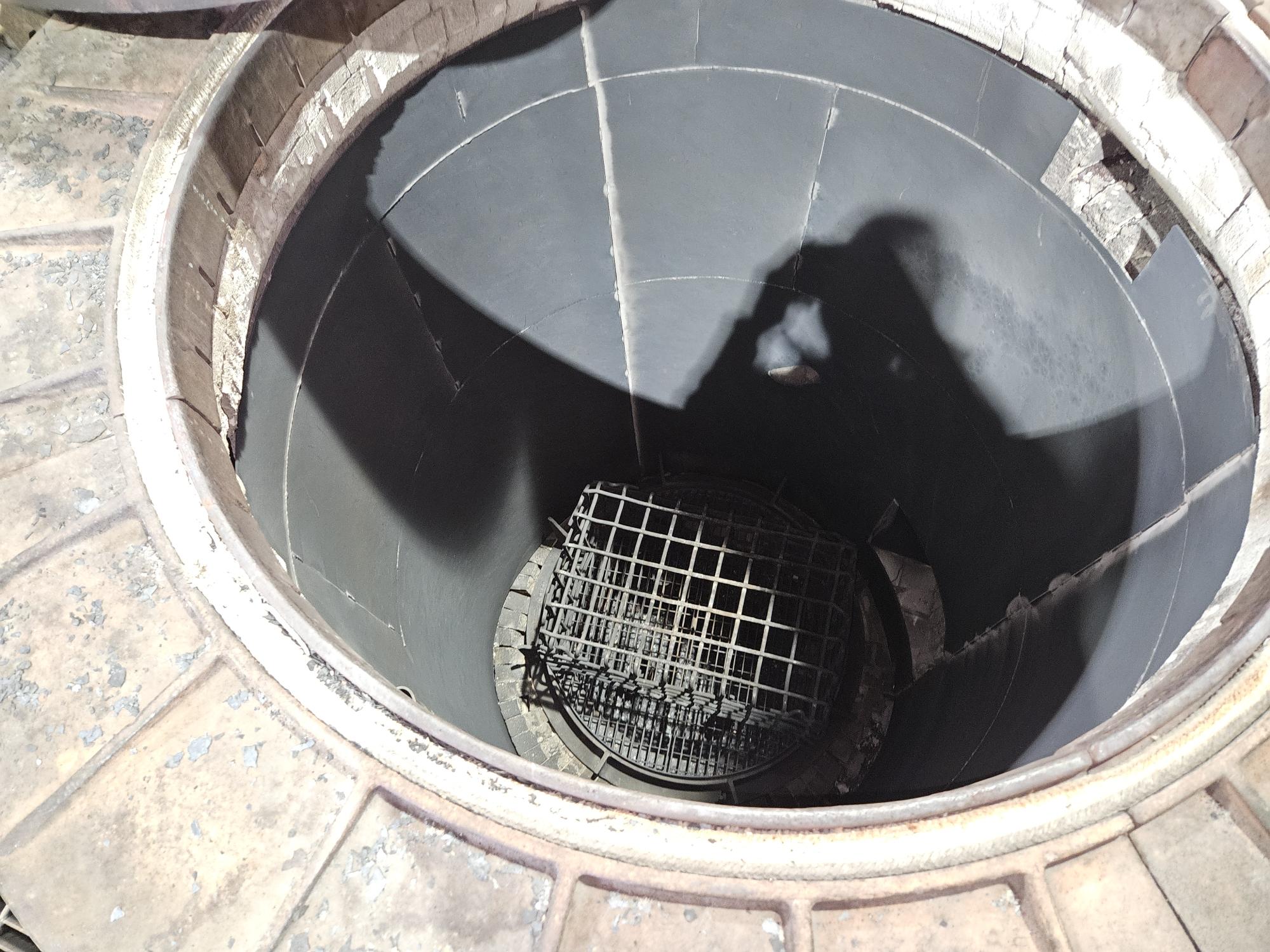

Stainless steel lining.

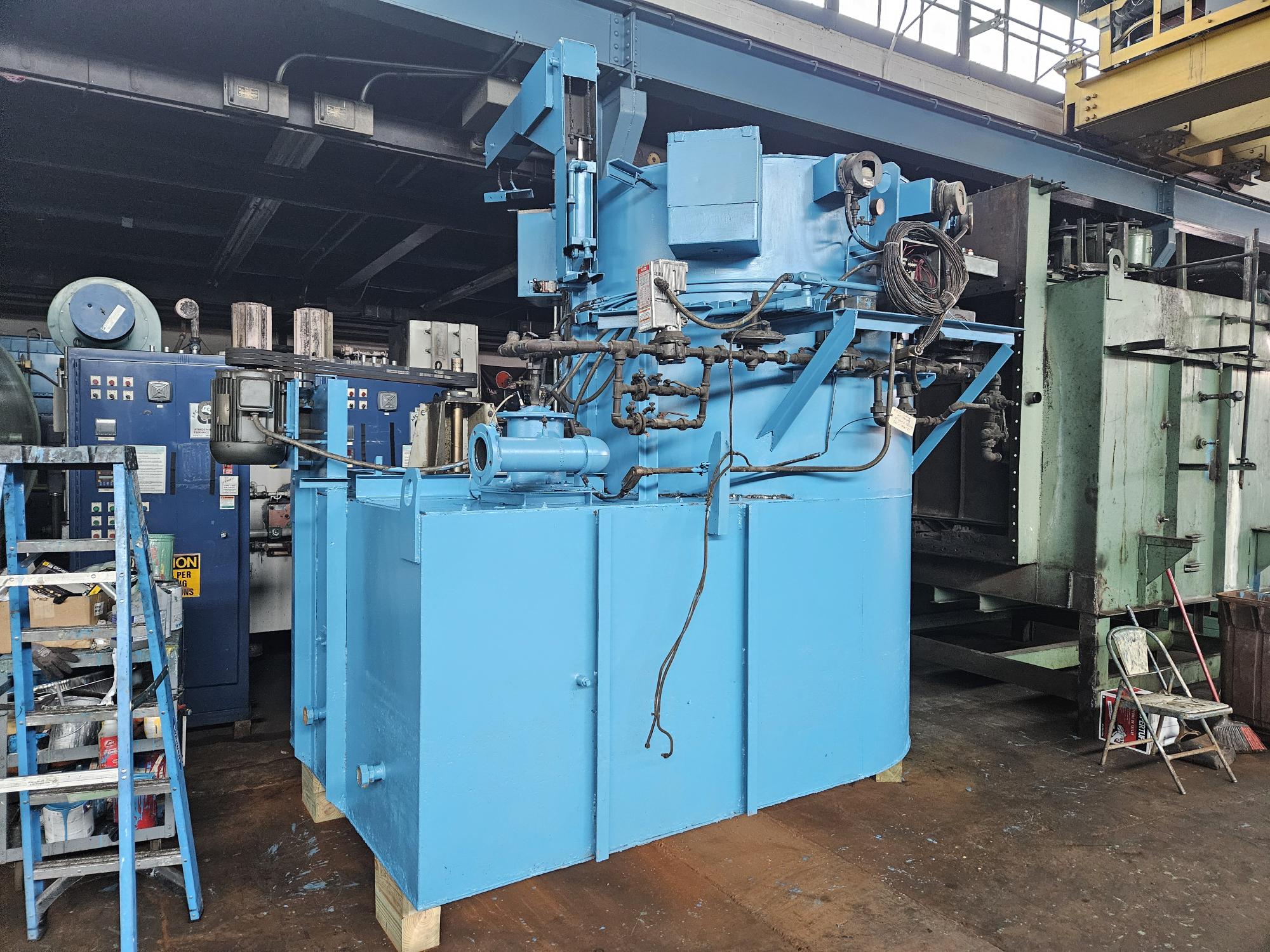

Side-mounted heater box with 10 H.P. recirculating fan.
Pneumatic swing-away lid.
North American burner system.
Eclipse safety valving.

Manufacturer: Surface
Model No.: Convection Temper Furnace
Serial No.: BX-41029-1

Fuel Type: Natural Gas

Capacity / Output: 48” Diameter × 72” Deep

Maximum Temperature: 1400°F

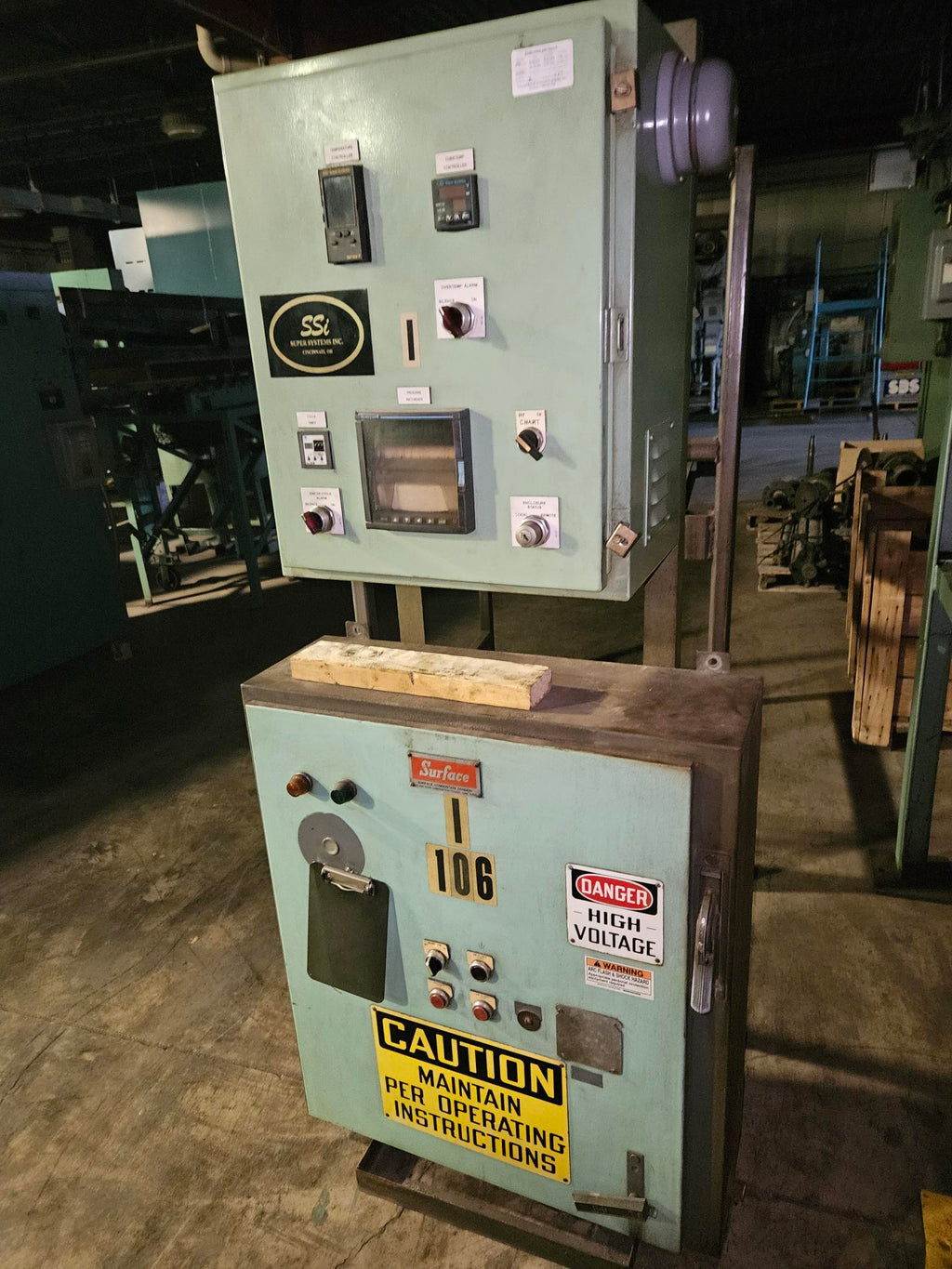

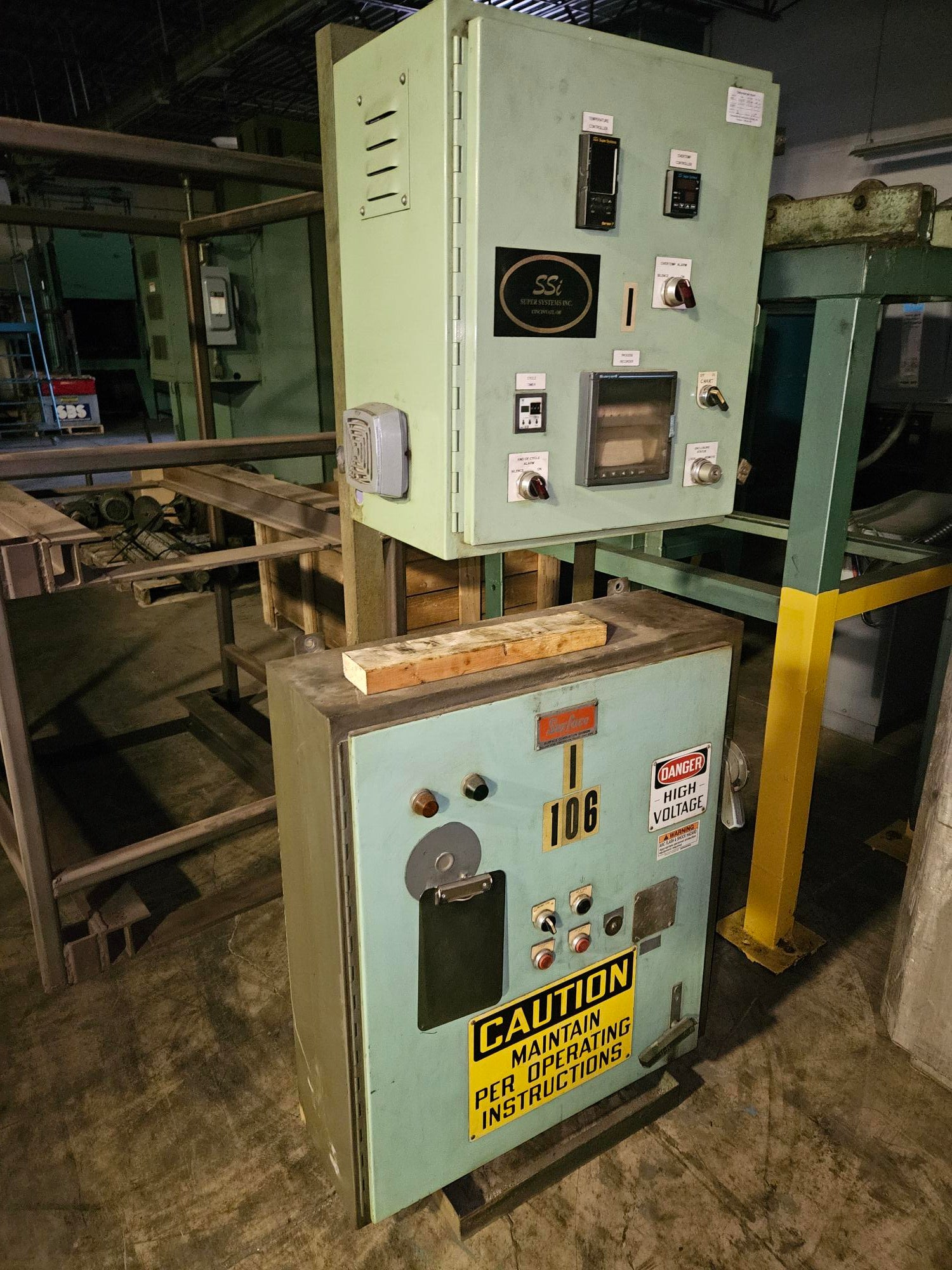

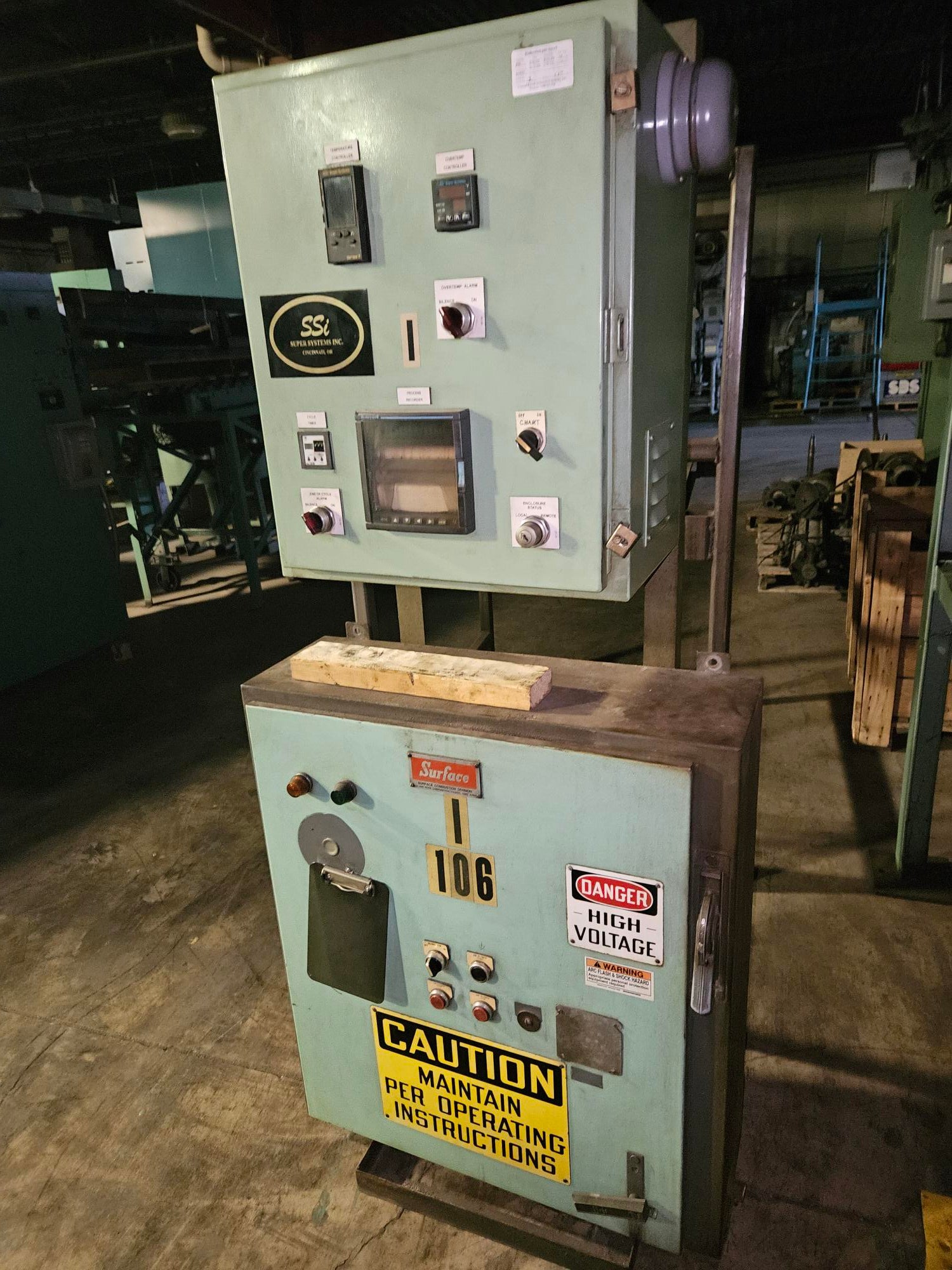

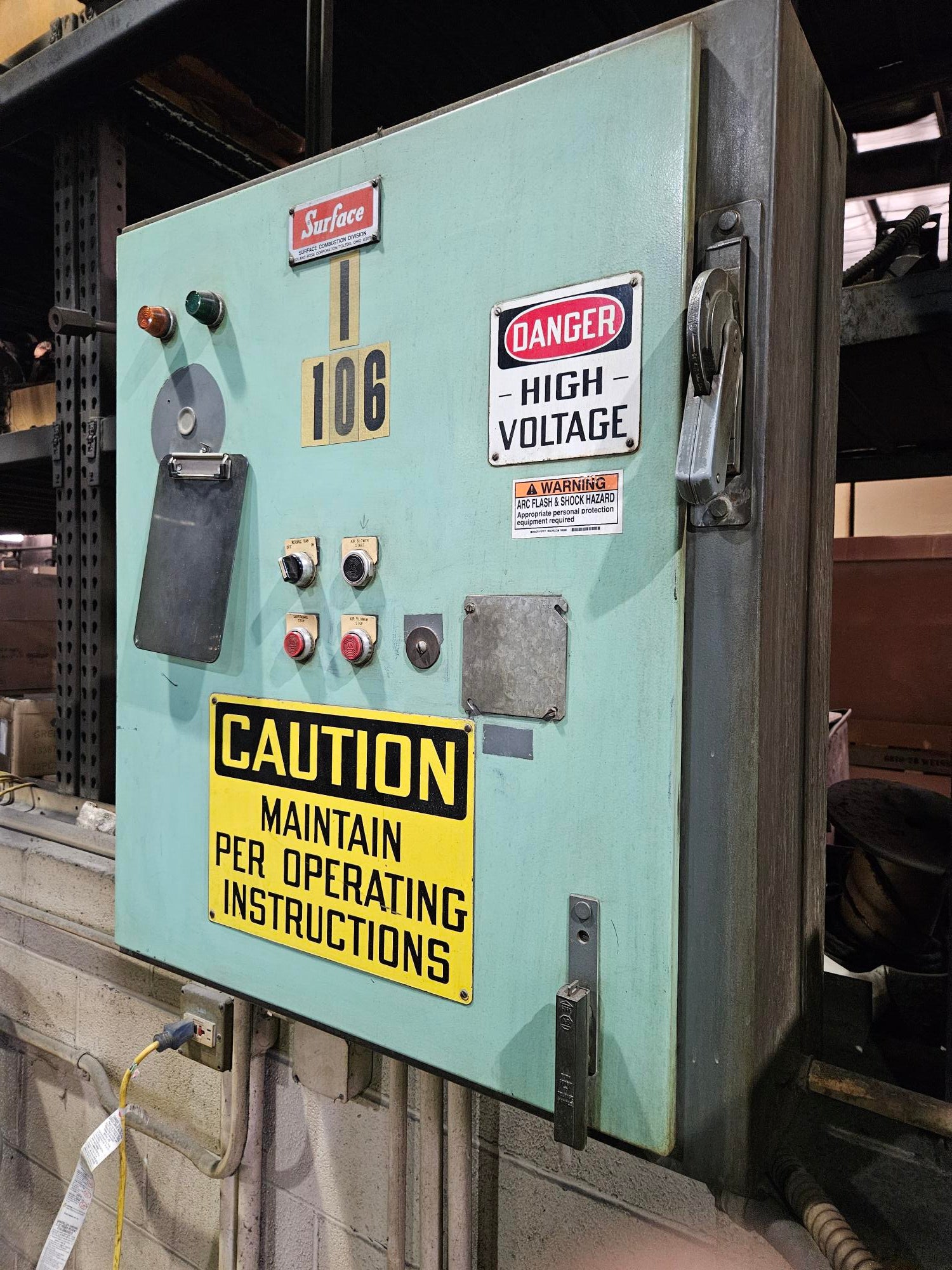

Control Panel: Control Panel

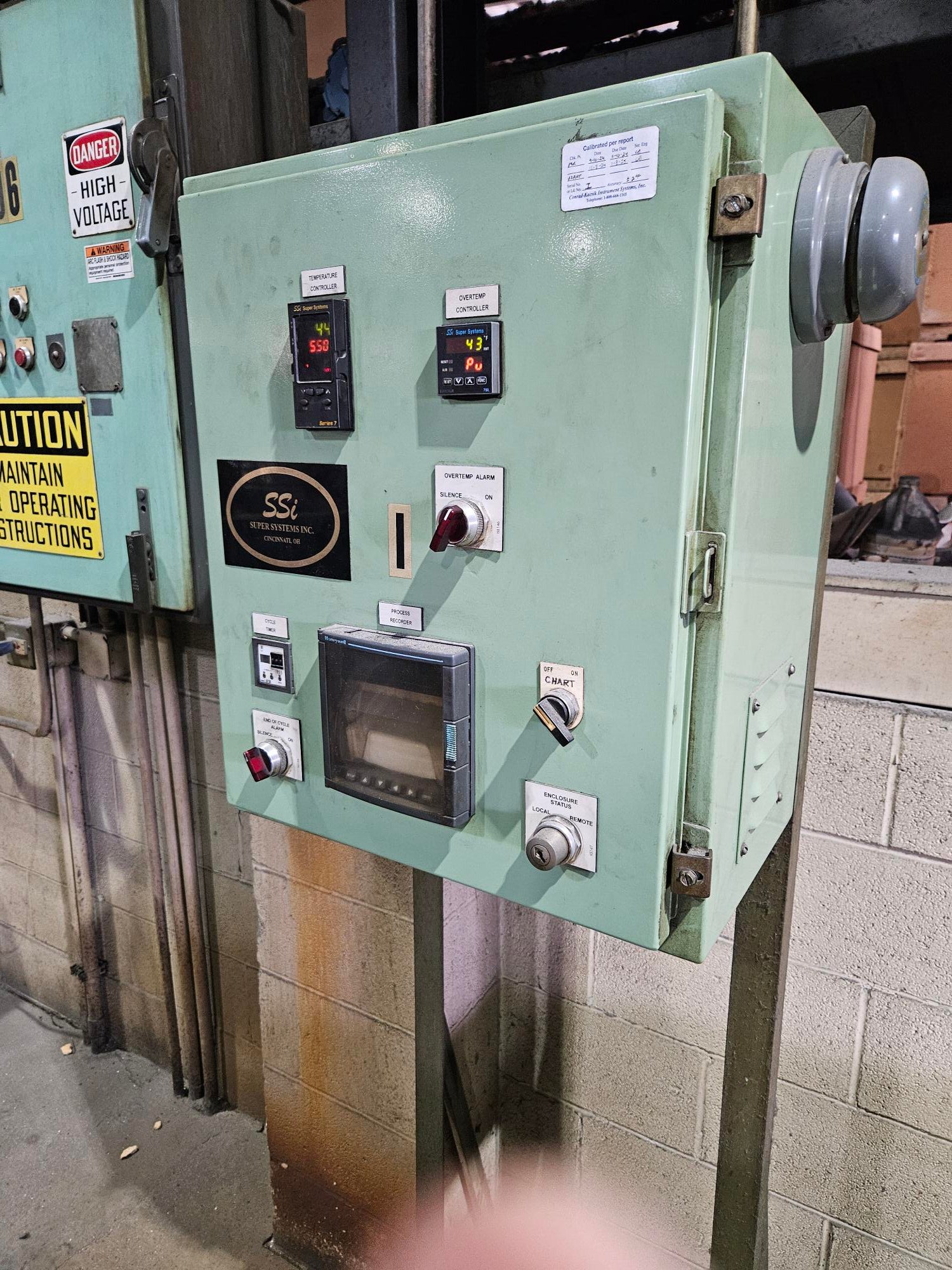

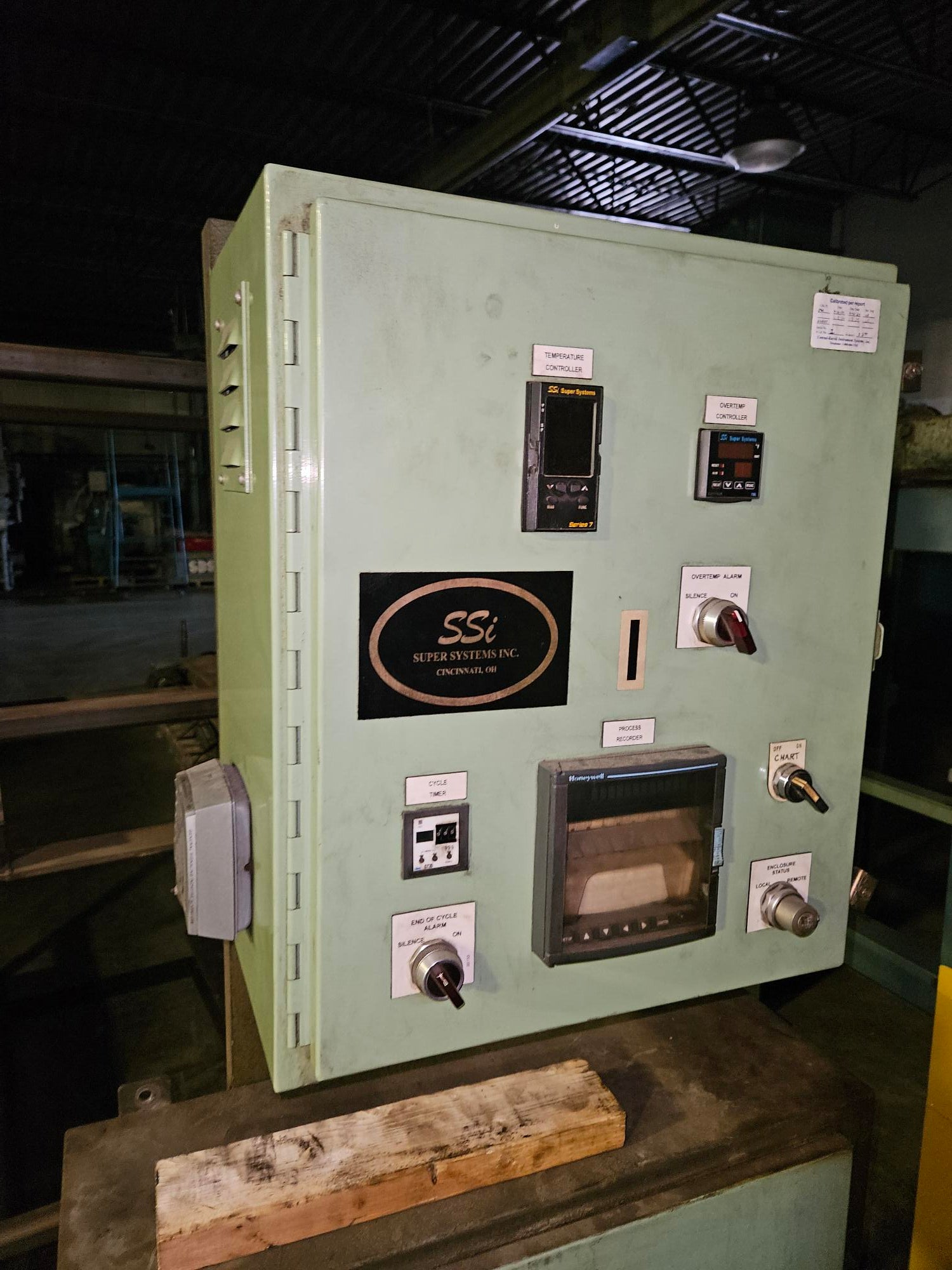

Controls: Super Systems Digital Controller

Safety Controls: SSI Digital High Limit; PCI Flame Safety System

Instrumentation: Honeywell 4” Strip Chart Recorder

Weight: Approx. 15,000 lbs.

Overall Dimensions: 7’ Wide × 11’6” Long × 10’ High (Less Lid Lift Mechanism)
