Horizontal Aluminum Quench Furnace System

Description:

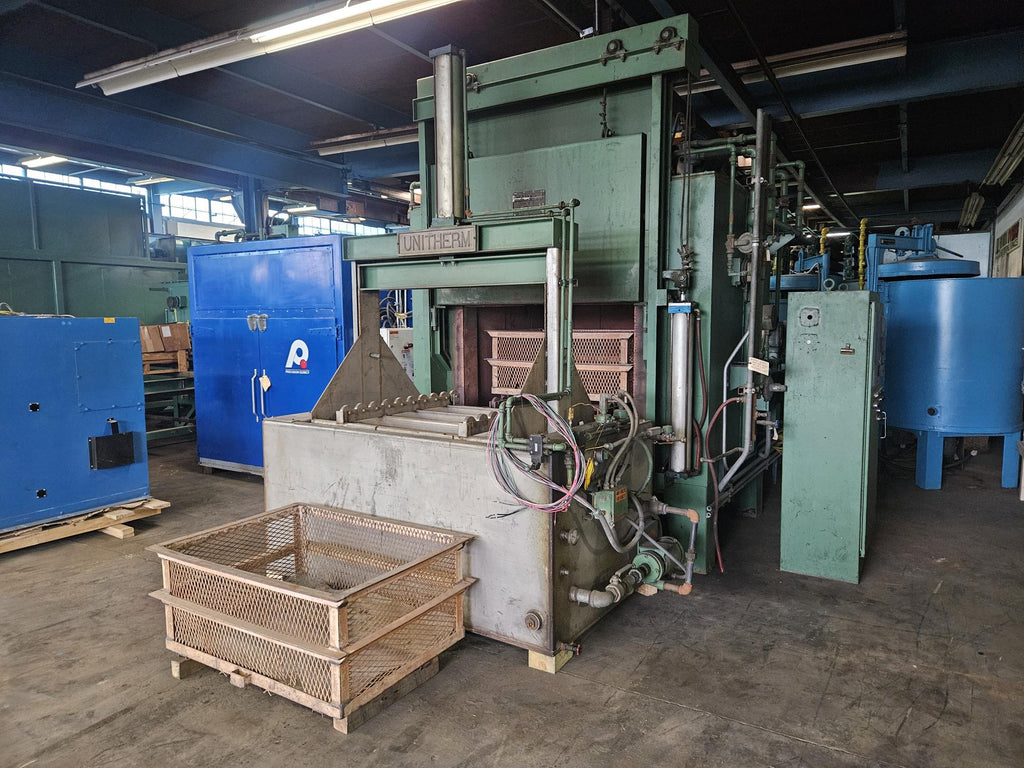

Unitherm Model GRT-4 horizontal aluminum quench furnace system. Stainless steel lined recirculating horizontal quench furnace with working dimensions of 48" wide × 36" deep × 24" high and 1,500 pound load capacity. Indirect gas fired and designed for operation to 1100°F with ±10°F uniformity.

Key Components & Features:
15 H.P. alloy recirculating fan.

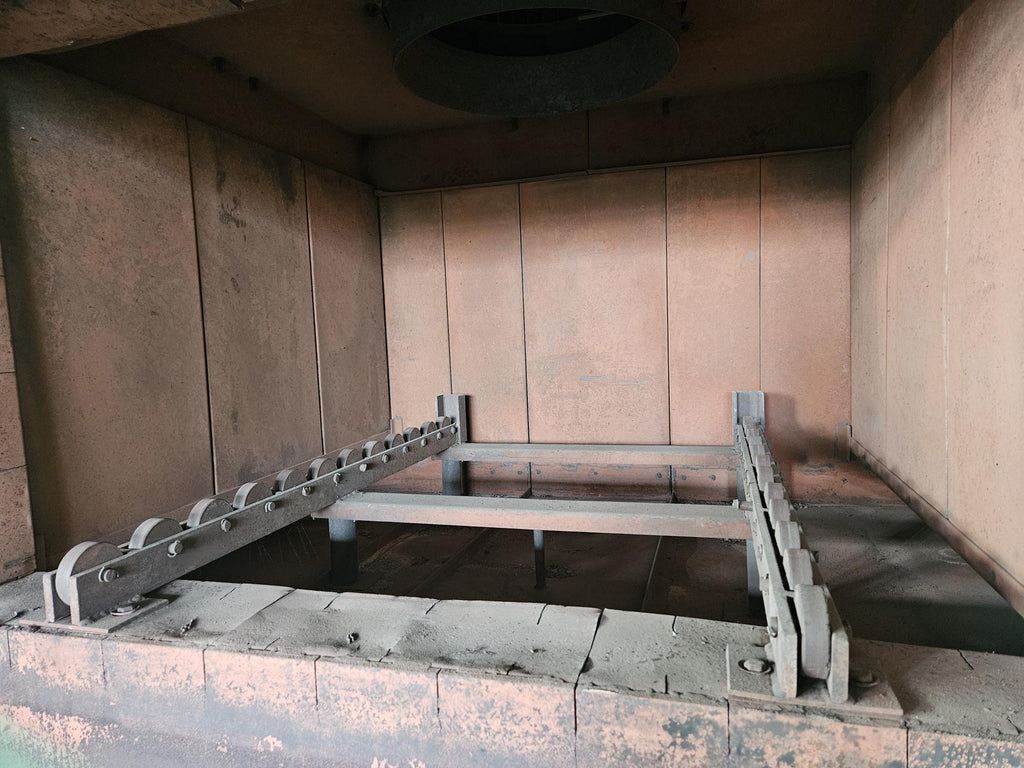

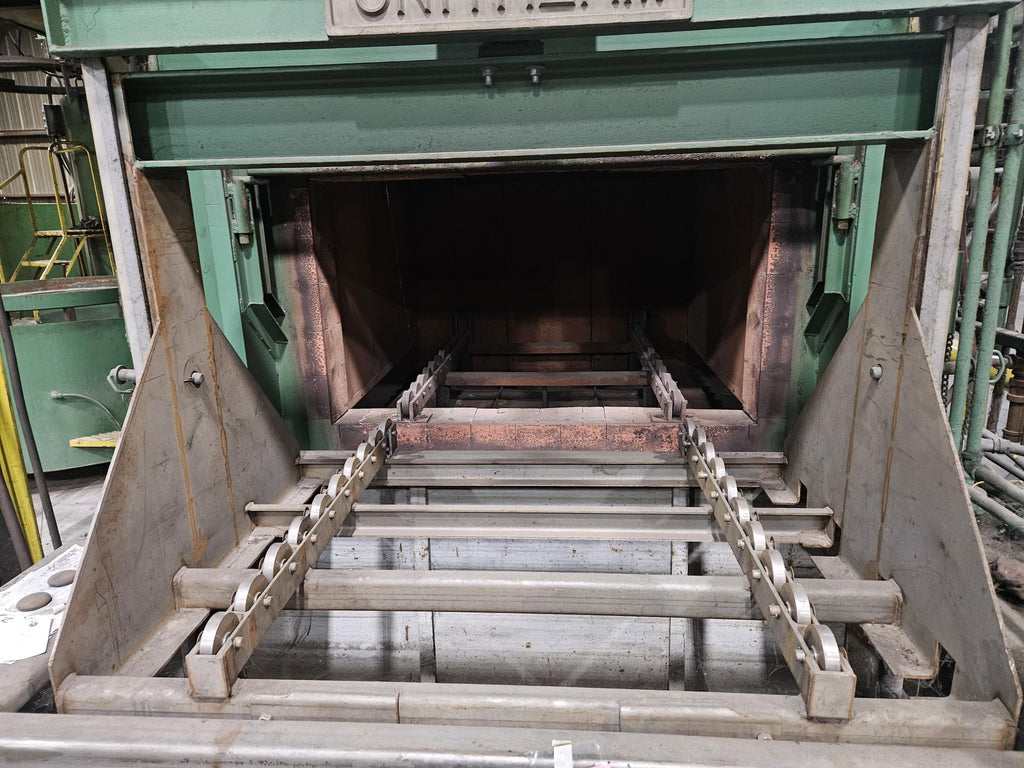

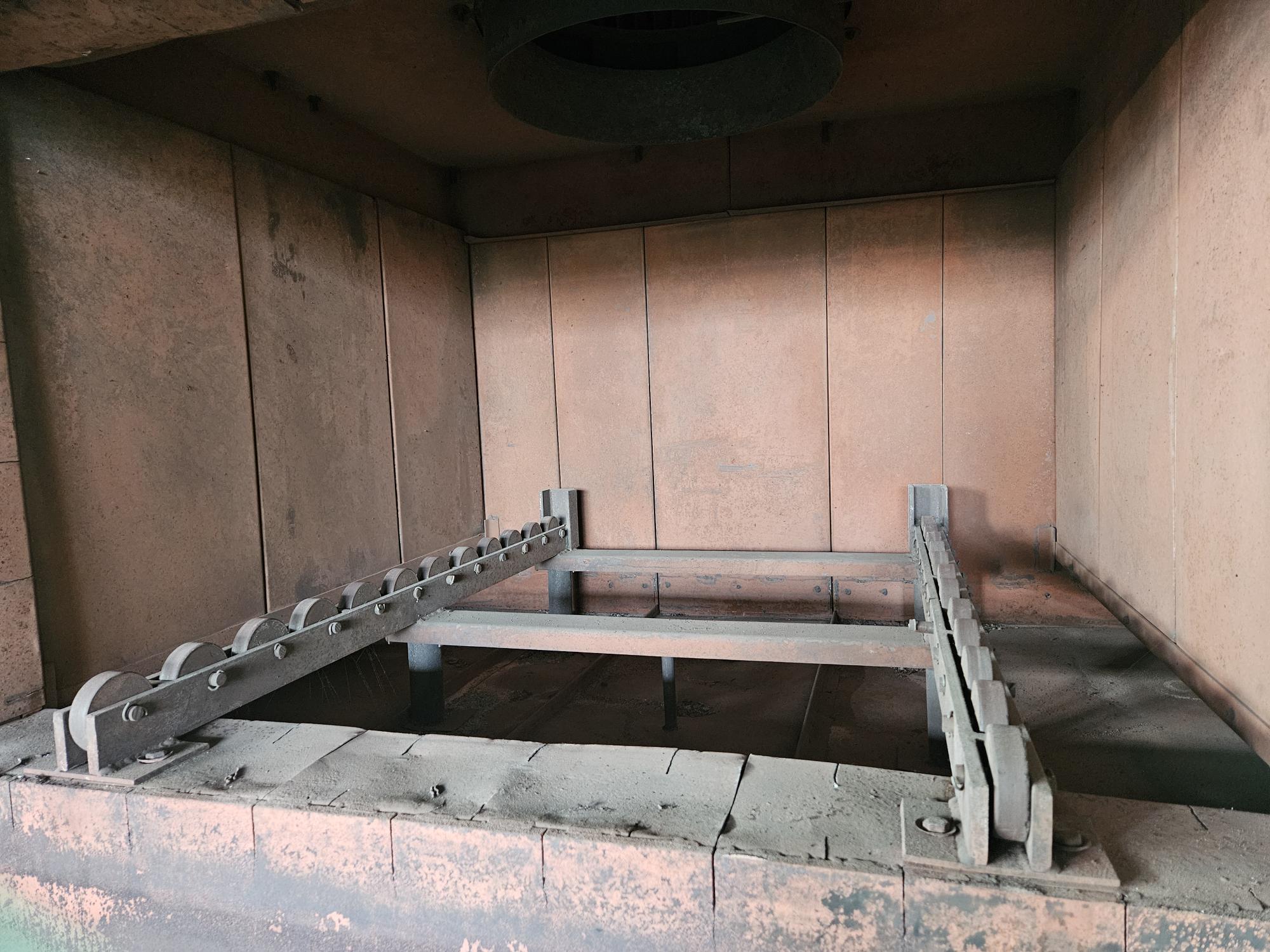

Alloy roller rail hearth.
(4) Eclipse radiant tube firing burners.
Vertical rising pneumatic front door.

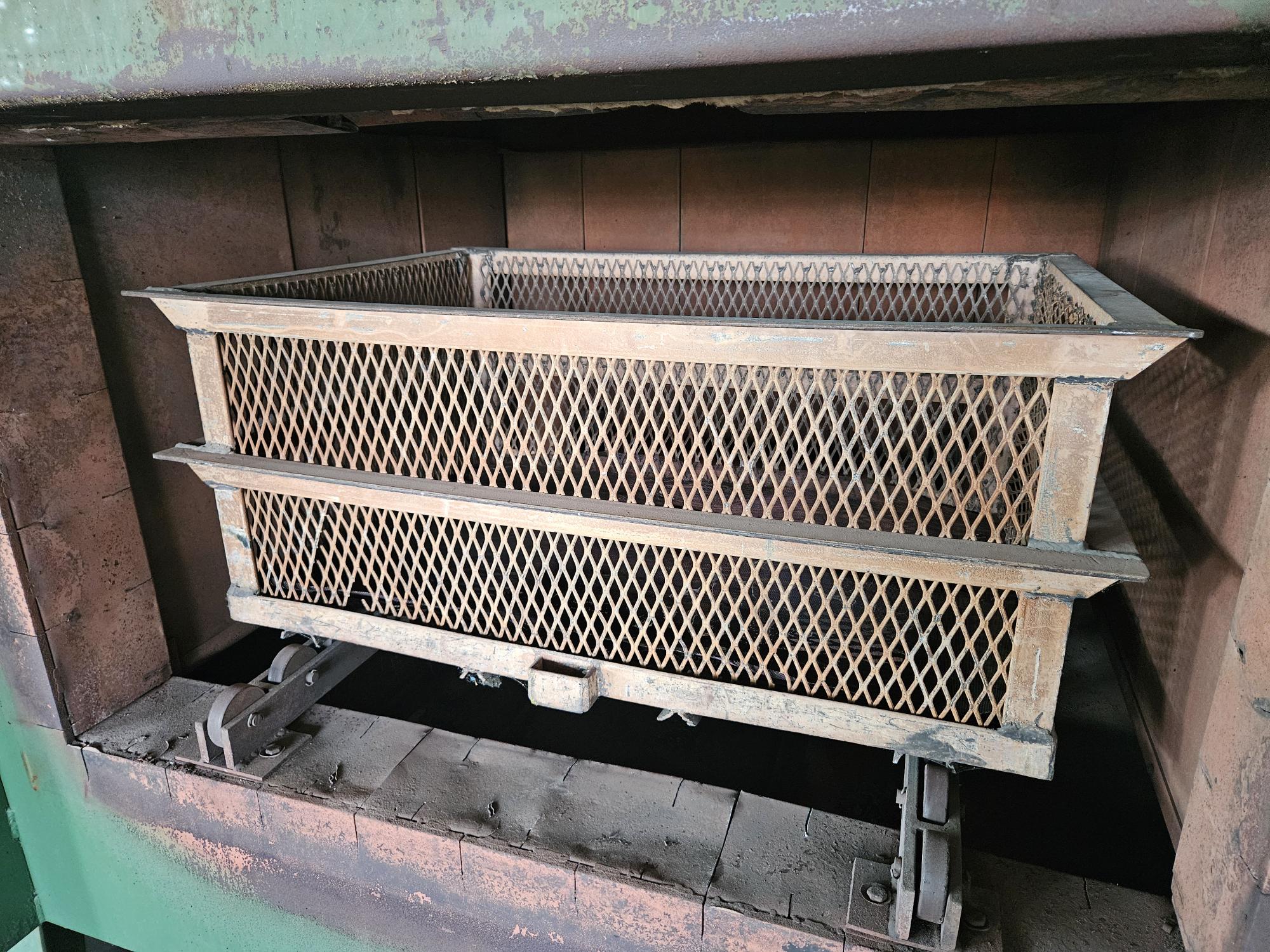

(2) alloy work baskets.
Stationary heated water quench tank with pneumatic quench elevator.
3 H.P. water pump.
Stainless steel air shrouds.

Manufacturer: Unitherm
Model No.: GRT-4
Serial No.: 1019-90

Fuel Type: Gas Fired (Indirect Fired)

Capacity / Output: 48" Wide × 36" Deep × 24" High, 1,500 Pound Load

Maximum Temperature: 1100°F

Performance: ±10°F

Control Panel: Free-Standing Control Panel

Temperature Controls: Honeywell Digital Temperature Controller; Honeywell Digital Quench Tank Controller

Safety Controls: Honeywell Digital High Limit; Honeywell Flame Safety System

Instrumentation: ATC Process Timer

Overall Dimensions:
Furnace: 11' Wide × 9' Deep × 11'6" High
Quench Tank: 8' Wide × 5' Deep × 10'6" High
