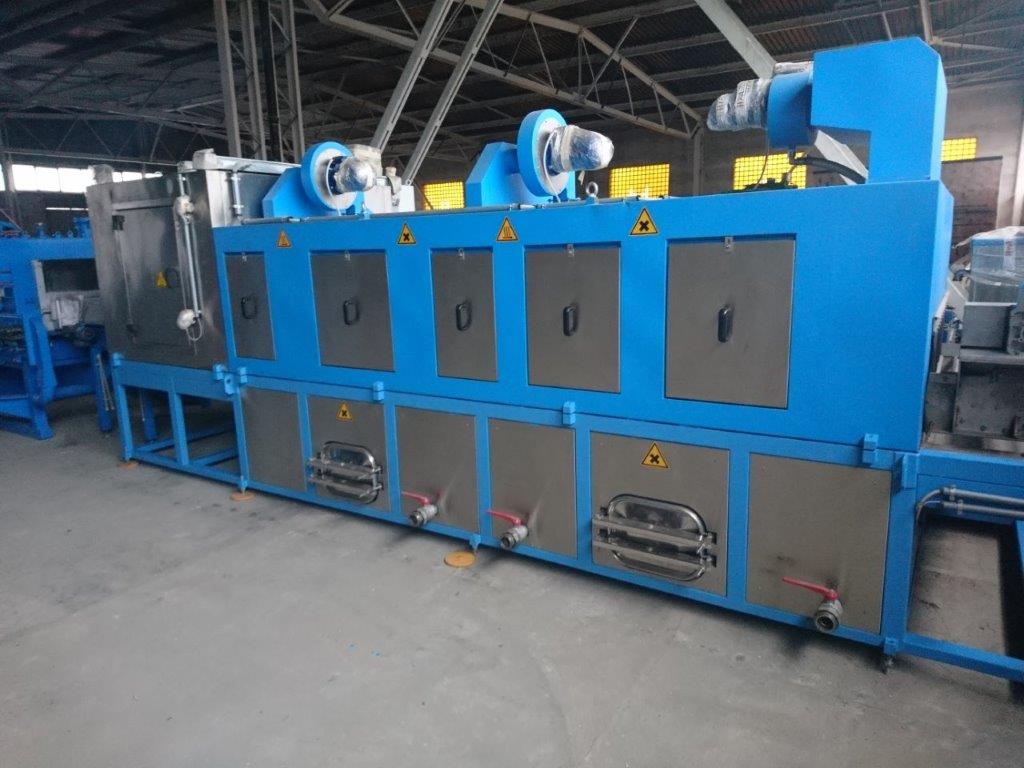

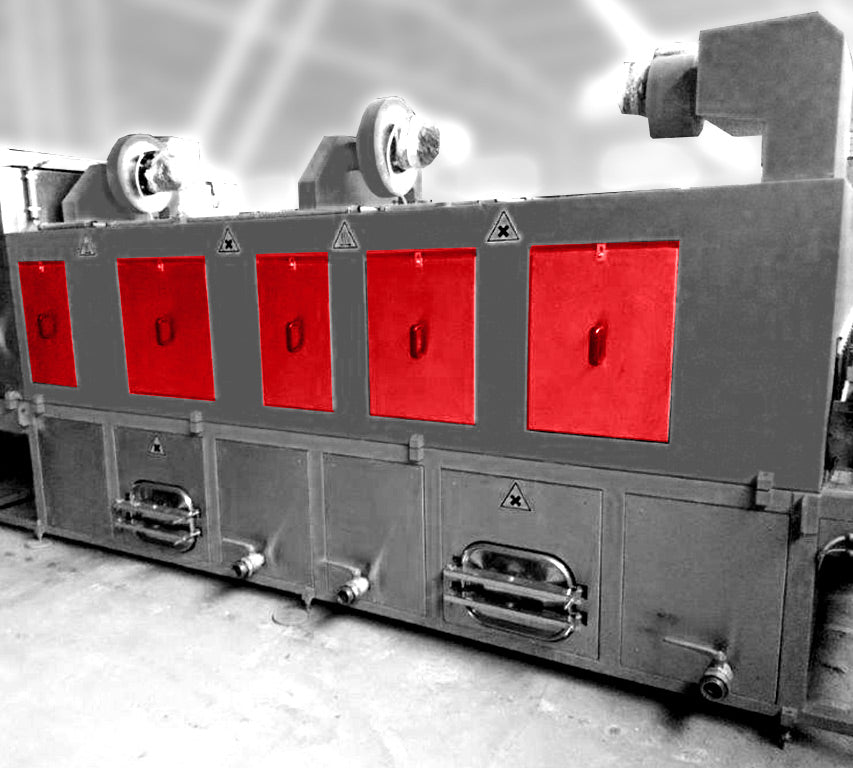

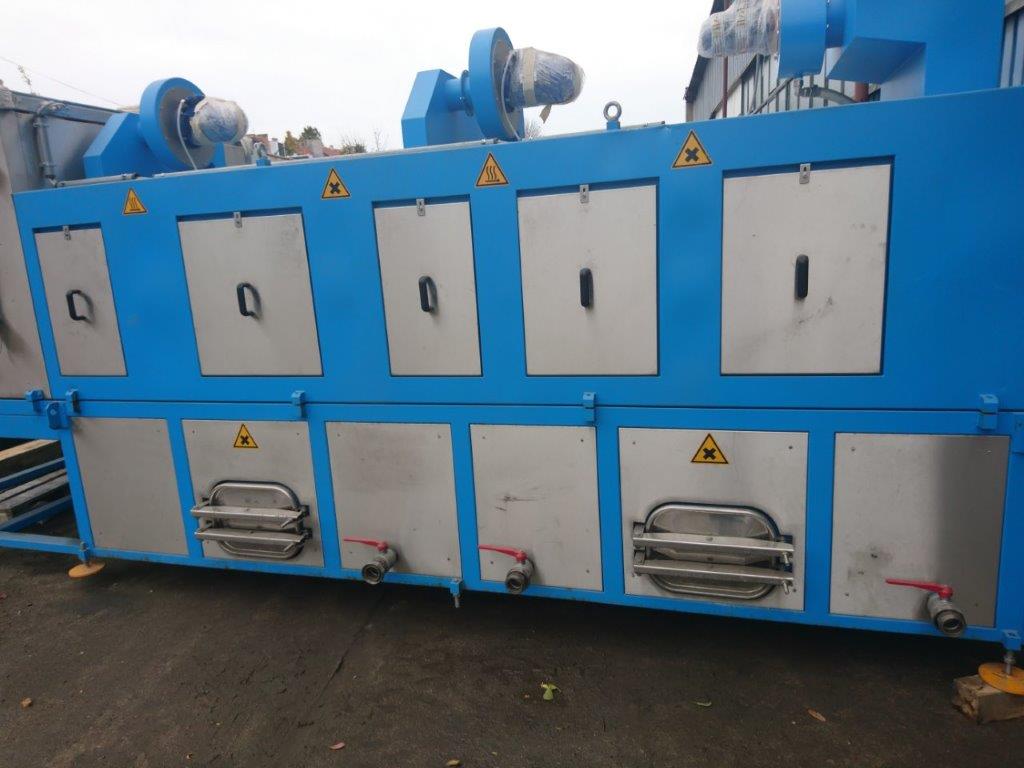

Industrial roller washing machine

Description:
Industrial roller washing machine designed for continuous operation with washing, rinsing, and drying stages. Unit is out of use with connection and testing possible. The machine has never operated; the customer canceled the contract. Dedicated to continuous processing of bearing rings, with possibility of adaptation to other production processes.

Key Components & Features:
Continuous-operation roller washing system.
Washing, rinsing, and drying stages.
Built for Fe pieces (rings).
Technical assessment, relocation, assembly, and adaptation to customer-specific equipment/processes available within the E.U.
Building materials: AISI 304 stainless steel for parts in contact with treatment phases; carbon steel for other parts.
Loading by customer with conveyor.
Unloading by customer with conveyor.
All treatment times, temperatures, and advancement speeds can be regulated.

Manufacturer: ILVET s.r.l.
Year: 2013
Location: Poland - SECO/WARWICK Warehouse

Capacity / Output:
Pieces to be treated: Fe pieces (rings)
Piece dimensions: min 180 mm, H = 10 mm; max 400 mm, H = 170 mm max
Production per hour: 750 kg
Passage opening: 1100 mm × 300 mm H
Nominal rotational speed of cylinder: step-by-step advancement, variable length, advancement speed 8 mt/1′

Fuel Type: Electric

Power Requirements:
Electric feeding: 400 V / 3 Ph + N / 50 Hz
Auxiliary circuits: 24 V DC
Thermal installed power: 153 kW
Electrical installed power: 7.1 kW

Utilities:
Necessary water: approx. 3800 liters

Process Data:
Pollutant: Oil
Spray washing: recycled with pump, 12 minutes at 80°C
Dripping: with blowing during passage, room temperature
Spray rinsing: recycled with pump, 12 minutes at 60°C
Dripping: with blowing during passage, room temperature
Drying: with recycled air, heated electrically, 12 minutes at 130°C

Overall Dimensions:

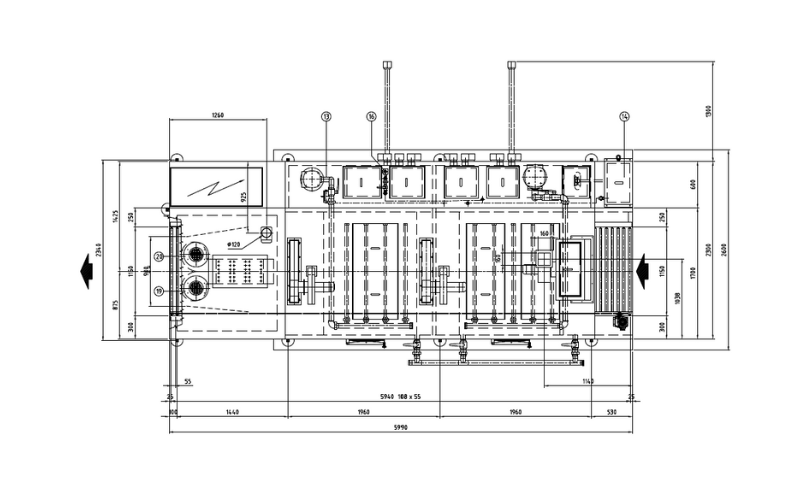

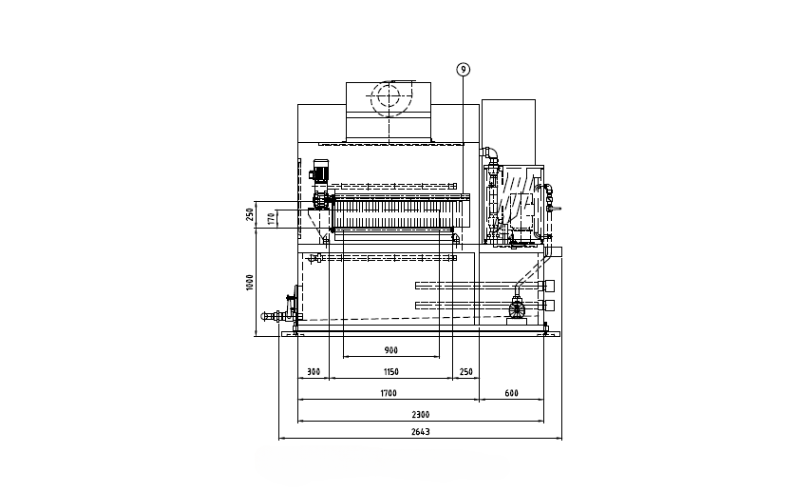

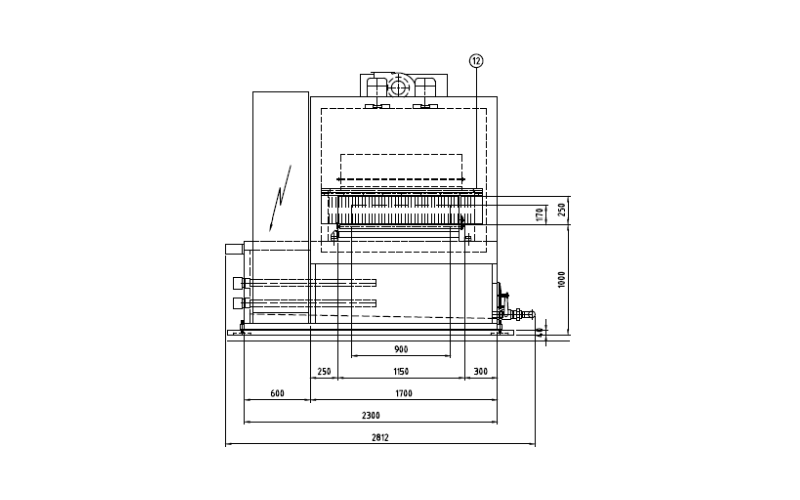

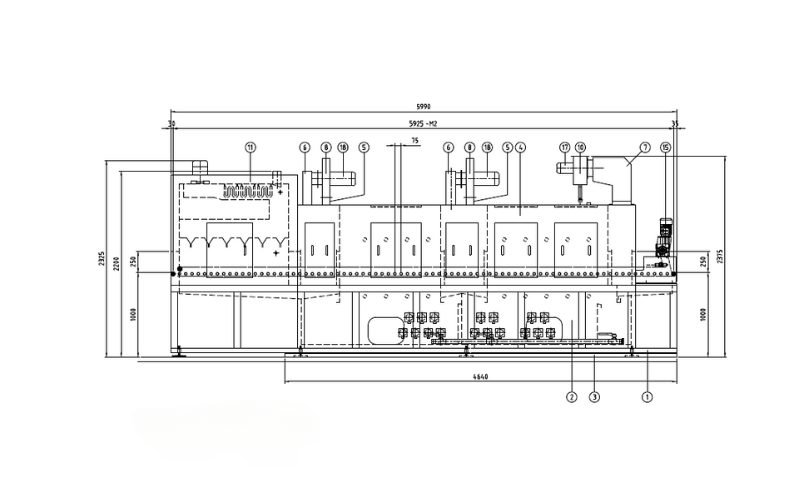

Volume dimensions: See Drawing C-1327L2
Weight: 4200 kg
