Rebuilt 35" Diffusion Pump

CVC Model PMC-32C, 35" Diffusion Pump

Specifications

• Rebuilt condition with a 12 Month warranty.
• Compatible with flanges for Varian HS-35

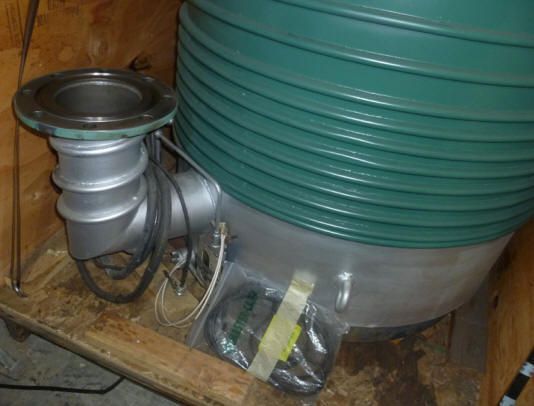

• 35" Throat Diameter. Bolt Circle is approx. 38-3/4" with 14 Holes on approx. 8-9/16" Centers. Flange O.D. is 41-3/4". O-Ring Center Diameter is 36-1/8". Approx. 72-3/4" Overall Height (79" on 48" x 48" shipping pallet). Note: Mating 35" Cryo-Baffle is also available for improved low-range vacuum and elimination of backstreaming (See Item# 3161 Below). 6" Foreline with approx. 9-1/2" Bolt Circle with 8 Holes on approx. 3-5/8" Centers. 1/4" dia. O-ring is approx. 8-7/8" diameter to center.
• Shipping Wt. with pallet approx. 2050 lb.
• Price in Warranty Rebuilt Condition, Painted: $ 8,200.00 (with existing working elements.)
• Location: Coeur d'Alene, Idaho 83814

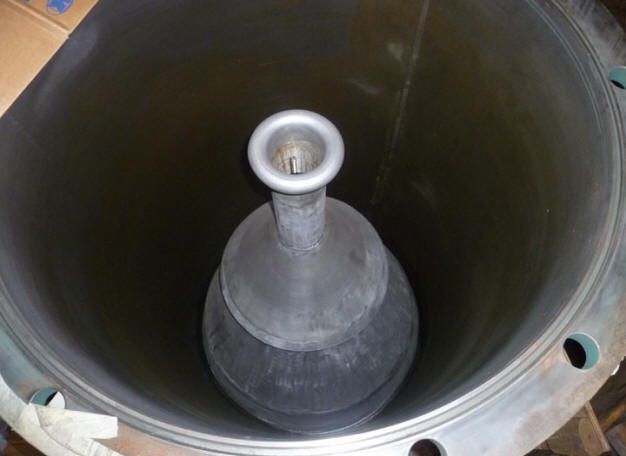

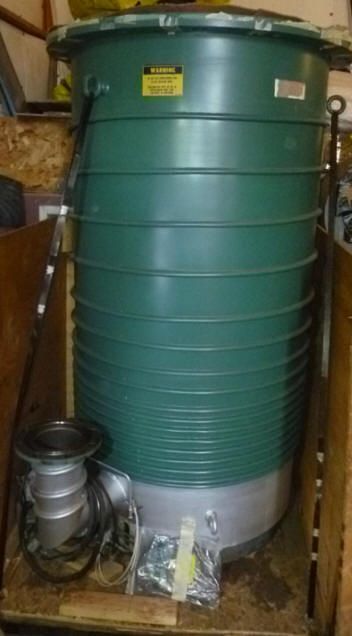

• Photos show pump after rebuild.
