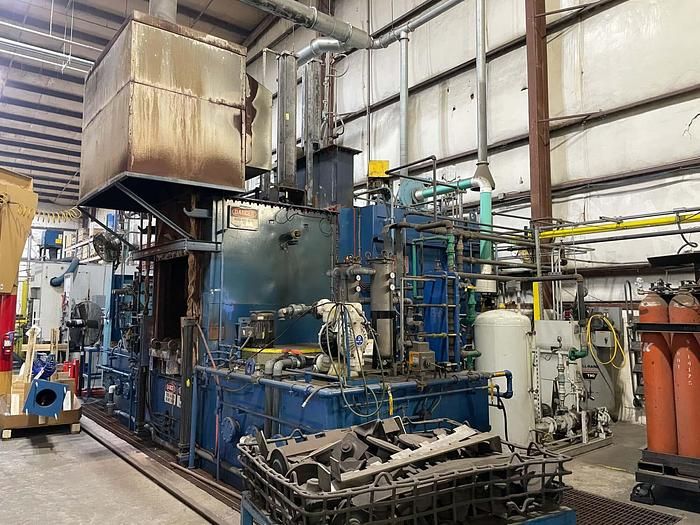

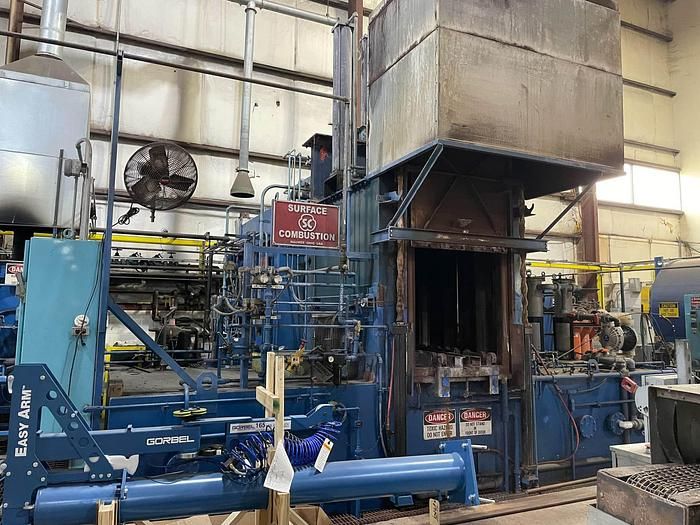

Surface Combustion Super Allcase Integral Quench Furnace, 36"W x 36"H x 48"L, Gas, 1800°F

Description: Surface Combustion Super Allcase Integral Quench Furnace, 36" W × 36" H × 48" L. Gas-fired integral quench furnace designed for heat treating applications up to 1800°F.

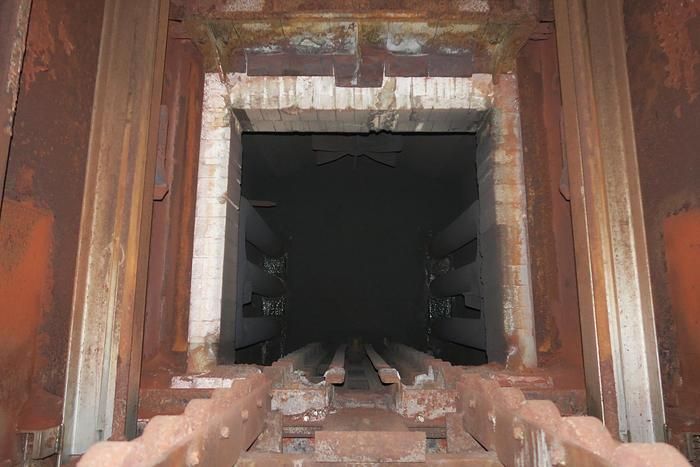

Key Components & Features: Eclipse burners. Trident tubes. Alloy roller rail hearth. Alloy circulating fan. Dual quench cylinders.

Manufacturer: Surface Combustion Model No.: Super Allcase – 36 48 36 Serial No.: BC-44631-01

Fuel Type: Natural Gas – 3175 CFH Capacity / Output: 36" W × 36" H × 48" L Maximum Temperature: 1800°F

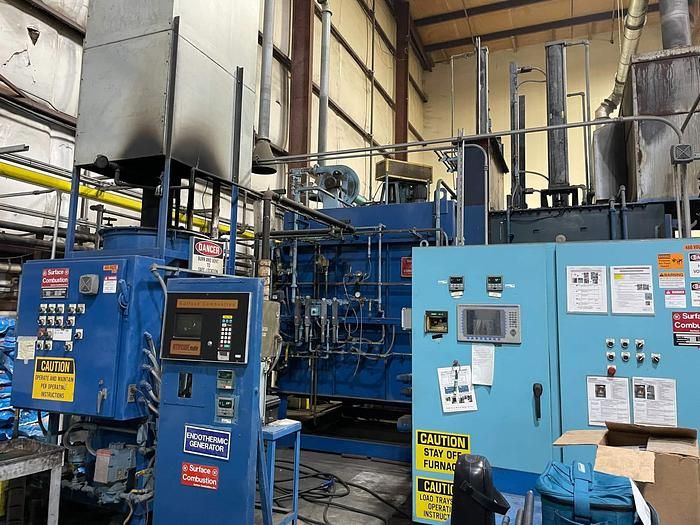

Control Panel: Control panel mounted to quench tank Temperature Controls: Honeywell UDC digital temperature controls Controls: Allen Bradley PLC with HMI

Overall Dimensions: 10' Wide × 12' High × 15' Long (approx.)
