Surface Combustion Super Allcase Integral Quench Furnace, 36"W x 36"H x 48"L, Pro Electric, 1750°F

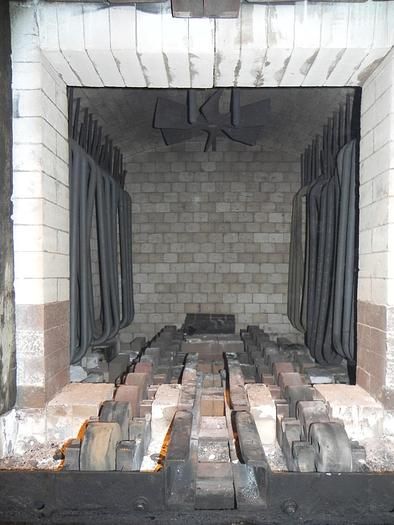

Description: Ipsen T8 Integral Quench Furnace. Rebuilt brick-lined internal quench furnace (straight thru) designed for gas-fired heat treating applications up to 1850°F. Includes load and unload tables.

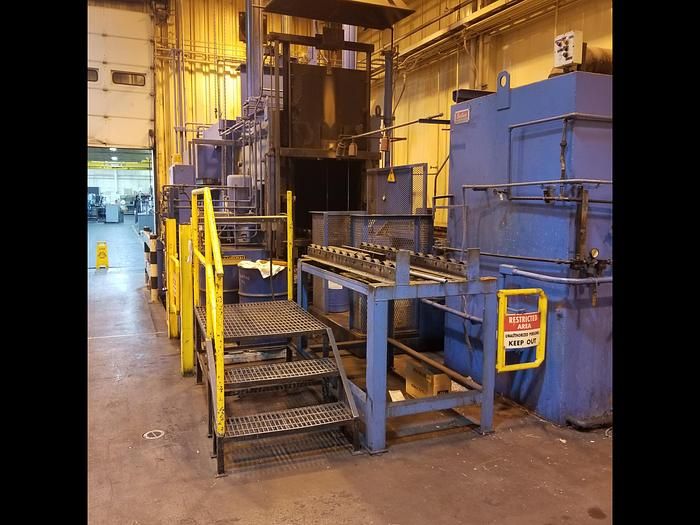

Key Components & Features: Brick-lined internal quench furnace. Two (2) zones of control. Two (2) top-mounted alloy circulating fans. Dual oil agitators. SBS air cooler. Waukee flowmeters (air, endothermic gas, natural gas). Load table and unload table included.

Manufacturer: Ipsen Model No.: T8-1200 DGM Serial No.: 55096

Fuel Type: Natural Gas Capacity / Output: 24" W × 18" H × 36" L work area; two (2) zones Maximum Temperature: 1850°F

Control Panel: Free-Standing Control Panel Temperature Controls: SSI Digital Temperature Controllers (one per zone) Safety Controls: Honeywell Digital High Limit Atmosphere Control: SSI Carbon Control System

Overall Dimensions: Furnace: 10’ Wide × 17’ Long × 10’ High Load Table: 42” Wide × 10’ Long × 48” High Unload Table: 42” Wide × 9’ Long × 48” High
