T-4 Integral Quench Furnace

MANUFACTURER: IPSEN INDUSTRIES.
TYPE: Controlled Atmosphere, Integral Quench
ATHMOSPHERE: Endo
QUENCH Media: Oil
HEATED: INTERNAL COMBUSTION.
MODEL NUMBER: T-4-600-CG.
SERIAL NUMBER: 58292.
WORK AREA: 36”L x 21.5”W x 18”H.
MAX. TEMPERATURE: 1976 °F.
VOLTAGE: 460 VOLTS 3 PH. 60 HZ.
EXTERNAL DIMENSIONS: 15.09´L x 6.56´W x 7.21´H.

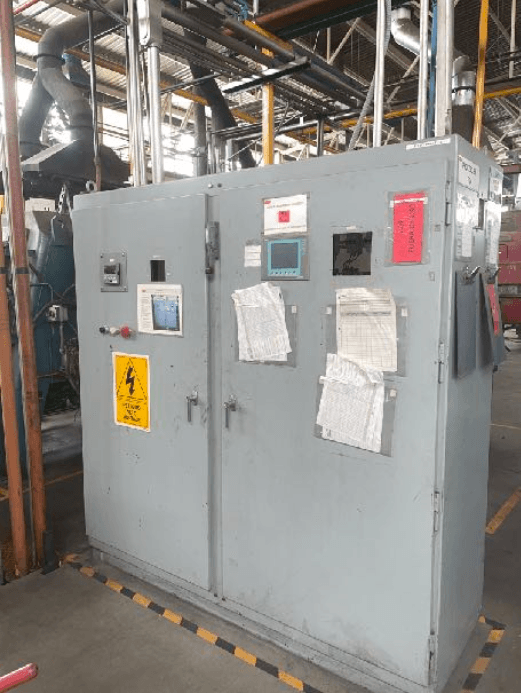

CONTROLS: Free Standing Control Panel with SIEMENS PLC and all required components.

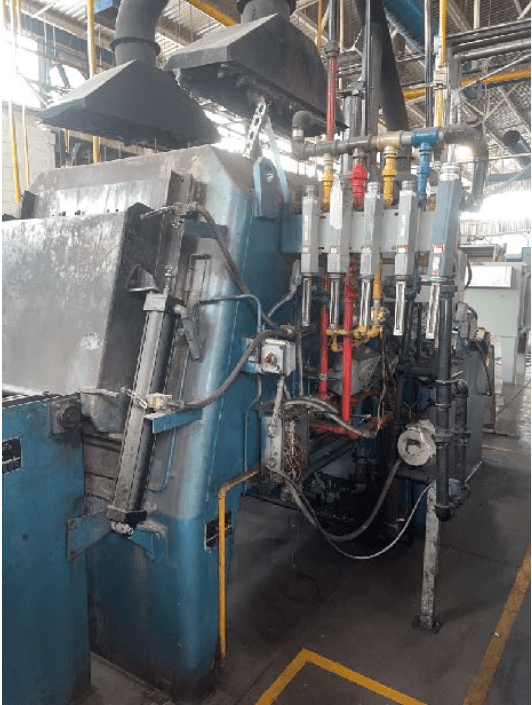

DESCRIPTION: Brick Lined Internal Quench Furnace (Straight Thru) complete with Top-Mounted Alloy Circulating Fans, Dual Oil Agitators, Ipsen Air Cooler, alloy radiant tubes, Oxygen Probe and Waukee Flowmeters. Also included is Load Table.
CONDITION: Furnace was in operation until 12 months ago, currently semi installed. Brick work needs replacing (will remove old brick for easier transportation).
AVAILABILITY: Immediate
Location: Chihuahua, Mexico

$30,000.00
