T-7 Integral Quench Furnace

MANUFACTURER: IPSEN INDUSTRIES.
TYPE: Controlled Atmosphere, Integral Quench
ATHMOSPHERE: Endo
QUENCH Media: Oil
HEATED: INTERNAL COMBUSTION.
MODEL NUMBER: T-7-1000-CGM.
SERIAL NUMBER: 39717.
WORK AREA: 48”L x 28”W x 18”H.
MAX. TEMPERATURE: 1976 °F.
VOLTAGE: 460 VOLTS 3 PH. 60 HZ.

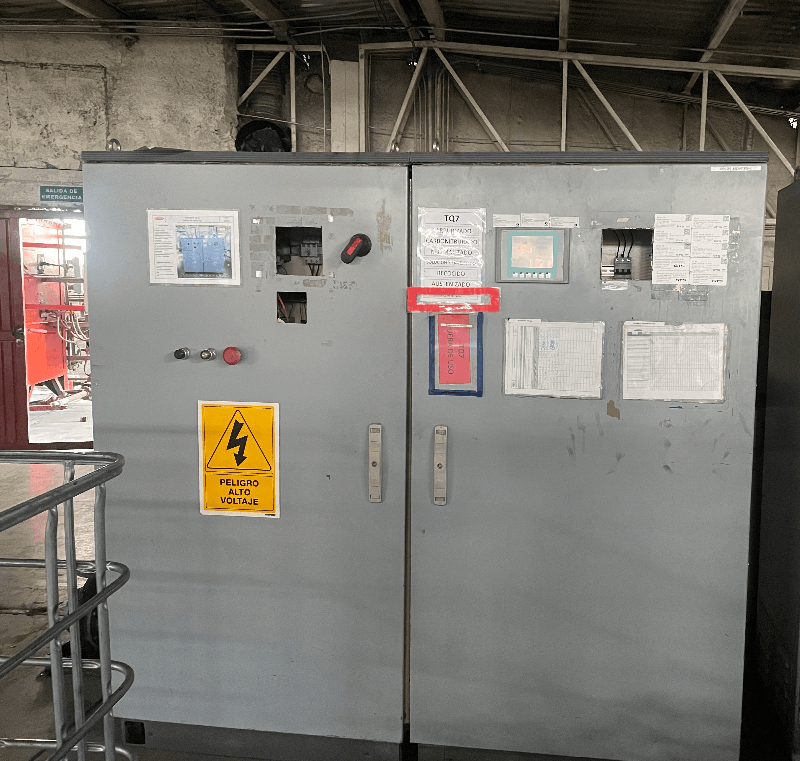

CONTROLS: Free Standing Control Panel with SIEMENS PLC and all required components.

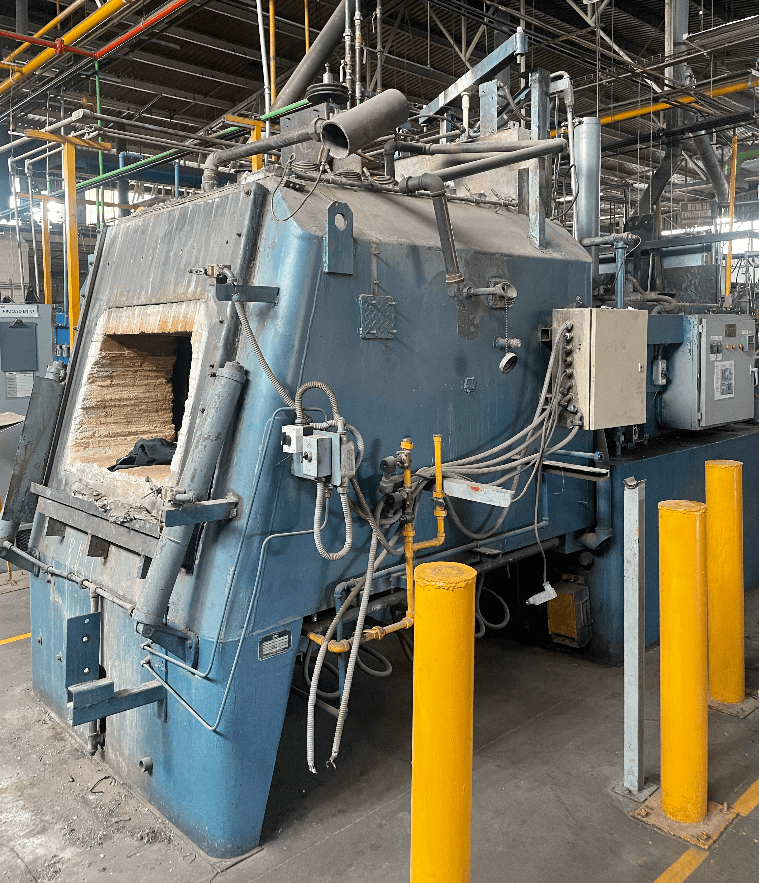

DESCRIPTION: Brick Lined Internal Quench Furnace (Straight Thru) complete with Top-Mounted Alloy Circulating Fans, Dual Oil Agitators, Ipsen Air Cooler, alloy radiant tubes, Oxygen Probe and Waukee Flowmeters. Also included is Load Table.
CONDITION: Furnace was in operation until 12 months ago, currently semi installed. All components present.
AVAILABILITY: Immediate
Location: Chihuahua, Mexico

$35,000.00
