T8 Integral Quench Furnace

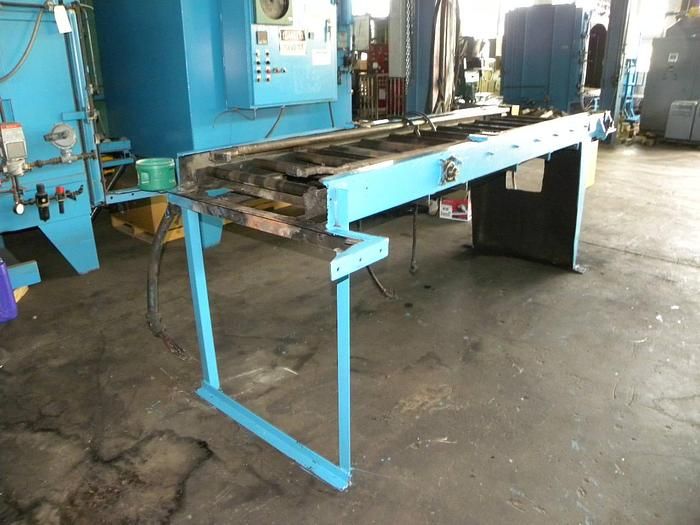

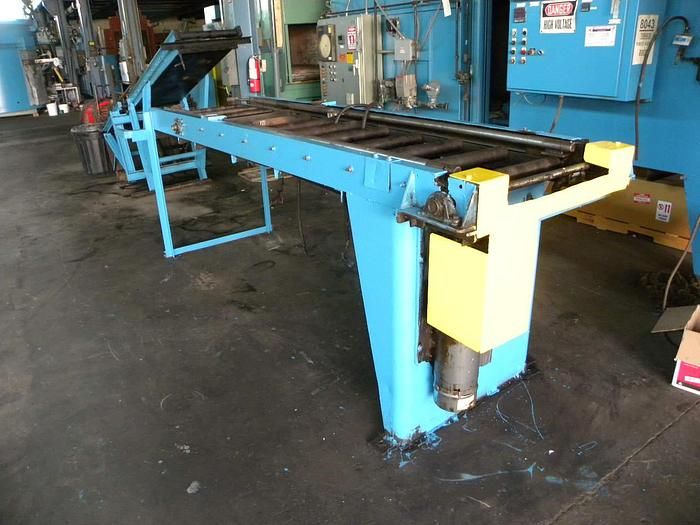

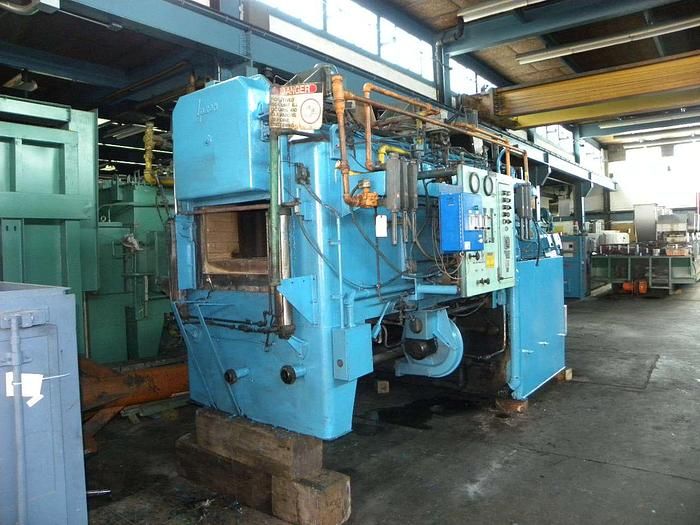

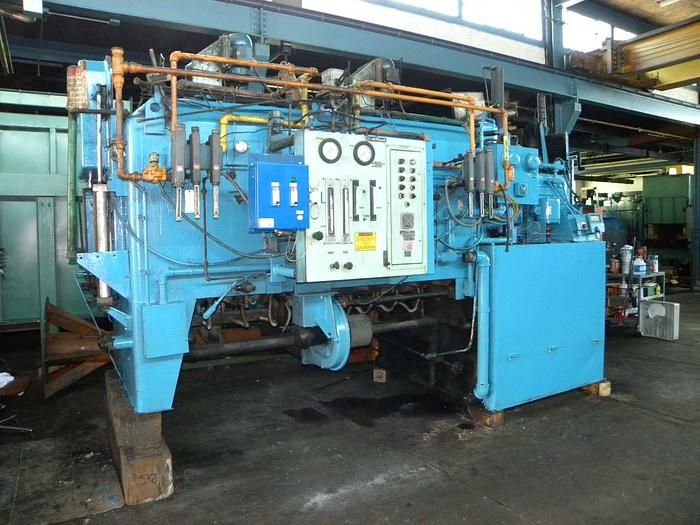

Rebuilt Brick Lined Internal Quench Furnace (Straight Thru) complete with 2 Zones of Control, (2) Top-Mounted Alloy Circulating Fans, Dual Oil Agitators, SBS Air Cooler, and Waukee Flowmeters (Air, Endo, Nat. Gas). Also included is Load and Unload Tables. Furnace – 10’ Wide x 17’ Long x 10’ High Load Table – 42” Wide x 10’ Long x 48” High Unload Table – 42” Wide x 9’ Long x 48” High

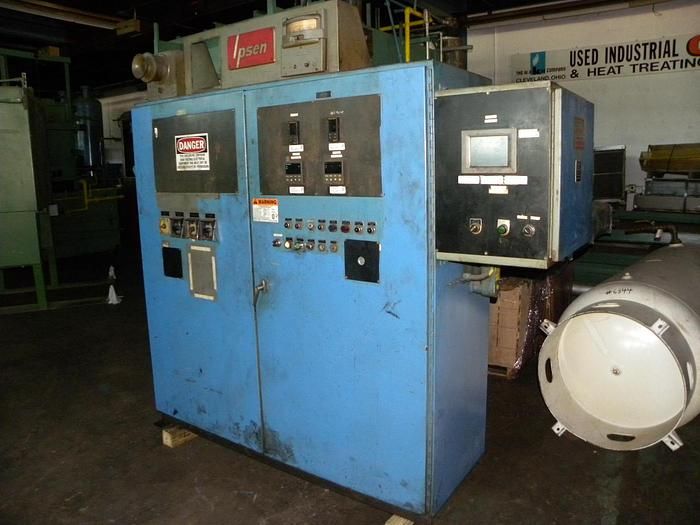

Free Standing Control Panel with SSI Digital Temperature Controllers (1 per Zone), Honeywell Digital High Limit, and SSI Carbon Control System.

Specifications

• Manufacturer: Ipsen
• Model: T8-1200 DGM
• Work area: 24"W x 18"H x 36"L - 2 Zones
• Heated: Natural Gas
• Max temperature: 1850°F
• Voltage: 480/3/60
• Availability: Immediate
