Temper Oven 24″ X 24″ X 48″ 1250F

Description:
Temper Oven, 24" W × 24" H × 48" D. Wisconsin Oven electric temper oven designed for uniform heat treating applications up to 1250°F. Built for aerospace-quality processing with documented temperature uniformity. Manuals and drawings included.

Key Components & Features:

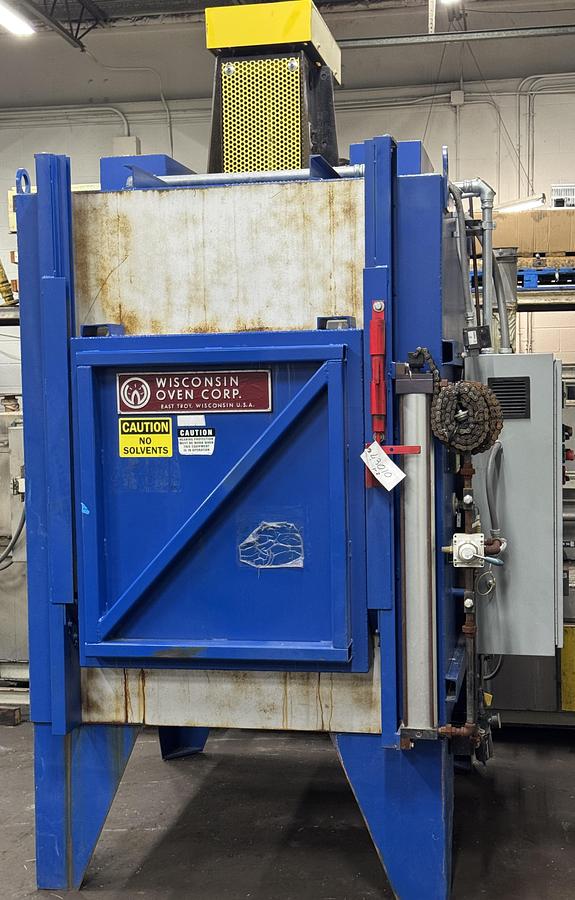

Pneumatically operated vertical lift door with hand operator control valve.

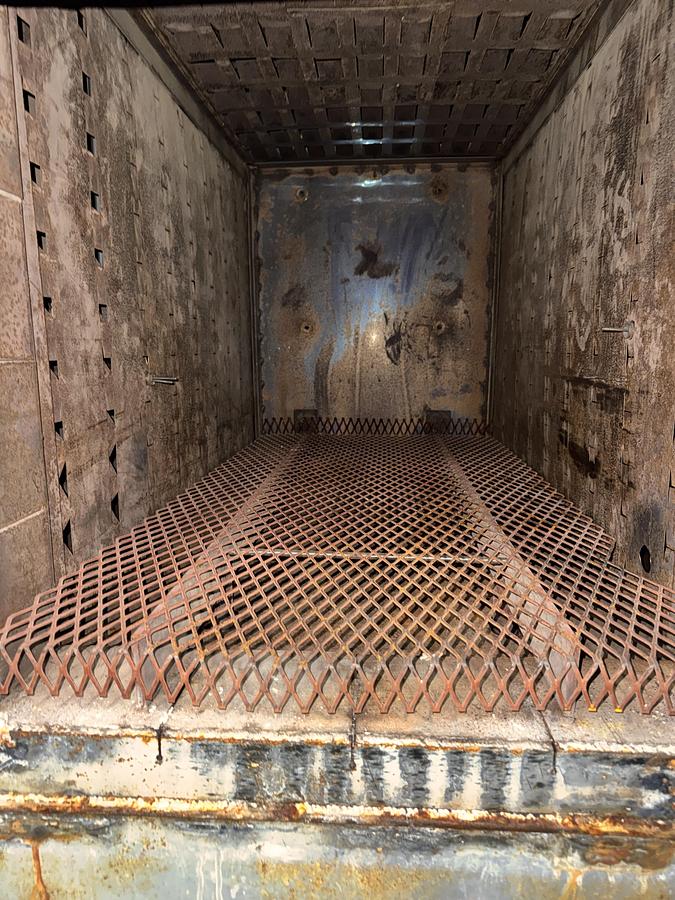

Stainless steel interior with punched louvered side walls and roof air duct walls.
Tubular heating elements mounted through the top behind side wall air duct panels.
Belt-driven circulating fan (4600 CFM @ 7.5 HP) mounted above the work area.
Combined horizontal and vertical airflow pattern for excellent temperature uniformity.
9-point temperature uniformity survey ±10°F at 200°F, 650°F, and 1250°F per AMS 2750E, Class 2, Instrumentation Type D.

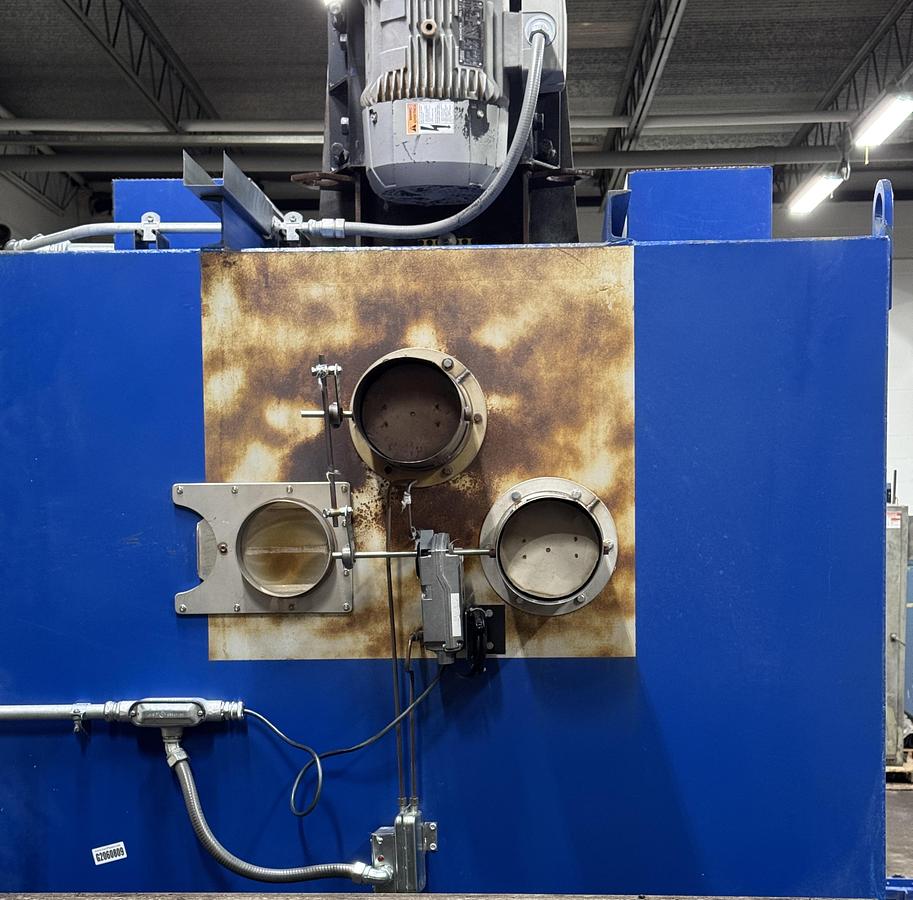

Rear-mounted 6" diameter manual fresh air and modulating fresh air/exhaust ports.
Door limit switch cuts power to heating elements when door is open.
Door frame removed for shipping.

Manufacturer: Wisconsin Oven
Model No.: SDB-448-12E
Serial No.: 09064A1601
Year: 2015

Fuel Type: Electric – 36 kW
Capacity / Output: 24" W × 24" H × 48" D
Maximum Temperature: 1250°F

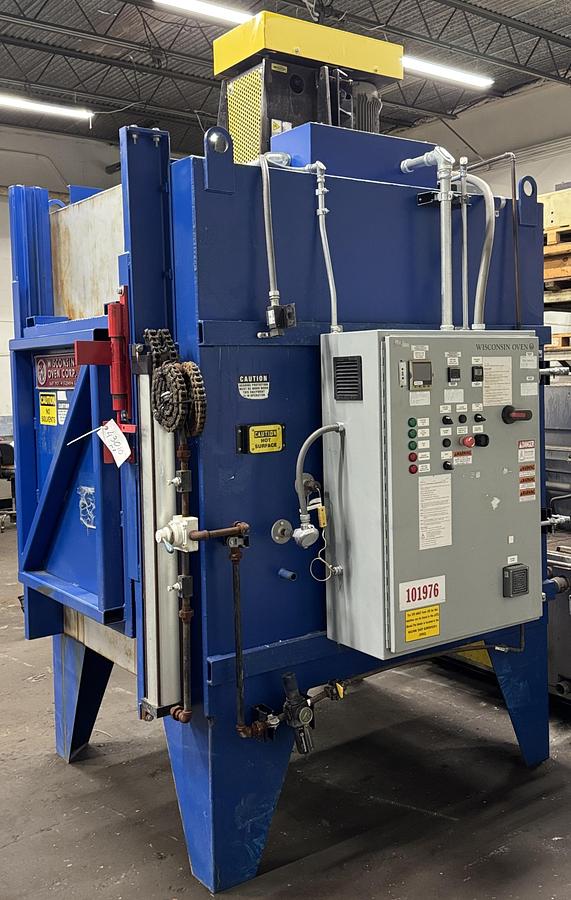

Control Panel: Single-door UL-rated enclosure mounted on right-hand side
Temperature Controls: Nanodac digital temperature controller/recorder
Safety Controls: Honeywell UDC 120L digital process high limit; Watlow EZ-Zone digital high limit
Instrumentation: Omron digital process timer; Watlow Din-O-Mite controller; high-limit contactor; motor starter; fuses and relays

Power Requirements: 480 V / 3 Ph / 60 Hz
