TM Super Series Vacuum Furnace, 12”W x 12”H x 24”L. 2400-F, 2 Bar, Diffusion Pump

Description:
TM Super Series Vacuum Furnace, 12" W × 12" H × 24" L. Horizontal front-loading double-wall vacuum furnace with stainless steel chamber designed for aerospace and precision heat treating applications up to 2400°F.

Key Components & Features:
Horizontal front-loading double-wall vacuum furnace.
Stainless steel chamber.

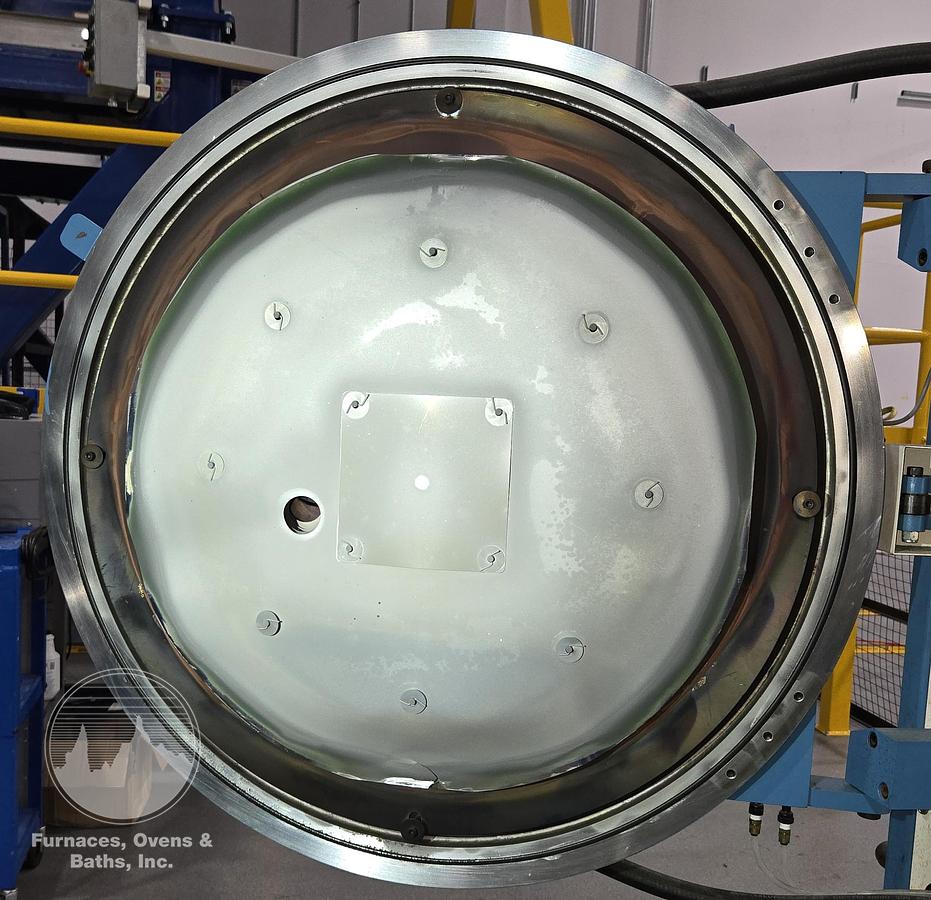

Door with six (6) pneumatically operated clamps for 2-bar pressure.

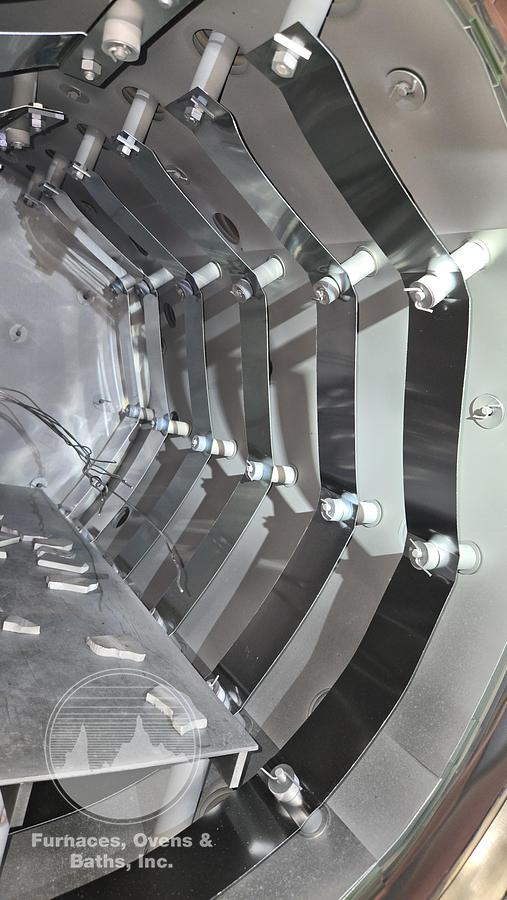

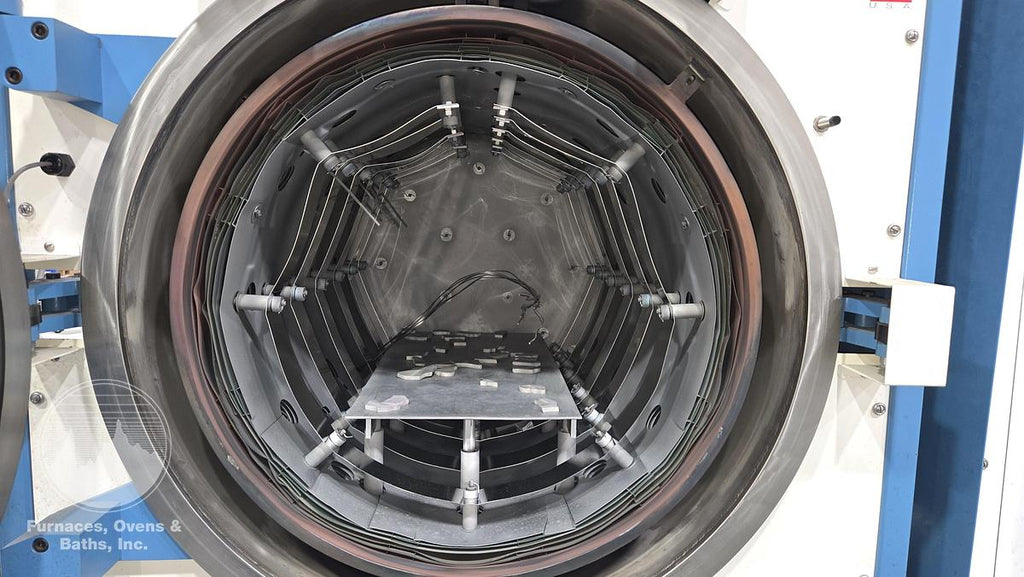

All-metal molybdenum hot zone.
Molybdenum layers backed by stainless steel.
2" molybdenum band-type heating elements.
Molybdenum hearth assembly.
Diffusion pump, mechanical pump, and holding pump.
Cooling system with 10 HP motor and heat exchanger.
Meets AMS 2750H requirements.
Uniformity as of March 2022 when last tested by ATP:
1100°F: -3.8°F to +2.2°F
1700°F: -6.7°F to +2.4°F
2100°F: -10.9°F to +1.7°F

Manufacturer: T-M Vacuum Products
Model No.: SS12/24-18DMX
Serial No.: 1512990916
Year: 2016

Capacity / Output: 12" W × 12" H × 24" L; 200 lb load capacity

Maximum Temperature: 2400°F

Vacuum System: Diffusion pump; mechanical pump; holding pump

Cooling System: 10 HP cooling system with heat exchanger

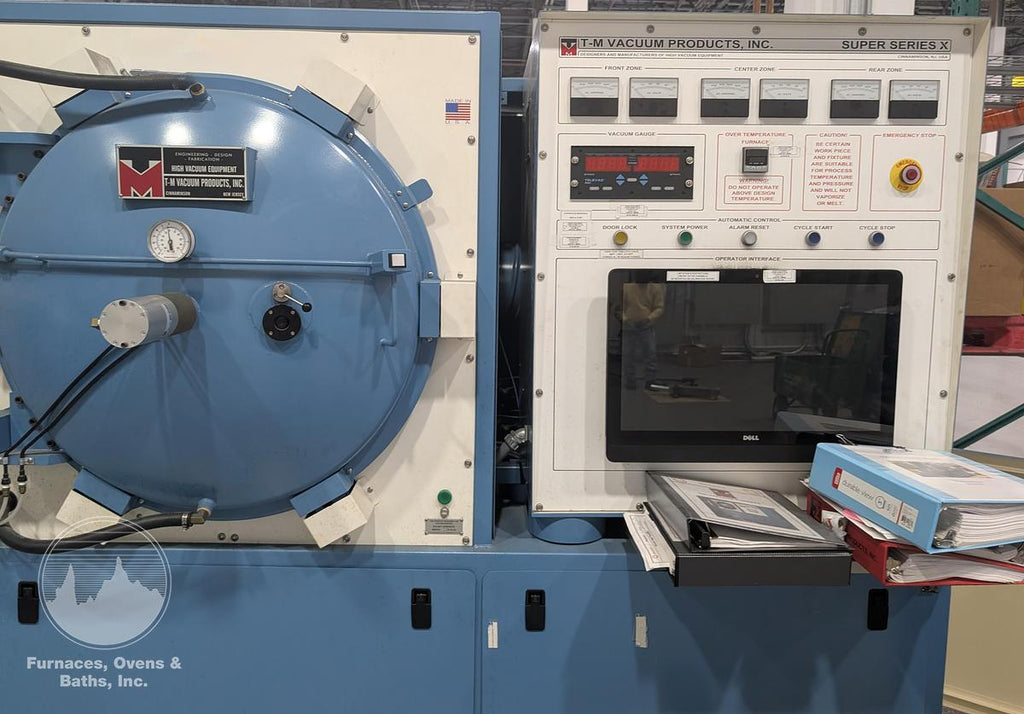

Controls: Allen Bradley PLC with HMI interface
Safety Controls: Partlow digital high limit
Instrumentation: AC amps/volt meters for front, center, and rear zones; Televac vacuum controller
Electrical Components: Three (3) Control Concepts SCR power controllers, one for each zone

Power Requirements: 460 V / 3 Ph / 60 Hz / 150 Amps
