Uni-Draw 30" X 48" X 30"

Description:

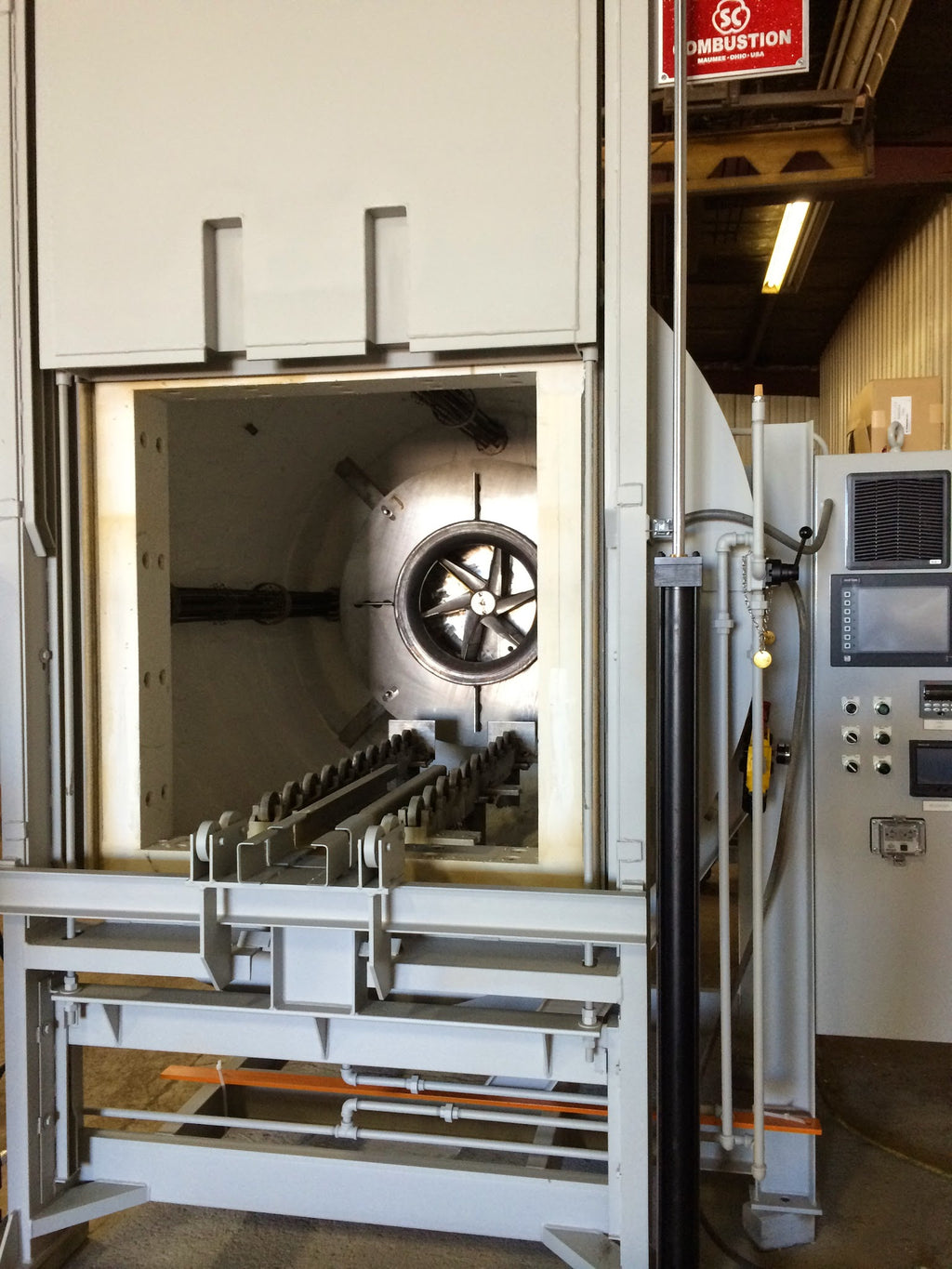

Surface Combustion electrically heated Uni-Draw tempering furnace. Working dimensions of 30" wide × 48" long × 30" high effective with 3,000 lb load capacity. Designed for operation to 1400°F with steady state temperature uniformity of ±10°F from 350°F to 1400°F. Also includes powered load cart. Virtually unused.

Key Components & Features:

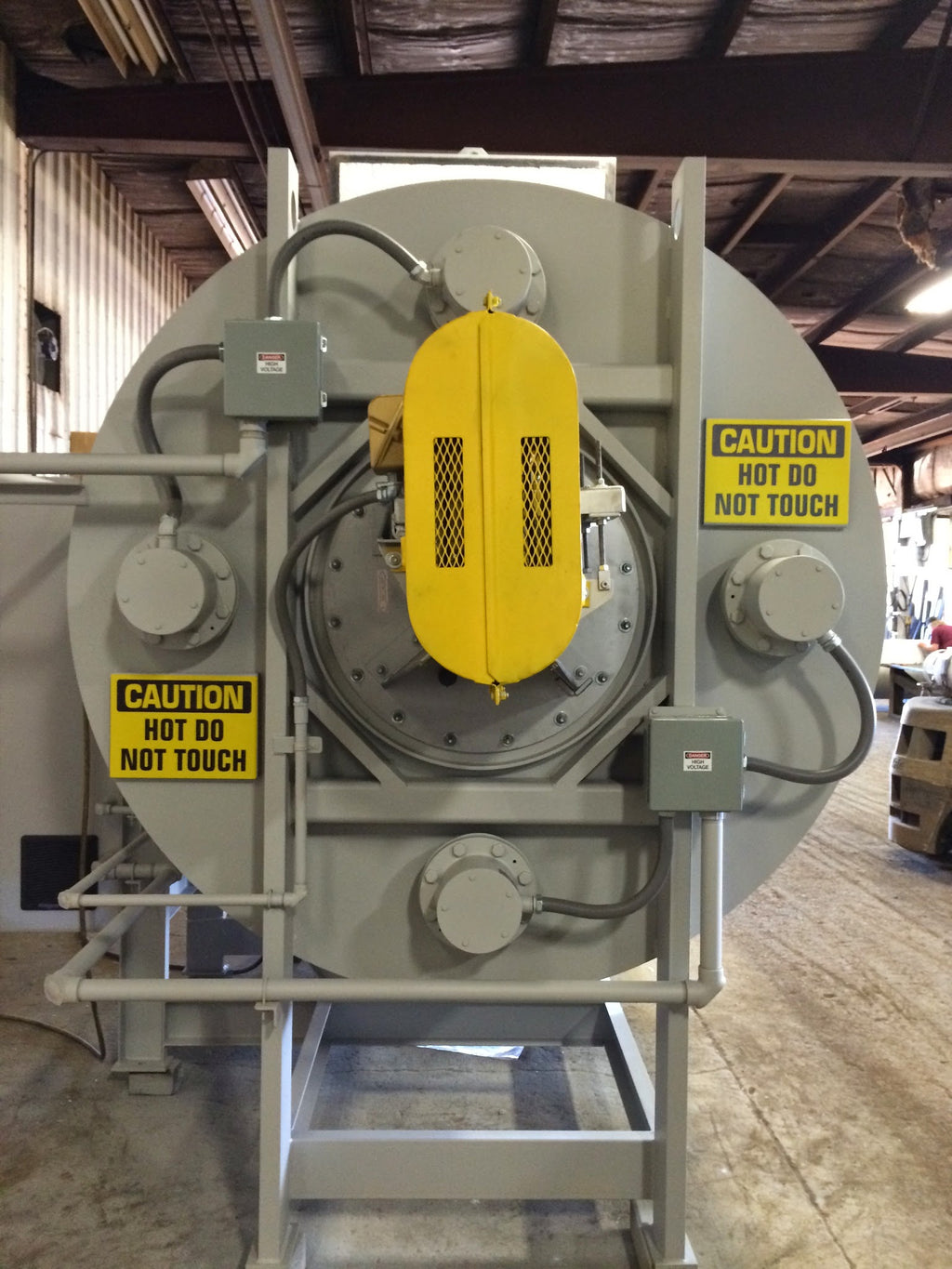

6,200 CFM, 10 HP variable speed recirculating fan mounted on rear wall.
6" modular ceramic fiber wall and door insulation coated with rigidizer.
Pneumatically operated vertical door lift with hand valve control.
Powered load cart included.

Manufacturer: Surface Combustion

Fuel Type: Electric – 90 kW

Capacity / Output:
30" Wide × 48" Long × 30" High effective
3,000 lb load capacity
44 1/2" hearth line

Maximum Temperature: 1400°F

Controls:
C6-T Controller (PLC)
Allen Bradley MicroLogix 1400 PLC
Red Lion Model G310 HMI panel
Remote viewing through web browser
Local trend, alarm, and event tracking files saved in .csv format on Compact Flash memory card

Instrumentation:
Honeywell EZ Trend Recorder

Performance:
Steady state temperature uniformity of ±10°F from 350°F to 1400°F

Power Requirements:
480 V
