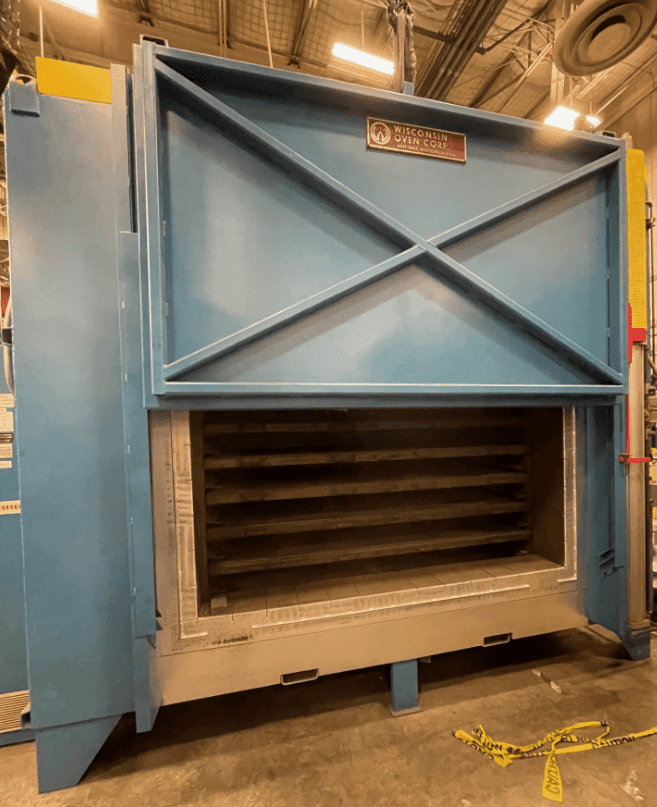

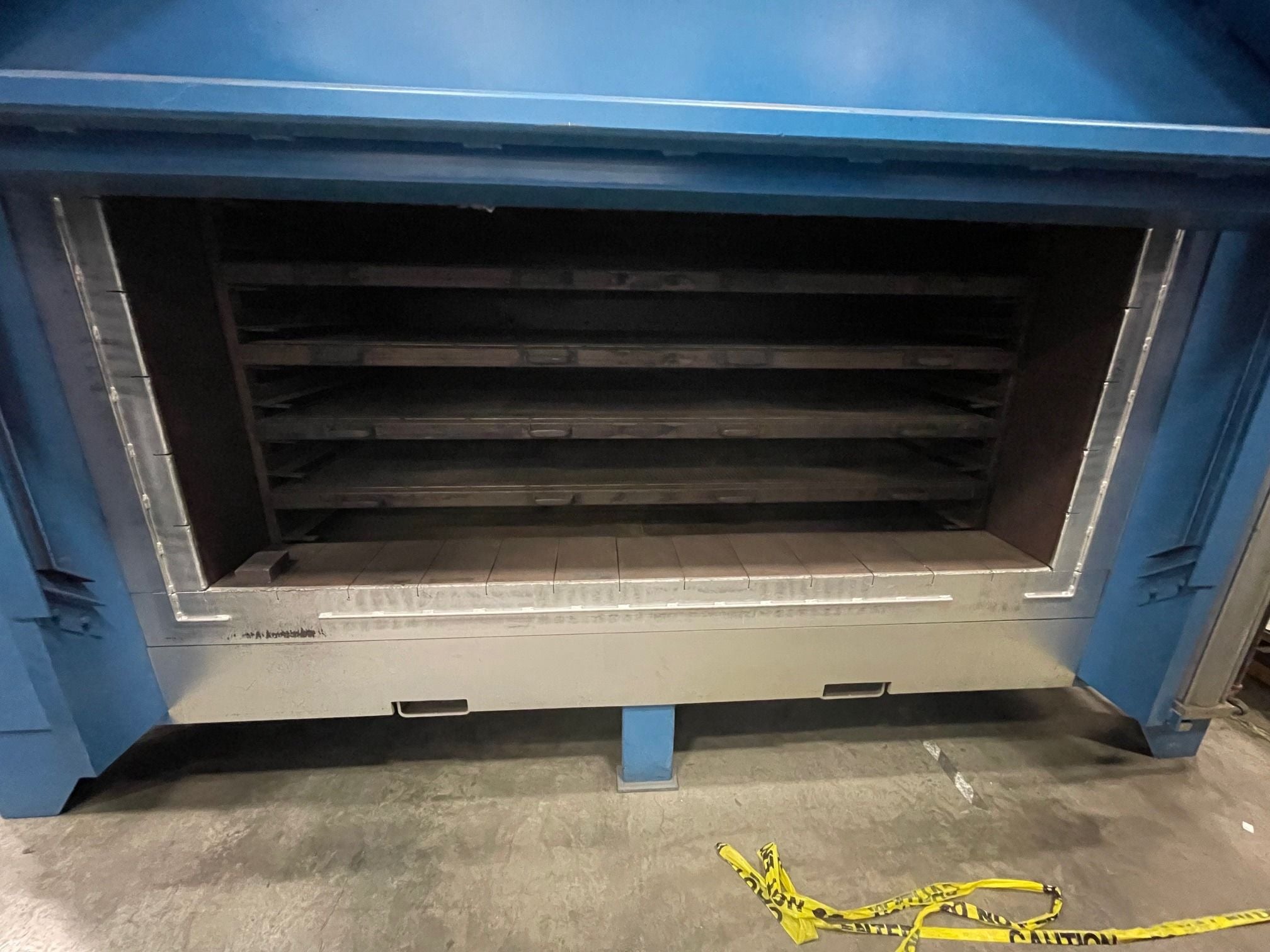

Wisconsin Oven Batch Oven 72″ X 48″ X 48″ 1200F

Manufactured by Wisconsin Oven in 2007 this is an Electric Batch Furnace, Model 7/3/5-E13, Serial Number 106200701;

• Internal useable dimensions: 72” wide x 48” high x 48” deep

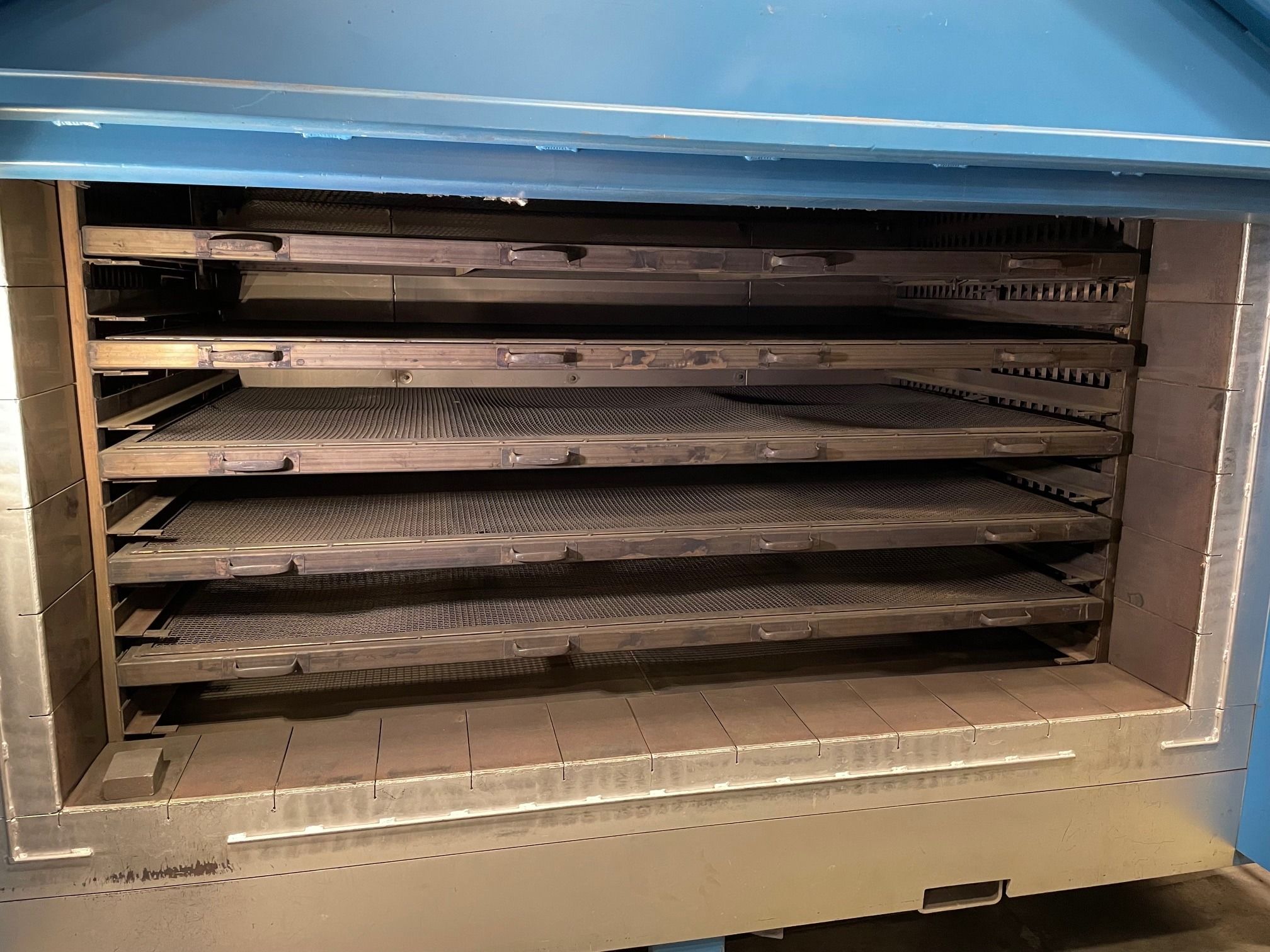

• Fitted with ten (10) removable shelves, 72” wide x 48” deep with 4” separation
• Operating Temperature: 1300° F Maximum, Temperature uniformity: +/- 25° F @ 400° F & 900° F
• Input / Hr.: 144 KW, Voltage: 480/3/60
• Controls: Honeywell with chart recorder

Features and comments · Two (2) 1 hp vacuum pumps and one (1) 10 hp circulation pump · Gate type up acting door – pneumatic with two (2) cylinders. · Overall dimensions: 14’ high x 13’ wide x 6’ deep (approx..) · Approximate shipping weight: 9,500 lbs. · Safety interlocks · Ex-major aerospace facility. Used as “burn off” oven for SPF and diffusion bonding work. · Has seen little use. New cost Was $250,000 in 2007

This furnace is in excellent condition, is complete and ready to go.
