Electric Oven 48" x 48" x 72" 2200F

Description:

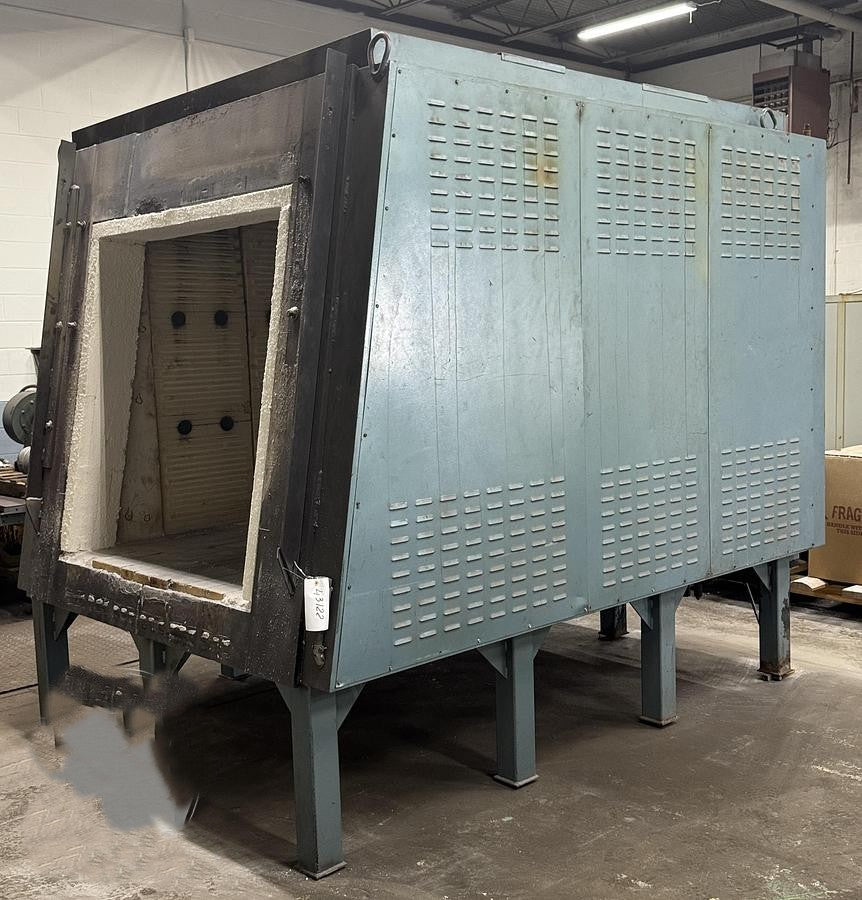

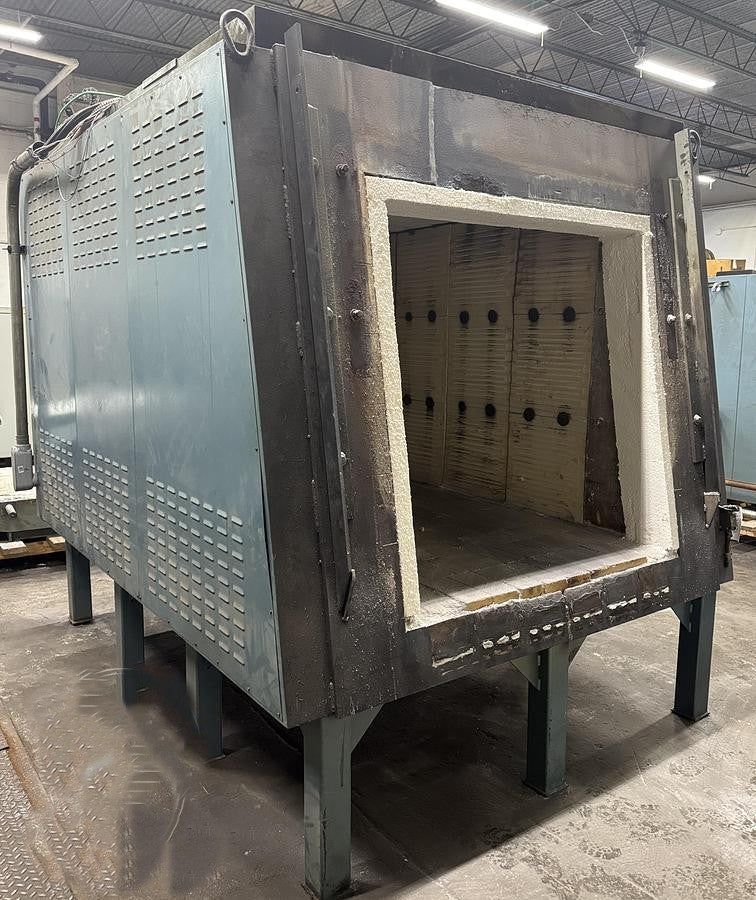

Thermcraft electrically heated furnace with working dimensions of 48" wide × 48" high × 72" long. Designed for operation to 2200°F. Furnace is reported to be complete, in very good condition, and ready to go.

Key Components & Features:
Air-operated vertical lift door with hand operator control.
Door limit switch cuts power to heating elements when door is open.

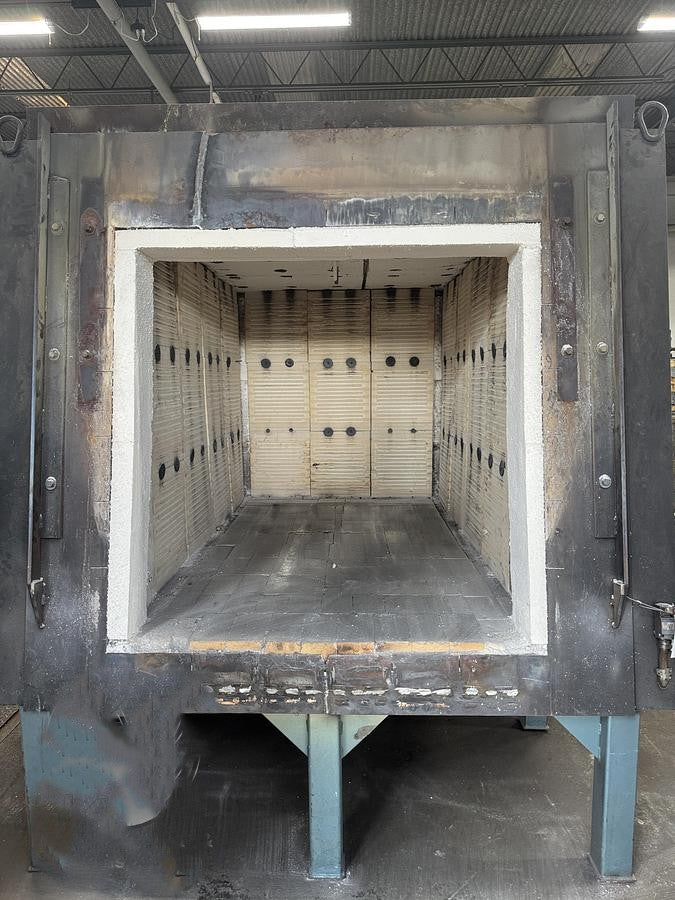

Heating elements located on both sidewalls and rear wall.
Spare heating elements included.
Spare door cylinder included.
Manuals and drawings included.

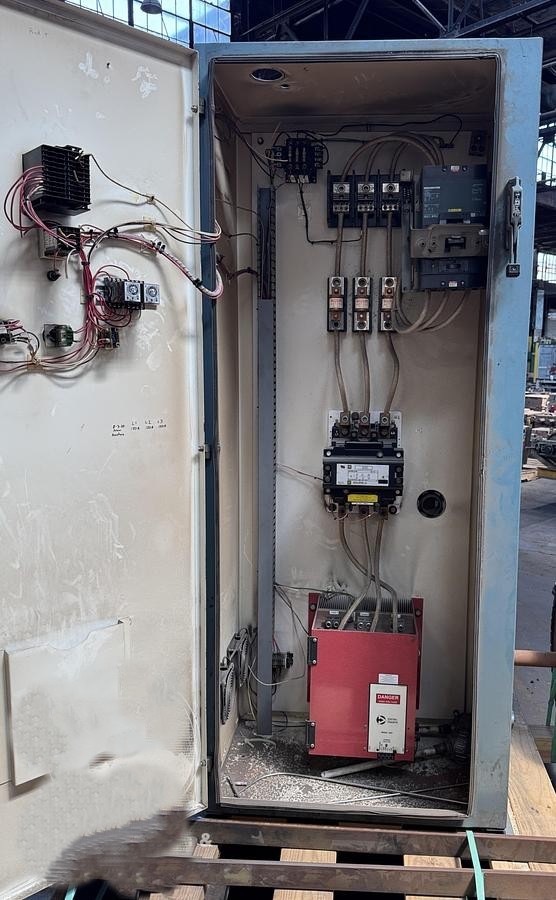

Free-standing control enclosure with fused disconnect.

Manufacturer: Thermcraft
Model No.: FBM-48-48-72-1F-J9852-1A
Serial No.: 089852/1

Fuel Type: Electric

Capacity / Output: 48" Wide × 48" High × 72" Long

Maximum Temperature: 2200°F

Power Requirements:
480V / 3 Ph / 60 Hz
180 kW
217 FLA

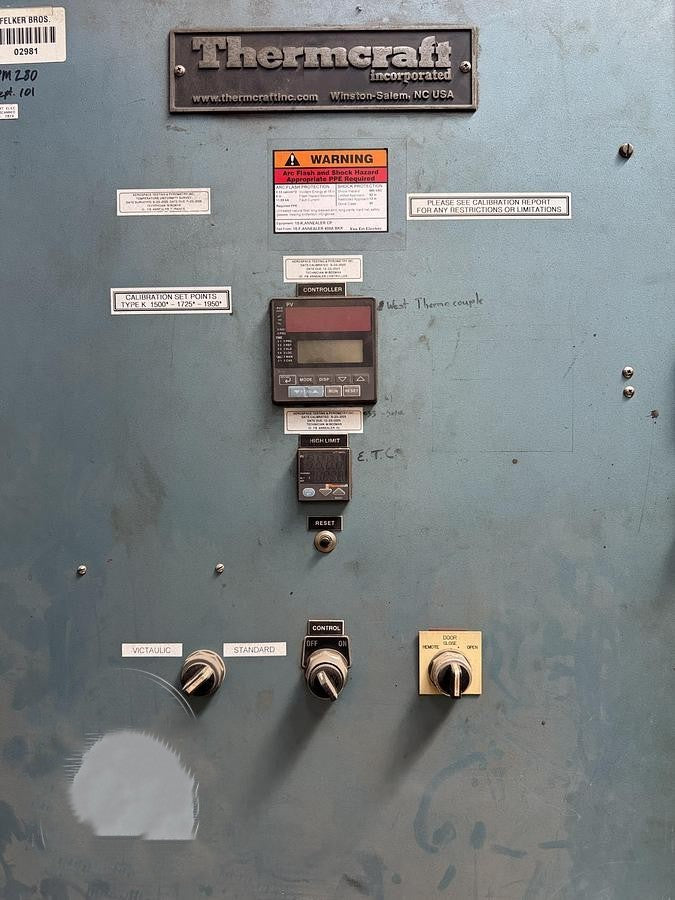

Control Panel: Free-Standing Control Enclosure

Controls:
Yokogawa UP-550 Digital Programmable Temperature Controller
Control Concepts SCR Power Controller

Safety Controls:
Yokogawa UT150L Digital High Limit
High limit contactor
Door limit switch

Overall Dimensions: 7' Wide × 10' High × 7' Long
