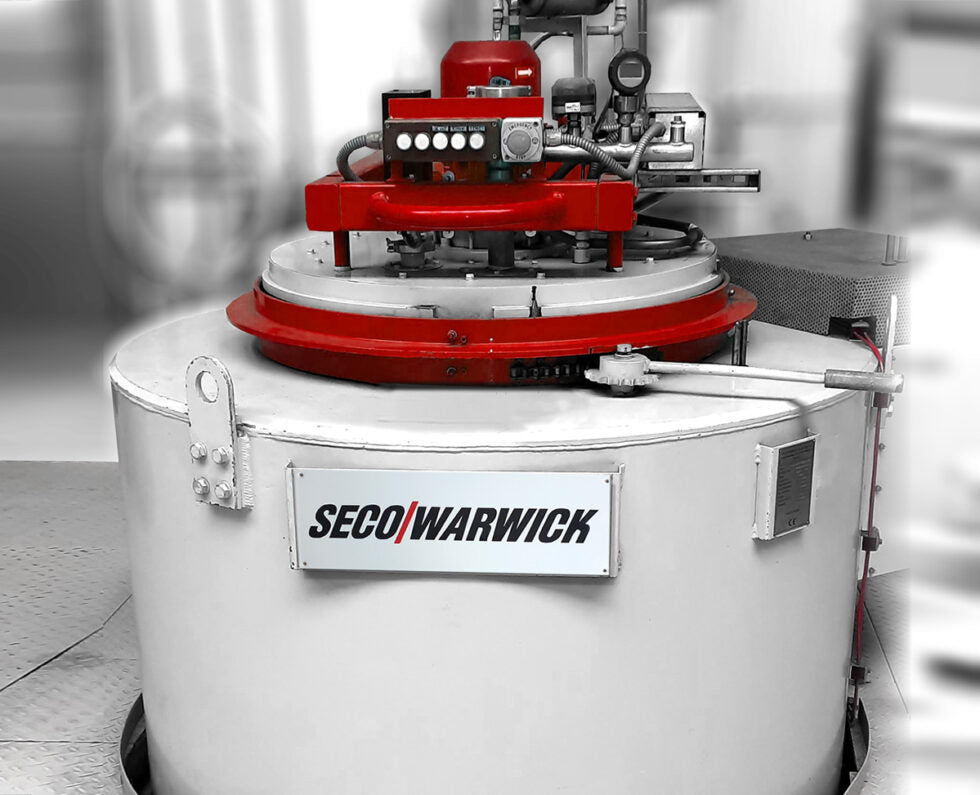

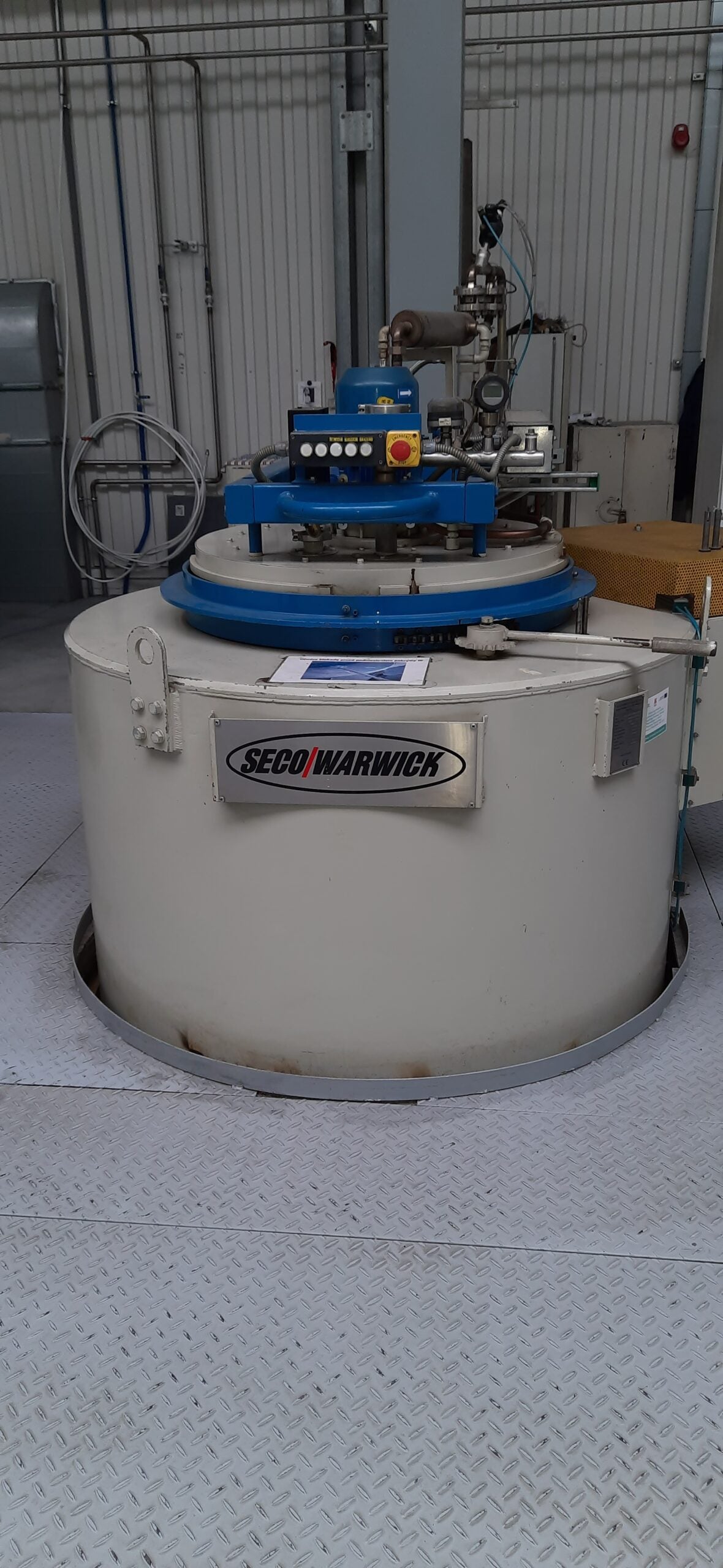

RETORT ELECTRIC PIT FURNACE

Description:
Retort electric pit furnace VRNe-60.100-650-5-ZF designed for heat and thermo-chemical treatment of steel structural elements. Intended for nitriding in Zero Flow technology, nitriding with controlled N2 flow, tempering, and oxidation. Heat treatment processes take place in a sealed retort with forced protective atmosphere circulation by means of an atmosphere mixer and steering system. Includes a free-standing gas cabinet and control board with automation, switchgear, and protection units. Ready for relocation. Technical assessment, relocation, and installation within the E.U. are available.

Key Components & Features:
Sealed retort design.
Protective atmosphere forced circulation inside retort.
Atmosphere mixer and internal steering cylinder.
Free-standing gas cabinet.

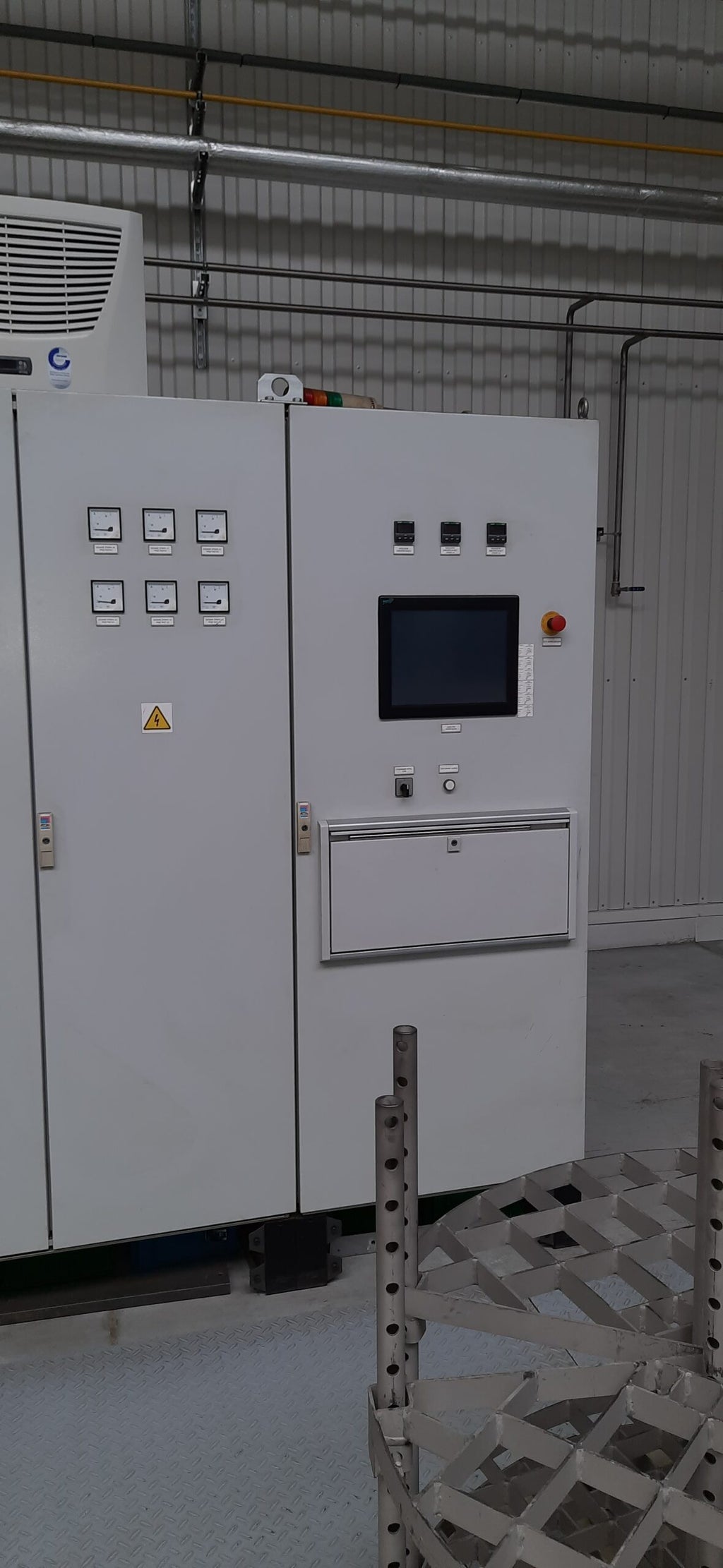

Control board with automation, switchgear, and protection units.
Two heating zones.
Heating elements arranged around retort.

Manufacturer: SECO/WARWICK
Model No.: VRNe-60.100-650-5-ZF
Year: 2014
Location: South Poland

Fuel Type: Electric

Capacity / Output:
Load weight: 500 kg
Useful heating chamber diameter: 600 mm
Useful heating chamber height: 1000 mm

Maximum Temperature: 650°C

Power Requirements:
Maximum power consumption: 60 kW
Heating elements power: 50 kW

Utilities:
Ammonia: 1.5 bar, 99.998% purity, 1.62 m3/h
Nitrogen: 1.5 bar, 99.999% purity, 3.50 m3/h
Methane: 50 mbar, 0.34 m3/h
Compressed air: 3 bar, 0.30 m3/h
Cooling water: 1.5 bar, 18–32°C inlet temperature, 1.50 m3/h
Emergency cooling water: 3 bar, 1.50 m3/h

Construction:
Housing material: carbon steel
Ceramic insulation: ceramic non-woven fabric
Retort material: INCONEL 600
Retort volume: 0.7 m3
Maximum retort pressure: 1150 mbar

Fans:
Atmosphere circulation fan: 1450 rpm, 2.20 kW
Retort cooling fan: 1450 rpm, 2.20 m3

Heating Elements:
Material: KANTHAL D
Heating zones quantity: two (2)
Arrangement: around the retort

Controls:
Operator panel: Wanderware TPCE
Logic controller: Simatic S7-300
Digital temperature safety controllers: ASCON

Instrumentation:
Thermocouple type: K
Hydrogen analyzer: Analyzer H2 Ssi

Performance:
Temperature distribution in useful space: ±5°C
Ambient temperature: max. 35°C
Air humidity: 5–95% without condensation

Weight:
Approx. 3500 kg
