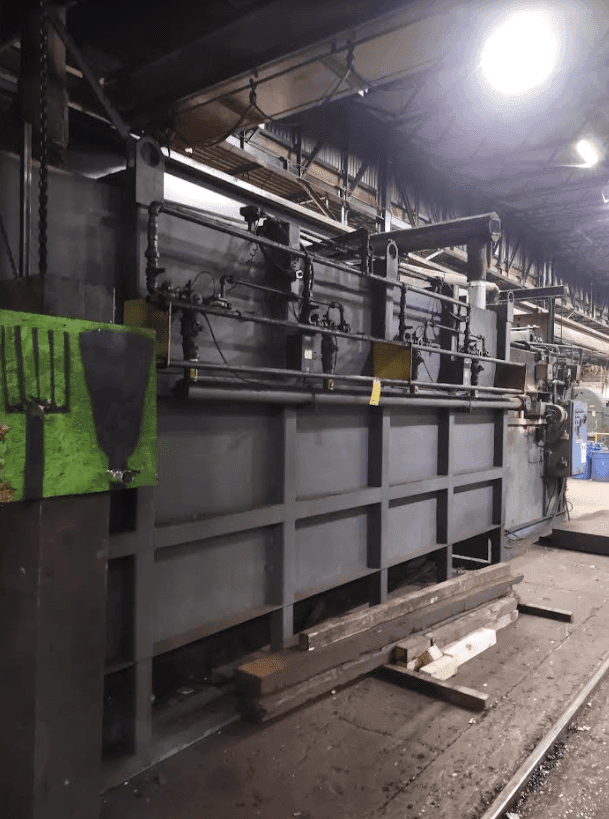

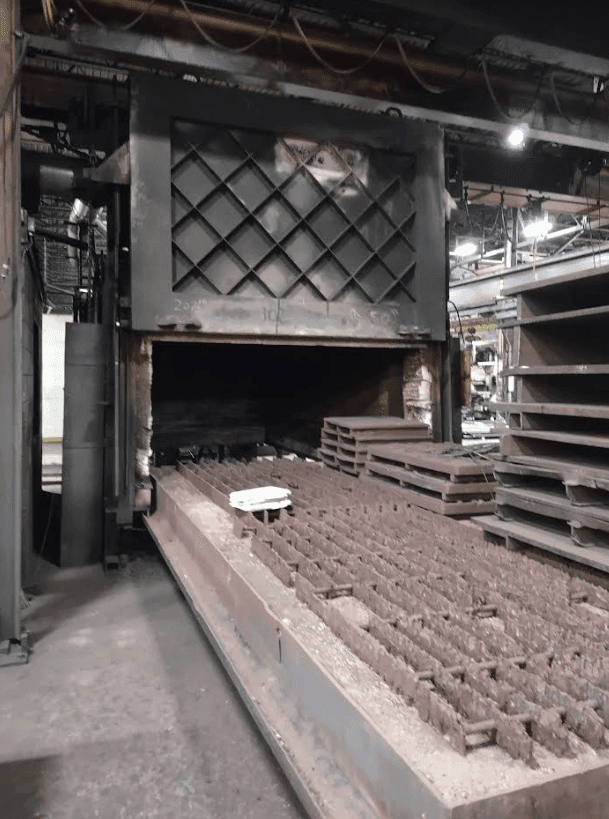

1700F Carbottom Furnace 8′ X 17′ X 4′

Manufactured by “Coreco” this is a gas fired carbottom furnace, Model #9617.

Working dimensions of 8″6″ Wide X 17′ Long X 4′ Hight Gas fired 3.6 MM BTU’s 480Volt/3 Phase/60 Cycle Maximum Operating Temperature of 1700F

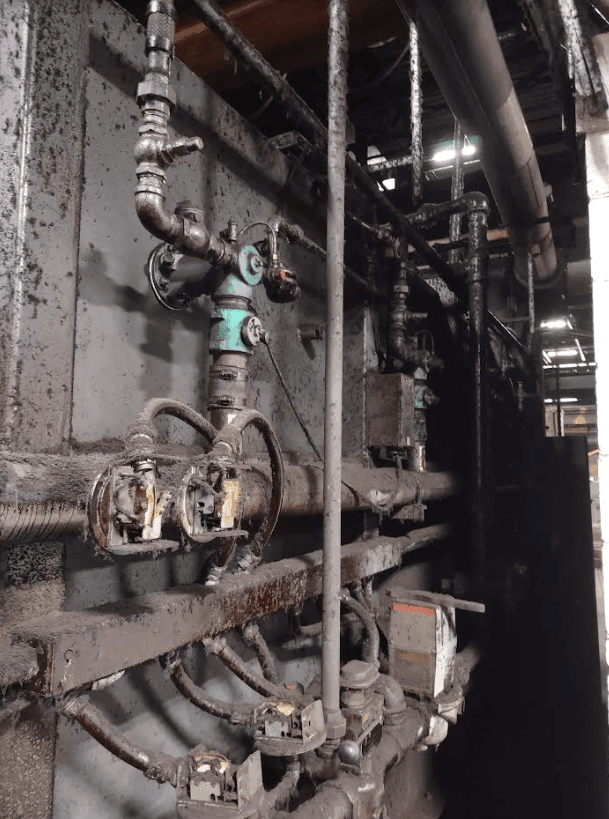

General Description: Fiber lines furnace with 8 eclipse burners, model 82MGTA burners, vertical lift powered slant door, cable winch powered car with refractory floor and attached bottom sand seal.

Controls: Free-standing control panel with Honeywell controller and overtemp Pryonics flame monitoring system.
